Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your roof racks prior to fitting the Ratchet Grab.
•
Place these instructions in the vehicle's glove box after installation is complete.
ITEM COMPONENT
1.
Slot Nut
2.
Washer
3.
Button Head Cap Screw 16 mm
4.
Spring Washer
5.
T-Nut
6.
Button Head Cap Screw 20 mm
7.
Ball End Allen Key 4 mm
8.
Ratchet
9.
Hook And Strap Assembly
6100018455_9831035_Rev1.0

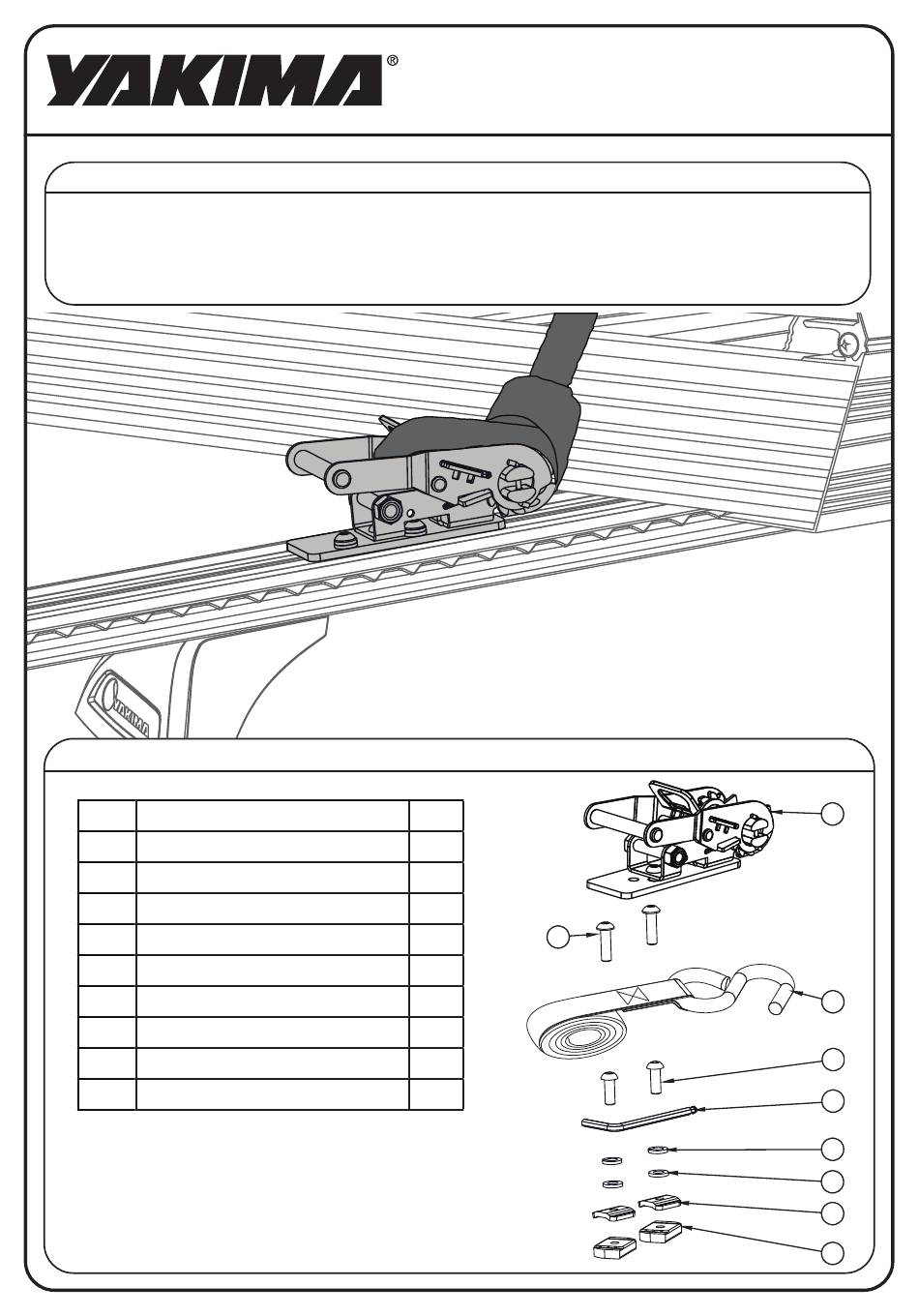

FIRST TIME INSTALLATION
KIT CONTENTS
QTY
2
2
2
2
2
2
1
1
1
Ratchet Grab
6
8
9
3
7
4
2
1
5
1/6
Advertisement
Related Manuals for Yakima 9831035
Summary of Contents for Yakima 9831035
- Page 1 FIRST TIME INSTALLATION • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your roof racks prior to fitting the Ratchet Grab. • Place these instructions in the vehicle’s glove box after installation is complete.
- Page 2 INSTALLATION WITH AERO DECK, LOCKNLOAD PLATFORM AND TRIMHD BARS Assemble 1x spring washer, 1x Pre-thread the slot nuts flat washer onto each 16 mm onto cap screws in the cap screw and insert into holes orientation shown and on ratchet plate. slide ratchet assembly into channel.
- Page 3 INSTALLATION WITH HEAVY DUTY BARS Assemble 1x spring washer, 1x Pre-thread the T-nuts flat washer onto each 20 mm onto cap screws in the cap screw and insert into holes orientation shown and on ratchet plate. place ratchet assembly into bar channel.
-
Page 4: Using The Strap
USING THE STRAP To attach strap, thread it through the slot in the ratchet barrel. To wind strap, work the ratchet handle back and forth. To release strap, open ratchet handle completely and pull strap. 6100018455_9831035_Rev1.0... - Page 5 RECOMMENDATIONS • Check accessory is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust. • Regularly check all fasteners. This includes all attached accessories and roof racks. • Ensure that all loads are distributed evenly across the roof racks and are fastened securely.
- Page 6 YAKIMA AUSTRALIA PTY LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621 yakima.com/support ALL CONTENT SUBJECT TO YAKIMA AUSTRALIA PTY LTD COPYRIGHT © 2024 6100018455_9831035_Rev1.0...
