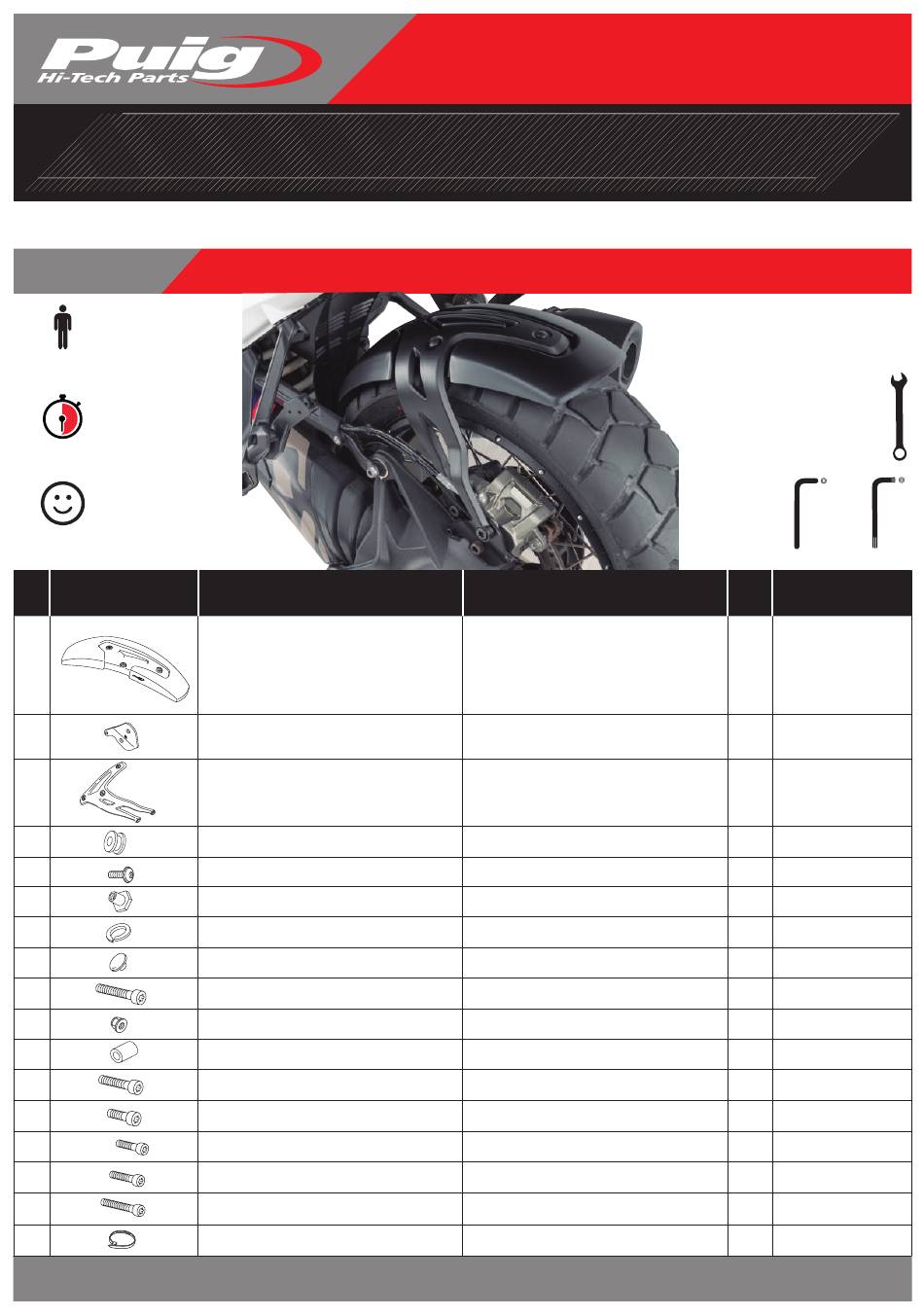

R1300GS '23- / R1300GS ADVENTURE '24-
M
O
RE F 2189 5
1 Person
30 min
EASY
ID
PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
*
Algunos componentes se suministran montados.
Some components are supplied assembled.
U
N
T
I
N
G
G UARDA BA RRO S TR AS E RO / RE AR MU DG UA R D
DESCRIPCIÓN
Guardabarros
Soporte adaptador
Soporte aluminio
Silentblock
Tornillo Allen M5x14 ISO 7380
Casquillo con valona M5
Arandela Grower DIN127 M6
Tapón tornillo M5 ISO 7380
Tornillo torx M10x55 DIN 7984 (10.9)
Tuerca autoblocante M10
Casquillo Ø10,5 xØ14 x20 mm
Tornillo torx M10x35 DIN 7984 (10.9)
Tornillo torx M10x20 DIN 7984 (10.9)
Tornillo torx M6x10 DIN 7984 (10.9)
Tornillo torx M6x16 DIN 7984 (10.9)
Tornillo torx M6x30 DIN 7984 (10.9)
Abrazadera cables negra 100x2,5mm
www.puig.tv
www.puigusa.com
BMW
I
N
S
T
R
DESCRIPTION
Rear Mudguard
Adapter support
Aluminum Support
Silentblock
M5x14 ISO 7380 Allen screw
M5 Bush with flange
DIN127 M6 washer
M5 ISO 7380 screw cap
M10x55 DIN 7984 (10.9) Torx screw
M10 lock nut
Ø10,5 xØ14 x20 mm Arrowhead
M10x35 DIN 7984 (10.9) Torx screw
M10x20 DIN 7984 (10.9) Torx screw
M6x10 DIN 7984 (10.9) Torx screw
M6x16 DIN 7984 (10.9) Torx screw
M6x30 DIN 7984 (10.9) Torx screw
100x2,5mm cables ties
Pg. 1/5
info@puigusa.com
U
C
T
I
O
N
ALLEN
Nº 3
Nº 5
Nº 6
Nº 8
QTY
1
1
1
3
3
3
3
3
1
1
1
1
1
2
1
1
1
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
Nº 17
TORX
T30
T50
REF
21895 J/C M3
SOPOR1P4--21895
SOPORFUN-21895-
SILENBGONE--064
TORNI-I7380-610
CASQUI------517
ARAND-D127--528
TAPON--------85
TORNI-D7984-940
TUEA-D985.8-M10
CASQUI------299
TORNI-D7984-941
TORNI-D7984-942
TORNI-D7984-943
TORNI-D7984-944
TORNI-D7984-946
BRIDAN100X2'5-N
V0.11/24
