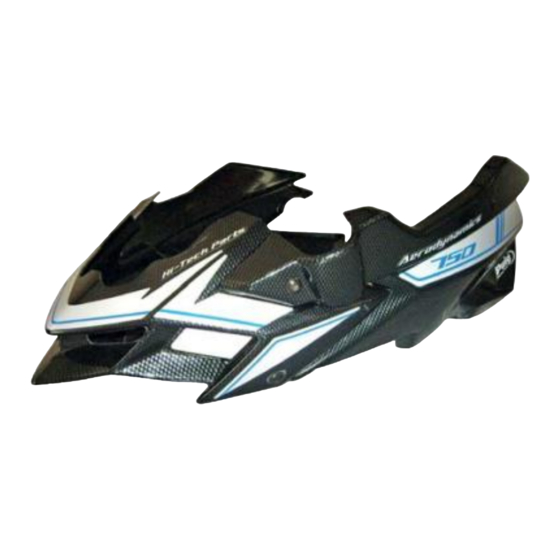

PUIG 5682J Mounting Instructions

PUIG 5682J Mounting Instructions

For suzuki gsr 750

Advertisement

Quick Links

MOTOPLASTIC, S.A.
Molí de la sal, 1 - 08403 Granollers (Barcelona) SPAIN
Tel. 34 93 849 06 33 - Fax 34 93 849 09 88
info@puig.tv
-
info@puigusa.com
www.puig.tv
-
www.puigusa.com
Tornillo original
Original screw
6
Tornillo original
Original screw
Lateral izquierdo-Left lateral
INSTRUCCIONES DE MONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUNG
QUILLA ADAPTABLE A – ENGINE SPOILER FOR – BUGSPOILER FÜR
1
MODELS 2011-2012-2013
8
Tornillo original
5
Original screw
7
Lateral derecho-Right lateral
17
13
11
12
9
SUZUKI GSR 750
2
Tornillos originales
Original screws
4
Tornillo original
Original screw
3
13
11 12
13
11
1
12
17
Lateral izquierdo-Left lateral
Ref.: 5682J
(color negro/black colour)
Ref.: 5682C
(color carbono/carbon look)
2014
MODEL
Tornillo original
Original screw
5
Lateral derecho-Right lateral
9
3
14
10
17
Lateral izquierdo-Left lateral
2
Tornillos originales
Original screws
16
4
14
10
17
