M
O
REF 2122 6
1 Person
40 min
EASY
ID
PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
*
Algunos componentes se suministran montados.
Some components are supplied assembled.
YAMAHA MT09 /SP '21-
U
N
T
I
N
G

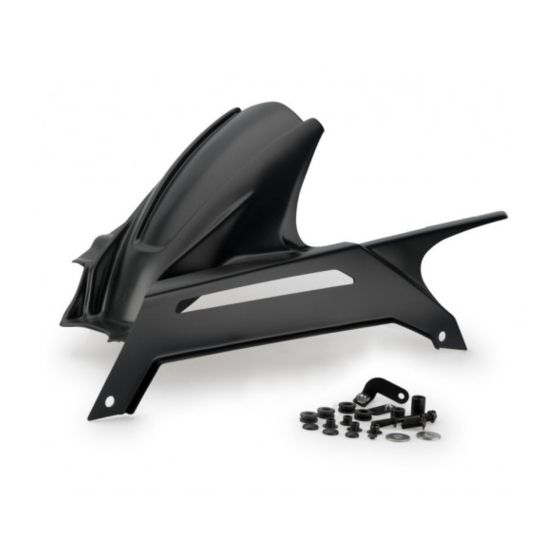

GUARDABARROS TRASERO / REAR MUDG UARD
DESCRIPCIÓN
Guardabarros
Soporte central
Soporte derecho
Tuerca enjaulada de aluminio M6
Tornillo Allen M6x30 Ø11 ISO 7380
Casquillo Ø8,5 xØ14 x12
Casquillo Ø8,5 xØ14 x20
Arandela metálica M8 DIN9021
Tornillo Allen M6x65 DIN912
Tornillo Allen M6x20 Ø11 ISO7380
Tornillo Allen M5x16 Ø11 ISO7380
Tapón tornillo M5 ISO 7380
Tapón tornillo M6 ISO 7380
Silentblock Ø18x Ø9 xØ11 x8
Casquillo con valona Ø15 xØ9 x7,5
Tapón tornillo M6 DIN 912
www.puig.tv
www.puigusa.com
I
N
S
T
R
DESCRIPTION
Rear mudguard
Central support
Right support
M6 lock nut
M6x30 Ø11 ISO 7380 Allen screw
Ø8,5 xØ14 x12 arrowhead
Ø8,5 xØ14 x20 arrowhead
M8 DIN9021 metal washer
M6x65 DIN912 ISO7380 Allen screw
M6x20 Ø11 ISO7380 Allen screw
M5x16 Ø11 ISO7380 Allen screw
M5 ISO 7380 screw cap
M6 ISO 7380 screw cap
Ø18x Ø9 xØ11 x8 silentblock
Ø15 xØ9 x7,5 bush with flange
M6 DIN 912 screw cap
Pg. 1/6
info@puigusa.com
U
C
T
I
O
N
QTY
1
1
1
1
1
1
1
2
1
2
1
1
2
4
4
1
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
ALLEN
Nº 3
Nº 4
Nº 5
Nº 6
REF
21226J/CM3
SOPOR2P4-C21226
SOPOR2P4-R21226
TUERCAJFM6--319
CASQUI------641
CASQUI------659
ARAND-D9021-752
TORNI-912--474
TORNI-I7380-404
TORNI-I7380-493
TAPON--------85
TAPON--------86
SILENBGONE--064
CASQUI-1A---324
TAPON--------88
V0.05/22
