PUIG 9283 Quick Start Manual

PUIG 9283 Quick Start Manual

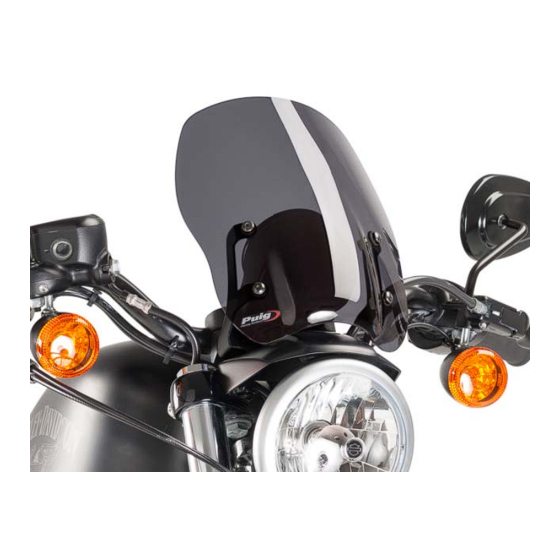

Sport screen for harley davidson sportster custom (xl1200c) 2004- / 883 iron (xl883n) 2009- / 883r (xl883r) 2002- / nightser (xl1200n) 2008- / superlow (xl883l) 2011-

Advertisement

Quick Links

CÚPULA ADAPTABLE A - SPORT SCREEN FOR - WINDSCHUTZCREIBE FÜR
CUSTOM (XL1200C) 2004- / 883 IRON (XL883N) 2009- / 883R (XL883R) 2002- /
NIGHTSER (XL1200N) 2008- / SUPERLOW (XL883L) 2011-
ID.
PIEZA / PART
1
2
3
4
5
6
7
Pg. 1/2
HARLEY DAVIDSON SPORTSTER
DESCRIPCIÓN
Cúpula sport
Soporte metálico derecho
Soporte metálico izquierdo
Tornillo allen M5x16 Ø11 ISO7380
Arandela nylon M5x1
Silentblock M5
Tapón tornillo M5 ISO7380
MOTOPLASTIC, S.A.
Pg de la Ribera, 29 - Granollers (Barcelona) SPAIN
info@puig.tv
-
www.puig.tv
-
Ref.: 9283
1 persona
1 person
DESCRIPTION
Sport screen
Right metal support
Left metal support
M5x16 Ø11 ISO7380 allen screw
M5x1 nylon washer
M5 silentblock
M5 ISO7380 screw cap
Tel. +34 93 849 06 33
info@puigusa.com
www.puigusa.com
ALLEN
Nº 3
Nº 6
Fácil - Easy
Media-Intermediate
Díficil-Difficult
15 min
QTY.
1
1
1
4
4
4
