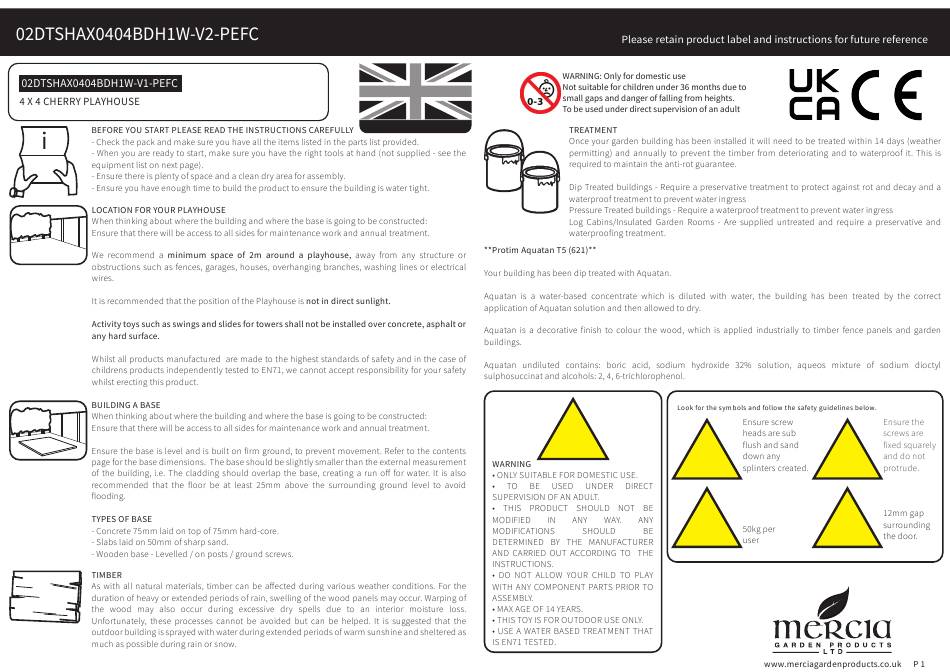

- Page 1 MADE IN GREAT BRITAIN Water proof Preservative 50kg...
-
Page 2: Any Questions
2mm Drill bit ANY QUESTIONS? Scan the QR code to contact us via our customer portal. - Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
- Page 4 Take a look at the di erent playhouse options below which refers to the instruction lea ets required to build each option. Model Build Instructions Required 4x4 Playhouse 02DTSHAX0404BDH1W-V2-PEFC (Playhouse) SI-002-002-0001 02DTSHAX0404BDH1W-V2-PEFC (Playhouse) 4x4 Playhouse With Tower 02DTTWR0605-V1-PEFC (Tower) SI-002-001-0043 02DTSHAX0404BDH1W-V2-PEFC (Playhouse) 4x4 Playhouse With Tower &...
- Page 5 Overall Dimensions: Base Dimensions: End View Width = 1407mm Width = 1170mm Depth = 1229mm Depth = 1110mm Ridge Bar - 28x28x1054mm QTY 1 Height = 1387mm FS2828-1054mm End View Eaves Frame - 28x28x1205mm QTY 2 FS2828-1205mm End View Floor Joist - 28x28x1110mm QTY 4 FS2828-1110mm End View Building Contents:...
-
Page 6: Missing Parts
Missing parts? Before assembly, please make sure you have a suitable base ready to install your building onto. Scan the QR code to visit our customer portal where you can Step 1 quickly raise any missing or Parts needed - &... - Page 7 Step 2 Step 3 Parts needed - & & & Parts needed - & Pre drill Pre drill holes holes Flip the Door Gable (No. 1) over If purchased with a tower please read both so the boards are facing upwards and sets of instructions before beginning place the Door (No.
- Page 8 Step 5 Step 6 Parts needed - & Parts needed - & Pre drill Pre drill holes holes Place the Ridge Bar (No. 8) in Using the same method as in Step 4, Fix the remaining Plain Side (No. 3) between the Door Gable (No.
- Page 9 Step 8 Step 7 Parts needed - & Pre drill Pre drill Position the building square between holes holes Fix an Eaves Frame (No. 9) to each the oor and cladding. Roof Sheet (No. 5) using 5x30mm screws per eave. Fix the building to the oor using 50mm screws as shown in the Position the roof sheets on the build-...
- Page 10 Step 11 Step 10 Parts needed - & Parts Needed - Pre drill holes Locate the Fascias (No. 11) on to Cut the Felt (No. 21) into 2 sheets of the front and back of the 1305mm (L) x 1000mm (W) and lay onto playhouse and x with 2x40mm roof in the order shown.
- Page 11 Step 12 Step 13 Parts needed - & & & Pre drill Once constructed, apply a preserving holes Place the Window Cross (No. 16) treatment and a waterproo ng treatment against the inside of the window. Position to your garden building as soon as the frame centrally to the window and x possible.
- Page 12 ANY QUESTIONS? Scan code contact us via our customer portal.
