Mercia Garden Products 02DTSHPN0606SFD2W-V1-PEFC General Instructions Manual

General Instructions
02DTSHPN0606SFD2W-V1-PEFC

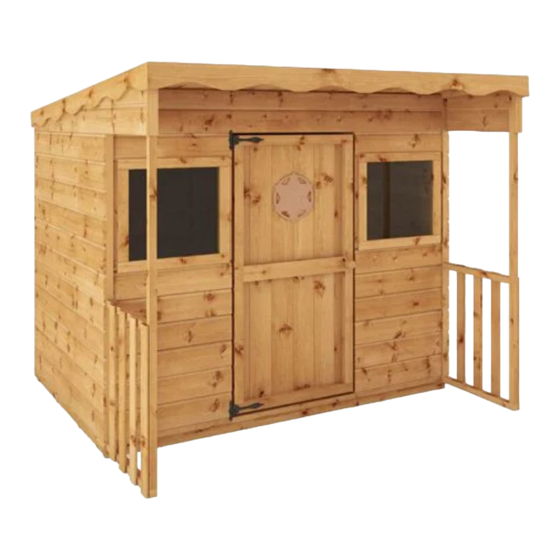

6x6 Pent Playhouse
BEFORE YOU START PLEASE READ THE INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed in the parts list provided.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Flathead screwdriver, Stanley knife, Wood saw, Step ladder, Hammer, Spirit level and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
- Ensure you have enough time to build the product to ensure the building is water tight.
TIMBER
As with all natural materials, timber can be a ected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to natural processes. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of hot weather
and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to prevent discolouration
whilst in stock. To validate your guarantee and ensure longevity of the product, it is ESSENTIAL the
building is treated with a suitable preservative in accordance with the manufacturers recommendations.
Care must be taken to ensure the product is placed on a suitable base.
We recommended using a suitable protection for your playhouse. As the product is destined for use by
children, a water based treatment for childrens toys is ESSENTIAL.
We also recommend treating the building prior to construction.
POSITIONING YOUR PLAYHOUSE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
We recommend a minimum space of 2m around a playhouse, away from any structure or obstructions such as
fences, garages, houses, overhanging branches, washing lines or electrical wires.
It is recommended that the position of the Playhouse is not in direct sunlight.
Activity toys such as swings and slides for towers shall not be installed over concrete, asphalt or any hard
surface.
BUILDING A BASE
Ensure the base is level and is built on rm ground, to prevent distortion, checking with a spirit level. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external measurement of the
building, i.e. The cladding should overlap the base, creating a run o for water. It is also recommended that the
oor be at least 25mm above the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
- Wooden base.
WARNING: Only for domestic use
Not suitable for children under 36 months due to
small gaps and danger of falling from heights.
To be used under direct supervision of an adult
Please retain product label and instructions for future reference
WARNING
•
ONLY SUITABLE FOR DOMESTIC USE.
!
•
TO BE USED UNDER DIRECT SUPERVISION OF AN ADULT.
•
THIS PRODUCT SHOULD NOT BE MODIFIED IN ANY WAY. ANY MODIFICATIONS SHOULD BE
DETERMINED BY THE MANUFACTURER AND CARRIED OUT ACCORDING TO THE INSTRUCTIONS.
•
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY COMPONENT PARTS PRIOR TO ASSEMBLY.
•
MAX AGE OF 14 YEARS.
•
THIS TOY IS FOR OUTDOOR USE ONLY.
•
USE A WATER BASED TREATMENT THAT IS EN71 TESTED
CAUTION
Wood is a natural product and can change post manufacture. So despite every e ort being
made to ensure the material used are cut and machined to a clean and smooth nish, care
must be taken when handling the product and preparing for use by your child.
Any areas of concern, in the play areas, can be rubbed over with sandpaper to achieve a
smoother nish. Alternatively, call the customer service department who will be happy to
arrange replacement panels/parts.
x2 All buildings should be erected by
atleast two adults.
DO NOT ALLOW
CHILDREN TO ASSIST.
To prevent damage during
assembly, you MUST pilot
drill all screw holes and
ensure all screw heads are
2mm Drill bit
countersunk.
12mm CSK
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products
independently tested to EN71, we cannot accept responsibility for your safety whilst erecting this product.
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium
dioctyl sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
In all instances for assistance with your product, please contact customer care on :
01636 821215 or customerservice@merciagp.co.uk
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For ease of assembly, you will
need a tape measure to check
dimensions of components.
www.merciagardenproducts.co.uk P1
