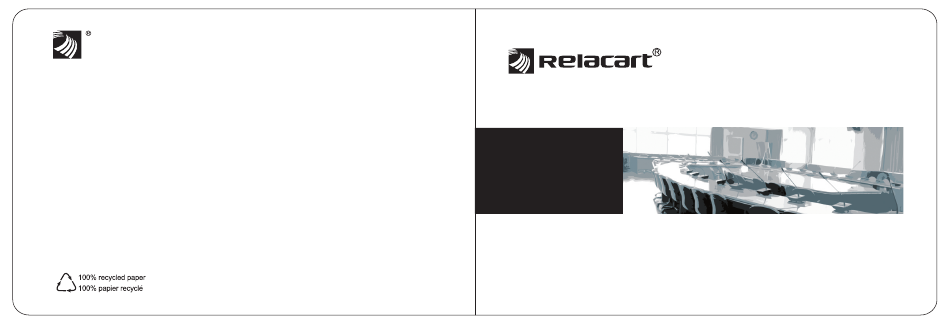

- Page 1 CS-360M Wired professional Conference Discussion System Installation and Operation...
-
Page 2: Table Of Contents
Contents Safety Operation and Notice ..................P3 Thank you for choosing a RELACART wired professional conference discussion system. You have joined thousands of other satisfied customers. Our years of professional experience of System Overview ....................... P4 design and manufacturing to ensure our products’ quality, performance and reliability. -
Page 3: Safety Operation And Notice
” indicates that dangerous voltage constituting a risk of electric shock is present within this unit. 21 All Relacart products will be afforded one year free maintenance except for man-made damage, such as: — the device is damaged by man-made factors. -
Page 4: System Performance Feature
System Performance Feature controller status, the number of speaker, etc. clarity of the whole system. activate. microphone units. If connect the EXP-124W, can connect up to 110 microphone units. control up to 4 cameras, compatible with VISCA, PELCO-D, PELCO-P 3 kinds of camera meeting. -
Page 5: Conference Unit Performance Feature
Conference Unit Performance Feature Packing List w Wired conference system main controller * 1 w Power cable * 1 w 1 meter audio cable * 1 w Three-way matching terminal * 1 w 10m network cable * 1 w Quick connector(female) * 2 amplifier, microphone pickup operation can be controlled, and the microphone LED can w Rack mount kit (including screws) * 1set display the working status. -
Page 6: Host Function Introduction
Host Function Introduction Female Ethernet port connection port: It can be connected to the CS-501C/D or CS-360C/D conference unit through a network cable. It can be used with the auxiliary power supply EXP- 124W. A total of 110 conference units can be connected. Camera Video Output Port: Camera BNC Video Input Port: Connects to the camera’s video output and can connect up to... -
Page 7: Microphone Unit Function Introduction
Microphone Unit Function Introduction Conference System Repeater function introduction (CS-360C Chairman unit) (CS-360D Delegate Unit) Top view Top view EXP-124W Repeater (Rear view) EXP-124W Repeater (Front) Conjoined capsule: High-quality condenser microphone provides clear and full sound quality, high sensitivity, and good long-distance pickup effect. Working status indicator: The light is off when muted, the light is on when speaking, the light flashes when waiting for the application. -
Page 8: Setup And Operation
A. Startup main interface After turn on the power switch, the CS-360M main controller starts searching for online microphone units. After the search is completed, the number of online microphone units is displayed The microphone unit must be connected to the host before data communication... - Page 9 FIFO: can active “1/2/3/4” microphone units in a time. When speaking microphone over the Request: The operation of delegate unit should be approved by chairman unit. limit number of speakers who spoke first will be override. (The chairman unit is not limited) to keep the total number of open speaking units.
- Page 10 Voice Activation the preset threshold, the speech will be automatically turned on. The sound pressure menu, press “ ” to scroll through the menu to select the device coordinate setting, and threshold can be set by the “Sensitivity” setting. When set the “Sensitivity” higher, and the then press “ENTER”...
- Page 11 Touch the MENU button on the host panel to enter the video tracking setting selection “ ” C o n f . M o d e Camera Protocol menu, press to scroll the menu to select the corresponding device, and then press VideoTrack System Conection Camera Number...
- Page 12 C. System Setup press to scroll through the menu to select the address reassignment, and then press “ENTER” to enter the next level of selection. This function arranges the address of press to scroll through the menu to select the volume setting, and then press the microphone unit in the order of “001, 002, 003 ...”...
- Page 13 Touch the MENU button on the host panel to enter the system setting selection menu, press to scroll through the menu to select key lock, and then press ENTER to “ ” enter the next level of selection. If you select Yes the host key is locked and cannot “...
-
Page 14: Camera Tracking Function Operation
Camera tracking function operation 1. Connect the camera and projector equipment to the CS-360M system. The CS-360M host will enter the main menu, and select “Camera Protocol” “Cameras Number” Compatible camera protocols and the number of cameras used. 2. Press the ESC key to return to the “... - Page 15 Function menu architecture diagram Conf.Setup FIFO Conf.Mode Speaker Number Limit Times Request Voice Activation System Connection Set Camera Pos Track Device Visca Camera Protocol Pelco-P Camera Number Pelco-D Boot LOGO Boot interface Main Menu System Setup Volume Main volume Address Reset Line input volume Language Dante input volume...
-
Page 16: System Application Connection Diagram
Network cable Central control system CS-360M Mixer Note: After the main unit of the CS-360M conference system and the microphone are all connected, please connect the white three-way network matching terminal on the extension Control line CAMERA NET line connecting the CS-360M system to the last microphone. Otherwise, the individual... -
Page 17: Technical Specifications
Technical Specifications System Technical Specifications CS-360M Technical Specifications Frequency response: 60Hz Chassis specifications: EIA Standard 1U Total Harmonic Distortion: Supply voltage: 110-240V AC, 50/60 Hz Dynamic range: >100dB Rated power: 75W/24V Signal to noise ratio: >106dB (THD<1% , f=1KHz) XLR balances carnon maximum output level: 9.8dBu RCA lotus socket maximum output level: 5.5dBu... - Page 18 CS-360C/D Technical Specifications EXP-124W Technical Specifications Polar pattern: Cardioid Conderser Model: EXP-124W Frequency response: 50Hz — 20KHz Power supply(AC): 110-240V,50/60Hz Sensitivity:-43dB +/-3dB(0 dB=1V/Pa,f=1 KHz) Output voltage: 24V Maximum input sound pressure level: 110dB (THD<1% , f=1 KHz) Maximum power output: 72W Signal to noise ratio (A weighted):>60dBA Input/Output interface: Network cable port Distortion: 0.1%...
