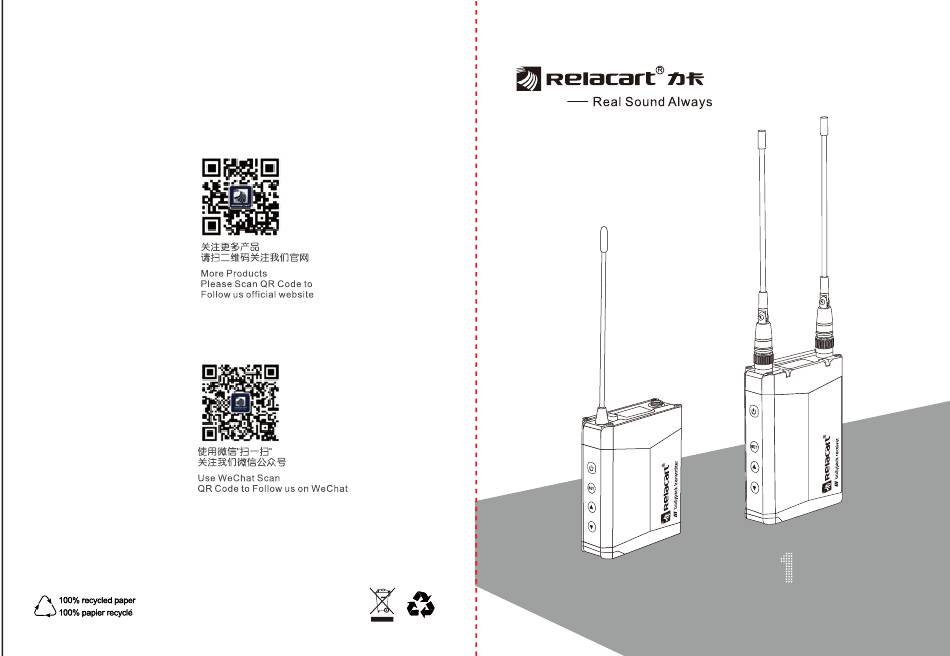

- Page 1 UHF Wireless Microphone System U H F 无 线 麦 克 风 系 统...
-
Page 2: Packing List
Introduction Packing List Thank you for choosing Relacart. The Relacart MS1 is a versatile, lightweight, yet rugged UHF wireless microphone system, which can be compatible with smart phones (3.5mm interface), digital / SLR cameras, camcorders, recorders, tablets and other devices to help pick up high fidelity audio. This model is suitable for interview, microfilm recording or commercial demonstration and other applications. - Page 3 MS1-R Bodypack receiver MS1-T Bodypack transmitter -02dB G. 01 C. 02 G. 01 C. 02 Receiving antenna B. Receiving antenna A. AFS button: Automatic frequency scan. Infrared counter frequency transmission window. OLED display: a. True diversity, A and B channel radio frequency signals;...
-
Page 4: Getting Started
Make sure they are tightly attached. locks shut. 2. Plug the microphone’s male 3.5 mm plug into the input jack on the top of the MS1-T transmitter, Secure the cable by turning the locking sleeve clockwise Connecting the Receiver until tight. - Page 5 Product connection use Products with smart phone connection schematic diagram Products with ordinary or professional camera connection schematic diagram Monitor connection Microphone connection 3.5mm 4-pole jack Smartphone ME4-J connection 3.5mm balanced XLR jack 3-pole jack Audio output Professional camera AWS-C-XLR-B connection connection 3.5mm...
-
Page 6: Specifications
Matching of receiver and transmitter Specifications Before leaving the factory, the receiver and transmitter of each product have MS1-R Receiver Specifications been set up in pairs, and can be used directly when starting. Frequency response: 80 Hz ~ 15 KHz...
