Safety, Hazard and Warning symbols on the instrument Warnings, Cautions and Notes Safety warnings Important Test Leads safety warning Device Storage 3. Instrument Overview MOM3 Display layout Instrument key buttons 4. Functions Test positions For all test functions 4.2.1 Low Temperature Charging 5.
The MOM3 is designed to enable a full day’s work of testing without recharging the battery. It can store, more than 2000 test values and transfer test data via USB-C to a PC and via Wi-Fi to the EGIL 200 Circuit Breaker Analyser (optional and future).
Safety warnings Before using the MOM3, inspect the entire device for any signs of physical damage, such as cracks, dents, or exposed components. The presence of any damage indicates a potential safety risk. In such cases, do not operate the device and immediately contact technical support for guidance Connecting –...
High current on output terminals. The MOM3 will be able to test when is charging, however, this can only be performed using the original charger provided with the equipment. Any other charger or power supply can be damaged during a test Disconnecting –...

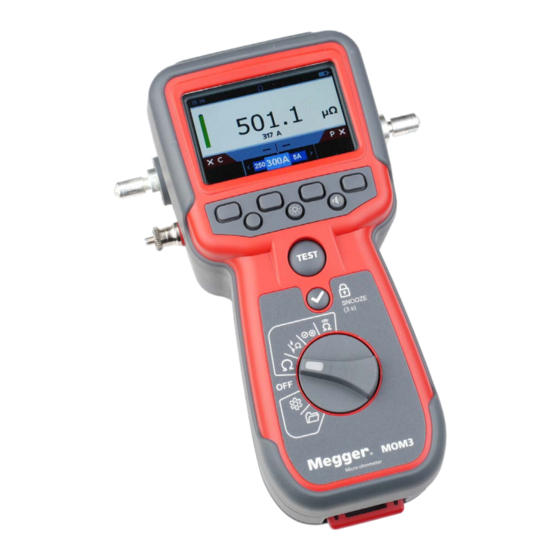

Instrument Overview 3. Instrument Overview MOM3 Item Description Item Description Current output terminal (-) Confirm button (Ok) Current output terminal (+) Function selector Display Connector for the voltage (+) sense lead and the trig function Ground (earth) terminal Connector for the voltage (–) sense lead...
Next test current “A” or µΩ Test current in A Previews measurement Instrument key buttons Use the button pad under the screen to navigate through the menu of the MOM3 to: Button Description 1 and 4 Mode-specific; see screen for details...
Ensure the instrument is in the OFF position when not in use. Settings Measurements For all test functions New MOM3 units or those after long storage require up to four (4) minutes initial charging. Watch the indicator bar, when it changes from red to green, the ultra-capacitors are ready to use.
Page 11
Functions The operating current requirements NOTE : For optimal performance in cold environments, allow the device to adjust to ambient temperature before operation, and provide sufficient time for the supercapacitors to charge completely before testing: www.megger.com MOM3...
Finalize the Circuit Breaker testing. 5.3.1 Circuit Breaker operation In settings press in the Cir- cuit Breaker setup. Press to change the settings of the breaker (1 to 11). In the right image B. Select the breaker and press MOM3 www.megger.com...
NOTE : The upper limit cannot surpass 3Ω and the lower limit can´t surpass upper limit. Rotate dial to Test Results Indication: Green screen: Results within resist- ance limits - Test passed. Red screen: Results outside resist- ance limits - Test failed. www.megger.com MOM3...
Operation EGIL200 Remote mode ( Launch Q4 2025) Visualize the connectivity between the MOM3 and the EGIL200 through a signal icon and connection established icon Import the setup for phase breakers already defined in the EGIL200 using the ...
5.7.1 Data management Select the test current (A) and press the “TEST” button. The resistance results will be displayed in µΩ, mΩ, or Ω. If you continue testing, you will see the two most recent results in the blue banner. www.megger.com MOM3...
Press to return to results. PC Connection and File Access When you connect your MOM3 to a PC using the provided USB cable, it will automatically be recognized as an external drive labeled "MOM3_DISK" without requiring any additional drivers or setup.
The battery is too low to perform a test. Battery Critically Low The battery is too low to perform a Test and the MOM3 will shut down. Battery Battery Temperature too high The MOM3 need to cool down be- fore continue testing.
Test leads should be checked before use for damage and continuity. Ensure the unit is kept clean and dry after use. Cleaning Disconnect from mains power / charger. Wipe the instrument with a clean cloth dampened with either water or isopropyl alcohol (IPA). MOM3 www.megger.com...
The battery condition icon is positioned at the top right-hand corner of the display. This icon is always displayed when the MOM3 is switched on. When running the icon indicates the state of charge, the icon will be filled in proportion to the state of charge.
WARNING : Remove all test leads before removing the battery cover. The battery is housed in the lower section of the MOM3, behind the battery lock. Looking at the back of the instrument. 1. Remove the test leads and ensure the MOM3 is switched off.
± 0.1% of reading ± 0.05% of range Typical inaccuracy Only valid when the following conditions are met: - Resistive load - Ambient temperature 25 °C ± 3 °C. - Maximum test current per the range being used. Test interval www.megger.com MOM3...
5 m (16 ft) Black, 25 mm GA-00394 Ground 5 m (16 ft), Green / yellow GA-90003 cable Battery HC-04290 charger USB-C to 2 m (6.6ft) HG-00240 USB-C Carrying 50-11012 strap Soft For MOM3, Charger and Cables GD-90070 carrying case MOM3 www.megger.com...
5 m (16 ft), Red 60 A clip KG-00522 Sensing lead 5 m (16 ft), Black 60 A clip KG-00520 Switched 1.5m red test probe with the switch in the handle GA-90006 test and black test probe. (Potential) probe www.megger.com MOM3...
Calibration, Repair and Warranty Calibration, Repair and Warranty Megger operate fully traceable calibration and repair facilities to make sure your instrument continues to provide the high standard of performance and workmanship that is expected. These facilities are complemented by a worldwide network of approved repair and calibration companies, which offer excellent in-service care for your Megger products.
WEEE Directive The crossed out wheeled bin symbol placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. An end-of-life Megger product can be returned to Megger at any time at no charge for disposal.
