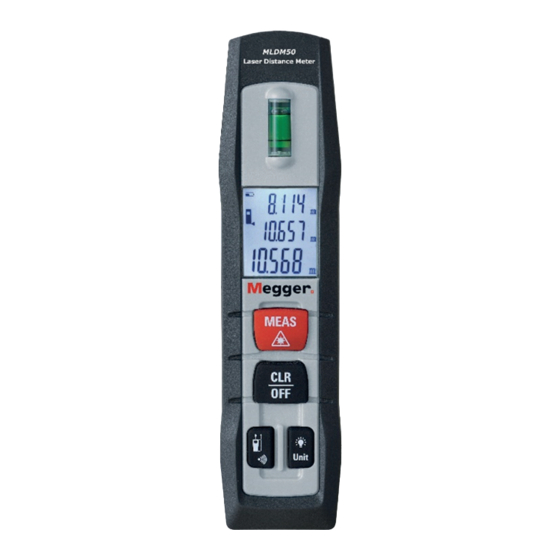

MLM50
Laser Distance Meter
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLM50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Megger MLM50

Summary of Contents for Megger MLM50

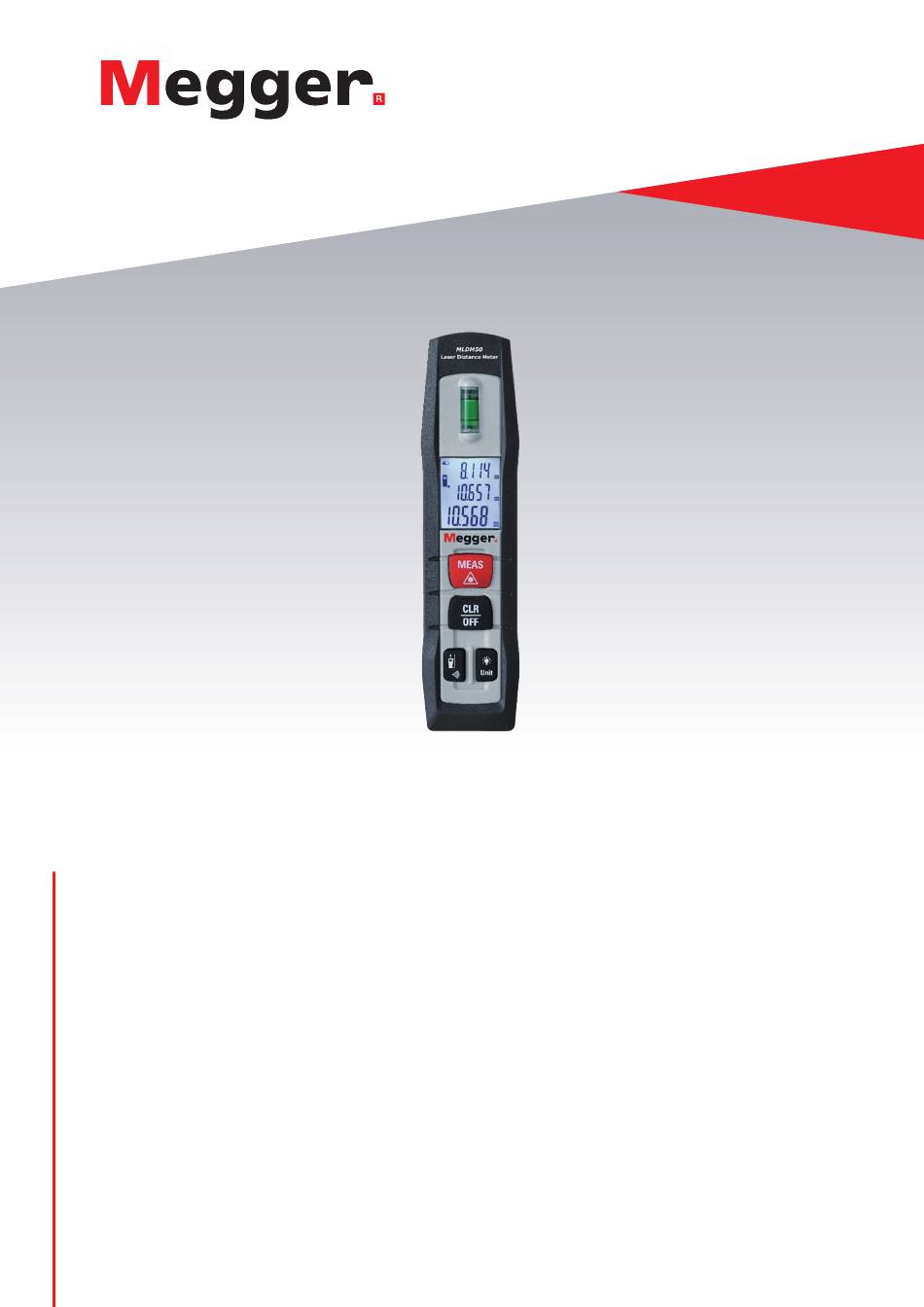

  • Page 1 MLM50 Laser Distance Meter USER MANUAL...

  • Page 2: Safety Warnings

    1. Introduction The Megger MLM50 Laser Distance Meter is a compact, easy to use meter designed for indoor and outdoor use. It allows the user to make fast, reliable distance measurements, as well as add and subtract measured values and make automatic calculations for area and volume.

  • Page 3: Lcd Display

    MLM50 Laser Distance Meter LCD Display 1 – Laser active 2 – Reference level (front) 3 – Reference level (rear) 4 – Battery Status 5 – Intermediate line 1 6 – Intermediate line 2 7 – Summary line 4. Operation and Settings On/Off/Auto Measurement Switches on the instrument and measurement laser.

  • Page 4: Measurement Unit Setting

    MLM50 Laser Distance Meter The default measurement reference is taken from the rear of the instrument. Long press this button prior to taking a measurement to switch between the front and rear edge. A special beep sounds whenever the reference setting is changed.

  • Page 5: Area Measurement

    MLM50 Laser Distance Meter 6. Functions Area Measurement Pressing the button once will start the area measurement function. Press the button to take the first length measurement (e.g. length). Press the again to take the second length measurement (e.g. width).

  • Page 6: Inserting Or Replacing Batteries

    MLM50 Laser Distance Meter Soft-Touch buttons √ Dust Protect/Splash proof IP54 History measurement records Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -10°C to 60°C (14°F to 140°F) Batteries 2 x AAA 1.5V Battery Life up to 5,000 measurements...

  • Page 7: Maintenance

    Megger is registered in the UK as a Producer of Electrical and Electronic equipment. The registration No is; WEE/ DJ2235XR. Users of Megger products in the UK may dispose of them at the end of their useful life by contacting B2B Compliance at www.b2bcompliance.org.uk or by telephone on 01691 676124.
  • Page 8 Manufacturing sites Megger Limited Megger GmbH Megger USA - Valley Forge Archcliffe Road Weststraße 59 Valley Forge Corporate Center Dover 52074 2621 Van Buren Avenue Kent Aachen Norristown Pennsylvania, 19403 CT17 9EN Germany ENGLAND +49 (0) 241 91380 500 1-610 676 8500 +44 (0)1 304 502101 info@megger.de...

This manual is also suitable for:

Mldm50
