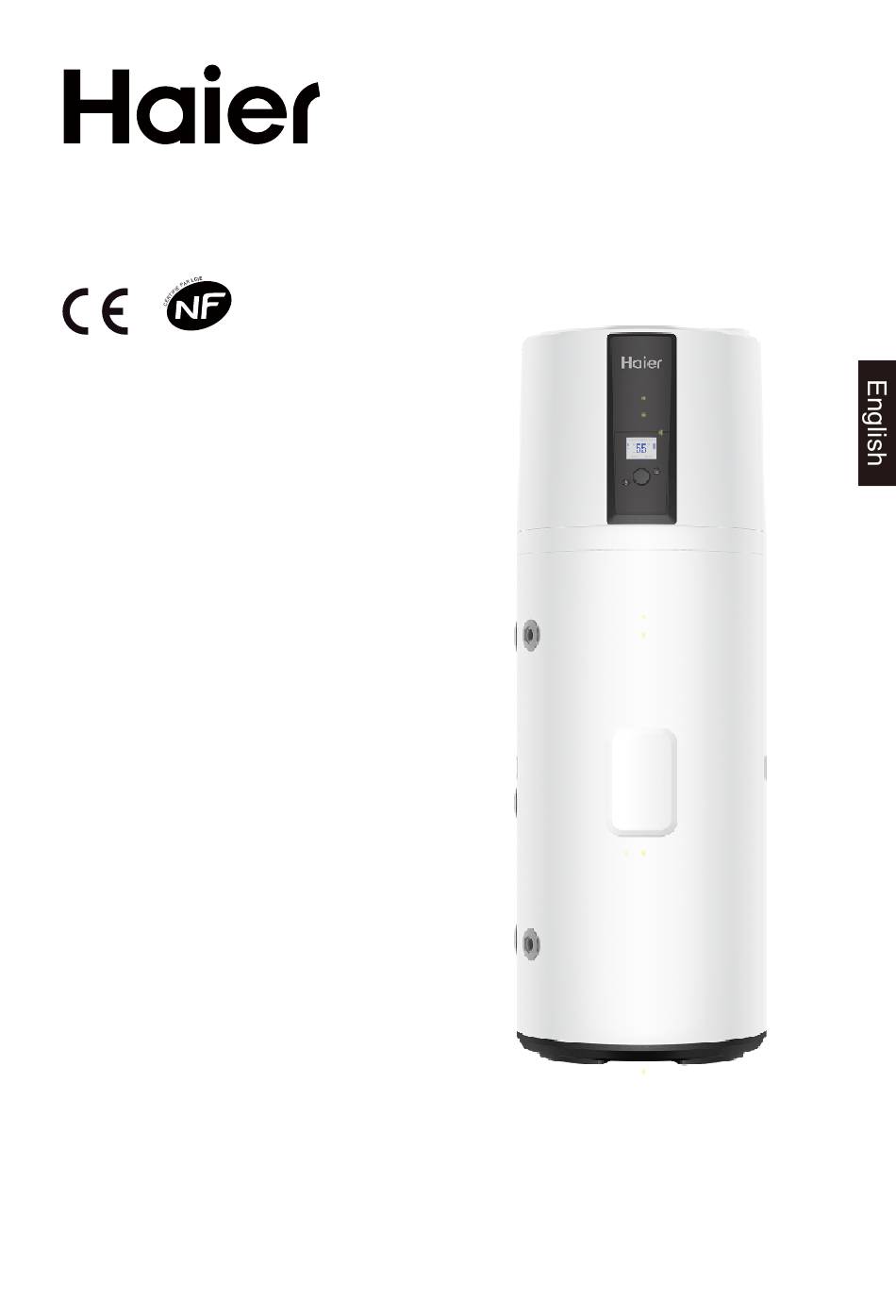

- Page 1 Heat Pump Water Heater Operation and Installation Manual ELECTRICITE Model HP200M7-F9 HP250M7-F9 HP200M7C-F9 HP250M7C-F9 Please read this manual carefully prior to your use of this water heater. The appearance of the water heater given in this manual is for reference only.
-
Page 2: Table Of Contents
9.Checking and maintenance ....................35 10.Faults and protection ......................36 Dear users of Haier, Thank you for choosing Haier products. Please read this manual carefully and follow the operation and safety instruction to ensure best installation and utilization of the product. -
Page 3: Arranging Disposal Of Refrigerant
4. This product cannot be discarded or scrapped at will. If necessary, please contact Haier's after-sales team to obtain the correct disposal method. When the product is disposed of, the refrigerant in the system needs to be recovered. -
Page 4: Safety Instructions
Safety instructions (to be followed at any time) Interpretation of marks and symbols Failure to respect these instructions may lead to serious malfunctions of the device and to risks for the user Instructions with this warning mark shall be strictly followed during operation. They relate to product and body safety of users. - Page 5 Safety instructions (to be followed at any time) The outlet water temperature Means for disconnection from of a water heater is typically the main supply having a higher than the temperature contact separation in all poles indicated on the display. Hot that provide full...
-
Page 6: Storage Requirements
Safety instructions (to be followed at any time) 1.Ask your dealer or qualified personnel to carry out installation work.Do not attempt to install the product yourself. Improper Installation may result in water leakage, electric shocks, fire or explosion. 2.Electrical work must be performed in accordance with relevant local and national regula- tions and with instructions in this installation manual,Be sure to use a dedicated power supply circuit only. - Page 7 Safety instructions (to be followed at any time) 2) The maximum quantity of the equipment allowed to be stored together shall be deter- mined as per local regulations. Electrical Safety Requirements 1. The surrounding conditions (ambient temperature, direct sunlight and rainwater) shall be noticed during electrical wiring, with effective protective measures being taken.
- Page 8 Safety instructions (to be followed at any time) 4. The master power switch shall be arranged outside the maintenance site, with protec- tive (anti-explosive) device being equipped. 5. Nitrogen cylinders, acetylene cylinders and oxygen cylinders shall be placed separately. The distance between the gas cylinders above and the working area involved in open fire shall be at least 6m.
- Page 9 Safety instructions (to be followed at any time) Requirements on storage site of refrigerant: 1. The cylinder of refrigerant shall be placed in a -10°C~50°C environment with favorable ventilation, and warning labels shall be pasted; 2. The maintenance tool in contact with the refrigerant shall be stored and used separate- ly, and themaintenance tool of different refrigerants cannot be mixed.
- Page 10 Safety instructions (to be followed at any time) 1.Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The max- imum number of pieces of equipment or the configuration of the equip- ment permitted to be transported together will be determined by the applicable transport regulations.
-
Page 11: Technical Parameters
Technical parameters Model HP200M7-F9 HP200M7C-F9 HP250M7-F9 HP250M7C-F9 Tank Total cylinder capacity 194L 185L 250L 240L Rated voltage/ frequency 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz Tank max pressure 700kPa 700kPa 700kPa 700kPa Corrosion protection Magnesium rod Magnesium rod Magnesium rod Magnesium rod Insulation Protection Rating... -
Page 12: Description Of Parts And Components
Description of parts and components Heat pump structure Display Outlet of condensation water Safety TPR valve water valve outlet Circulating entrance Circulating exit Cold water inlet Accessorries Part Heat pump Drainage pipe for Instruction name water heater condensate water manual Quantity... - Page 13 Description of parts and components Exploded view of the heat pump Description Description Display panel Inner waterproof cover Support shell Electrical box cover DC motor Control panel Fan blade Electrical box Diversion air duct Electronic expansion valve Decoration Four-way valve Outlet grate Outer waterproof cover Compressor...
- Page 14 Installation introduction Selection of installation site 1. The install location is stable and level. Air flow can flow in and out freely, which is affected by outdoor air to a minimum extent. 2. The surface can support the the filled weight of the appliance and the condensate water can be drained freely.
-
Page 15: Installation Introduction
Installation introduction Installation dimensions for a heat pump 30° TPR valve unit: mm Model HP200M7-F9 1694 HP250M7-F9 1275 1989 1694 HP200M7C-F9 1275 1989 HP250M7C-F9... - Page 16 Installation instructions Installation drawings for the heat pump installed on a wall Air inlet Air outlet Pipe 160mm Display Installation and fixing of a water tank Put the water tank on a flat surface with sufficient supporting capacity. The inclination shall not exceed 1°.
- Page 17 Installation instructions plumbing installation The effect that the installation shall 6. Inlet/outlet water pipes shall not be conform to the Plumbing Code of Australia connected in the wrong flow direction. TPR (PCA). Determine the installation position of valve shall be installed in the specified the water tank Statement around installing position and shall not be changed.
-
Page 18: Air Connection
Installation instructions Air connection - Remove air grille first. click - Install the air duct φ160/180mm φ160/180mm φ160mm φ180mm Available pressure 65 Pa Drop Equivalent Drop Pressure Equivalent Pressure 1m-long (Pa) 1m-long (Pa) Smooth 1.9/1 meter 1.6/1 meter tube Bellows 3.6/1 meter 3.2/1 meter Elbow... -
Page 19: Installation Instructions
Installation instructions Advised positions Garage or laundry room (without ducts): -Unheated room. -Enables recovery of the free energy released by your vehicle’s engine when switched off after use or by household appliances in operation. Laundry room (with one duct): -Unheated room. -Enables recovery of the free energy released by your vehicle’s engine when switched off... -
Page 20: Installation Caution
Installation instructions Installation caution When making the connections, you should respect the standards and local directives. - Before making the connection, rinse the water inlet pipes and water tank exchanger (HP250M3C ), in order not to introduce metal or other particles o the tank. - Page 21 Installation instructions Pipeline installation diagram Installation A Thermostatic valve One way valve 230V 50Hz Hot water Water outlet of outlet safety valve Outlet of condensate water Pressure Stop One way valve relief valve valve Drain valve Cold water inlet Water outlet Installation B(for France only) Connected to water inlet of the water tank...
- Page 22 Installation instructions Connection to solar collectors (Version HP200M7C-F9/HP250M7C-F9) 230V 50Hz Thermostatic valve One way valve 230V 50Hz solar sensor Hot water outlet (heat pump) safety valve solar sensor (solar controller) condensate water One way Pressure Stop relief valve valve valve Cold water inlet WARING:Plumber -Be Aware Using solar energy,please make sure that the heat pump water tank temperature...
- Page 23 Installation instructions Electrical connections precautions WARNING - Only qualified professionals may carry out electrical connections, always with the power off. - The earthing shall comply with local standards. - Water heaters shall be equipped with a dedicated power line and residual current circuit breakers.
- Page 24 Installation instructions Connection with boiler back up (only for HP200M7C-F9/HP250M7C-F9) Boiler Boiler sensor Boiler signal wire 123kwh Auto (2*0.75mm White wire) Off-peak power signal wire (2*0.75mm ,Black wire) Power cable (3*1.5mm...
-
Page 25: Installation Precautions
Installation instructions Installation precautions Water heaters shall be equipped with a dedicated power line and residual current circuit breakers. The action current shall not exceed 30 mA; L- Brown The ground line and the zero line of the power supply shall be separated entirely. N- Blue Connecting the zero line to the ground line is Ground... -
Page 26: Wiring Diagram
Installation instructions Wiring diagram controller Electric Four-way heating valve tube Blue Blue Brown Peak-valley signal CN34 Brown Blue High voltage switch Brown Blue L-IN Brown Expansion valve Blue L-OUT Blue Brown N-IN Suction sensor Over limit Yellow-green temperature N-OUT protector Exhalation sensor (L)Brown (N)Blue... - Page 27 Operation and functions Display Functions & Protections Electrical leakage protection This machine features an electricity leakage protection function. 3-minutes protection When switched on, the system will take approximately 3 minutes to start. Automatic defrosting function The defrosting mode is automatically activated if the outdoor temperature low and the compressor has run for some time.
- Page 28 Description of the icons Symbol Description Enter the menu. Menu key Returns the last operation or screen. Return key Hold down the Rotary key for 6s to power off the machine In the off state, press the Rotary key to turn on the machine. Rotary key Child lock setting In the child lock state, the mode, temperature and other...
- Page 29 Description of the icons Symbol Description - In this mode, the backup element is used as the only heat source. - This function ensures hot water supply when the heat pump is not working properly. Set the mute time. During the time period, the machine operates with low noise, and the performance may change due to system changes.
- Page 30 Function description Initial power-on Start the machine and enter the initial setting. Select confirmation language (China/UK/ France/Italy/Germany/Spain/Portugal/Poland) -Temperature unit (°C/°F) -Time setting -target temperature setting by rotating the rotary key. Click the rotary key to confirm. Figure1 Figure2 Figure3 Figure4 Figure5 The default mode on the home screen is AUTO.
- Page 31 Function description AUTO Figure8 Enter as shown in Figure 6, select Mode by rotating the rotation button, click the rotation button, enter as shown in Figure 8, then select Auto by rotating the rotation button, click the rotation button to confirm, indicating that the setting is successful. Figure9 According to the AUTO operation mode, select ECO to enter the ECO timing program interface, select heating schedule by rotating the rotation button, and click...
- Page 32 Function description The operation mode is the Same heating schedule. The difference is that the user can choose the day of the week and the remaining time to perform heating. By default, the system starts on Monday. See Figure 10. Cross-week selection is not allowed.
- Page 33 Function description 1.10 Sterilization Figure14 According to the AUTO operation mode, select Sterilization to enter the Sterilization interface. The user can set the heating temperature, start time, and frequency. See Figure 14. Temperature range: 55 ° C to 75 ° C. Execution frequency: once a month, once a week, only once, disable.
- Page 34 Function description Select the energy consumption by rotating the rotation button and click the rotation button to enter the energy consumption interface. By rotating the rotation button, the user can respectively view the energy consumption of the press, press and electric heating tube for nearly 5 years, nearly 12 months, and nearly 7 days.
- Page 35 Function description Connect Figure21 Select the message reset by rotating the rotation button and click the rotation button to enter the message reset interface. Then select Wifi, Electric signal, External heat source. 3.2.1 Wi-Fi connection Your appliance can be connected to your home wireless network and operated remotely using the app.
- Page 36 Function description 3.2.2.4 Starting heat source Users can choose the heating method. 1, Heat pump and electric heating meanwhile 2, Heat pump (electric heating is only started after the water temperature is 65° C) 3, Electric heating only 3.2.2.5 Activate heating 1, Activate and heat immediately, No signal returns to the current MODE.
-
Page 37: Checking And Maintenance
Checking and maintenance - Installation and maintenance of the appliance must be undertaken by a qualified professional . - Before working on the appliance, shut down the machine and cut off the power supply . - Do not touch with wet hands. - Maintenance operations are important to guarantee optimal performance and extend the life of the appliance. -
Page 38: Faults And Protection
Faults and protection Water Quality Water supply from an unfiltered water source that may be highly conductive or have a high mineral content may void the system warranty. Therefore, to ensure water quality guidelines are met, the following characteristics should not be exceeded. - Page 39 Faults and protection Digital Release Action Fault type indication After fault is solved, Operating temperature protection Automatic release. Compressor protection Air exhaust temperature protection After fault is solved, Evaporation high temperature restart or switch on protection power supply for release. The system will automatically cut off...
- Page 40 Faults and protection Digital Release Fault type Action indication After fault is solved, Compressor phase current hardware restart or switch on transient overcurrent. power supply for release. Compressor phase current software instantaneous overcurrent. IPM temperature anomaly. Current overload. After fault is solved, Automatic release.
- Page 41 0040511878 20230926 V*****...
