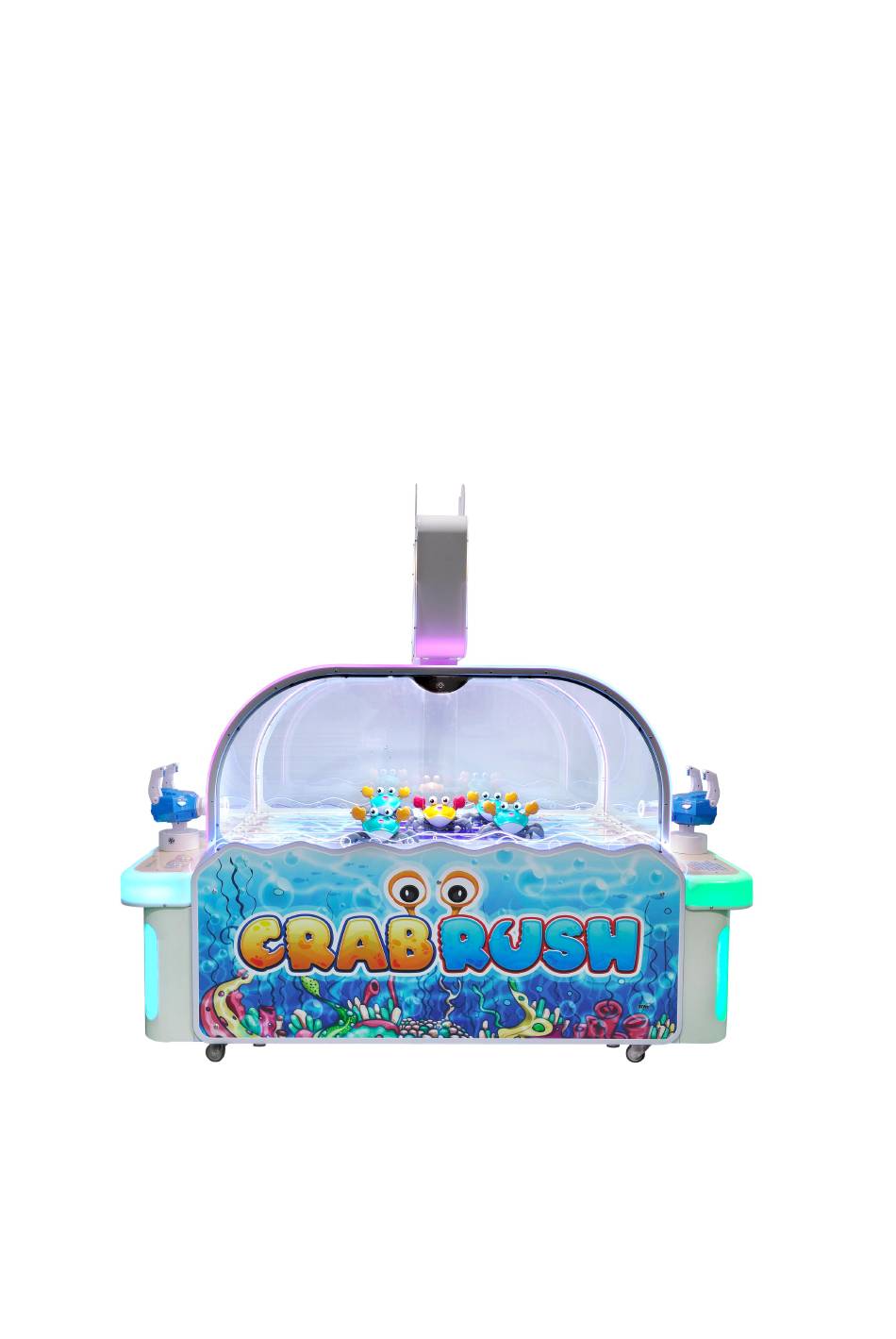

《CRAB RUSH》
OPERATOR MANUAL（CONCISE VERSION）
V0.9
(For Software from V1.5)

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRAB RUSH and is the answer not in the manual?

Questions and answers

Related Manuals for Bandai Namco CRAB RUSH

Summary of Contents for Bandai Namco CRAB RUSH

  • Page 1 《CRAB RUSH》 OPERATOR MANUAL（CONCISE VERSION） V0.9 (For Software from V1.5)
  • Page 2 1. OPERATION INSTRUCTIONS 1.1.Specifications and technical parameters of the machine 1.Voltage：AC220V 50/60 Hz（Please refer to the nameplate on the machine） 2.Size：W830×D2000×H1745mm 3.Weight：About 190 Kg 4.Average power：350W 5.Max. Power：550W 1.2.Attention: 1. This machine is only suitable for use in indoor environments. 2.
  • Page 3 other damage to the irradiated person's eyes.

  • Page 4: How To Play

    1.3.How to Play: Crab Trigger Sensor on crab Track Single Player start button Laser tube Double players Player start button Coin mech Ticket dispensor 1. Put the corresponding tokens into the coin slot. When the number of coins is enough for the game, the machine enters the state of waiting for the game to start.
  • Page 5 together. (If there are enough coins to play the next round, you will no longer dance and directly ask the player to choose the game method and proceed to the next round) 8. According to the final scores, combined with the pre-set lottery scores, the respective lottery ports on each side will spit out the corresponding lottery tickets.

  • Page 6: Factory Default Setting

    2. Settings & Testing 2.1.Switch settings： SWs on mainboard as below： Qty of prizes or Content Coin Prize tickets SW1- Free Play 0.5 coin per 1 Play （Each Player） 1 coin per 1 Play（Each Player） 2 coins per 1 Play（Each Player） 3 coins per 1 Play（Each Player）...
  • Page 7 Auto Content Time per Play Game Speed Continuous Vibration Shooting shooting SW2- 30 Sec 40 Sec 50 Sec 60 Sec 80 Sec 90 Sec 100 Sec 120 Sec Slow Fast Fatest Hold trigger for Continuous shooting One trigger one shooting Vibration when shooting No Vibration No Auto Shooting...
  • Page 8 Prize Alert OFF Factory Default Settings...
  • Page 9 2.2.Testing 1. Service button: press it in standby to <free coin>, press in the test mode to <start test>; 2. Test button: press it in standby to enter the machine test program, press in the test program to switch test items; 3.
  • Page 10 The corresponding signals displayed on the digital tube are described in the following table： Competitor score Score Test Button Track 4 Crab Light sensor (toward the 1P side) Service Button Track 4 Crab Light sensor (toward the 2P side) Coin Signal-1P Track 5 Crab Light sensor (toward the 1P side) Tickets out feedback-1P Track 5 Crab Light sensor (toward the 2P side)
  • Page 12 3. Faults Error Codes and instructions 3.1. Code Error Reasons/How to Solve! Error-1 1P Tickets shortage Add tickets，Press the tickets fix button Error-2 2P Tickets shorage Add tickets，Press the tickets fix button Check and set the signal selector switch on the coin acceptor Error-3 1P coin mech problem in the "Always on"...
  • Page 13 does not move, check the motor 2P side) Prolbem Data loading Fault when Error-30 1、Restart，2、Change the mainboard power on the machine...
  • Page 14 4. Maintance Even if the machine is operating normally, in order to keep the machine operating in the best condition and use it for a longer period of time, please conduct daily inspection and maintenance on the following: 1. Check whether the feet support the machine properly. 2.
