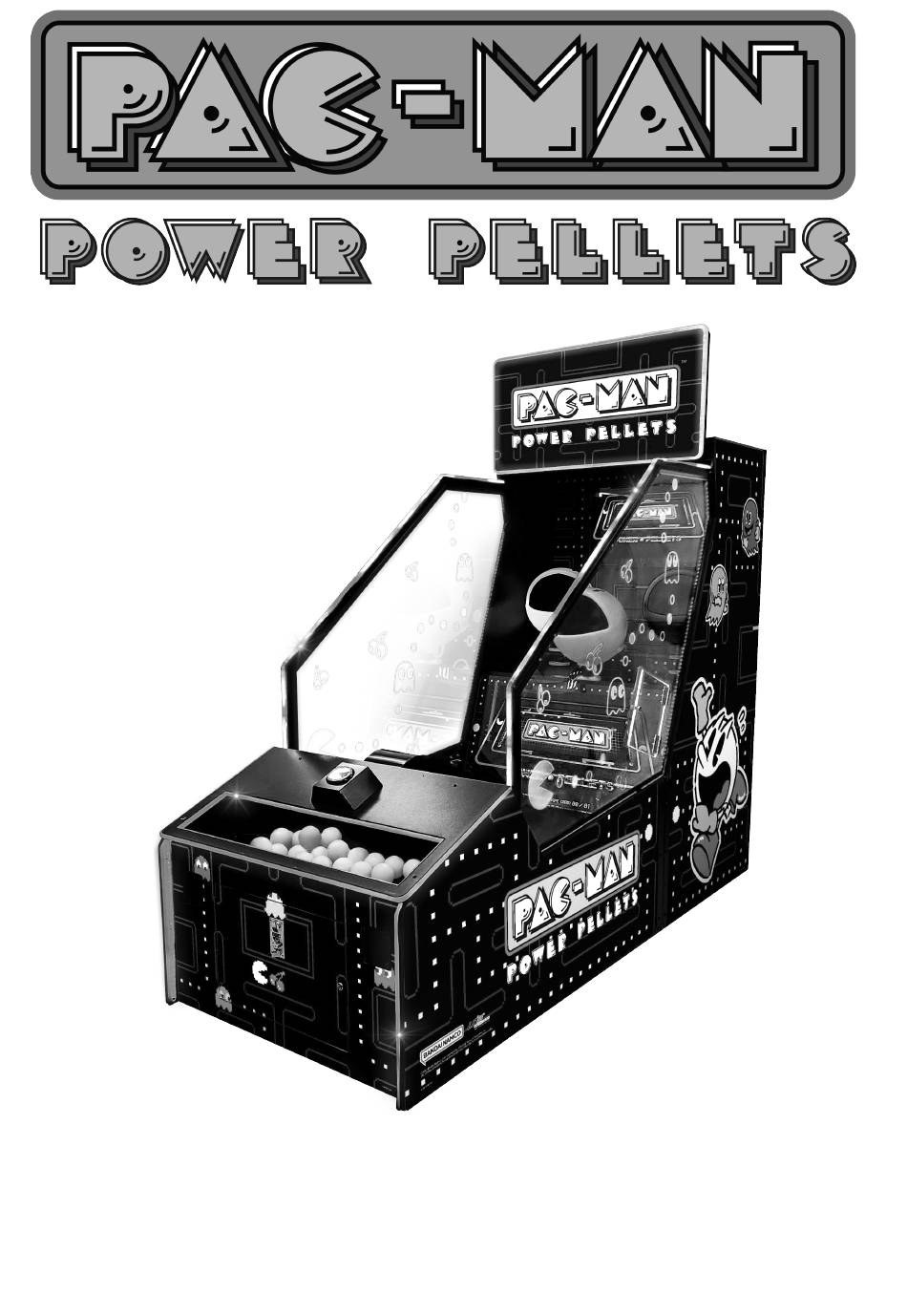

- Page 1 Operation Manual...
- Page 2 PacMan Power Pellets Manual IMPORTANT WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! BANDAI NAMCO SERVICE CENTER Tel: 847-264-5610 Email: PARTS@BANDAINAMCO-AM.COM www.namcoparts.com When contacting Service, you will need the following information and the name of your authorized distributor.
-
Page 3: Table Of Contents
PacMan Power Pellets Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................16 6. -
Page 4: Important Safety Instructions
PacMan Power Pellets Manual Thank you for purchasing PacMan Power Pellets. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation. - Page 5 PacMan Power Pellets Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: •...
-
Page 6: Specifications
PacMan Power Pellets Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz (It is subject to the nameplate on the back of the machine.) Min. Power consumption: 290W Max. Power consumption: 350W Dimension: H98.48×W43.62×D101.57 in H2501.5 ×W1108 ×D2580 mm NOTICE: After turning off the game, please wait at least 1 minute before restarting again. -
Page 7: Contents Of The Accessory Kit
PacMan Power Pellets Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Name/SPEC Picture Manual 171A key 171B key Power cord NOTE: Part models are subject to change without notice. -
Page 8: Part Name
PacMan Power Pellets Manual 3. PART NAME Key Components... -
Page 9: Set Up & Installation
PacMan Power Pellets Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ... - Page 10 PacMan Power Pellets Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 500 mm/20in Service area Play area NOTICE Your unit must be leveled to operate properly.
- Page 11 PacMan Power Pellets Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Spanner Allen wrench Step 1 Turn the Marquee vertical. Marquee Step 2 Utilize Phillips screwdriver to tighten 14 screws to secure the 2 Marquee brackets to Marquee and Main cabinet.
- Page 12 PacMan Power Pellets Manual Step 3 Utilize Phillips screwdriver to loosen screws to remove Ball up assembly cover. Ball up assembly cover Step 4 Utilize Phillips screwdriver to loosen screw to remove Ball up assembly. Ball up assembly Ball up assembly...
- Page 13 PacMan Power Pellets Manual Step 5 Place Ball up assembly on the Control panel Assembly as shown below. Stick metal plate to the screws on the Control panel Assembly. Utilize Spanner to tighten 6 Nuts to secure the Ball up assembly. Screw Ball up assembly Name...
- Page 14 PacMan Power Pellets Manual Step 6 Utilize Phillips screwdriver to tighten screws to secure Ball up cover assembly. Ball up assembly cover Step 7 Install 2 Baffles. Utilize Phillips screwdriver to tighten 4 screws to secure 2 Baffles to Ball up assembly. Utilize Phillips screwdriver to tighten 8 screws to secure 2 Baffles to two sides.
- Page 15 PacMan Power Pellets Manual Step 8 Install Hinge and cover plate to the Ball up assembly. Hinge Cover plate Step 9 Align the Main cabinet with the Control panel assembly. Plug the connector. Utilize Allen wrench to lock the Main cabinet to the Control panel assembly together as shown below.
- Page 16 PacMan Power Pellets Manual Step 10 Connect the connector. Place L&R fence on the cabinet. Utilize Allen wrench to tighten screws and washers to secure the L&R fence to the cabinet. Hexagon socket flat L fence Name head screw Spec. M5×12 black Name Washer...
-
Page 17: How To Play
PacMan Power Pellets Manual 5. HOW TO PLAY 1.Insert coins to play/Tap card/Insert cash to play. 2.Throw the ball into the Pacman toy to win the points. 3.The ball touch the Pacman role will activate high point mode. 4. Reach the required points when time up can enter BONUS GAME to win more tickets! Enter the Bonus game &... -
Page 18: Game Option
PacMan Power Pellets Manual 6. GAME OPTION 6.1.Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to - Volume+ ON-OFF enter the setting menu. Settings Test Reset 6.2.Setting menu 6.2.1 Main menu 6.2.2 Basic Setting Options Options Adjustment Value... - Page 19 PacMan Power Pellets Manual Options Adjustment Value Pac Pot Tickets 500-800 Back_Save Back 6.2.3.1 Stepwise Mode Extract Fraction Evaluation Description Ticket Ticket segment 30000~+∞ 24000~30000 The value of the A/B/C cannot be 18000~24000 changed by manually. 12000~18000 0~12000 The value of the S/D can be changed manually. Please refer to 6.2.3 Max/Min Ticket. Extract Ticket can be change.
- Page 20 PacMan Power Pellets Manual 6.2.6 Game Reset 6.2.7 Date/Time Setting Options Options Factory Restore Year Restore Basic Settings Month Reset Customized Setting Clear Unused Coin Hour(24) Clear Owed Ticket Minute Clear All Records Second Back&Save Back&Save Back Back 6.2.8 Bookkeeping 6.2.9 Daily Record Player Coins Tickets Payout...
-
Page 21: Troubleshooting
PacMan Power Pellets Manual 7. TROUBLESHOOTING 7.1Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off... - Page 22 PacMan Power Pellets Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
- Page 23 PacMan Power Pellets Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.
-
Page 24: Maintenance & Inspection
PacMan Power Pellets Manual 8.MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition. -
Page 25: Overall Construction
PacMan Power Pellets Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly... - Page 26 PacMan Power Pellets Manual Part No. Name PE15-17123-00 M3 Motherboard PE90-17124-00 PAC-MAN Shell PE90-17124-01 PAC-MAN Inner Shell PE90-17125-00 Ball Container Light Strip 1 PE90-17126-00 Ball Container Light Strip 2 Vinyl Ball PE90-17127-00 PE90-17132-00 Plastic Corner Node PE52-17133-00 6-way Fuse Plate PE05-17134-00 Ball Return Kit PE15-17463-00...
- Page 27 PacMan Power Pellets Manual 9.15 Decals...
- Page 28 Bandai Namco Bandai Namco Amusement Amusement America Inc. Europe Ltd. 37-39 Kew Foot Road 1550 Glenlake Ave Richmond, England Itasca, IL 60143 TW9-2SS +44 (0) 20 8324 6101 www.bandainamco-am.co.uk www.bandainamco-am.com Technical Support (USA) Technical Support (Europe) Technical Service: Technical Service:...
