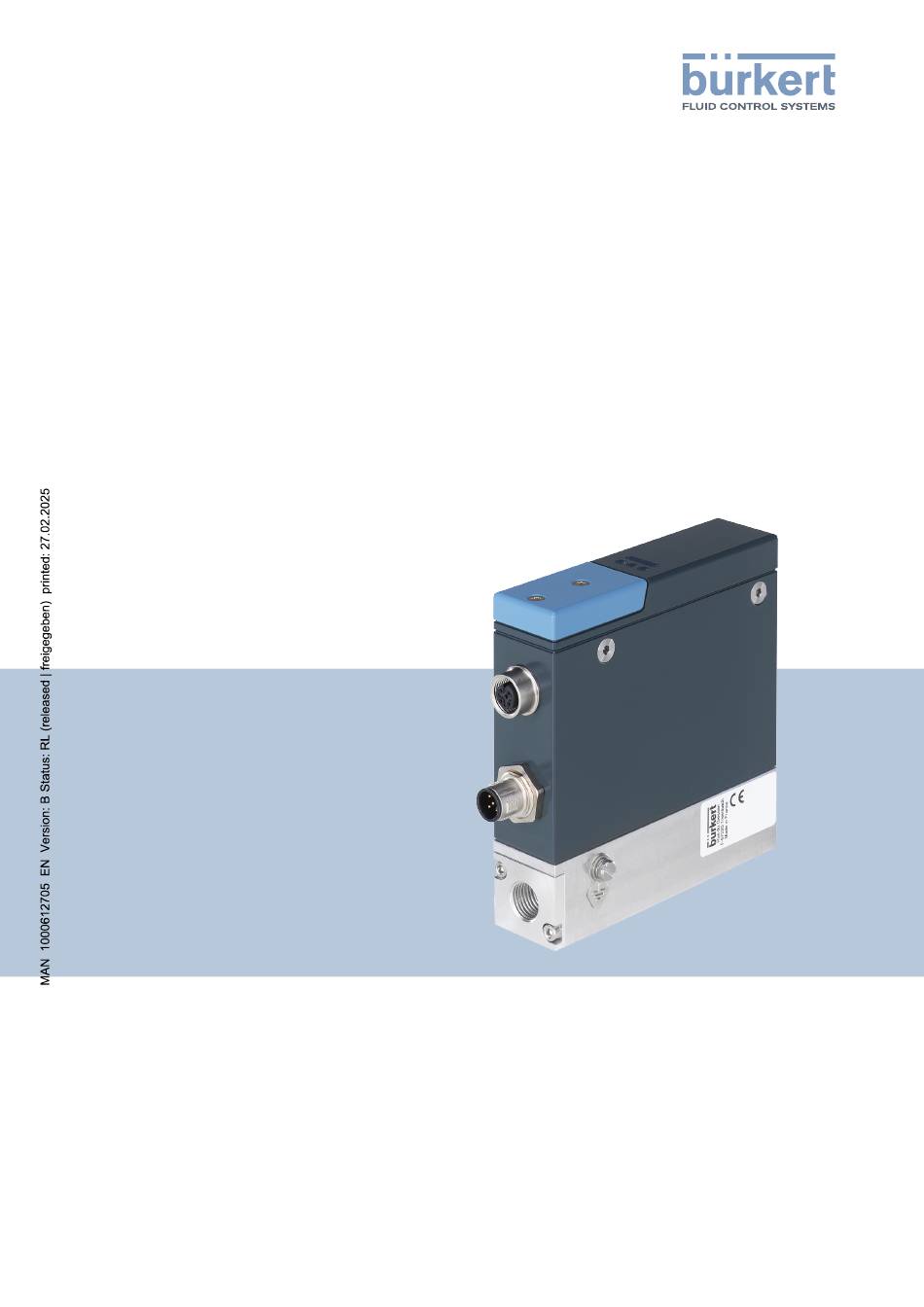

- Page 1 Type 8762 Electronic pressure controller Operating Instructions...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert SAS, 2024 Operating Instructions 2412/01_GBen_00574776 / Original EN...
-
Page 3: Table Of Contents
Type 8762 Table of contents Table of contents About this document 5 Symbols 5 Terms and abbreviations 6 Manufacturer 6 2 Safety 7 Intended use 7 Safety instructions 7 3 Product description 10 Product overview 10 Product identification 11 3.2.1 Type label 11... - Page 4 Type 8762 Table of contents 7 Commissioning 25 Commissioning procedure 25 8 Configuration with Bürkert Communicator 26 Setting tools 26 Connect to the Bürkert Communicator 26 Functions 27 8.3.1 Shut-off threshold 27 Zero point adjustment 28 Set-point sources and operation modes 28...
-
Page 5: About This Document
Type 8762 About this document About this document The document is an important part of the product and guides the user to safe installation and operation. The information and instructions in this document are binding for the use of the product. -
Page 6: Terms And Abbreviations
Type 8762 About this document Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Device Type 8762 Electronic pressure controller büS Bürkert system bus, a communication bus developed by Bürkert and based on... -
Page 7: Safety
Type 8762 Safety Safety Intended use The device EPC is designed to measure and regulate the pressure. The permitted media are listed in Technical data [} 15]. Prerequisites for safe and trouble-free operation are proper transport, storage, installation, commissioning, operation and maintenance. - Page 8 Type 8762 Safety Electrostatically sensitive components and assemblies The device contains electronic components that are susceptible to the effects of electrostatic discharging (ESD). Components that come into contact with electrostatically charged persons or objects are at risk. In the worst case scenario, these components will be destroyed immediately or fail after start-up.
- Page 9 Type 8762 Safety Technical limit values and media Non-compliance with technical limit values or unsuitable media can damage the device and lead to leaks. This can cause accidents and seriously injure or kill people. ▶ Comply with limit values. See Technical data [} 15]...
-
Page 10: Product Description
Type 8762 Product description Product description The device is used for ultimate precision in the pressure control. This document describes following variant: • EPC büS with proportional valve • EPC Profibus with proportional valve Product overview EPC PROFIBUS 3 4 5 Fig. 1: Example of a variant EPC PROFIBUS... -
Page 11: Product Identification
6 Functional earth connection 7 Slot for memory card 8 Electrical connection Product identification 3.2.1 Type label Fig. 3: Example of type label Type 8762 1 Type 2 Operating voltage 3 Power consumption 4 Note: Observe the operating instructions 5 Bürkert internal version... -
Page 12: Calibration Label
Type 8762 Product description 3.2.2 Calibration label Fig. 4: Example of calibration label 1 Variant 2 Calibration medium 3 Calibration pressure 4 Installation position 5 Article number 6 Calibration date 3.2.3 Conformity marking Fig. 5: Conformity label 1 CE marking 2 Certification marking for USA and/or Canada... -
Page 13: Namur Mode
Type 8762 Product description 3.3.2 NAMUR mode The status indicator shows the status of the device and its peripherals, based on NAMUR recommendation 107 (NR 107). If various alerts are present, the status indicator always shines in the colour of the highest prioritised alert (red = outage = highest priority). - Page 14 Type 8762 Product description The device can be delivered with a memory card that is inserted in the device. When the device is energised, there are two possibilities: • If the inserted memory card contains device-specific data, the device automatically adopts this data.
-
Page 15: Technical Data
Type 8762 Technical data Technical data Standards and directives The device complies with the valid EU harmonisation legislation. The harmonised standards that have been applied for the conformity assessment procedure are listed in the current version of the EU Declaration of Conformity. -
Page 16: Electrical Data
Type 8762 Technical data Electrical data EPC büS/CANopen Operating voltage 24 V ±10 % Power consumption Refer to type label Communication interface büS and CANopen. The communication type can be selected with the Bürkert Communicator software. Electrical connections M12 plug 5-pin A-coding Minimum temperature rating of 75 °C... -
Page 17: Medium Connection
Type 8762 Medium connection Medium connection Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 7] before working on the device or system. Possible medium connections • G-internal-threaded connections according to DIN ISO228/1 •... -
Page 18: Npt-Internal-Threaded Connections
Type 8762 Medium connection ▶ Remove all dirt from the pipes and from the components of the installation that carry the medium. ▶ Cut the pipe squarely [A] and deburr [B]. ▶ Remove the protective cap that closes the threaded connection. -
Page 19: Flange Connections
Type 8762 Medium connection ▶ Remove all dirt from the pipes and from the components of the installation that carry the medium. ▶ Cut the pipe squarely [A] and deburr [B]. ▶ Remove the protective cap that closes the threaded connection. -
Page 20: Tri-Clamp Connections
Type 8762 Medium connection ▶ CAUTION! To avoid damage on the sealing of the medium connection, please make sure to lock the hexagonal part in place with a second wrench. Obey the torques that are given by the manufacturer of the fitting used. -
Page 21: Electrical Connection
Safety [} 7] before working on the device or system. Additional documentation • For more information on büS, read the cabling guide that is available at country.burkert.com. • Device description file and object description for the related Type (download from country.burkert.com). -
Page 22: Wire The Variant Profibus
Type 8762 Electrical connection Colour of the büS cable conductor Signal 24 V black white CAN_H blue CAN_L Tab. 2: Signals of the büS cable conductors NOTICE! If an own mating female connector is used, then observe the following requirements for the correct operation of the device. - Page 23 Type 8762 Electrical connection NOTICE! Requirements for the correct operation of the device. ▶ Use a mating female connector with shield-connection transfer at the union nut. ▶ Use a mating male connector with shield-connection transfer at the union nut. ▶ Use a mating male connector and a mating female connector that are in metal.
-
Page 24: Connect The Functional Earth
Type 8762 Electrical connection ▶ Screw the mating male connector to the 5-pin female connector, to the torque given by the manufacturer of the mating male connector. ▶ Do the functional earthing of the device. Refer to chapter: Connect the functional earth [} 24]... -
Page 25: Commissioning
Type 8762 Commissioning Commissioning Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 7] before working on the device or system. Commissioning procedure ▶ Pressurise the pipes with medium. -
Page 26: Configuration With Bürkert Communicator
▶ Use the USB-büS-Interface set with article number 00772551. ▶ Download the latest version of the Type 8920 Bürkert Communicator from country.burkert.com. ▶ Install the Bürkert Communicator on a PC. During installation, the büS stick must not be inserted at the PC. -
Page 27: Functions
▶ Use the USB-büS-Interface set with article number 00772426. ▶ Download the latest version of the Type 8920 Bürkert Communicator from country.burkert.com. ▶ Install the Bürkert Communicator on a PC. During installation, the büS stick must not be inserted at the PC. -
Page 28: Zero Point Adjustment
Type 8762 Configuration with Bürkert Communicator Measuring span > 2% limit=Measuring span - 1% Measuring span <= 2% limit=Measuring span * 0,5 Tab. 6: Decreasing setpoint Measuring span > 2% limit=Measuring span -0,5% Measuring span <= 2% limit=Measuring span * 0,75 Tab. 7: Increasing setpoint... -
Page 29: Optimise The Closed-Loop Control Parameters
On a büS/CANopen variant it is possible to alternatively change the related object. Refer to the related procedure in the device-specific help in the documentation of the initiation files. Download the initiation files and the related documentation at country.burkert.com. The setting of the parameter Set-point value source is kept after a restart, except when the device performs the function Analyze system or the set-point value source was set to manual set-point. -
Page 30: Set-Point Values Without Communication
Type 8762 Configuration with Bürkert Communicator The possible choices for the parameter Set-point value source are: • Variant büS/CANopen: Automatic: the set-point value is set via the fieldbus. • Manual set-point value: to manually give in a set-point value for testing purposes or to make sure that the set-point value is not overwritten by other fieldbus participants. - Page 31 Type 8762 Configuration with Bürkert Communicator If the operating mode of the fieldbus is CANopen, the CANopen status is set to Pre-Op until the CANopen network master switches the device to Operational. 31 | 43...
-
Page 32: Maintenance
Type 8762 Maintenance Maintenance If the device is operated according to the Operating instructions, then the device is maintenance- free. Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 7] before working on the device or system. -
Page 33: Calibration
Type 8762 Maintenance ▶ Insert the flange plate [2] and the screws [1]. ▶ Tighten the screws to a torque of 1.2 N·m (0,88 lbf·ft). Calibration The device is factory calibrated. A regular check of the accuracy depends on the use and the individual requirements of the application. - Page 34 Type 8762 Maintenance Applicable for: • büS / CANopen variant ▶ De-energise the device. ▶ With a 2.5-mm hex key, loosen the screws of the impact protection- cover and remove the impact protection-cover. ▶ Loosen and remove the wired 5-pin female connector.
- Page 35 Type 8762 Maintenance Applicable for: • büS / CANopen variant The büS/CANopen variant supports the config-client if no memory card is used. ▶ Activate this functionality in the Bürkert communicator under General settings > Parameter > Act as a configuration client > Yes.
-
Page 36: Troubleshooting
Type 8762 Troubleshooting Troubleshooting 10.1 Status indicator is red EPC PROFIBUS The supply voltage is out of the error ▶ Operate the device within the specifications. If the status range. The device can be damaged. indicator is still red, then send the device back to Bürkert. -
Page 37: Status Indicator Is Yellow
Type 8762 Troubleshooting EPC büS/CANopen The device is connected to büS and ▶ Wait until the device has found assigned fieldbus searches assigned fieldbus participant. participants. The device is connected to büS and is ▶ Wait up to one minute until the device assigns its configured manually, but has no ad- address. -
Page 38: Status Indicator Is Blue
Type 8762 Troubleshooting 10.4 Status indicator is blue Cause Solution Error in the internal memory. ▶ Contact the manufacturer, because maintenance is needed. 10.5 Status indicator is off Cause Solution The device is not energised. ▶ Make sure that the device is correctly wired. -
Page 39: Replacement Device Does Not Adopt All Of The Values From The Defective Device
Type 8762 Troubleshooting 10.8 Replacement device does not adopt all of the values from the defective device Cause Solution The device description of the replace- ▶ Use the Bürkert Communicator to configure the new ment device is different from the values of the replacement device. -
Page 40: Spare Parts And Accessories
Type 8762 Spare parts and accessories Spare parts and accessories Risk of injury and/or damage due to incorrect parts. ▶ Use only original accessories and original spare parts from Bürkert. Order the parts directly on our eShop. 11.1 Electrical accessories ▶... -
Page 41: Compression Fittings For A Device With G-Internal-Threaded Connections
Type 8762 Spare parts and accessories PROFIBUS variant USB-büS-interface set, without power supply 772551 Straight 5-pin M12 female connector 772416 Bent 5-pin M12 female connector 772418 Memory card On request Connection cable with M12 female connector (A-coded) and free 560365... -
Page 42: Uninstallation
Type 8762 Uninstallation Uninstallation 12.1 Dismantling ▶ Relieve the medium pressure in the installation. ▶ Flush the device with a neutral medium (for example nitrogen) ▶ Relieve the flushing medium pressure in the installation. ▶ De-energise the device. ▶ Remove the electrical wiring. -
Page 43: Logistics
Type 8762 Logistics Logistics 13.1 Transport and storage ▶ Protect the device against moisture and dirt in the original packaging during transportation and storage. ▶ Avoid UV radiation and direct sunlight. ▶ Protect connections from damage with protective caps. ▶ Observe permitted storage temperature.
