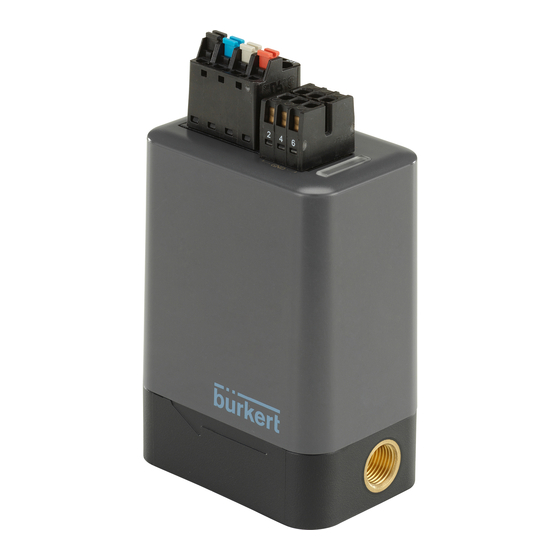

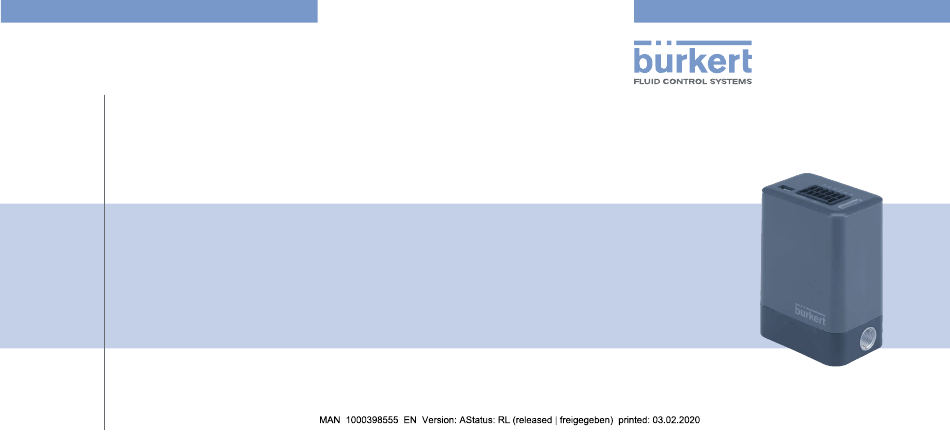

- Page 1 Type 8763 Pressure controller for precise time-pressure dosing Druckregler für präzise Druck-Zeit-Dosierung Régulateur de pression pour un dosage pression-temps précis Quickstart...
-
Page 2: Table Of Contents
Product description ................5 not followed. A detailed description of the device can be found in the operating instruc- Technical data ................... 6 tions for Type 8763. Installation ....................8 The operating instructions can be found on the Internet at Device operation ................11 www.burkert.com... -
Page 3: Intended Use
Warning The pressure controller Type 8763 is designed for time-pressure Possible danger! Serious or fatal injuries. dosing of very low volumes. ▶ Use the device only as intended. Non-intended use of the device may Caution be dangerous to people, nearby equipment and the environment. -
Page 4: Basic Safety Instructions
Basic safeTy insTrucTions ▶ Do not feed any liquids into the media connections. ▶ Do not cover the ventilation slots of the body. These safety instructions do not make allowance for any contingencies ▶ Only trained technicians carry out installation and maintenance work. and events, which may arise during assembly, operation and maintenance. -
Page 5: General Information
4.2 Information on the Internet (equivalent to NAMUR NE 107) Operating instructions and data sheets for the Bürkert products can be found on the Internet at: www.burkert.com ProducT descriPTion Structure and description Fluidic connection The pressure controller is designed for time-pressure dosing of very low volumes. -
Page 6: Technical Data
▶ Do not use the device outdoors and keep it away from heat sources that could cause the permissible temperature range to be A detailed product description of the pressure controller can be exceeded. found in the operating instructions on the Internet at: www.burkert.com Ambient temperature +15...+40 °C Medium temperature +15...+40 °C Permissible air humidity 90 % non-condensing... - Page 7 Neutral gases (air, nitrogen, argon, etc.) Max. primary pressure Supply voltage Type Control range 6.4 Mechanical data Body material PPS, brass 8763 0,02 - 1bar Housing lid pi 3bar 18...35V DC 6W Power consumption CANopen/büS max.1Mbit/s Communication Seal material FKM, PCTFE (only DN 0.1), deaeration...
-
Page 8: Installation
insTallaTion Fluidic connection → Connect a G1/8 working port with an O-ring at the pressure input. Warning → Connect a UNF1/4-28 working port with ≥1.5 mm internal diameter Risk of injury due to improper installation. to the pressure output. ▶ Installation may be carried out by authorised technicians only and with the appropriate tools. - Page 9 Electrical connection Connector strip for the auxiliary functions: 7.3.1 Digital variant Assignment DO1 output voltage (12 V DC) Output voltage 12 V DC sensor supply AI1 (external sensor input) Tab. 2: Digital variant, connector strip 6-pole Fig. 4: Electrical connection, digital variant Connector strip for supply and büS: Assignment CAN low...
- Page 10 7.3.2 Analogue variant Connector strip, 12-pole for supply and auxiliary functions: Assignment 9 11 Input voltage + (18...35 V DC) Input voltage - DO2 (digital output) Ground DO2 8 10 12 DO1 (switchable, 12 V) Output voltage 12 V DC sensor supply Fig.
-
Page 11: Device Operation
The operating instructions for the basic functions of the Bürkert → Hold the device by the housing lid and disconnect electrical Communicator software can be found on the Bürkert website: → Type 8920 connection. www.burkert.com → Disconnect fluidic connection. → Disassemble the device. english... -
Page 12: Transport, Storage, Disposal
▶ Dispose of the device and packaging in an environmentally friendly manner. green Diagnostics active ▶ Observe applicable disposal and environmental regulations. white Diagnostics inactive A detailed description of the possible settings can be found in the operating instructions on the Bürkert homepage at www.burkert.com english... - Page 13 Manuals and data sheets on the Internet: www.burkert.com Bedienungsanleitungen und Datenblätter im Internet: www.buerkert.de Manuels d'utilisation et fiches techniques sur Internet : www.burkert.fr © Bürkert Werke GmbH & Co. KG, 2019 - 2020 Operating Instructions 2001/01_EU-ML_00810779 / Original DE...
