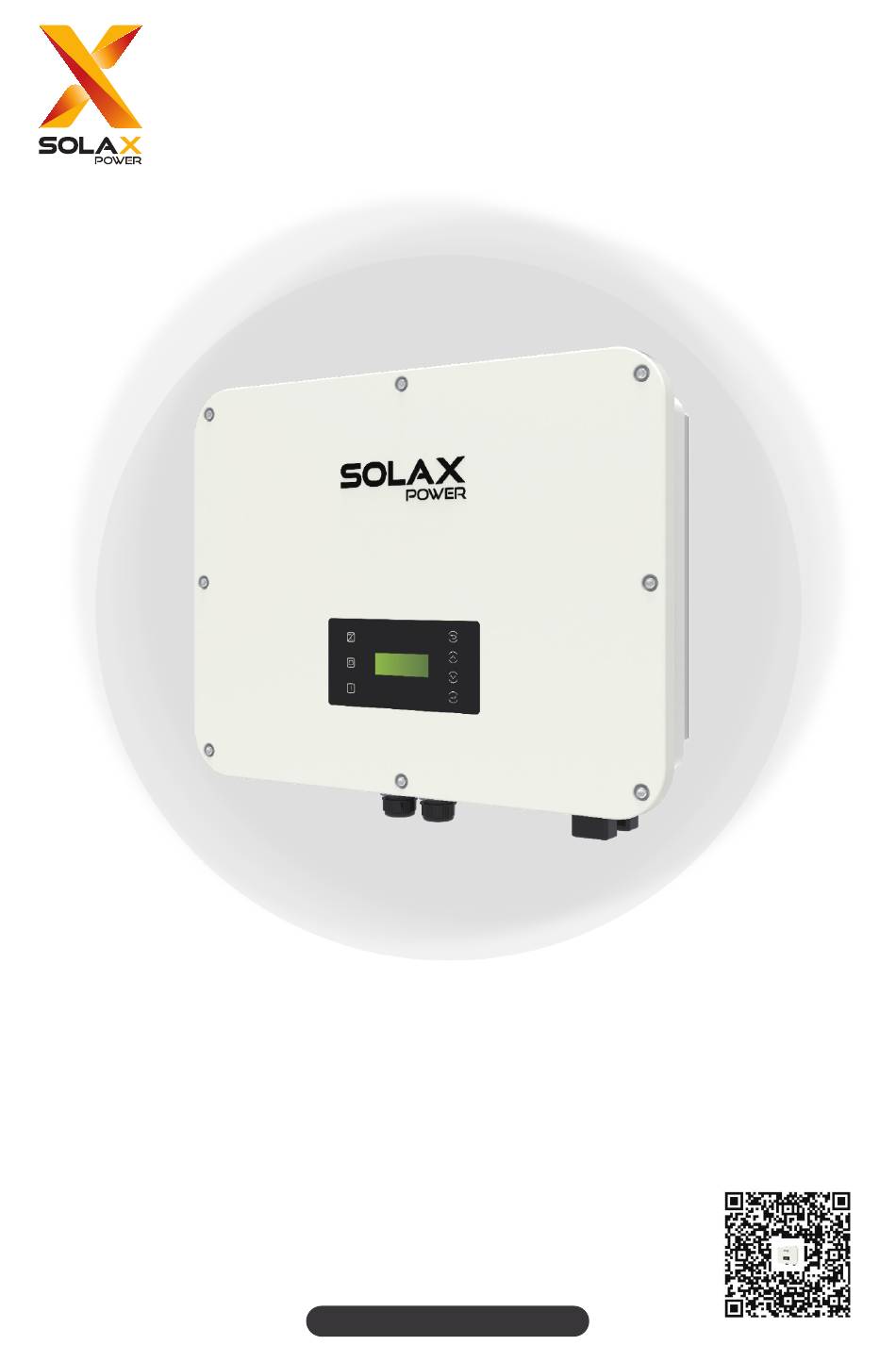

X3-ULTRA
15 kW / 19.9 kW / 20 kW / 25 kW / 30 kW
10K-GLV / 15K-GLV
User Manual
Version 10.0
www.solaxpower.com
eManual in the QR
code or at http://
kb.solaxpower.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3-ULT-10K-GLV and is the answer not in the manual?

Questions and answers

Related Manuals for SolaX Power X3-ULT-10K-GLV

Summary of Contents for SolaX Power X3-ULT-10K-GLV

  • Page 1 X3-ULTRA 15 kW / 19.9 kW / 20 kW / 25 kW / 30 kW 10K-GLV / 15K-GLV User Manual Version 10.0 www.solaxpower.com eManual in the QR code or at http:// kb.solaxpower.com/...
  • Page 3 The images included in this document are solely for illustrative purposes and may differ based on the specific product models. For more detailed information, kindly visit the website of SolaX Power Network Technology (Zhejiang) Co., Ltd. at www.solaxpower.com. SolaX retains all rights for the final explanation.

  • Page 4: About This Manual

    X3-ULT-15KP • X3-ULT-19.9K (Applicable to Italy) • X3-ULT-20K • X3-ULT-20KP • X3-ULT-25K • X3-ULT-30K • X3-ULT-10K-GLV • X3-ULT-15K-GLV • X3-ULT-25KW (Applicable to Belgium) Model Description X3-ULT-15K-GLV Item Meaning Description "X3-ULTRA" refers to the energy storage inverter Product that supports grid connection of photovoltaic family name system.

  • Page 5: Target Group

    "Setting Main Breaker Limit"; Updated "2.5.1 Circuit Diagram"; Updated "Setting Peak shaving mode" Version 09 (2024-10-10) Added model X3-ULT-10K-GLV, X3-ULT-15K-GLV and X3-ULT-25KW; Updated "10.7 Setting". (Supported SolaXMeter, added bias power, added battery heat level) Updated "10.5 System Status". (Added pack status) Updated "10.4 Mode...
  • Page 6 The range limit for the Main Breaker Limit setting has been adjusted to reach a maximum of 1000A. Support for on-grid battery heating functionality was implemented. The battery configuration has been expanded to include the 51 series battery, with a note that the T58 may not be compatible in some areas, and an explanation for the battery paralleling box has been added.
  • Page 7 Changed "Max. inverter backfeed current to the array [A]" to 0; Modified "X3-Parallel EPS BOX" to "X3-EPS Parallel BOX". Version 03 (2024-01-30) Added model 20KP; Removed "Coming soon" for BMS-Parallel Box-II G2 on P52; Removed UKCA; Updated contact information; Changed the torque for communication port connectors to 0.4; Changed the electricity meter to CT in the diagram on P151.
  • Page 8 Added a comparison of power output between regular EPS mode and Super-Backup mode. Version 00 (2023-10-11) Initial release...

  • Page 9: Table Of Contents

    Table of Contents Safety ......................1 1.1 General Safety ........................1 1.2 Safety Instructions of PV, Inverter and Grid ...............1 1.2.1 Safety Instructions of PV ..................2 1.2.2 Safety Instructions of Inverter ................2 1.2.3 Safety Instructions of Utility Grid ..............3 Product Overview ..................4 2.1 System Description ......................4 2.2 Appearance .........................4 2.3 Supported Power Grid .....................5...
  • Page 10 Unpacking and Inspection ..............33 6.1 Unpacking ..........................33 6.2 Scope of Delivery.......................34 Mechanical Installation ................36 7.1 Dimensions for mounting ....................37 7.2 Installation procedures.....................38 Electrical Connection ................41 8.1 Overview of Electrical Connection ................41 8.1.1 Terminals of Inverter....................41 8.1.2 Cable Connections of Inverter .................42 8.2 PE Connection ........................45 8.3 AC Connection ........................47 8.4 PV Connection ........................51...
  • Page 11 10.7 Setting ...........................98 10.7.1 User Setting ......................98 10.7.2 Advanced Setting ....................104 10.8 About .............................122 Operation on SolaX Cloud App .............123 11.1 Introduction of SolaX Cloud App ..................123 11.2 Downloading and installing App ...................123 11.2.1 Downloading and installing App ..............123 11.3 Operation Guide on SolaXCloud Web ................124 Troubleshooting and Maintenance ............125 12.1 Power off ..........................125 12.2 Troubleshooting .........................125...
  • Page 12 15.4 Application of DataHub ....................164 15.4.1 Introduction of DataHub application .............164 15.4.2 Wiring connection diagram ................164 15.4.3 Communication connection with inverter ...........165 15.4.4 Settings for DataHub ...................165 15.5 Micro-grid Application .....................166 15.5.1 Introduction of Micro-grid application ............166 15.5.2 Wiring conenction diagram ................166 15.5.3 Working modes .....................167 15.5.4 Cable connection (Hybrid inverter) ..............169 15.5.5 Cable connection (On-grid inverter) ..............169...

  • Page 13: Safety

    Safety General Safety The series inverter has been meticulously designed and thoroughly tested to comply with the relevant state and international safety standards. Nevertheless, like all electrical and electronic equipment, safety precautions must be observed and followed during the installation of the inverter to minimize the risk of personal injury and ensure a safe installation.

  • Page 14: Safety Instructions Of Pv

    Safety 1.2.1 Safety Instructions of PV DANGER! Potential risk of lethal electrical shock associated with the photovoltaic (PV) system • Exposure to sunlight can result in the generation of high DC voltage by PV modules, which can lead to electric shock causing severe injuries or even death. •...

  • Page 15: Safety Instructions Of Utility Grid

    Safety WARNING! • During operation, avoid touching any parts of the inverter other than the DC switch and LCD panel. • Never connect or disconnect the AC and DC connector while the inverter is running. • Prior to conducting any maintenance, turn off the AC and DC power and disconnect them from the inverter.

  • Page 16: Product Overview

    Product Overview System Description The X3-ULTRA series is the energy storage inverter that supports grid connection of photovoltaic system. It greatly meets the requirements of solar-powered roofs and supports various intelligent solutions such as load management, wireless metering, dual battery terminals, microgrids, etc., to achieve efficient and economical energy utilization. The X3-ULTRA series can be used with different capacities of SolaX battery.

  • Page 17: Supported Power Grid

    Product Overview Supported Power Grid There are different ways of wiring for different grid systems. TT / TN-S / TN-C-S / IT are shown as below: 400 V 400 V 400 V L1 L2 L3 Inverter 1.L-N: 230 V; L-L: 400 V 2.L-N: 220 V; L-L: 380 V Figure 2-2 Supported power grid-TT 400 V 400 V...

  • Page 18: Symbols On The Label And Inverter

    Product Overview 230 V 230 V 230 V L1 L2 Inverter 1. L-L: 230 V 2. L-L: 220 V Figure 2-5 Supported power grid-IT Symbols on the Label and Inverter Table 2-2 Description of symbols Symbol Description CE mark. The inverter complies with the requirements of the applicable CE guidelines.
  • Page 19 Product Overview Symbol Description The inverter can not be disposed together with the household waste. Do not operate this inverter until it is isolated from battery, mains and on- site PV generation source. Danger to life due to high voltage. Residual voltage exists after the inverter is powered off, which needs 5 ...

  • Page 20: Working Principle

    Filter AC SPD BAT2 BAT2+ BAT 2 Circuit BAT2- Filter Figure 2-6 Circuit Diagram for X3-ULTRA series inverter NOTICE! • MPPT 3 is available for X3-ULT-15KP, 20KP, 25K, 25KW, 30K and 15K-GLV inverter. • X3-ULT-10K-GLV and X3-ULT-15K-GLV without N wire.

  • Page 21: Application Schemes

    Product Overview 2.5.2 Application Schemes Breaker Main Breaker Grid Breaker Grid Inverter Battery 1 Loads N-BAR for loads Battery 2 Distribution box Figure 2-7 Whole home backup for most countries Breaker Main Breaker Grid Breaker Grid Inverter Battery 1 Loads Loads N-BAR for EPS loads N-BAR for loads Battery 2...
  • Page 22 Product Overview Main Breaker Breaker Grid Breaker Grid Inverter Battery 1 Loads N-BAR for loads Battery 2 Distribution box Figure 2-9 Whole home backup for Australia Breaker Main Breaker Grid Breaker Grid Inverter Battery 1 Loads Loads N-BAR for EPS loads N-BAR for loads Battery 2 Distribution box...
  • Page 23 Product Overview Breaker Main Breaker Grid Breaker Grid Inverter Battery 1 Loads N-BAR for EPS loads Battery 2 Distribution box Figure 2-11 Application scheme for X3-ULT-10K / 15K-GLV...

  • Page 24: Working State

    Product Overview Working State The series inverter has Waiting, Checking, Normal, EPS Checking, EPS, Fault, Idle and Standby state. Table 2-3 Description of working state State Description The inverter is waiting for the following two conditions to be met in order to enter the Checking state ： Waiting •...

  • Page 25: Working Mode

    Product Overview Working Mode Working modes are available for you to choose in on-grid status, i.e Self use, Feed-in priority, Backup, Peak shaving, TOU, Manual and Smart Schedule. You can choose the working modes according to your lifestyle and environment. When the power supply from the electric power company is stopped due to a power outage, it automatically switches to EPS mode and connects to the distribution board for a specific load, thereby providing power to important electrical appliances.
  • Page 26 Product Overview Time period Inverter working status PV is sufficient (PV → load → battery → grid) • The power generated from PV prioritizes supplying the load. Any excess power is then directed towards charging the battery, and if there is still surplus electricity, it can be sold to the grid.

  • Page 27: Feed-In Priority (Priority: Loads > Grid > Battery)

    Product Overview 2.7.2 Feed-in Priority (Priority: Loads > Grid > Battery) The feed-in priority mode is suitable for areas with high feed-in subsidies. The power generated from PV is directed towards supplying the loads. Any excess power beyond the load requirements will be fed into the grid. Feed-in Priority Power (Assu ming p eak p ower from 7: 00 to 23: 00)

  • Page 28: Backup Mode (Priority: Loads > Battery > Grid)

    Product Overview NOTICE! • You can set two configurable working periods: forced charging period and allowed discharging period in feed-in priority mode. Please refer to "Charge & Discharge Period" for details. In this mode, consider whether the battery can be charged during the day.
  • Page 29 Product Overview Time period Inverter working status The working logic remains the same as for self-use mode. The difference is: • In the self-use mode when there is no PV input and the battery SOC reaches Min SOC (on-grid min SOC), the battery will enter a dormant state.

  • Page 30: Peak Shaving Mode

    Product Overview 2.7.4 Peak Shaving Mode Peak shaving mode is set for leveling out peaks in electricity use. The system is intelligently controlled to ensure charging takes place during off-peak hours and discharging occurs during peak hours. Power Peak Shaving Mode (Assuming peak power from 7:00 to 9:00 and from 18:00 to 23:00) Battery powers the load Idea: Leveling out peaks in electricity use...

  • Page 31: Tou Mode

    Product Overview ChargePowerLimits: The charging power from grid. 1000 W by default, the settable range is 0-60000 W PeakLimits: The load consumption from grid side. 0 W by default, the settable range: 0-60000 W. Reserved SOC: The lower limit of battery SOC required for later peak shaving period. 50% by default, the settable range is 10~100%.

  • Page 32: Eps Mode (Priority: Loads > Battery)

    Product Overview 2.7.6 EPS Mode (Priority: Loads > Battery) During a power failure, the system will provide uninterrupted power supply to the EPS loads using the power from PV and the battery. It is important to ensure that the EPS loads should not exceed the maximum output power of the battery.

  • Page 33: Smart Schedule Mode

    Product Overview NOTICE! • When the battery supplies power to the load, the available capacity of the battery decreases as the SOC decreases. 2.7.7 Smart Schedule Mode Smart Schedule mode is based on the fact that the inverter is connected to a datahub, which makes intelligent predictions and automatically adjusts the inverter's operating mode based on the information it obtains.
  • Page 34 Figure 2-18 Zero export control with Phase Unbalance enabled Note: Export Control value can be set from 0W to more than the rated output power. For how to set the Export Control function, please refer to "Setting Export Control". X3-ULT-10K-GLV and X3-ULT-15K-GLV do not support connecting unbalanced loads.

  • Page 35: System Overview

    System Overview NOTICE! • The system diagram indicates the supported connection schemes, but some solutions cannot be used at the same time System Overview PV modules SolaX Cloud X3-ULTRA Dongle PV modules Grid Critical loads PV inverter Normal loads Wireless meter Transmitter for wireless meter Receiver for...
  • Page 36 "15.1 Generator Application" for specific wiring and setting. 400 V / 230 V and 380 V / 220 V grid are supported. (230 V / 133 V and 220 V / 127 V grid are supported for X3-ULT-10K-GLV and X3- Grid ULT-15K-GLV.)
  • Page 37 System Overview Item Description SolaX Cloud is an intelligent, multifunctional monitoring platform that can be accessed either remotely or through a hard wired SolaX Cloud connection. With the SolaX Cloud, the operators and installers can always view key and up to date data.

  • Page 38: Transportation And Storage

    Transportation and Storage If the inverter is not put into use immediately, the transportation and storage requirements needs to be met: Transportation • Observe the caution signs on the packaging of inverter before transportation. • Pay attenting to the weight of inverter. Be cautious to avoid injury when carrying X3-ULTRA (gross weight: 62 kg).

  • Page 39: Preparation Before Installation

    Preparation before Installation Selection of Installation Location The installation location selected for the inverter is quite critical in the aspect of the guarantee of machine safety, service life and performance. It has the IP66 ingress protection, which allows it to be installed outdoor. The installation position shall be convenient for wiring connection, operation and maintenance.

  • Page 40: Installation Carrier Requirement

    Preparation before Installation NOTICE! • For outdoor installation, precautions against direct sunlight, rain exposure and snow accumulation are recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperature rise poses no safety risks, but may impact the device performance. •...

  • Page 41: Clearance Requirement

    Preparation before Installation Withstand three times inverter's weight and be suitable for installation and dissipation (Refer to "14 Technical Data") Fire resistant Figure 5-3 Installation carrier requirement NOTICE! • Please take the weight of battery into account when wall-mounting the whole system.
  • Page 42 Preparation before Installation ≥30 cm ≥30 cm Multiple inverters Figure 5-5 Clearance requirement for multiple inverter...

  • Page 43: Tools Requirement

    Preparation before Installation Tools Requirement Installation tools include but are not limited to the following recommended ones. If necessary, use other auxiliary tools on site. The following tools must all comply with regulatory requirements. Hammer drill Multimeter (drill bit: Ø12 mm) Measuring tape Utility knife (≥...

  • Page 44: Additionally Required Materials

    Grid and EPS wire Table 5-10 Micro-breaker recommended for Grid connection X3-ULT-25K X3-ULT-15KP X3-ULT-19.9K X3-ULT-30K Model X3-ULT-15K X3-ULT-20K X3-ULT-25KW X3-ULT-10K-GLV X3-ULT-20KP X3-ULT-15K-GLV Micro- 32 A 50 A 63 A breaker Table 5-11 Micro-breaker recommended for EPS connection X3-ULT-25K X3-ULT-15KP X3-ULT-19.9K...

  • Page 45: Unpacking And Inspection

    Unpacking and Inspection Unpacking • The inverter undergoes 100% testing and inspection before shipping from the manufacturing facility. However, transport damage may still occur. Before unpacking the inverter, please check the outer packing materials for damage, such as holes and cracks. •...

  • Page 46: Scope Of Delivery

    Unpacking and Inspection Scope of Delivery Positive PV connector Negative PV connector Positive PV pin contact Inverter Bracket Negative PV pin contact Cable fixture OT terminal Expansion screw Positive battery RJ45 terminal Negative battery M5 screw connector RJ45 connector connector 8-pin terminal block Handle 7-pin terminal block...

  • Page 47: Item Description

    Unpacking and Inspection Item Description Quantity 2 pcs (1 pcs for 10 mm² wire, 1 pcs for OT terminal 16 mm² wire) Expansion screw 5 pcs M5 screw 2 pcs Positive & battery connector 2 pcs Negative battery connector 2 pcs RJ45 terminal 8 pcs RJ45 connector...

  • Page 48: Mechanical Installation

    Mechanical Installation WARNING! • Only the qulalified personel can perform the mechanical installation following the local standards and requirements. • Check the existing power cables or other piping in the wall to prevent electric shock or other damage. CAUTION! • Always be aware of the weight of the inverter. Personal injuries may result if the inverter is lifted improperly or dropped while being transported or mounted.

  • Page 49: Dimensions For Mounting

    Mechanical Installation Dimensions for mounting Check the dimensions of the bracket before mounting and reserve sufficient space for heat dissipation and installation of the whole system. Figure 7-3 Dimensions 1 (Unit: mm) 619.5 Figure 7-4 Dimensions 2 (Unit: mm)

  • Page 50: Installation Procedures

    Mechanical Installation Installation procedures Step 1: Align the bracket horizontally on the wall and mark the position of the drill holes. Figure 7-5 Marking the holes NOTICE! • Take the height of the stacked battery into account when mounting the bracket. •...
  • Page 51 Mechanical Installation Figure 7-7 Inserting the screws Step 4: Open the anti-static bag and take out the inverter and install the handle (Part P). Figure 7-8 Installing the handles NOTICE! • Avoid placing the inverter in a way that the wiring terminals are in contact with the floor or any other objects as they are not designed to bear the weight of the inverter.
  • Page 52 Mechanical Installation Step 6: Secure the inverter to the bracket with M5 screw (part H). 0.8± 0.1 N·m Figure 7-10 Securing the inverter Step 7: (Optional) For safety reason, install an anti-theft lock. Please note that the lock is not in the scope of delivery. Prepare it suitable for the lock hole diameter (Ø<10 mm) by yourself.

  • Page 53: Electrical Connection

    Electrical Connection DANGER! • Before electrical connection, make sure the DC switch and AC breaker are disconnected. Otherwise, electrical shock may be caused by high voltage, resulting in serious personal injury or death. WARNING! • Only the qulalified personel can perform the electrical connection following the local standards and requirements.

  • Page 54: Cable Connections Of Inverter

    Electrical Connection Table 8-2 Description of terminals Item Description DC switch PV connection terminal (PV1 and PV2 terminals for X3-ULT-15K, 19.9K 20K and 10K-GLV inverter; PV1, PV2 and PV3 terminals for X3-ULT-15KP, 20KP, 25K, 25KW 30K and 15K-GLV inverter) COM 1 communication terminal (including Parallel-1, Parallel-2, BMS-1, BMS-2, RS485, DRM) COM 2 communication terminal (including Ripple control, DIO, Meter/CT)
  • Page 55 Electrical Connection Table 8-3 Dsecriptons of connected part Item Part Description Source A PV string is composed of the PV modules connected in series. The Prepared by PV module number of input PV strings varies in user accordance with different models. (Optional) X3-ULTRA Purchased Select a same model of inverter...
  • Page 56 Electrical Connection Table 8-4 Descriptions of cables Item Cable Type and specifications Source PV DC input power Prepared by user cable RS485 communication Prepared by user cable RS485 communication Prepared by user cable Refer to "5.3 Additionally RS485 communication Required Materials" Prepared by user cable RS485 communication...

  • Page 57: Pe Connection

    Electrical Connection PE Connection The inverter must be grounded reliably. The connection point has been labeled with the following label: We recommend that the inverter is earthed to a nearby ground point. NOTICE! • X3-ULTRA series inverter has the grounding detection function which is used to check whether the inverter is properly grounded before it starts.
  • Page 58 Electrical Connection Step 3: Crimp it with crimping tool. Figure 8-5 Crimping the cable Step 4: Loosen the PE screw on the inverter with cross screwdriver. Figure 8-6 Uninstalling the screw Step 5: Connect the PE cable to the inverter and secure it with the original screw (Torque: 2.0±0.2 N·m).

  • Page 59: Ac Connection

    Electrical Connection AC Connection NOTICE! • Before connecting the inverter to the grid, approval must be received by local utility as required by national and state interconnection regulations. The inverter has an EPS function. When the grid is connected, the inverter outputs go through the on Grid terminal, and when the grid is disconnected, the inverter outputs go through the EPS terminal.
  • Page 60 • This section takes the wiring of the Grid terminal for example. It is also applicable to the wiring of the EPS terminal. • The X3-ULT-10K-GLV and X3-ULT-15K-GLV do not connect to the N wire Step 1: Prepare a five-core cable as the Grid cable and strip the insulation of L1, L2, L3, N and the grounding conductor to an appropriate length.
  • Page 61 Electrical Connection Ferrite core Figure 8-9 Disassembling the AC connector Step 3: Thread the Grid cable through swivel nut and connector enclosure in sequence. Figure 8-10 Threading the Grid cable Step 4: Insert the conductors L1, L2, L3, N, and grounding conductor into the ferrules. Use crimping tool for ferrules to crimp it.
  • Page 62 Electrical Connection Click! Figure 8-12 Assembling the AC connector Step 6: Remove the AC terminal caps and plug the assembled AC connectors into Grid terminal and EPS terminal correspondingly. Click! Figure 8-13 Installing the AC connector to inverter Click! Figure 8-14 The EPS terminal is not connected DANGER! •...

  • Page 63: Pv Connection

    Electrical Connection PV Connection DANGER! • When exposed to the sunlight, PV modules will generate lethal high voltage. Please take precautions. • Before connecting the PV modules, make sure that both DC switch and AC breaker are disconnected, and that the PV module output is securely isolated from the ground.
  • Page 64 Electrical Connection Wiring procedures Step 1: Strip approx. 7 mm of the cable insulation. 4-6mm² Figure 8-15 Striping the PV cable Step 2: Insert the stripped cable into the PV pin contact (part B and part E ). Figure 8-16 Inserting the PV pin contact Step 3: Make sure the the PV cable and PV pin contact are of the same polarity.
  • Page 65 Electrical Connection Figure 8-18 Threading the PV cable Step 5: A "Click" will be heard if it is connected correctly. Gently pull the cable backward to ensure firm connection. Tighten the swivel nut clockwise. Verify that the PV connectors have the correct polarity before connection. Figure 8-19 Securing the PV cable Step 6: Use a voltage measuing device which complies with the local regulation to measure the positive and negative voltage of the assembled PV connectors.
  • Page 66 Electrical Connection NOTICE! • If the voltage reading is negative, it indicates an incorrect DC input polarity. Please check if the wiring connections on the multimeter is correct or PV connectors are not mistakenly connected. Step 7: Remove the PV terminals caps and connect the assembled PV connectors to corresponding terminals until there is an audible "Click".

  • Page 67: Battery Power Cable Connection

    Electrical Connection Battery Power Cable Connection DANGER! • Before connecting the cables, make sure the breaker, power button (if any) and DC switch (if any) of battery is OFF. • Always ensure correct polarity. Never reverse the polarity of the battery cables as this will result in inverter damage.
  • Page 68 Electrical Connection packs. » For TSYS-HS5.1, single BAT terminal supports 3-13 packs, total 3-26 packs. » For T-BAT-SYS-HV-5.8, single BAT terminal supports 2-4 packs, total 2-8 packs. » For T-BAT-SYS-HV-3.0, single BAT terminal supports 2-4 packs, total 2-8 packs. » By connecting a battery parallel box to the inverter, the battery capacity can be increased, the Battery Parallel Box G2 supports T58/T30 batteries, and the TcBox-70 supports HS25/3651 batteries.
  • Page 69 Electrical Connection Figure 8-24 Detailed connection for Scheme 1 Scheme 2: Connect the two battery strings to BAT 1 and BAT 2 terminal respectively. (Suitable for the connected battery packs more than 13.) Addtional BMS is needed. Fourteen battery packs Twenty battery packs Twenty-six battery packs Figure 8-25 Battery connection Scheme 2...
  • Page 70 Electrical Connection Figure 8-26 Detailed connection for Shceme 2 NOTICE! • For Scheme 1 and Scheme 2: It allows for the full utilization of the battery's capacity based on the different types of batteries. Each BAT terminal of the inverter can operate at a maximum rated current of 30 A.
  • Page 71 Electrical Connection Figure 8-28 Detailed connection for Scheme 3 NOTICE! • For Scheme 3, use an one-to-two battery power cable to connect one battery string to two BAT terminals. It can fully unleash the performance of high-current batteries if the charging and discharging current of the battery exceeds 30 A. NOTICE! •...
  • Page 72 Electrical Connection Figure 8-29 Striping the battery cable Step 2: Open the spring. Insert the stripped wire with twisted litz wires all the way into the battery connector (part I and part J). Figure 8-30 Opening the spring Step 3: The litz wire ends have to be visible in the spring.
  • Page 73 Electrical Connection Click! Figure 8-32 Press down on the Spring Step 5: Push the insert into the sleeve. Tighten the cable gland to 2.0 ± 0.1 Nm. 2.0± 0.1 N·m Figure 8-33 Tighten the cable gland Step 6: Remove the battery terminal caps and connect the assembled battery connectors to corresponding terminals until there is an audible "Click".

  • Page 74: Com 1 Communication Connection

    Electrical Connection COM 1 Communication Connection 8.6.1 Pin Assignment of COM 1 Terminal The COM 1 terminal is used for parallel connection via Parallel-1 and Parallel-2 communication terminal, battery communication via BMS-1 and BMS-2 terminal, Communicate via RS485 and DRM, or external communication. Parallel-1 Parallel-2 1: Parallel_485A...

  • Page 75: Parallel Communication Connection

    Electrical Connection 8.6.2 Parallel Communication Connection The inverter provides the parallel connection function. One inverter will be set as the Master inverter to control the other Slave inverters in the system. For details , please refer to"15.6 Application of Parallel Function". NOTICE! •...
  • Page 76 Electrical Connection Figure 8-37 Threading the cables Step 4: Install the network cables to Parallel-1 and Parallel-2 of cable fixture (part C) according to the labeling. Figure 8-38 Installing RJ45 terminal to the cable fixture Step 5: Connect the connector to COM 1 terminal. Ensure the cable fixture tongue is well inserted into the slot of terminal.
  • Page 77 Electrical Connection Clockwise tighten the swivel nut to finish the COM 1 wiring connection. 0.4 ± 0.1 N·m Figure 8-40 Securing the connector...

  • Page 78: Bms Communication Connection

    Electrical Connection 8.6.3 BMS Communication Connection Through BMS-1 and BMS-2 communication terminal, the inverter can be connected to two independent batteries of different capacities. The model of each battery string must be the same. BMS connection diagram *For detailed connection on the battery side, please see documentation of the battery manufacturer.
  • Page 79 Electrical Connection Figure 8-42 Installing RJ45 terminal to the cable fixture Step 5: Connect the assembled connector to COM 1 terminal. Make sure the cable fixture part is well inserted into the slot of terminal. You will hear an audible "Click" if it is connected securely.

  • Page 80: Rs485 Communication Connection

    Electrical Connection 8.6.4 RS485 Communication Connection For SolaX products, such as the Adapter Box, EV-Charger, and Datahub they can be connected to pin3 and pin 6 or pin4 and pin5. As for pin1, pin2, pin7,and pin8 they can be utilized to connect devices other than SolaX products. If you require simultaneous connections of multiple devices, a splitter adapter can be employed.

  • Page 81: Drm Connection (Applicable To As/Nzs 4777)

    Electrical Connection Step 4: Install the network cable to RS485 of cable fixture (part C) according to the labeling. Figure 8-45 Installing RJ45 terminal to the cable fixture Step 5: Connect the assembled connector to COM 1 terminal. Make sure the cable fixture tongue is well inserted into the slot of terminal.
  • Page 82 Electrical Connection Table 8-6 Desciptions of DRM Mode Pin location Requirement • When S0 is turned on, the inverters shut down. DRM 0 Pin 6 • When S0 is turned off, the inverters restore grid connection.. • When S1 is turned on, the inverters do not input DRM 1 Pin 1 active power.

  • Page 83: Com 2 Communication Connection

    Electrical Connection COM 2 Communication Connection 8.7.1 Pin Assignment of COM 2 Terminal The COM 2 terminal is used for Meter/CT connection, ripple control and DIO function. Meter/CT Ripple control Table 8-7 Pin assignment of COM 2 terminal Pin assignment Meter/CT CT_R1_CON CT_S1_CON...

  • Page 84: Meter/Ct Connection

    Electrical Connection Pin assignment DIO port DO_1 DO_2 DI_1+ DI_1- DI_2+ DI_2- GND_COM 8.7.2 Meter/CT Connection The inverter should work with an electric meter or current transformer (CT for short) to monitor household electricity usage. The electricity meter or CT can transmit the relevant electricity data to the inverter or platform.
  • Page 85 For more information, please contact us. • Please make PE connection for Meter if the meter has ground terminal. • The X3-ULT-10K-GLV and X3-ULT-15K-GLV do not connect to the N wire • Meter connection diagram...
  • Page 86 Electrical Connection Inverter COM2 Grid (Meter/CT) Load N-BAR L2 L3 N Grid L2 L3 N Other power generatation equipment Figure 8-49 Meter connection diagram 2...
  • Page 87 Electrical Connection • Wireless Meter connection diagram Inverter COM2 Grid (Meter/CT) Load L1 L2 L3 N Grid Figure 8-50 Wireless Meter connection diagram...
  • Page 88 Electrical Connection • CT connection diagram Inverter COM2 Grid (Meter/CT) Load N-BAR L2 L3 N The arrow on CT must point to the grid side. Grid Inverter L wire Grid Figure 8-51 CT connection diagram NOTICE! • The arrow on the CT must point at the public grid. •...
  • Page 89 Electrical Connection Meter/CT pin definition Pin assignment CT_R1_CON For CT CT_S1_CON connection CT_T1_CON METER_485A For Meter connection METER_485B For CT CT_T2_CON connection CT_S2_CON For CT connection CT_R2_CON Meter/CT wiring procedure Step 1: Loosen the screws on the COM 2 terminal. Pinch the tabs on the sides of the COM 2 connector enclosure and pull it at the same time to remove it.
  • Page 90 Electrical Connection Step 3: Thread the cable through the swivel nut, cable support sleeve, and connector enclosure in sequence. Figure 8-54 Threading the cables Step 4: Connect the assembled communication cable into the COM 2 terminal. Secure the assembled connector on COM 2 terminal. Click! 0.4 ±...

  • Page 91: Ripple Control Communication Connection

    Electrical Connection 8.7.3 Ripple Control Communication Connection Ripple Control is a common form of grid management. Its communication is based on superimposing a very high frequency signal onto the 50 / 60 Hz mains power. The inverter supports to connect a digital signal source (e.g. ripple control receiver) to the digital input. Requirments for Ripple control •...
  • Page 92 Electrical Connection NOTICE! • If the master fails during parallel operation, the ripple control link remains connected when the slave is configured as the master. Ripple control wiring procedure Step 1: Loosen the screws on the COM 2 terminal. Pinch the tabs on the sides of the COM 2 connector enclosure and pull it at the same time to remove it.

  • Page 93: Dio Communication Connection

    Electrical Connection 0.4 ± 0.1 N·m Figure 8-62 Connecting to the inverter 8.7.4 DIO Communication Connection DIO terminal is designed to communicate with generator and system switch through dry contact. To enhance safety and reduce the risk of injury, you can install the system switch in a readily accessible location through dry contact connection.
  • Page 94 Electrical Connection System switch connection diagram DIO terminal System switch Pin 3 Pin 4 Communication Figure 8-63 System switch connection diagram When system switch is pressed, OFF MODE (DIO SW) will be displayed on the LCD screen and the system will be powered off. To release the switch, press it again. DIO wiring procedure Step 1: Loosen the screws on the COM 2 terminal.

  • Page 95: Monitoring Connection

    Electrical Connection 0.4 ± 0.1 N·m Figure 8-65 Connecting to the inverter Monitoring Connection The inverter provides a DONGLE terminal, which can transmit data of the inverter to the monitoring website via dongle.The figures of monitoring wiring procedure take WiFi+LAN dongle as an example (The WiFi+LAN dongle is equipped with 2 kinds of communication modes Wi-Fi mode or LAN mode, users can choose based on actual needs).
  • Page 96 Electrical Connection Monitoring wiring procedure Wi-Fi mode: Assemble the dongle; M2.5 0.8 ± 0.1 N·m Figure 8-68 Assembling the dongle Plug the dongle to the inverter. Figure 8-69 Wi-Fi connection procedure CAUTION! • The buckles on the inverter and dongle must be on the same side. Otherwise, the dongle may be damaged.
  • Page 97 Electrical Connection LAN mode: Disassemble the waterproof connector into components 1, 2 , 3 and 4; Component 1 is not used. Keep it in a safe place. Figure 8-70 Disassembling the waterproof connector Assemble the dongle. M2.5 0.8 ± 0.1 N·m Figure 8-71 Assembling the dongle Plug the dongle to the inverter.

  • Page 98: System Commissioning

    System Commissioning Checking before Power-on Item Checking details The inverter is installed correctly and securely. Installation The battery is installed correctly and securely. Other device (if any) is installed correctly and securely. All DC, AC cables and communication cables are connected correctly and securely;...

  • Page 99: Operation Of Lockable Dc Switch

    System Commissioning Note: Check Meter/CT 1.Must be wired up Testing in progress 2.Must be On Grid >Yes Return >Next » Awaiting the display of the check results. Please refer to "12.3 Meter/CT Fault" for the error code. Meter/CT Fault Successful Checking >Yes(0S) >Retest Skip...
  • Page 100 System Commissioning Turn off the DC switch Rotate the DC switch from ON state to OFF state. Turn off DC switch (Australian verion) Lock the DC switch Rotate the DC switch to OFF state, then rotate the DC switch to the left side; Push the position indicated by the arrow upward (as shown in the diagram below).

  • Page 101: 10 Operation On Lcd

    10 Operation on LCD 10.1 Introduction of Control Panel Operating indicator light Timely output power Power Today’s energy Today 0.0KWh Battery Battery indicator light Normal Down Error indicator light Enter Battery connection status Battery SOC Status or error information Figure 10-1 Control Panel •...

  • Page 102: Introduction Of Menu Interface

    Operation on LCD Table 10-2 Definition of keys Definition Exit from the current interface or function ESC key Move the cursor to the upper part or increase the value Up key Move the cursor to the lower part or decrease the value Down key Confirm the selection Enter key...
  • Page 103 Operation on LCD System Status: Display the real-time value of PV, battery, etc. Including PV1, PV2, • PV3, Battery 1, Battery 2, On-grid, EPS and Meter/CT. Battery1 System status Battery2 On-grid Meter/CT • Parallel Status: Display all the status data from master inverter when the inverters are parallel-connected.
  • Page 104 Operation on LCD Date Time Language EPS Mute Self Use Mode Feed-in Priority User Setting Backup Mode Char&Disc Period Peak shaving mode User PassWord Parallel Setting Safety Code Main Breaker Limit Grid Parameters Phase Unbalanced Charger EPS Setting Export Control AS4777 Setting Meter/CT Settings Self Test...

  • Page 105: System On/Off

    Operation on LCD 10.3 System ON/OFF Setting path: Menu>System ON/OFF Select ON or OFF to switch on and off the inverter. The interface is displayed ON by default. When you select OFF, the inverter stops running. ====System ON/OFF==== Switch > <...
  • Page 106 Operation on LCD ====TOU==== Current Mode: Battery off » Peak shaving: The working logic is that when the power consumption from the grid exceeds the set PeakLimit value, the battery is allowed to discharge power. The excess power beyond the limit is provided by the combination of photovoltaic and battery to ensure that the maximum power purchased from the grid does not exceed the set limit.

  • Page 107: System Status

    Operation on LCD ====TOU==== ==Discharging== Current Mode: Rate of AC Power: Discharging 100% ==Discharging== ==Discharging== Discharge to: Discharging power 0000W Setting Smart schedule mode Smart schedule can only be set in SolaX Cloud App. Aftering setting the Smart schedule in the App, the selected Smart schedule mode will be displayed in Smart schedule interface on the LCD.

  • Page 108: History Data

    Operation on LCD power input. ====System Status==== ======On-grid A====== >Ua 0.0V >On-Grid 0.0A PaOut ======Frequency====== 0.00Hz 0.00Hz 0.00Hz • EPS status: Information contains apparent power, voltage, current, active power and frequency of EPS terminal when it is disconnected from the grid. The "A", "B" and "C"...
  • Page 109 Operation on LCD » Input Total: Total input electric energy since the inverter activated for the first time. =====History Data===== >On-grid E_Feedin ======On-grid====== ======On-grid====== >Output Today >Output Total 0.0kWh 0.0kWh ======On-grid====== ======On-grid====== >Input Today >Input Total 0.0kWh 0.0kWh • EPS: A record of the output electric energy of the inverter totay and the total. when it is disconencted from grid.

  • Page 110: Setting

    Operation on LCD =====History Data===== >E_Feedin E_USERDEF Error Log ======E_Feedin====== ======E_Feedin====== >Feedin Today >Feedin Total 0.0kWh 0.0kWh ======E_Feedin====== ======E_Feedin====== >Consume Today >Consume Total 0.0kWh 0.0kWh • E_USERDEF: The electricity of the connected on-grid inverter totay and the total.(detected by Meter 2) This function is only available when the meter 2 is connected.
  • Page 111 Operation on LCD Setting Date & Time You can set the current date and time of the installation site. The display format is "2023-06-16 14:00", in which the first four numbers represent the year (e.g. 2000~2099); the fifth and sixth numbers represent the month (e.g. 01~12); the seventh and the eighth numbers represent the date (e.g.
  • Page 112 Operation on LCD » You can set whether to draw electricity from the grid to charge the battery during the forced charging period. When Charge from grid is set to Enable, the utility power is allowed to charge the battery; when it is set to Disable, the utility power is not allowed to charge the battery.
  • Page 113 Operation on LCD Setting Backup Priority Please refer to "2.7.3 Backup Mode" for working logic of this mode. • Min SOC: Default: 30%; range: 30%~100% » The minimum SOC of the battery The battery will not discharge power when the SOC of the battery reaches this value. =====User Setting===== ====Backup Mode==== Feed-in Priority...
  • Page 114 Operation on LCD ===Char&Disc Period=== ===Char&Disc Period=== Forced Charg Period Forced Charg Period Start Time End Time 00:00 23:59 ===Char&Disc Period=== ===Char&Disc Period=== Allowed Disc Period Allowed Disc Period Start Time End Time 00:00 23:59 • Char&Disc Period2: The second time axis is closed by default, If two charging and discharging periods are needed, turn on the charging and discharging period 2.
  • Page 115 Operation on LCD be displayed only when ChargeFromGrid is enabled. » ChargePowerLimits: Default: 1000 W; range: 0-60000 W Settable target power taken from grid. Inverter will use this target power taken from grid to charge battery. » MAX_SOC: Default: 50%; range: 10%-100% Inverter will take grid energy to charge battery until battery SOC reaches this value.

  • Page 116: Advanced Setting

    Operation on LCD ===PeriodB=== ===PeriodB=== >ChargeFromGrid >MAX_SOC > Enable < • PeriodD: Same working logic with PeriodB, but its shaving start and end time are 19:00 and 23:00. • Reserved_SOC: Default: 50%; range: 10%-100% » It can be used in specific time period. In this period, inverter does not allow taking grid energy to charge battery.
  • Page 117 Operation on LCD There are several standards to choose from, please refer to the LCD screen on the inverter. (May be changed or added without notice) Table 10-3 Safety code Safey code Country Austria United Kingdom Denmark EN50549-EE Estonia EN50549-SE Sweden AS 4777.2 Australia...
  • Page 118 Operation on LCD Region Australia A Australia B Australia C Zealand Standard AS4777_2020 AS4777_2020 AS4777_2020 Setting Code Name Zealand Range OVGF1-T 0.1 s 0.1 s 0.1 s 0.1 s OV-G-F2 52 Hz 52 Hz 55 Hz 55 Hz 50-55 Hz OVGF2-T 0.1 s 0.1 s...
  • Page 119 Operation on LCD Max Charge: Maximum charging current of battery • • Max Discharge: Maximum discharging current of battery Charger upper limit: Default: 100%, range: 10%-100% • » The maximum battery SOC when charging. • Single battery connection: ======Charger===== ======Charger===== ======Charger===== >Charger upper limit >Max Charge...
  • Page 120 Operation on LCD » Case 1: Only CT is connected for the series inverter. No power generation equipment in the whole system. Please activate the CT selection and choose the supported CT type. You can check the connection status in Meter/CT Check.
  • Page 121 Operation on LCD Case 1. For meter 2 setting, please set the address and direction of Meter 2 based on actual connection. You can check the connection status in Meter/ CT Check. SolaXMeter is supported. If SolaXMeter is used, the inverter will automatically recognise it and the Meter2 config related settings will appear.
  • Page 122 Operation on LCD Setting GMPPT You can set the shadow tracking speed with four options, which are Off, Low, Middle, and High. This function is off by default. • Off: Switch off the shadow tracking function. Low: Scan the shadow every four hours. •...
  • Page 123 Operation on LCD P1 PF P2 PF P3 PF Curve P4 PF Power 1 Power 2 Power 3 Power 4 PflockInPoint Curve PflockOutPoint 3Tua Select SetQuPower1 SetQuPower2 SetQuPower3 Q(u) SetQuPower4 QuRespondV1 QuRespondV2 QuRespondV3 QuRespondV4 Q(u) 3Tua QuDelayTimer QuLockEn Fixed Q Power Q Power Reactive power control, reactive power standard curve cos φ...
  • Page 124 Operation on LCD cos φ Leading 0.9/0.95 *) P/PEmax 0.9/0.95 *) Lagging Figure 10-2 Curve A *) If Pmax of the inverter ≤ 4.6 kW, the Power Factor is 0.95 at 1.0 power; if Pmax of the inverter > 4.6 kW, the Power Factor is 0.90 at 1.0 power. For TOR, the curve cos φ...
  • Page 125 Operation on LCD • Reactive power control, reactive power standard curve Q= f(V) V1=1.10Vn Qmax V2=1.08Vn=QuVlowRate V3=0.90Vn V4=0.92Vn=QuVlowRate -Qmax Figure 10-5 Curve Q= f(V)) Setting Pu Function (Applicable to specific countries, please refer to local grid requirements.) The Pu function is a volt-watt response mode required by certain national standards such as AS/NZS 4777.2.
  • Page 126 Operation on LCD Setting PVRT function PVRT consists of HVRT (High Voltage Ride Through) and LVRT (Low Voltage Ride Through). With PVRT function, the series inverter can ensure continuous operation without disconnecting from the grid within a certain range of voltage sudden rise and drop in a certain time interval.
  • Page 127 100 A Setting Phase Unbalanced This function controls the distribution of AC output power. Disable is the default setting. X3-ULT-10K-GLV and X3-ULT-15K-GLV do not support this function. Enable mode: Each phase of power will be independently outputed according to •...
  • Page 128 Operation on LCD Frequency: Default: 50Hz. Output frequency of EPS • • Min SOC: Default: 10%, range: 10%-100% » If the battery SOC is lower than the Min SOC, the inverter will prompt BatPowerLow and turn off if there is no PV input. •...
  • Page 129 Operation on LCD Set the Soft Limit value and Hard Limit value for Export Control and General Control. The figure below will take the setup of Export Control as an example. ====Export Control==== ====Export Control==== >Soft Limit >Hard Limit Enable Enable ====Export Control==== ====Export Control====...
  • Page 130 Operation on LCD NOTICE! • ARC Self Check should be done when the inverter is in normal state and the current is greater than 1.5 A. If an ARC Test Success is reported, the arc detection function is working normally. Reset Here you can reset value of Error Log, Meter/CT, INV Energy, Wifi and restore to the factory set.
  • Page 131 Operation on LCD • Single battery connection: Enable the Battery Heating function. ====Battery Heating==== >Func Select > Enable < Select the heat level. Three level can be set: Low/Middle/High. ====Battery Heating==== >Heat Level: > Low < Set the heating start time and end time for the battery. Two heating periods can be set.
  • Page 132 Operation on LCD ====Battery1==== ====Battery1==== >Heating Period 1 >Heating Period 1 End Time Start Time 00:00 00:00 ====Battery1==== ====Battery1==== >Heating Period 2 >Heating Period 2 End Time Start Time 00:00 00:00 NOTICE! • If the ambient temperature is extremely low, turning on battery heating will consume a significant amount of electrical energy.
  • Page 133 Operation on LCD is disabled. If the Meter/CT displayed in System Status is negative value, please select Grid for Pgrid Bias to discharge power to the mains. If the Meter/CT displayed in System Status is positive value, please select INV for Pgrid Bias to take power from the mains.

  • Page 134: About

    Operation on LCD Advanced Password You can reset the advanced password here. 10.8 About Displaying path: Menu > About Here shows the basic information of the inverter, battery, meter and internal code. Aftering entering into the About interface, you can check those information. •...

  • Page 135: 11 Operation On Solax Cloud App

    11 Operation on SolaX Cloud App 11.1 Introduction of SolaX Cloud App SolaX Cloud provides customers with a platform that can monitor SolaX inverter data and set it remotely. The inverter connects the system through Pocket Wifi, Pocket LAN, Pocket 4G or Ethernet direct connection, and upload the operation data to SolaX Cloud every 5 minutes.

  • Page 136: Operation Guide On Solaxcloud Web

    Operation on SolaX Cloud App NOTICE! • The screenshots in this chapter correspond to the SolaX Cloud App V5.5.0 . 11.3 Operation Guide on SolaXCloud Web Open a browser and enter www.solaxcloud.com to complete registration, login, add site and other related operations according to the guidelines of user guide. Figure 11-3 Web guide on SolaXCloud...

  • Page 137: 12 Troubleshooting And Maintenance

    12 Troubleshooting and Maintenance 12.1 Power off Turn off the system by System ON/OFF on LCD screen. Switch off the battery or the load-break switch of the battery (see documentation of the battery manufacturer). Turn off the AC switch between the inverter and the power grid. Set the DC switch to “OFF”.
  • Page 138 Error Code Fault Descriptions and Diagnosis Power grid voltage overrun • Wait a moment, if the utility returns to normal, the system will reconnect. IE 03 Grid Volt Fault • Please check if the grid voltage is within normal range. •...
  • Page 139 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis Overcurrent protection fault. • Check the impedance of DC input and AC output. IE 12 RC OCP Fault • Wait for a while to check if it's back to normal. • Or contact SolaX for help. Insulation fault •...
  • Page 140 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis Low temperature fault. • Check if the ambient temperature is too low. IE 21 Low TempFault • Or contact SolaX for help if it can not return to normal. Parallel Fault •...
  • Page 141 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis PV direction fault • Check if the PV input lines are connected in the IE 30 PV ConnDirFault opposite direction. • Or contact SolaX for help if it can not return to normal.
  • Page 142 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis FAN3 Fault IE111 FAN3 Fault • Check if the foreign objects stuck in the fan. • Or contact SolaX for help. ARM Parameter Communication fault • Check that the communication cables of inverters are well connected and the baud rate of COMM IE 112 ARMParaComFIt...
  • Page 143 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis CellImbalance1 Battery Unbalanced Fault BE 09 • Please contact SolaX for help. CellImbalance2 BMS1_Hardware Battery hardware protection fault BE 10 • Please contact SolaX for help. BMS2_Hardware BMS1_Circuit Battery circuit fautl BE 11 •...
  • Page 144 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis CR_NORespond1 Battery charging request no respond BE 22 • Upgrade the battery BMS software. CR_NORespond2 • Please contact SolaX for help. BMS1 SW Protect Battery slave software protection failure BE 23 •...
  • Page 145 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis BMS1_LineFault BE 36 • Please contact SolaX for help. BMS2_LineFault BMS1_LinkerTemp BE 37 • Please contact SolaX for help. BMS2_LinkerTemp BMS1_BatLinker BE 38 • Please contact SolaX for help. BMS2_BatLinker BMS1_FanError BE 39 •...
  • Page 146 Troubleshooting and Maintenance Error Code Fault Descriptions and Diagnosis • Check if the load is connected correctly. • Check if the power of load on the LCD screen No readings on displays normally. Load (on App or • Check if the monitoring module works normally. Web) •...

  • Page 147: Meter/Ct Fault

    Troubleshooting and Maintenance 12.3 Meter/CT Fault Table 12-1 Troubleshooting list Fault Error Code CT not connected on Phase A. Phase A has two CTs connected, or a CT connected to Neutral (N) phase. CT1 is simultaneously on Phase A and Phase B. CT2 is simultaneously on Phase A and Phase B.

  • Page 148: Maintenance

    Troubleshooting and Maintenance NOTICE! • If no corresponding installation errors are found after self inspection, and when inverter is not producing, please check whether the readings of the three phases in Status-Meter/CT on the inverter screen match the actual situation. If there are no problems, please disable the Installation Check and Cyclic Check in the Meter/CT setting-Meter/CT check or contact Solax technical support.

  • Page 149: Replacement Of Fans

    Troubleshooting and Maintenance Item Check Notes Maintenance Inverval Heat sink • Check whether the heat sink is covered Every 12 months with foreign objects. General status • Check if there is any damage on the Every 6 months of inverter inverter.

  • Page 150: Upgrading Firmware

    Troubleshooting and Maintenance 12.4.3 Upgrading Firmware WARNING! • Make sure that the type and format of the firmware file are correct. Do not modify the file name. Otherwise, the inverter may not work properly. • Do not modify the folder name and file path where the firmware files are located, as this may cause the upgrade to fail.
  • Page 151 Troubleshooting and Maintenance ===Upgrade Selection=== ====Upgrade (ARM)==== >ARM Cancel >OK Select and confirm the firmware version, and then tap the Enter key to start updating. ARM update takes about 20 seconds, and DSP update takes about 2 minutes. ====Upgrade (ARM)==== ====Upgrade (ARM)==== >XXX.XXXXX.XX_ULT_3P_ Upgrading..25%...

  • Page 152: 13 Decommissioning

    13 Decommissioning 13.1 Disassembling the Inverter WARNING! • When disassembling the inverter, strictly follow the steps as below. NOTICE! • The AC terminals, battery terminals, and PV terminals should be disassembled using the dedicated disassembly tool provided with the package. This is to prevent any damage to the equipment or potential injury to personnel.
  • Page 153 Decommissioning Figure 13-2 Releasing the PV connector Step 7: Slight pull the dongle module. Figure 13-3 Removing the dongle Step 8: Disconnect the battery connecters: Insert the removal tool into the notch of connectors and slight pull the connectors. Figure 13-4 Removing the Battery connector Step 9: Disconnect the AC connector: Insert the removal tool to the slot of the AC connector to release it.
  • Page 154 Decommissioning Figure 13-5 Removing AC connector Step 10: Remove the swivel nut. Align the removal tool (part U or part X) with the core slot, insert it. Figure 13-6 Remove the swivel nut Step 11: Press down with one hand, and push the wire upwards with the other hand to disconnect the AC connector.
  • Page 155 Decommissioning cable. Step 15: Unlock the anti-theft lock if you installed it. Unscrew the M5 screw on the sides of inverter and vertically lift up the inverter to dismantle the inverter. Figure 13-8 Unscrewing the M5 screws Step 16: Unscrew the screws for fastening the Bracket and remove the Bracket.

  • Page 156: Packing The Inverter

    Decommissioning 13.2 Packing the Inverter • Load the inverter into the original packing material if possible. Figure 13-9 Packing the inverter • If the original packing material is not available, use the packing material which meets the following requirements: » Suitable weight and dimensions for inverter.

  • Page 157: 14 Technical Data

    160-950 range³ [V] Start output voltage [V] Shutdown input voltage[V] Max. inverter backfeed current to the array [A] Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV Max. PV array power [Wp] 50000 50000 60000 20000 30000 Max.input PV power [W] 50000 50000...
  • Page 158 Total harmonic distortion < 3% (THDi, rated power) Maxinum out fault current [A] Maximum output overcurrent protection [A] Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV 30000 (29999 25000 (24900 for AS4777, Nominal AC power [VA] 25000 9999 15000 for VDE4105) 29900 for...
  • Page 159 Technical Data Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV Total harmonic distortion < 3% (THDi, rated power) Maxinum out fault current [A] Maximum output overcurrent protection [A] • INPUT AC Model X3-ULT-15KP X3-ULT-15K X3-ULT-19.9K X3-ULT-20K X3-ULT-20KP Nominal AC power [VA] 15000...
  • Page 160 29.0 Switchover time [ms] < 10 Total harmonic distortion < 3% (THDv, linear Load) Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV EPS peak power [VA] 2 time of rated power, 10s EPS rated power [VA] 25000 25000 30000 10000 15000 EPS rated voltage [V],...
  • Page 161 • POWER CONSUMPTION Model X3-ULT-15KP X3-ULT-15K X3-ULT-19.9K X3-ULT-20K X3-ULT-20KP Internal consumption < 5 (night) [W] Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV Internal consumption < 5 (night) [W] • PROTECTION Model X3-ULT-15KP X3-ULT-15K X3-ULT-19.9K X3-ULT-20K X3-ULT-20KP Anti-Islanding protection DC reverse polarity...
  • Page 162 -40 ~ +70 Noise emission (typical) [dB] < 45 Over voltage category DC: Ⅱ ; Main: Ⅲ Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV Protection class IP66 Pollution degree Operating temperature -35 ~ 60 (Derating above +45) -35 ~ 60 range [℃ ]...
  • Page 163 RD1699 / TOR Model X3-ULT-25K X3-ULT-25KW X3-ULT-30K X3-ULT-10K-GLV X3-ULT-15K-GLV Safety EN / IEC 62109 -1 / -2 EN61000-6-1/2/3/4; EN61000-3-11/12; EN 5011; IEC 62920 VDE4105 / G99 / AS4777 / EN50549 / CEI 0-21 / IEC61727 / PEA / MEA / NRS-097-2-1 /...

  • Page 164: 15 Appendix

    15 Appendix 15.1 Application of Generator 15.1.1 Introduction of generator application In certain regions where utility power is unstable, the use of generators becomes necessary to ensure uninterrupted operation of loads. The characteristic of this system is its ability to seamlessly switch to generators combined with an energy storage system, forming a new power supply configuration in the absence of utility power.
  • Page 165 Appendix Wiring connection diagram CLOUD Meter 2 Grid EPS loads Common loads Generator Figure 15-1 ATS control wiring diagram Inverter settings for ATS control mode Select Menu>Setting>Advance Setting>ExternalGen>ATS Control. =====ExternalGen===== >Function Control ATS Control Set the relative parameters as below in accordance with actual needs. »...
  • Page 166 Appendix =====ExternalGen===== =====ExternalGen===== >Forced Charg Period >Allowed Disc Period Start Time Start Time 00:00 00:00 =====ExternalGen===== =====ExternalGen===== >Forced Charg Period >Allowed Disc Period End Time End Time 00:00 00:00 » Charge from Gen and Charge battery to: The SOC which allows the system charging from generator.

  • Page 167: Dry Contact Mode

    Appendix 15.1.4 Dry contact mode In this operating mode, users can intelligently control the system by establishing a dry contact connection between the inverter and the generator. It allows for adjustments to multiple settings so that the system can meet the requirements of different scenarios. Wiring connection diagram CLOUD Grid...
  • Page 168 Appendix • Connection pins-Pin 1 and Pin 2 Table 15-1 Connection pins for generator Generator dry System switch dry Application Reserved contact output contact input GND_ Assignment DO_1 DO_2 DI_1+ DI_1- DI_2+ DI_2- • Connection steps: Please refer to "8.7.4 DIO Communication Connection" specific wire making and connection.
  • Page 169 Appendix » MinRestTime: Minimum time interval for two consecutive starts to avoid frequent generator on and off. =====ExternalGen===== >MaxRestTime 0Min » Char&Disc Period: Including Forced Charg Period and Allowed Disc Period. Two periods can be set. These period settings are associated with the same settings under Work Mode for no need to jump to work mode page to set the working period when using generator mode.

  • Page 170: Application Of Adapter Box G2

    Appendix 15.2 Application of Adapter Box G2 15.2.1 Introduction of Adapter Box G2 application With the SolaX Adapter Box G2, users can effectively utilize solar energy by commanding it to power their heat pump using settings available on the SolaX inverter and SolaXCloud. This intelligent integration allows for optimized solar self-consumption and ultimately helps in reducing electricity bills.

  • Page 171: Communication Connection With Inverter

    Appendix 15.2.2 Communication connection with inverter • Connection terminal-RS485 terminal RS485 terminal Figure 15-5 Connection terminal for Adapter Box • Connection pins Table 15-2 Pin-to-pin connection for inverter and Adapter Box G2 RS485 terminal of inverter RS485_INV terminal of Adapter Box G2 Pin assignment Pin assignment Parallel_485AA...
  • Page 172 Appendix Select the AdapBox G2 and set the Baud Rate and corresponding Address. The default Baud Rate is 9600. =====Internal485===== =====Internal485===== =====Internal485===== >Function Control >Baud Rate >AdapBoxG2 Addr: AdapBoxG2 9600 NOTICE! • When two equipments need to be connected at the same time, the Baud rate and address of the two equipments shall be set to the same.

  • Page 173: Application Of Ev-Charger

    Appendix 15.3 Application of EV-Charger 15.3.1 Introduction of EV-Charger application The EV-Charger is intended for charging electric vehicles. It should be installed in a fixed location and connected to the AC supply. The EV-Charger can communicate with other devices or systems (inverter, meter, CT, third-party charger management platform, etc.) to realize intelligent control of charging process.

  • Page 174: Communication Connection With Inverter

    Appendix models). If at any time, the available surplus power falls below the minimum start- up charging power, such as 4.2 kW for three-phase, the shortfall will be drawn from the grid. • Fast mode (Default mode): In Fast mode, the EV-Charger will charge the EV at the fastest rate regardless of whether the power generated by PV is sufficient and import grid electricity if the power generated by PV is insufficient 15.3.4...

  • Page 175: Setting For Ev-Charger

    Appendix NOTICE! • The EV-Charger in the connection diagram is the home version, and both the home version and fusion version of SolaX's EV-Charger are compatible with X3-ULTRA. 15.3.5 Setting for EV-Charger Select Menu>Setting>Advance Setting>Internal485; Select the EV Charger and set the Baud Rate and corresponding Address. The default Baud Rate is 9600.

  • Page 176: Application Of Datahub

    Appendix 15.4 Application of DataHub 15.4.1 Introduction of DataHub application SolaX DataHub can be connected to inverters through RS485 to control the output power of the entire power station according to on-site requirements. Besides, it can work with SolaXCloud to monitor all inverters, allowing for real-time data display and device management.

  • Page 177: Communication Connection With Inverter

    Appendix 15.4.3 Communication connection with inverter • Connection terminal-RS485 terminal RS485 terminal Figure 15-11 Connectiong terminal for Datahub • Connection pins Table 15-4 Pin-to-pin connection for inverter and DataHub RS485 terminal of inverter RS485-1 terminal of DataHub Pin assignment Pin assignment Parallel_485AA Parallel_485BB •...

  • Page 178: Micro-Grid Application

    Appendix NOTICE! • The Baud rate, communication protocol and verification method of the inverters connected to the same RS485 terminal of Datahub must be consistent, and the communication addresses of the inverters must be consecutive and not repeated. NOTICE! DataHub 1000 User •...

  • Page 179: Working Modes

    Appendix 15.5.3 Working modes Grid on • When PV is sufficient, the hybrid and on-grid inverters power the common and EPS loads together. When there is surplus energy on the on-grid inverter, it will also charge the battery. • When PV is insufficient, the hybrid, on-grid inverter and grid power all the loads. Figure 15-14 Power flowing when grid on and PV sufficien...
  • Page 180 Appendix Grid off In this case, the hybrid inverter will simulate the grid so as to make the on-grid inverter work. Hybrid and on-grid inverter will power the EPS loads together. If there is surplus energy, it will charge the battery. On-grid inverter Cloud Meter...

  • Page 181: Cable Connection (Hybrid Inverter)

    To detect and monitor the power data generated from the on-grid inverter, install a meter on the on-grid inverter side. Otherwise, the relevant power data of on-grid inverter can not be monitored. The X3-ULT-10K-GLV and X3-ULT-15K-GLV do not connect to the N wire. Inverter...
  • Page 182 Appendix NOTICE! • If a splitter adapter for RJ45 terminal is used, it should be placed in a waterproof enclosure. • Pin assignment Table 15-5 Pin assignment for meter and CT Application For CT1 For meter For CT2 METER METER Assignment _485A _485B...

  • Page 183: Application Of Parallel Function

    3 units in the parallel system, while with X3-EPS Parallel BOX, it supports up to 10 units. Details as follows: Table 15-6 Maximum number of inverter parallelled X3-ULT-15KP X3-ULT-19.9K X3-ULT-15K X3-ULT-25K Application X3-ULT-20K X3-ULT-30K X3-ULT-10K-GLV X3-ULT-25 X3-ULT-20KP X3-ULT-15K-GLV With X3-EPS Parallel BOX Without X3-EPS Parallel BOX...

  • Page 184: Notice For Parallel Application

    The parallel system is extremely complex and requires a large number of cables to be connected. Therefore, the cables must be connected in the correct wire sequence. Otherwise, any small mistake can lead to system failure. • The X3-ULT-10K-GLV and X3-ULT-15K-GLV do not connect to the N wire.
  • Page 185 Appendix Parallel connection diagram Inverter Inverter (Master) (Slave) Grid Grid Parallel-1 Parallel-2 Grid Meter X3-EPS Parallel BOX Grid Three- Single- Single- Single- Three- phase load phase load phase load phase load phase load Figure 15-17 System diagram with SolaX X3-EPS Parallel BOX Inverter Inverter (Slave)

  • Page 186: System Wiring Procedure

    Parallel BOX . Grid termial of Master, Slave inverter and X3-EPS Parallel BOX: L1 connects to L1, L2 connects to L2, L3 connects to L3 and N connects to N (The X3-ULT-10K-GLV and X3-ULT-15K-GLV do not connect to the N wire).
  • Page 187 Appendix inverter Master inverter Slave 1 inverter Slave 2 Figure 15-20 Power cable connection without X3-EPS Parallel BOX Communication cable wiring-COM1 terminal and COM2 terminal • With X3-EPS Parallel BOX. Use standard network cables for Master-Slave inverter connection. Master inverter Parallel-1 connects to the COM terminal of X3-EPS Parallel BOX. Master inverter Parallel-2 connects to Slave 1 inverter Parallel-1;...
  • Page 188 Appendix » Master inverter Parallel-2 connects to Slave 1 inverter Parallel-1 . » Slave 1 inverter Parallel-2 connects to Slave 2 inverter Parallel-1. » Meter connects to Meter/CT terminal of the master inverter. Please refer to "8.7.2 Meter/CT Connection". Parallel-2 Parallel-1 Parallel-2 Parallel-1...
  • Page 189 Appendix ====Parallel Setting==== >Resistance switch How to remove the parallel connection Find the inverter which needs to be set as Free. Select the Parallel Settings and select Free for the inverter ====Parallel Setting==== >Setting Free Disconnect all the network cables on the Parallel-1 and Parallel-2 terminal. NOTICE! •...

  • Page 190: Cable Cover

    Appendix can be obtained in Parallel Status interface of master inverter. The number displayed in the Parallel Status interface refers to the total number of online inverters, for example two inverters in parallel in the below figure. Power 5688W Power 5688 W Parallel Slave...

  • Page 191: Scope Of Delivery

    Appendix 15.7.2 Scope of Delivery Cable cover WiFi connecting cable WiFi stand Table 15-1 Packing list Item Description Quantity Cable cover 1 pcs WiFi connecting cable 1 pcs WiFi stand 1 pcs 15.7.3 Additionally Required Materials Table 15-2 Additionally required materials Required Material Type Quantity...
  • Page 192 Appendix Step 2: Remove the protective coil from the selected terminal for utilization. protective coil Figure 15-25 Removing the protective coil Step 3: Unlock the draw latches on both sides of the cable cover, and then remove the front panel. Figure 15-26 Removing the front panel PE cable connection For the process of making the PE cable, please refer to...
  • Page 193 Appendix AC Connection For the process of making the AC cable, please refer to "Wiring procedures for AC connection". Step 1: Loosen the screws from the Grid wiring hole and the EPS wiring hole on the cable cover. Figure 15-28 Loosening the screws from cable cover Step 2: Thread the five-core cable through the corresponding Grid and EPS wiring holes, and then, referring to "Wiring procedures for AC...
  • Page 194 Appendix PV connection For the process of making the PE cable, please refer to "Wiring procedures for PV connection". Step 1: Remove the PV terminals caps, then thread the prepared PV cable through the cable cover's wiring holes, and connect the assembled PV connectors to the corresponding terminals until an audible 'Click' is heard.
  • Page 195 Appendix Figure 15-33 Connecting to COM terminal Monitoring connection (For WiFi mode) For the assembly of the monitoring, please refer to "Monitoring wiring procedure". Step 1: Plug one end of the WiFi connecting cable into the inverter Dongle terminal, remove the plug in the hole on the right side and pull the WiFi connecting cable out of the hole.
  • Page 196 Appendix Figure 15-36 Installing the dongle Monitoring connection (For LAN mode) For the assembly of the monitoring, please refer to "Monitoring wiring procedure". Step 1: Insert the assembled Dongle into the Dongle terminal and thread the other end through the wiring hole shown, connecting it to the router. Figure 15-37 Installing the dongle Front panel insatllation Step 1:...
  • Page 197 Appendix Figure 15-38 Installing the front panel Step 4: (Optional) For safety reason, install the anti-theft locks on both sides of the cable cover. Please note that the locks are not in the scope of delivery. Prepare them suitable for the lock hole diameter (Ø<7 mm) by yourself. Keep the key to the lock in a safe place.

  • Page 198: Contact Information

    Contact Information UNITED KINGDOM AUSTRALIA Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com.au service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany...
  • Page 199 SolaX Power Network Technology (Zhejiang) Co., Ltd. Add.: No. 278, Shizhu Road, Chengnan Sub district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320101077210...
