LOBSTER N1B1 Easy Manual

Cordless Rivet Nut Setter
N1B1
Thank you for purchasing the cordless rivet nut setter (hereinafter referred to as this machine).
About the instruction manual
• An instruction manual is not included with this machine. When using the product, be sure to
read the instruction manual published on the Lobtex Co., Ltd. website together with the Easy
Guide (this document) to ensure proper use.
• Please access the instruction manual from the URL below on your computer/smartphone and
read it together with this document.
https://www.lobtex.co.jp/english/products/tabid/153/pdid/E-N1B1/catid/108/Default.aspx
• After reading this manual, please keep it in a safe place with this machine.
Introduction
• This machine is a dedicated tool for crimping and fastening blind rivet nuts (hereafter referred to as rivet nuts). It is not
designed, manufactured, or sold for any other purposes.
• Please use rivet nuts whose specifications and strength have been thoroughly designed and considered by the customer.
１
Easy Guide (this document), Safety Guide and Instruction Manual
Instructions for using this machine are divided into the Easy Guide (this document), Safety Guide, and
Instruction Manual. Depending on the information you need, refer to the Easy Guide (this document), Safety
Guide, or Instruction Manual.
Main contents described in the
・ Name of each part ・ Set contents ・ Initial setting method ・ Serial No.
Easy Guide (this document)
・ General safety warnings for power tools
Main contents of the Safety
Guide ・ Safety warnings/cautions for cordless rivet nut setter
・ Safety precautions ・ Names of each part ・ Specifications ・ Preparation before use
Main contents of the
・ Adjustment method ・ Work procedure ・ Error display list
Instruction Manual
・ Output setting table for each rivet nut ・ Troubleshooting ・ How to order parts
2
Important Notice
・ Before using this machine, please read this manual and the instruction manual/safety guide carefully. In addition, please
follow the instructions in this manual when handling this machine and when replacing accessories and parts.
・ If you have any questions about this manual and the instruction manual/safety guide, please contact the store where
you purchased it or the Lobtex Co., Ltd. (hereinafter referred to as our company) call center.
・ It is not possible to predict all the dangers that may be mixed with this machine and to include them in this manual
and the instruction manual/safety guide. When using this machine, please pay careful attention to safety measures in
addition to what is written in this manual and the instruction manual/safety guide.
・ This manual and the instruction manual/safety guide are written in Japanese as the original language. Please fully
understand the contents of this manual and the instruction manual/safety guide at your own responsibility.
・ The copyright of this manual and the instruction manual/safety guide is owned by our company. It is prohibited to
publish, copy, reproduce, or translate the contents of this manual and the instruction manual/safety guide into another
language without permission.
3
Disclaimer
・ We do not compensate for direct or indirect injury or lost profits caused by misuse, abuse or unauthorized modification
of this unit, nor do we guarantee the strength of the blind nuts themselves.
・ We are not liable for any damage or injury caused by modifications made without our written approval.
・ We are not liable for any damage or injury caused by the use of parts other than the recommended parts.
Tel: +81-72-980-1111 Fax: +81-72-980-1166
Call center
12-8 Shijo-cho, Higashi-Osaka City,
Osaka 579-8053, Japan

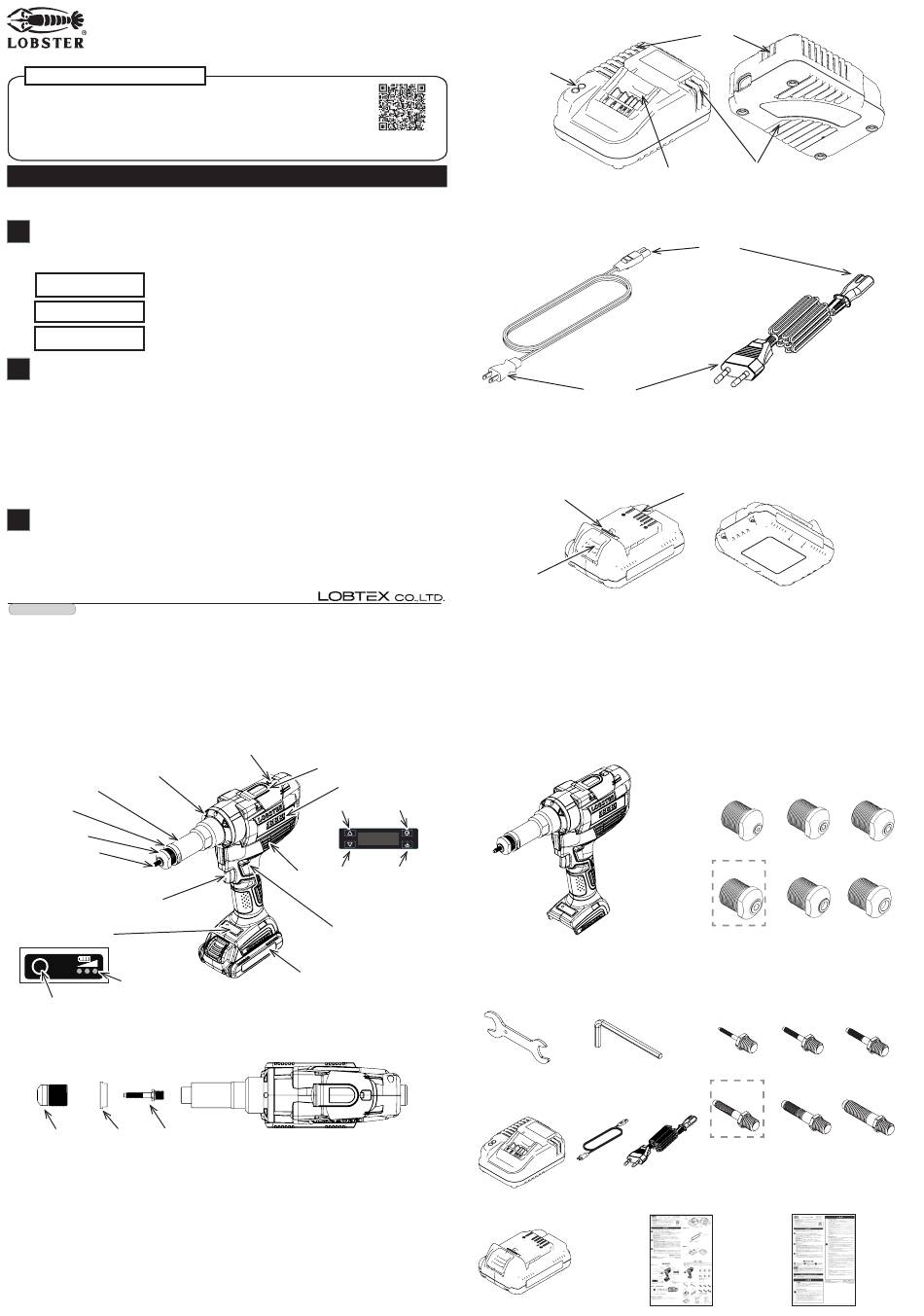

● Names of components
● Machine body（N1B1）
Work light (LED light)
Nose Housing
Lock nut
Nosepiece
Screw mandrel
Trigger Switch
Indicator Panel
E F
Battery level indicator
*Only lights up when in use
Work light ON/OFF button
● Replacement parts when changing fastening nuts
Screw mandrel
Nosepiece Lock nut
*Lock nuts are common to all sizes.
＜ Installation of Pokayoke tools ＞
If you purchase the dedicated Pokayoke installation kit (PYSN1H80), you can install the Pokayoke tool
(model number TW-800T) from HERUTU ELECTRONICS CORPORATION.
* Please contact our call center for information on wireless transmitter specifications and Pokayoke
installation kits.
Easy Guide
Original Easy Guide
Website https://www.lobtex.co.jp/
No.NEN1B1SK2A31
Connection terminal cover
hanger
モニター
Up button
No STROKE
LOCK FORCE
Down button
Ventilation holes
Forward/reverse switch
Battery pack
(BPL-1825 included)
*Large capacity battery pack is optional
(BPL-1850)
● Charger
LED lamp
green/red
For smartphone
● power cable
for North America
● Battery pack
button
Please make sure that all of the following items, including this unit, are included in the dedicated blow case.
We take every precaution when packaging, but if any item is missing, please contact the retailer where you
purchased the product or our call center.
１． Cordless Rivet Nut Setter N1B1
Select button
Save button
３． double-ended spanner
(2 pieces)
６． Charger
８． Battery pack(BPL-1825)
Ventilation holes
Battery pack attachment section
Inlet Plug
Power plug
Terminal
claw
● Set contents
２． Nosepiece
M3 M4 M5
M6 M8 M10
* The product is shipped with an M6 nosepiece
attached.
５． Screw mandrel
４． Hexagonal L-shaped
wrench
M3 M4 M5
M6 M8 M10
７． power cable
* The product is shipped with an M6 screw
mandrel attached.
for North America For Europe
９． Easy Guide (this document)
Ventilation holes
For Europe
１０． Safety Guide
