AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 1
Professional model of air riveter to install blind rivets.
¡ Thank you very much for purchasing "LOBSTER" air riveter. To ensure correct operation, please
read this instruction manual carefully, and keep it in a safe place for later reference.
¡ This instruction manual contains information for models AR2000S
Be sure to refer to information that is applicable to the model you are using.
¡ This is Original instructions. (Original Instruction Manual is written in English language.)
International Marketing & Sales Division
12-8 Shijyo-cho, Higashi-Osaka City
Osaka 579-8053, Japan
Telephone: +81(72)981-7466
URL http://www.lobtex.co.jp/

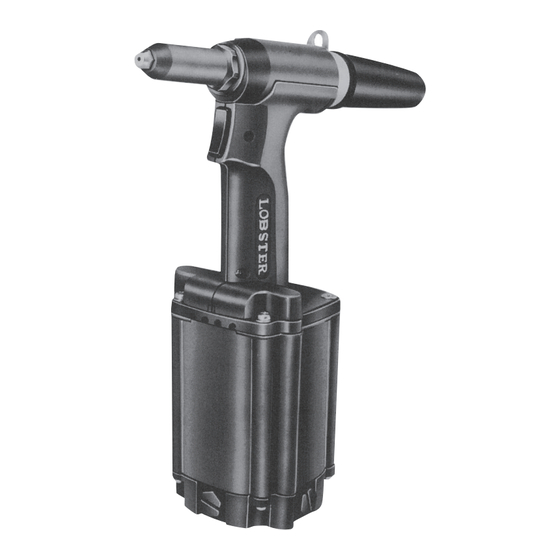

AIR RIVETER
INSTRUCTION MANUAL
MANUFACTURER
Telefacs: +81(72)981-9420
AR 2000S
AR 2000M
AR 2000H
CONTENTS
INSTRUCTIONS.................................1
NOMENCLATURE .............................5
TECHNICAL DATA ............................6
PREPARATION BEFORE USE .........7
OPERATING THE AIR RIVETER ......8
MAINTENANCE .................................9
STORAGE........................................14
TROUBLESHOOTING .....................15
PARTS TABLE ............17
PARTS TABLE ............19
PARTS TABLE ............21
, AR2000M
and AR2000H
(A)
(A)
(A)
(A)
(A)
.
(A)
PRINTED IN JAPAN
Advertisement
Table of Contents
Related Manuals for LOBSTER AR 2000H
Summary of Contents for LOBSTER AR 2000H
-
Page 1: Table Of Contents
PARTS TABLE ....21 Professional model of air riveter to install blind rivets. ¡ Thank you very much for purchasing “LOBSTER” air riveter. To ensure correct operation, please read this instruction manual carefully, and keep it in a safe place for later reference. -
Page 2: Important Safety Instructions
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 1 IMPORTANT SAFETY INSTRUCTIONS ◆ Be sure to read the following Important Safety Instructions carefully and make sure that you understand them thoroughly before using this tool. ◆ Always wear eye-protection at all times during use. If this is not observed, the cut mandrels may eject out when the rivets are cut and cause serious injury. - Page 3 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 2 t WARNING 7. If using in elevated locations, use a safety harness, and take care to avoid dropping rivets or the tool itself. ¡Accident or injury may result if this practice is not followed. 8 Never look into the nosepiece of the tool, and never point the nosepiece toward other persons.
- Page 4 ¡ Repair work should only be carried out by a qualified technician. Please contact your nearest “LOBSTER” distributor, representative, or direct to Lobtex Co., Ltd., Osaka. If the tool is repaired by someone without the necessary qualifications and experience, the tool may not perform to optimum standards, and accidents or injury may result.
- Page 5 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 4 t CAUTION 15. The production date of this product is shown brevity code below the tools. (on page6) 16. Important information and clue about the use are listed in main body label. When contents cannot read by contamination or by the damage of the label, please order a new label and put it.
-
Page 6: Nomenclature
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 5 NOMENCLATURE FRAME CAP BLEED PLUG FRAME HEAD NOSEPIECE SWITCH SAFETY CAP FRAME AIR OUTLET HOLE CYLINDER THREADS G CHANGE PLUG CHANGE PLUG ROTARY JOINT UNIT FRAME HEAD INTERNAL PARTS AR2000S AR2000M Jaw case lock nut Lock washer Jaw ! Jaw pusher Jaws ‘S’! Jaw case Jaw ! -
Page 7: Technical Data
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 6 TECHNICAL DATA Model No. AR2000S AR2000M AR2000H Weight kg (lbs) 1.1 (2.43) 1.2 (2.65) 1.6 (3.53) 0.49 ~ 0.59 MPa (5 ~ 6 kgf/cm , 71 ~ 85 psi.) Operating air pressure Dimensions (Length×Height×Width) mm 266×240×95 270×283×95 295×323×105 Air consumption per rivet (c.ft.) 0.6 (0.021) 1.7 (0.060) -
Page 8: Preparation Before Use
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 7 PREPARATION BEFORE USE Remove the dust-proof cap on the bottom of the tool, and then connect the rotary joint unit. A Connect the end of the rotary joint unit which has the O-ring fitted to the tool. t WARNING 4 (P.1) O-ring Rotary joint Install the safety cap to the tool. -
Page 9: Operating The Air Riveter
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 8 OPERATING THE AIR RIVETER Select a rivet of a size which is suitable for the workpiece to be riveted. Replace the nosepiece with one which matches the size of the rivet to be used. (Refer to item in “Preparation Before Use” on page 7.) Drill a hole of appropriate size (0.1 to 0.2 mm larger than the diameter of the rivet) into the workpiece. -
Page 10: Maintenance
AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 9 MAINTENANCE After long periods of use, debris from rivet cut mandrels and other foreign materials tend to build up in various parts of the tool, and the hydraulic oil level also drops, both of which can lead to operating problems. - Page 11 Align the notch A Apply “LOBSTER” brand jaw lube (sold separately) to the backs of the jaws. Lower the jaw case collar ＜Jaw case setting position＞...
- Page 12 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 11 Cleaning and filling the cylinder ◎ If foreign materials build up in the cylinder, it will not operate smoothly and service life will be reduced. Frame head Turn off the air supply. t CAUTION 1 (P.3) Use a spanner or similar tool to remove the frame head.
- Page 13 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 12 Put the air piston back inside the cylinder cup. A At that time, the air piston is susceptible to falling inside the cylinder cup. Carefully press the air piston straight to the bottom. (10-1) Air piston If the piston inclines, remove it and then press it again.
- Page 14 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 13 Cleaning the spool Turn off the air supply. t CAUTION 1 (P.3) Use a spanner or similar tool to remove the change plugs at the front and back. Front Rear Use a plastic screwdriver or similar to push out the spool from the rear Change plugs hole.
-
Page 15: Storage
¡ To increase the working life of the tool, it is recommended that you give it periodic overhauls. Contact the place of purchase or your nearest “LOBSTER” dealer for any overhauls and repair work required. (A charge will be made for this service.) -
Page 16: Troubleshooting
TROUBLESHOOTING If a problem occurs, check the following. If the problem persists after checking the items in the table below, contact your nearest “LOBSTER” dealer or direct to us. In making any enquiries about this product or requests for repair work, first check the troubleshooting items below, and then make a note of the model number, the usage conditions and the trouble symptoms in as much detail as possible. - Page 17 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 16...
-
Page 18: Ar2000S (A) Parts Table
英語／ENGLISH 17 16... - Page 19 O-ring P-5 (4D) 29613 O-ring P-18 23683 O-ring P-8 (4D) 29614 B-ring P-18 23684 O-ring P-9 10219 Back piston ʻXʼ 41261 “LOBSTER” brand hydraulic oil 10012 O-ring P-7 10149 Spanner ʻBʼ 29642 Return spring ʻSʼ 29815 Spanner ʻAʼ 10183 O-ring S-24 10185...
-
Page 20: Ar2000M (A) Parts Table
英語／ENGLISH 20 19... - Page 21 Oil piston ʻYʼ 41264 O-ring P-8 (4D) 29614 O-ring P-22A 10130 O-ring P-9 10219 B-ring P-22A 10131 “LOBSTER” brand hydraulic oil 10012 Piston sleeve 42498 Spanner ʻBʼ 29642 Flat washer 12 x 24 42504 Spanner ʻAʼ 10141 Return spring ʻMʼ...
-
Page 22: Ar2000H (A) Parts Table
英語／ENGLISH... - Page 23 29613 Oil piston ʻZʼ 41270 O-ring P-8 (4D) 29614 O-ring P-24 10207 O-ring P-9 10219 B-ring P-24 10208 “LOBSTER” brand hydraulic oil 10012 Back piston ʻZʼ 41273 Spanner ʻBʼ 29642 O-ring P-8 10336 Spanner ʻAʼ 10217 Return spring ʻHʼ 29726...
- Page 24 ® WILL LOBSTER BE LIABLE FOR DAMAGES OR COSTS INCURRED BY THE BUYER OR SUBSEQUENT USER IN RE- PAIRING OR REPLACING DEFECTIVE GOODS. ROUTINE MAINTENANCE AND REPAIR OF LOBSTER ® RIVET TOOLS CAN BE PERFORMED BY AN AVERAGE MECHANIC. ®...
- Page 25 AR-2000S-M-H(A)取扱(GB):AR-2000S̲M-H(A)取扱(GB) 14/08/27 13:55 ページ 24...
