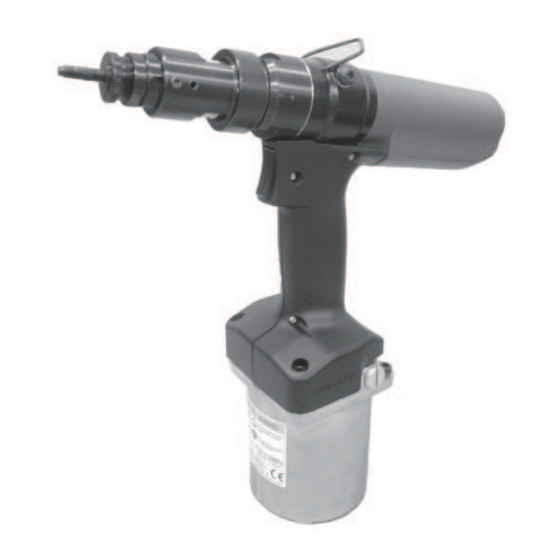

Professional model of pneumatic rivet nut setter to install blind rivet nuts.
Thank you very much for purchasing"
operation, please read this instruction manual carefully, and keep it in a safe place for later reference.
This is Original instructions.(Original Instruction
Manual iswritten in English language.)
MANUFACTURER
12-8 Shijo-cho, Higashi-Osaka City
Osaka 579-8053, Japan
Telephone: +81(72)981-7466 Telefacs: +81(72)981-9420
URL https://www.lobtex.co.j p/
MANUFACTURER
INTRODUCTION
IMPORTANT SAFETY
I N S T R U C T I O N S
NOMENCLATURE
TECHNICAL DATA
PREPARATION BEFORE USE
OPERATING THE PNEUMATIC
RIVET NUT SETTER
MAINTENANCE
TROUBLESHOOTING
PARTS TABLE
STORAGE
ORDERING PARTS
"pneumatic rivet nut setter. To ensure correct
PRINTED IN JAPAN
Advertisement
Related Manuals for LOBSTER N1A2
Summary of Contents for LOBSTER N1A2
- Page 1 INTRODUCTION IMPORTANT SAFETY I N S T R U C T I O N S NOMENCLATURE TECHNICAL DATA PREPARATION BEFORE USE OPERATING THE PNEUMATIC RIVET NUT SETTER MAINTENANCE TROUBLESHOOTING PARTS TABLE STORAGE ORDERING PARTS Professional model of pneumatic rivet nut setter to install blind rivet nuts. Thank you very much for purchasing”...
-
Page 2: Important Notices
If you have any questions about this manual, check the model (type) and contact the “LOBSTER” dealer where you purchased the tool. It is impossible to foresee all potential dangers and describe them in this manual. - Page 3 ●安 ●安全上のご ●安全上のご注意 ◆ ご 使用前に、この「安全上のご注 ●安全上のご注意 ください。 ●安全上のご注意 ●安全上の ◆ ◆ ご 使用前に、この「安全上のご注意」すべてをよくお ◆ 本 機をご使用中は、必ず保護めが Be sure to read the following Important Safety Instructions carefully and make sure that you ●安全上のご注意 ください。 出し傷害を及ぼす恐れがあります ◆ ご 使用前に、この「安全上のご注意」すべてをよくお読みのうえ、十分理解されて正しく使用して understand them thoroughly before using this tool. ◆ ...
- Page 4 Repair work should only be carried out by a qualified technician. Please contact your nearest 修理されますと、十分な性能を発揮しないだけでなく、事故やけがの恐れがあります。 "LOBSTER" distributor, representative, or direct to Lobtex Co.,Ltd.,Osaka. If the tool is repaired 15. 本機の改造をしないでください。 by someone without the necessary qualifications and experience, the tool may not perform to ・異常動作等事故やけがの恐れがあります。 ...
- Page 5 注 意 1. 本機のお手入れ、部品交換等の分解時には必ずエアーの供給を止めてください。 ・エアーが供給された状態で手入れや分解を行なうと、部品の飛び出し、オイルのふき出し、予期 せぬ動きなどにより、事故や傷害を負う恐れがあります。 2. 油止めねじをしっかりと締め付けた状態でご使用ください。 ・油止めねじが緩んでいたり、はずれた状態で使用すると、油がふき出し、事故や傷害を負 う恐れがあります。 3. フレームヘッド （CJM） をはずした状態で本機を操作しないでください。 ・指をはさむなど、傷害を負う恐れがあります。 4. エアー排出口に顔などを近づけないでください。 ・エアー排出口から油分等が飛散して目などに入る恐れがあります。 5. 油圧オイル、潤滑オイル、グリース等の油類はできるだけ皮膚などに触れないようにしてく ださい。 ・皮膚などに炎症をひき起こす恐れがありますので、触れた場合は身体から完全に洗い落としてく ださい。 Only persons who can physically handle the capacity, weight, and performance of the tool should use it. 6. 当社より供給された部品、又は推奨された部品のみをご使用ください。また、お使いになる リベットに適合した部品を取付けてご使用ください。 ・十分な性能が発揮できないだけでなく、異常動作などにより、事故や傷害を負う恐れがあ ります。 7. 整理、整頓、清掃された場所でお使いください。 ...
- Page 6 Frame head Frame Screw mandrel M6 Nosepiece M6 Bleed plug Switch Stroke adjuster lock sleeve Nosepiece lock nut Reverse button Check at the time of purchase. Nosepiece Screw mandrel M4 M5 M8 M10 M4 M5 M8 M10 each 1 pc each 1 pc Optional M3 and M12 nosepieces and screw mandrels are necessary to install M3 and M12 rivets.
- Page 7 Model No. N1A2 Weight Operating air pressure Dimensions (Length×Height×Width) 305×298×114 Air consumption per rivet nut at 0.6MPa Tool stroke Traction power at 0.6MPa Applicable nuts M3 M4 M5 M6 M8 M10 M12 Operating environment Temperature to35 Relative humidity RH max no condensation...
- Page 8 ※ご使用中は必ずタンクケースユニットを取付けてお使いください。タンクケースユニットを取付けずに バキュームボタンをＯＮにすると、切断されたリベットのマンドレルが勢い良く飛び出し、傷害を及ぼ す恐れがあります。 コンプレッサーを用意しエアーリベッター レギュレータ Air regulator との 間 に必ずエアーフィルタ ・ レギュレー エアー Set up the compressor, and フィルタ Air filter ~~~~~~~~~~~~~~~~ タ ・エアールブリケータ （3点セット） を取り be sure to install an air filter, ~~~~~~~~~~~~~~~~~~~~ air regulator and air lubricator 付けてください。 (3-device set) between the ※エアールブリケータの滴下量調整は最小量に ...
- Page 9 ください。 ◆ 本 機をご使用中は、必ず保護めがねを着用してください。切断されたリ 出し傷害を及ぼす恐れがあります。 警 告 注 意 ◆ こ こに示した注意事項は と に区分けしていますが、 それ Nosepiece base 警 告 ：誤った取扱いをした場合、使用者が死亡または重傷を負う Remove the nosepiece. Nosepiece のご注意 Always turn off the air supply 注 意 ：誤った取扱いをした場合、使用者が傷害を負う可能性が想 before replacing parts. 損害のみの発生が想定される内容のご注意 ...
- Page 10 Replace the screw mandrel and nosepiece Mandrel case Collar Threaded section with those appropriate for the rivet nuts to be used. Always apply grease to the collar of the screw mandrel and lubricant to the threaded section of the same. Align the notch How to assemble the mandrel case Tighten the mandrel case fully, and then...
- Page 11 Stroke adjusting Stroke adjusting dial dial lock sleeve Adjustment of stroke Adjust the stroke to each rivet nut setting capacity. Turn the stroke adjusting dial and slide the stroke adjusting dial lock sleeve in the direction of the arrow to adjust the stroke. The stroke adjusting dial has the scale of 0.1 mm in the direction of rotation of the dial, and the scale of 1mm in the...
- Page 12 Rivet nut Repeat steps until the stroke becomes ±0.3 mm of the appropriate stroke. To operate the air motor smoothly, lubricate with 3 - 5 drops of LOBSTER hydraulic oil “B10012” (optional) from the air coupler before starting work.
- Page 13 Blind rivet nuts (hereafter called “nuts”) have each an appropriate stroke, depending on the manufacturer, material, and size. Refer to the instruction manual and setting stroke list attached to the purchased nuts. If you cannot find the appropriate stroke, contact the nut manufacturer to find the appropriate stroke.
- Page 14 Drill a hole of the appropriate size into the workpiece. Push a rivet nut into the screw mandrel to load it. Without pulling the switch, the screw mandrel automatically rotates in the clockwise direction and loads the rivet nut as the screw mandrel is pushed inward.
- Page 15 If the tool runs low on hydraulic oil and does not produce an adequate stroke, lubricate the tool 警 告 with LOBSTER hydraulic oil “B10012” (optional) by following the procedure below. If stroke is again ：誤った取扱いをした場合、使用者が死亡または重傷を負 inadequate soon after hydraulic oil has been refilled, the seal section may be worn or damaged.
- Page 16 Apply grease to the O-ring and rod of air piston unit and to the inside of cylinder cup using brush. Apply grease Air piston unit Apply grease Cylinder cup Push the air piston unit into the oil supply port, and wipe away the hydraulic oil that spills from the oil supply port.
- Page 17 If a problem occurs, check the followings. If the problem persists after checking the items in the table below, contact your nearest ‘’LOBSTER’’ dealer or direct to us. It may not rotate at the timing Manually turn the screw mandrel to the left when air motor is in neutral and right.
- Page 19 Frame 64892 Aluminum O-ring P-14 10434 Rubber Cylinder cup 64921 Aluminum B-ring P-14 10435 Plastic Cylinder cap unit 64882 O-ring P-30 14445 Rubber Air piston unit 64883 B-ring P-30 64963 Plastic Spool connector unit 64887 O-ring SS-10 63179 Rubber Air motor unit 64886 O-ring P-11 23663 Rubber...
- Page 20 Cylinder cap unit 64882...
- Page 21 Spool cap 64895 Aluminum O-ring S-12 23709 Rubber Spool spring 64918 Steel Spool axis 40474 Aluminum O-ring P-9 10219 Rubber Hexagon socket head cap set screw M5×5 64960 Steel Cylinder cap 64980 Aluminum Screw 63245 Plastic One touch straight joint 43738 Reverse valve 64914 Aluminum...
- Page 22 Air piston unit 64883 Cushion rubber 63178 Rubber O-ring 0750G 64962 Rubber Spool connector unit 64887 O-ring S-10 10151 Rubber Spool connector 66769 Aluminum O-ring S-12 23709 Rubber O-ring P-10 10274 Rubber Rotary joint 64908 Aluminum E-type retaining ring 10 64966 Steel Air motor unit 64886...
- Page 23 Use only clean hydraulic oil, as the viscosity of the oil used will affect tool performance. ''LOBSTER'' brand Hydraulic Oil is supplied in a plastic filler bottle with the tool, and can also be obtained from your ''LOBSTER'' dealer or agent in your town. If this is not possible, a good quality mineral oil with the following properties should also be used.
