ASROCK Rack W480M WS Quick Installation Manual

*15G065168001AK*
P/N: 15G065168001AK V1.1
Quick Installation Guide
W480M WS
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

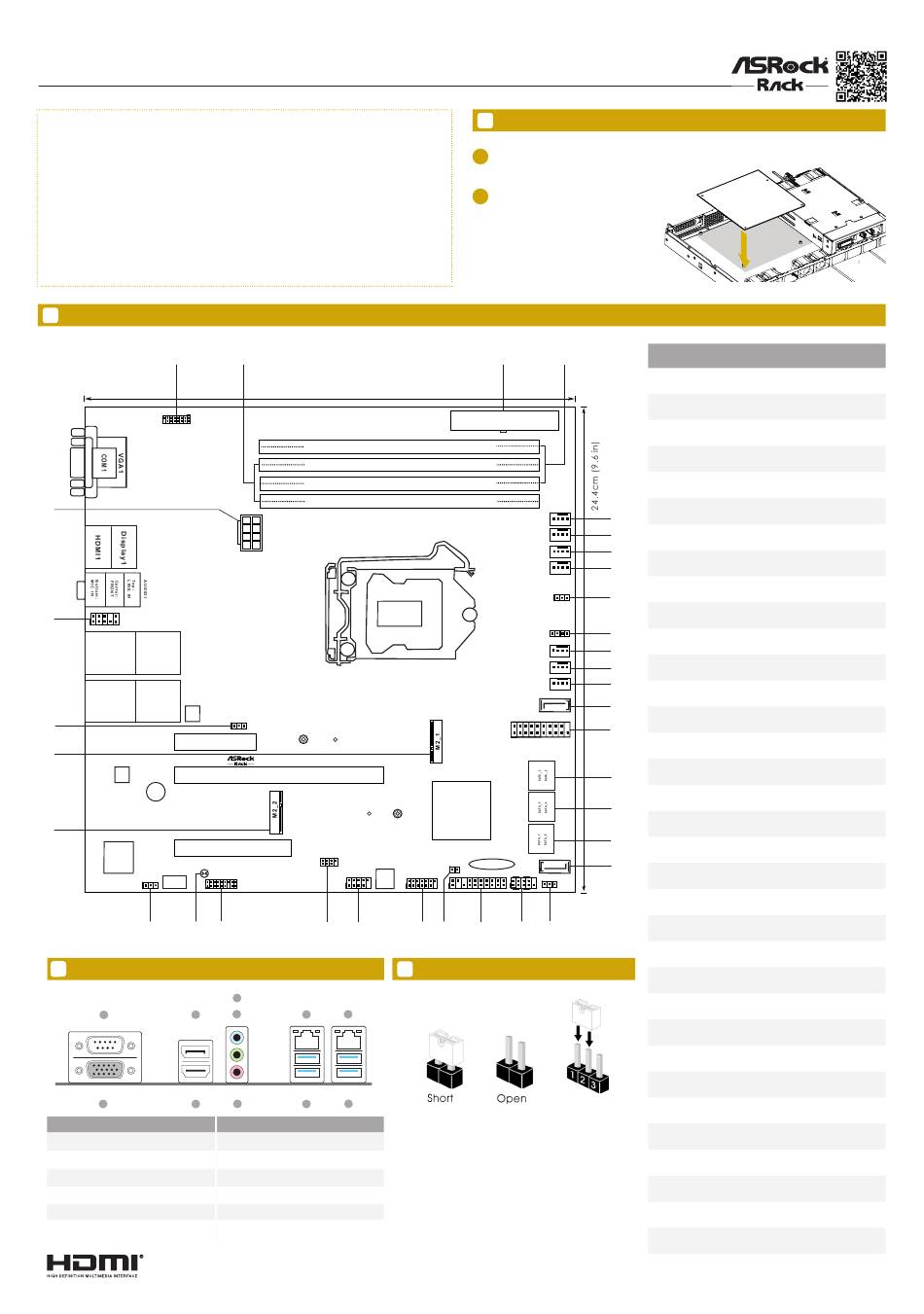

Motherboard Layout
2
1
1
FRNT_VGA1
34
33
HD_AUDIO1
1
USB 3.2 Gen2
T: USB31_1
LAN1
B: USB31_2
USB 3.2 Gen1
LAN2
T: USB31_3
B: USB31_4
i210
32
PCIE7
31
PCIE6
i210
BUZZER1
30
PCIE4
Super
I/O
CLRMOS1
T 1 R
Dr. Debug
1 1
29 28
3 I/O Panel
4
2
3
1
No. Description
1 VGA Port (VGA1)
2 Serial Port (COM1)
3 HDMI Port (HDMI_1)
4 Display Port (PD_1)
5 Microphone (Pink)
6 Front Speaker (Lime)
The terms HDMI® and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
2
24.4cm (9.6 in)
DDR3_B1 (64 bit, 240-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module) DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module) DDR4_A2 (64 bit, 288-pin module)
DDR3_A1 (64 bit, 240-pin module) DDR4_A1 (64 bit, 288-pin module)
ATX12V1
W480M WS
PWM_CFG1
1
NUT80_1 NUT60_1
RoHS
NUT60_2
SATA_SGPIO1
1
USB_1_2
TPM1 BIOS
ROM
1
27 26 25
7
6 9 11
5 8 10
No. Description
7 Line In (Light Blue)
8 USB 3.2 Gen2 Ports (USB31_1_2)
9 1G LAN RJ-45 Port (LAN1)
10 USB 3.2 Gen1 Ports (USB31_3_4)
11 1G LAN RJ-45 Port (LAN2)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
3 4
ATXPWR1
FAN1
FAN2
FAN3
FAN4
SEC_OR1
1
SPEAKER1
1
FAN5
FAN6
FAN7
SATA_1
1
USB3_1_2
Intel
W480
NUT80_2
NMI_BTN1
BAT1
SATA_0
1 PANEL1
AUX_PANEL1
SPI_TPM_J1 PLED PWRBTN
SATA_PWR1
1 1
1
HDLED RESET
24 23 22 21 20
4 Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
No. Description
1 Front VGA Header (FRNT_VGA1)
2 x 288-pin DDR4 DIMM Slots (DDR4_A1,
2
DDR4_B1, Blue)
3 ATX Power Connector (ATXPWR1)
2 x 288-pin DDR4 DIMM Slots (DDR4_A2,
4
DDR4_B2, White)
5 Chassis Fan Connector (FAN1)
6 Chassis Fan Connector (FAN2)
5
7 Chassis Fan Connector (FAN3)
6
7
8 Chassis Fan Connector (FAN4)
8
9 Security Override Jumper (SEC_OR1)
9
10 Chassis Speaker Header (SPEAKER1)
10
11 Chassis Fan Connector (FAN5)
11
12 Chassis Fan Connector (FAN6)
12
13
13 Chassis Fan Connector (FAN7)
14
14 SATA3 Connector (SATA_1)
15
15 USB 3.2 Gen1 Header (USB3_1_2)
SATA3 Connector (SATA_3) (Upper), SATA3
16
Connector (SATA_2) (Lower)
16
SATA3 Connector (SATA_5) (Upper), SATA3
17
Connector (SATA_4) (Lower)
17
SATA3 Connector (SATA_7) (Upper), SATA3
18
Connector (SATA_6) (Lower)
18
19 SATA3 DOM Connector (SATA_0), Red
19
20 SATA DOM Power Connector (SATA_PWR1)
21 System Panel Header (PANEL1)
22 Auxiliary Panel Header (AUX_PANEL1)
23 Non Maskable Interrupt Button (NMI_BTN1)
24 SPI TPM Header (SPI_TPM_J1)
25 USB 2.0 Header (USB_1_2)
26 SATA SGPIO Connector (SATA_SGPIO1)
27 TPM Header (TPM1)
28 Clear CMOS Pad (CLRMOS1)
29 Thermal Sensor Header (TR1)
30 M.2 Socket (M2_2) (Type 2260/2280)
31 M.2 Socket (M2_1) (Type 2260/2280)
32 PWM Configuration Header (PWM_CFG1)
33 Front Panel Audio Header (HD_AUDIO1)
34 ATX 12V Power Connector (ATX12V1)
