ASROCK Rack EP2C612D8HM Quick Installation Manual

*15G065060100AK*
P/N: 15G065060100AK V1.0
Quick Installation Guide
EP2C612D8HM
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

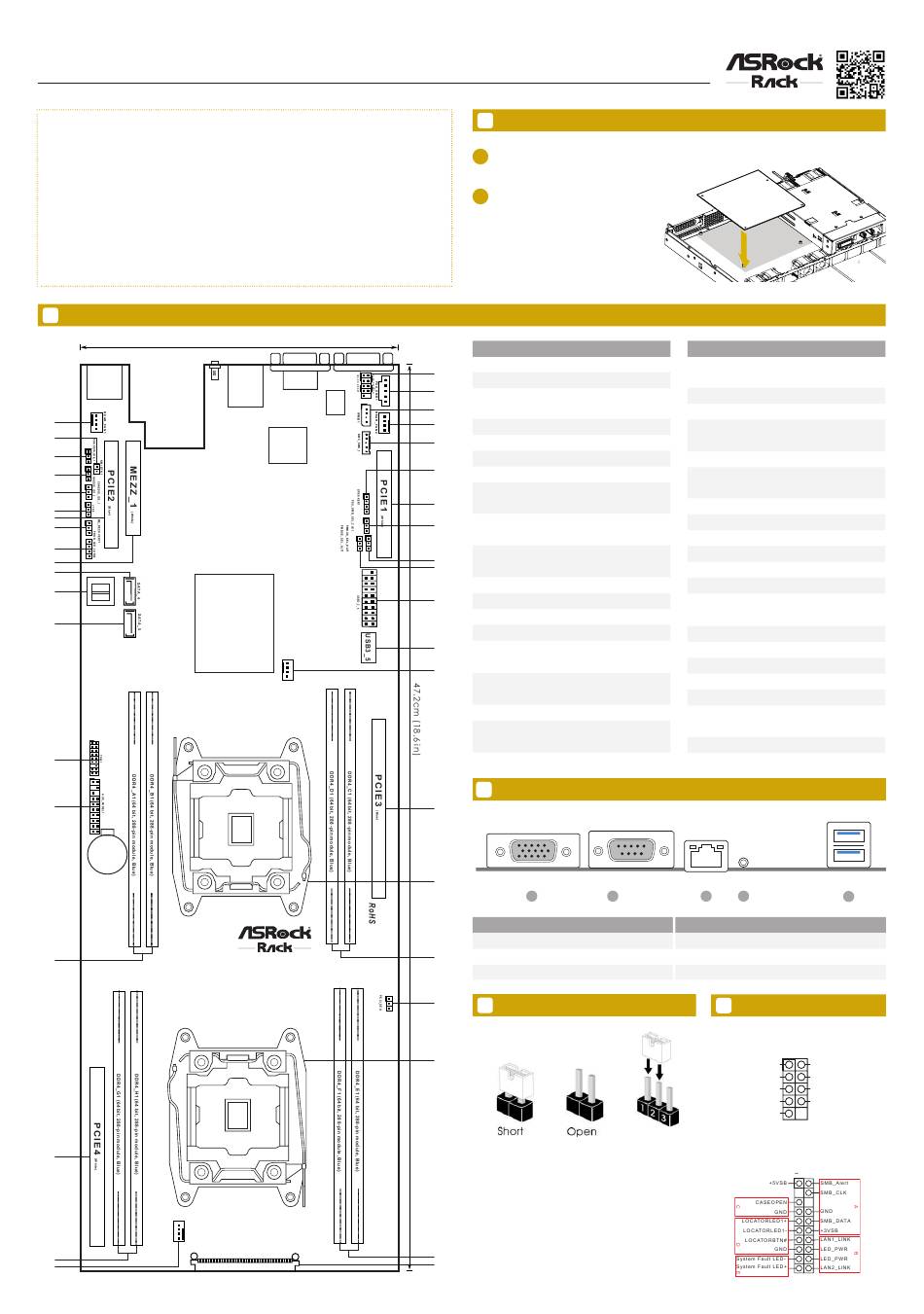

2 Motherboard Layout
16.5cm (6.5 in)
USB 3.0
T: USB2
B: USB1
38
37
1 1
36
1
1 1
35
1 1
34
1 1
33
1 1
32
1 1
31
30
29
28
SATA_0_3 Intel
27
C612
1
26
1
25
CMOS
Battery
24
23
CPU2_FAN1
22
21
VGA1
1
IPMI_ CON1 1
LAN1
BIOS PANEL1
ROM 1
BMC
ROM
1
1 1
1 1
1 1 1 1
1
CPU1_FAN1
CPU_1
EP2C612D8HM
1 1
CPU_2
CON21
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No. Description
1 System Panel Header (PANEL1)
1
2 PSU SMBus (PSU_SMB1)
2
Intelligent Platform Management Bus
3
header (IPMB1)
3
4 4 Rear Fan Connector (REAR_FAN2)
5 BMC SMBus Header (BMC_SMB_1)
5
6 Speaker Header (SPEAKER1)
6
7 PCI Express 3.0 x8 Slot (PCIE1, White)
PMBus Mode Jumper
8
(PMBUS_SEL_CLK1)
7
PMBus Mode Jumper
8
9
(PMBUS_SEL_DAT1)
PMBus Mode Jumper
10
9
(PMBUS_SEL_ALT1)
10
11 USB 3.0 Header (USB3_3_4)
12 Vertical Type A USB 3.0 (USB3_5)
11
13 CPU 1 Fan Connector (CPU1_FAN1)
14 PCI Express 3.0 x16 Slot (PCIE3, Blue)
12 LGA 2011 CPU Socket R3 (Narrow ILM)
15
(CPU_1)
13
2 x 288-pin DDR4 DIMM Slots
16
(DDR4_C1, DDR4_D1, Blue)
17 CPU PECI Mode Jumper (PECI_SEL1)
LGA 2011 CPU Socket R3 (Narrow ILM)
18
(CPU_2)
3 I/O Panel
14
15
1 2
No. Description
1 VGA Port (VGA1)
2 Serial Port (CON1)
16
3 LAN RJ-45 Port (IPMI_LAN1)
4 Jumper Cap On/Off
17
18
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
19 these 2 pins.
20
www.asrockrack.com
No. Description
2 x 288-pin DDR4 DIMM Slots
19
(DDR4_E1, DDR4_F1, Blue)
20 Interposer Board Connector (CON21)
21 CPU 2 Fan Connector (CPU2_FAN1)
2 x 288-pin DDR4 DIMM Slots
22
(DDR4_G1, DDR4_H1, Blue)
23 PCI Express 3.0 x16 Slot (PCIE4, White)
2 x 288-pin DDR4 DIMM Slots
24
(DDR4_A1, DDR4_B1, Blue)
25 Auxiliary Panel Header (AUX_PANEL1)
26 TPM Header (TPM1)
27 SATA3 Connector (SATA_5)
28 Mini SAS HD Connector (SATA_0_3)
29 SATA3 Connector (SATA_4)
30 Mezzanine Card Slot (MEZZ_1)
Front LAN LED Connector
31
(FRONT_LED_LAN34)
32 ME Recovery Jumper (ME_RECOVERY1)
33 Descriptor Security Override Jumper (J100)
34 Chassis ID2 Jumper (CHASSIS_ID2_1)
35 Chassis ID1 Jumper (CHASSIS_ID1_1)
36 Chassis ID0 Jumper (CHASSIS_ID0_1)
Non Maskable Interrupt Button
37
(NMI_BTN1)
38 Rear Fan Connector (REAR_FAN1)
3 4 5
No. Description
4 UID Switch (UID)
5 USB 3.0 Ports (USB3_1_2)
5 Headers
System Panel Header
1
HDLED+ PLED+
HDLED- PLED-
PWRBTN#
GND
RESET# GND
GND
Auxiliary Panel Header
