ASROCK Rack EP2C612 WS Quick Installation Manual

*15G065048100AK*
P/N: 15G065048100AK V1.0
Quick Installation Guide
EP2C612 WS
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

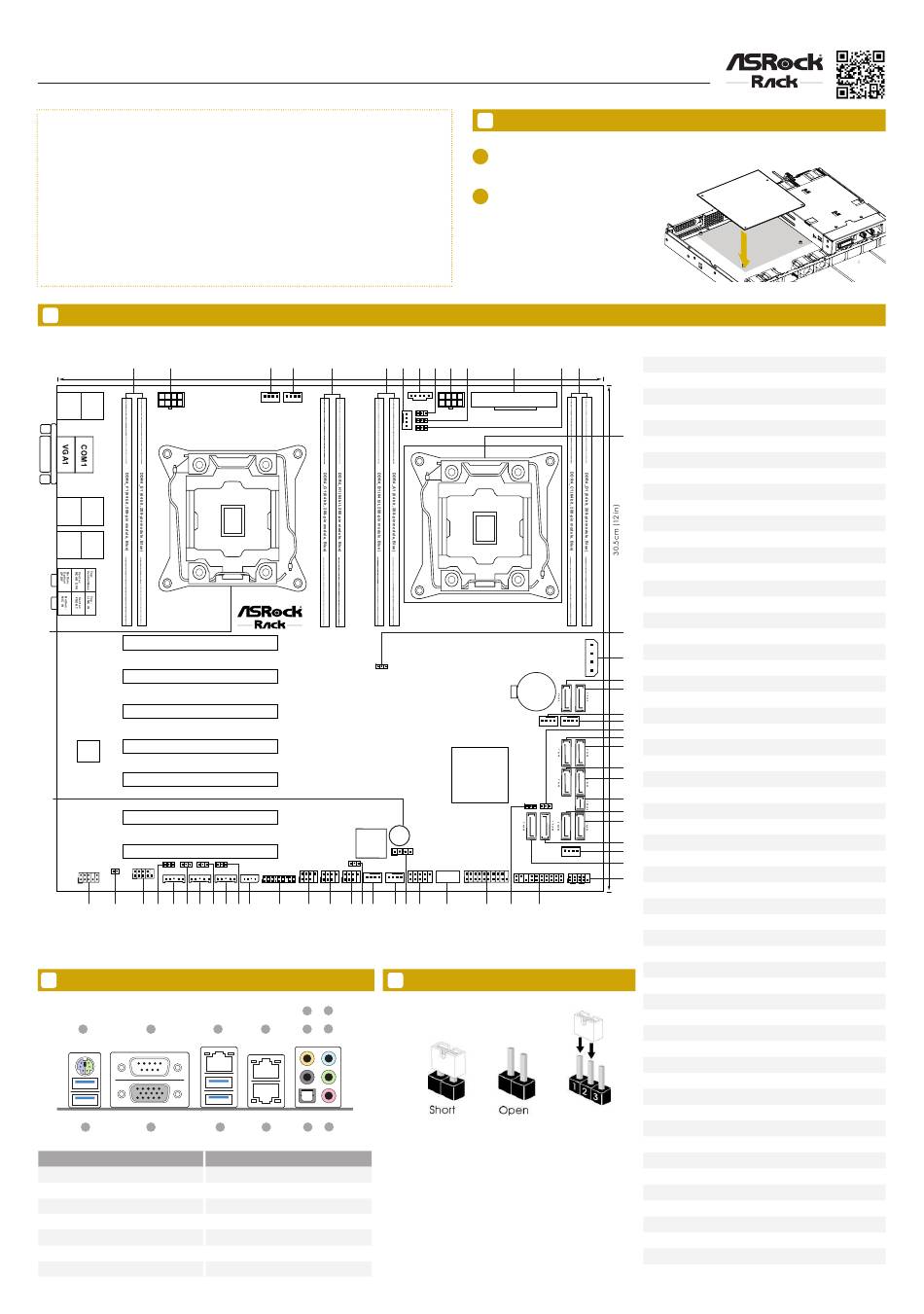

2 Motherboard Layout
1 2
33.0 cm (13 in)
USB 3.0
P 2 S
T: USB2 Keyboard
B: USB1 /Mouse
ATX12V2
USB 3.0
IPMI
T: USB4
LAN
B: USB3
LAN1 LAN2
59
PCIE7
PCIE6
EP2C612 WS
PCIE5
PCIE4
BMC
ROM
PCIE3
58
PCIE2
PCIE1
CHASSIS_ID3 CHASSIS_ID2 CHASSIS_ID1
NMI_BTN1 COM2
1 1 1
HD_AUDIO1
BMC_SMB1 BMC_SMB2
1
1
1
1 1
57 56 55 54 53 52 51 50
3 I/O Panel
1 3
4
2
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8
2 USB 3.0 Ports (USB3_1_2) 9
3 Serial Port (COM1) 10
4 VGA Port (VGA1) 11
5 LAN RJ-45 Port (IPMI_LAN) 12
6 USB 3.0 Ports (USB3_3_4) 13
7 LAN RJ-45 Port (LAN2) 14
3 4 5 6
REAR_FAN1 CPU2_FAN1
CPU2
(Blue, from CPU1)
1
PECI1
(Blue , from CPU1 )
(Blue , from CPU1 )
(White , from CPU2 )
(White , from CPU2 )
(Blue , from CPU1 )
Dr.
Debug
(White , from CPU2 )
T 1 R
ME_RECOVERY1
SATA_SGPIO2
1
1
SATA_SGPIO1 FRNT_FAN4 FRNT_FAN3
SSATA_SGPIO1
BMC_SMB3 IPMB1 TPM1
1 1
1
1
1 1
49 48 47 46 45 44 43 42 41
9 12
5 7 10 13
6 8 11 14
LAN RJ-45 Port (LAN1)
Central / Bass (Orange)
Rear Speaker (Black)
Optical SPDIF Out Port
Line In (Light Blue)
Front Speaker (Lime)
Microphone (Pink)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
7 8 9 10 11 12 13
1
ATXPWR1
PSU_SMB1
ATX12V1
PMBUS_SEL_ALT1
PMBUS_SEL_DAT1
PMBUS_SEL_CLK1
CPU1_FAN1
CPU1
PCIE_PWR1
BAT1
FRNT_FAN2
Intel
C612
SATAPWR_SEL2
SATAPWR_SEL1
1 1
BUZZER1
1 1 SPEAKER1
SATA_PWR1
USB_1_2 USB3_5_6
AUX_PANEL1
USB3_7
1
1
1
40 39 38 37 36 35 34
4 Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
1 2 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR4_F1, Blue)
14
2 ATX 12V Power Connector (ATX12V2)
3 Rear Fan Connector (REAR_FAN1)
4 CPU 2 Fan Connector (CPU2_FAN1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_G1, DDR4_H1, Blue)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1, Blue)
15
7 CPU 1 Fan Connector (CPU1_FAN1)
8 PSU SMBus (PSU_SMB1)
9 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
10 ATX 12V Power Connector (ATX12V1)
11 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
12 ATX Power Connector (ATXPWR1)
13 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
14 2 x 288-pin DDR4 DIMM Slots (DDR4_C1, DDR4_D1, Blue)
15 LGA 2011 R3 CPU Socket 1 (CPU1)
16 CPU PECI Mode Jumper (PECI1)
17 PCIe Power Connector (PCIE_PWR1)
18 SATA3 Connector (SATA_0, Blue, from PCH)
16
19 SATA3 Connector (SATA_3, Blue, from PCH)
20 Front Fan Connector (FRNT_FAN2)
17
21 Front Fan Connector (FRNT_FAN1)
18
22 SATA DOM Power Jumper 1 (SATAPWR_SEL1)
19
23 SATA3 Connector (SATA_1, White, from PCH)
20 24 SATA3 Connector (SATA_4, White, from PCH)
21
FRNT_FAN1
25 SATA3 Connector (SATA_2, White, from PCH)
22
23
26 SATA3 Connector (SATA_5, White, from PCH)
24
27 SATA Express Connector (SATAE_1, White, from PCH)
25
28 SATA3 Connector (SSATA_0, Blue, from PCH)
26
29 SATA3 Connector (SSATA_1, Blue, from PCH)
27
30 SATA3 DOM Connector (SSATA_3, Red)
28
29
31 SATA DOM Power Header (SATA_PWR_1)
32 SATA3 DOM Connector (SSATA_2, Red)
30
31
33 System Panel Header (PANEL1)
32
PANEL1
34 Auxiliary Panel Header (AUX_PANEL1)
PLED PWRBTN
33
1
HDLED RESET
35 SATA DOM Power Jumper 2 (SATAPWR_SEL2)
36 USB 3.0 Header (USB3_4_5)
37 Vertical Type A USB 3.0 (USB3_7)
38 USB 2.0 Header (USB_1_2)
39 Speaker Header (SPEAKER1)
40 Front Fan Connector (FRNT_FAN3)
41 Front Fan Connector (FRNT_FAN4)
42 Thermal Sensor Header (TR1)
43 SATA SGPIO Connector (SATA_SGPIO1)
44 SATA SGPIO Connector (SATA_SGPIO2)
45 SSATA SGPIO Connector (SSATA_SGPIO1)
46 TPM Header (TPM1)
47 Intelligent Platform Management Bus header (IPMB1)
48 ME Recovery Jumper (ME_RECOVERY1)
49 BMC SMBus Header (BMC_SMB_3)
50 Chassis ID1 Jumper (CHASSIS_ID1)
51 BMC SMBus Header (BMC_SMB_2)
52 Chassis ID2 Jumper (CHASSIS_ID2)
53 BMC SMBus Header (BMC_SMB_1)
54 Chassis ID3 Jumper (CHASSIS_ID3)
55 COM Port Header (COM2)
56 Non Maskable Interrupt Button (NMI_BTN1)
57 Front Panel Audio Header (HD_AUDIO1)
58 Buzzer (Buzzer1)
59 LGA 2011 R3 CPU Socket 2 (CPU2)
