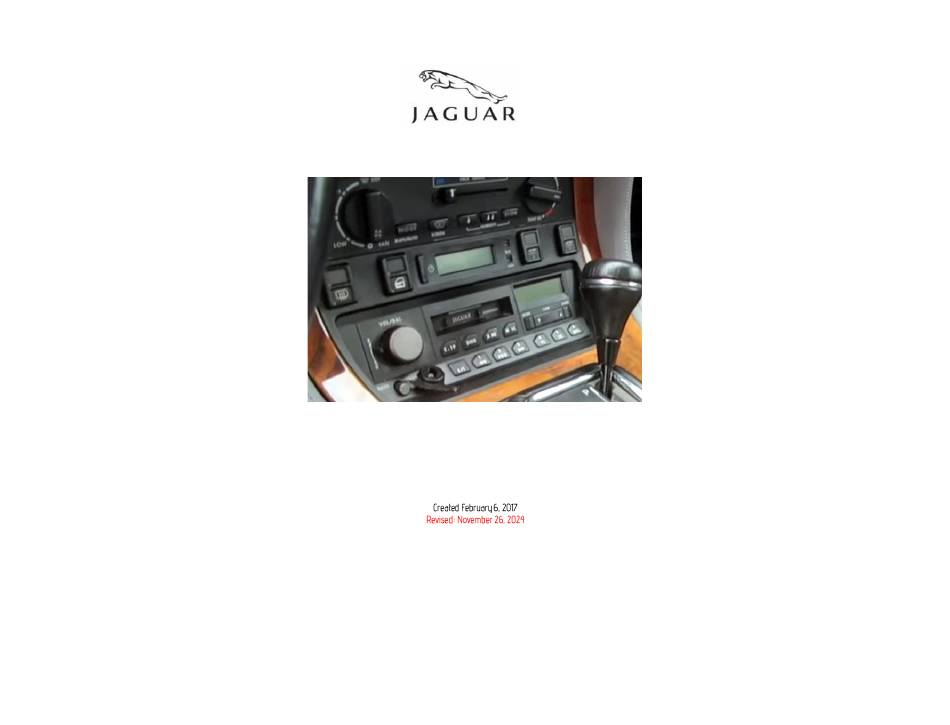

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 AUX-JAG97 QUICK AUX INSTALLATION GUIDE FOR 1992-1997 JAGUAR RADIOS WITH CD CHANGER CONTROLS...
- Page 2 AUX-JAG97 is the device you’ve Fig. 1 been looking for. The AUX-JAG97 not only provides an audio input jack, but also Radio CD port able to charge those portable audio devices while on the road and if device supports TRRS profile;...
- Page 3 4. Connect one end of supplied 3 ft 4-pin 3.5mm audio cable (See Fig. 3) to the input jack on module (See Fig. 4) and route other end to the front of the dash or wherever audio device will reside. Fig, 5 Fig.
- Page 4 Optional USB extension cable installation Notes: 1. Optional 6 ft. USB dash mount extension cable is not required for operation; however, it extends module built-in USB charging port (See Fig. 9) to dashboard, glovebox etc. The USB port supports software updates and charging only Drill a ¾”...
-
Page 5: Installation
2. Your AUX-JAG97 and AUX-JAG98 list 1997 XK, how can I tell which one I Connect installation harness 8-pin plug (See Fig.2) to the CD cable 8-pin need or what’s the difference? - Page 6 See installation 1 on page 2. CD changer (if present) must be disconnected. 4. My vehicle has a changer. Can I install the AUX-JAG97 and retain use of the changer? NO. The AUX-JAG97 takes the place of the CD changer. If vehicle has a CD...
Need help?
Do you have a question about the AUX-JAG97 and is the answer not in the manual?
