IBASE Technology INA3608 User Manual

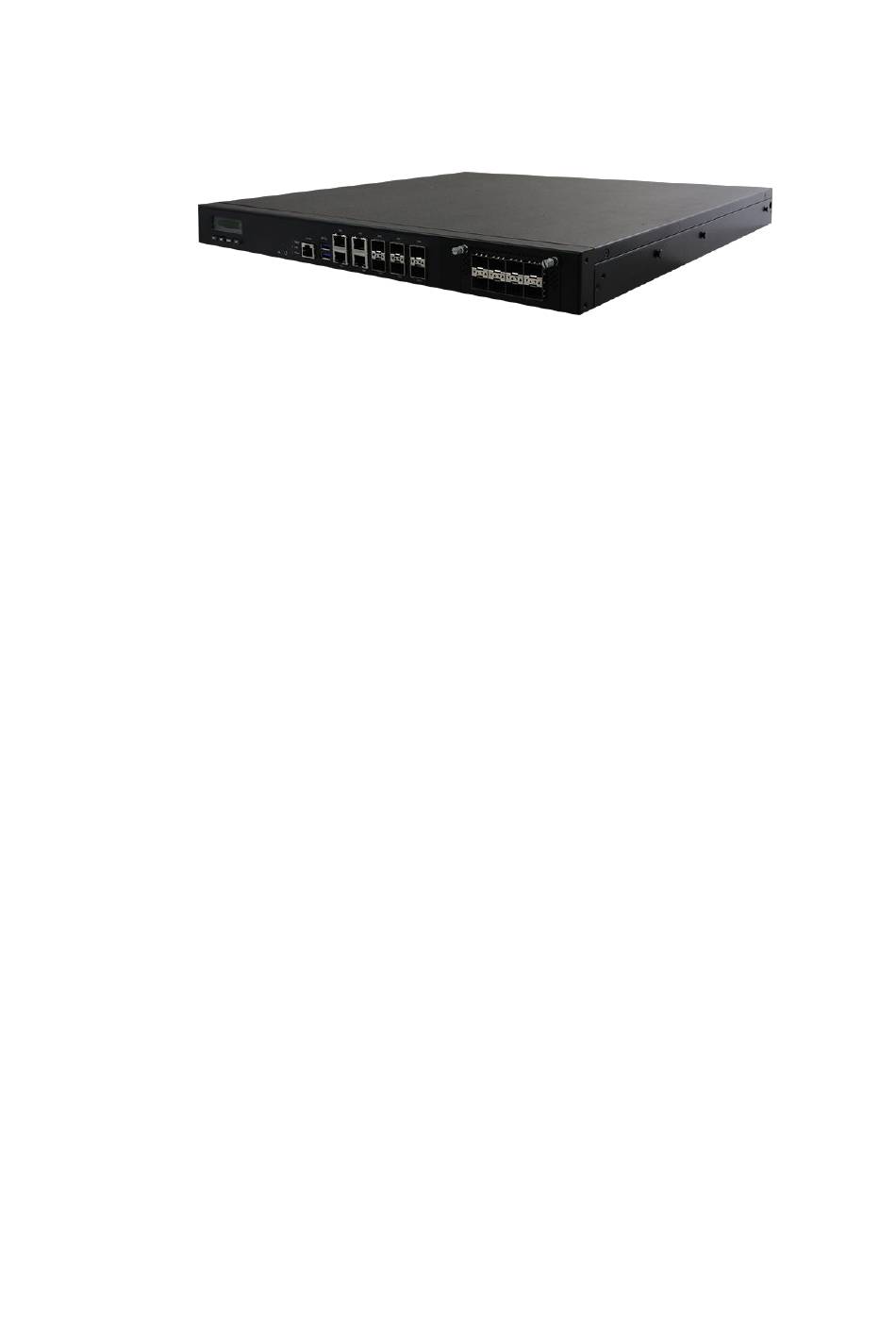

1u rackmount network appliance
Hide thumbs

Advertisement

Quick Links

Download this manual
INA3608
1U Rackmount
Network Appliance
User's Manual
Version 1.0
(December 2023)

Advertisement

loading
Need help?

Need help?

Do you have a question about the INA3608 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBASE Technology INA3608

Summary of Contents for IBASE Technology INA3608

  • Page 1 INA3608 1U Rackmount Network Appliance User’s Manual Version 1.0 (December 2023)
  • Page 2 IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
  • Page 3 0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) • Cadmium (Cd) • Hexavalent chromium (Cr6+) • Polybrominated biphenyls (PBB) • Polybrominated diphenyl ether (PBDE) INA3608 User Manual...

  • Page 4: Important Safety Information

    Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Under no circumstances should the Lithium battery cell be shorted; otherwise the battery cell may heat up or cause potential burn hazards. INA3608 User Manual...

  • Page 5: Warranty Policy

    IBASE, such as CPU, memory, HDD, power adapter, panel and touchscreen. ＊ PRODUCTS, HOWEVER, THAT FAIL DUE TO MISUSE, ACCIDENT, IMPROPER INSTALLATION, OR UNAUTHORIZED REPAIR WILL BE TREATED AS OUT OF WARRANTY, AND CUSTOMERS SHALL BE BILLED FOR REPAIR AND SHIPPING CHARGES. INA3608 User Manual...

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 General Information ..............1 Introduction ..................... 2 Features ....................2 Packing List .................... 3 INA3608 Specifications ................4 Product View ................... 5 Dimensions ..................... 8 Chapter 2 Hardware Configuration ............10 Installations ................... 11 2.1.1 Configuration inside ..............
  • Page 7 Advanced Settings ................38 Platform Configuration ................49 Socket Configuration ................51 Server Management ................52 Security Settings ................... 54 Boot Settings ..................55 3.10 Save & Exit Settings ................56 3.11 Server Management Settings ..............57 INA3608 User Manual...

  • Page 9: Chapter 1 General Information

    Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Optional Accessories • Specifications • Product View • Dimensions...

  • Page 10: Introduction

    M.2 and 1x PCIe 5x8 expansion slot further enhances storage and expansion capabilities. With its 600W AC redundant power supplies, the INA3608 ensures uninterrupted operation and reliability in mission-critical environments. Applications for the INA3608 span across various industries, making it a versatile and adaptable solution for: • Enterprise Networking • Telecommunications •...

  • Page 11: Packing List

    Models with a single PSU: • INA3608 x 1 • 500W ATX Single Power Supply x 1 • Power Cord (180 cm) x 1 •...

  • Page 12: Ina3608 Specifications

    1.4 INA3608 Specifications Generation Intel Core i Processors LGA1700 Socket ® Chipset Intel PCH R680E Memory 2x DDR5 UDIMM up to 4800 MT/s, up to 128 GB 4x 2.5Gbe RJ45 ports (Intel i226V) 4x 1Gbe SFP ports (Intel i210IS) Ethernet...

  • Page 13: Product View

    4x 1Gbe SFP ports Green: Not at full speed SFP+ Orange: operating at 10Gbps 2x 10Gbe SFP+ Green: Not at full speed • Right LED -Action/Link Green flashing: Data transmitting Off: No link established Network Module 1x PCIe Gen5 (x8) INA3608 User Manual...
  • Page 14 Oblique View 1+1 Redundant PSU INA3608 User Manual...

  • Page 15: Rear View

    • 2 AC 100~240V, 50-60Hz, full range 600W 1+1 Redundant Power Supply Power Supply Units • 2 AC 100~240V, 50-60Hz, full range 450W (Single / Redundant) 1+1 Redundant Power Supply • 1 AC 100~240V, 47-63Hz, full range 500W Single Power Supply INA3608 User Manual...

  • Page 16: Dimensions

    1.6 Dimensions INA3608 INA3608 User Manual...
  • Page 17 General Information FML-900G-MB-3606 INA3608 User Manual...

  • Page 18: Chapter 2 Hardware Configuration

    Chapter 2 Hardware Configuration The information provided in this chapter includes: ◼ Configuration inside ◼ Desktop Installation ◼ Rack Mount Installation ◼ System Installation ◼ Network Module Installation ◼ Redundant Power Supply Unit ◼ Memory Module Installation ◼ HDD Installation and Replacement ◼...

  • Page 19: Installations

    Configuration inside Refer to the figure below for the internal areas to install additional 2.5” HDD/SSD, NIC modules, and expansion card. Area A supports expansion cards. Area B accommodates optional NIC module. Area C supports one 2.5” HDD/SSD. INA3608 User Manual...

  • Page 20: Desktop Installation

    • For multiple rack installations, the racks should be coupled together. • Ensure the rack is stable before extending a component from the rack. • Only extend one component at a time; extending two or more simultaneously may cause the rack to become unstable. INA3608 User Manual...

  • Page 21: System Installation

    2.1.6 Redundant Power Supply Unit If you need to install or replace a redundant power supply unit, push the latch inwards first. Grasp the handle, pull the PSU out carefully and replace it with a new one. INA3608 User Manual...

  • Page 22: Memory Module

    4. Gently push the module in an upright position until the ejector tabs of the memory slot close to hold the module in place when the module touches the bottom of the slot. 5. To remove the module, press the ejector tabs outwards with your fingertips to eject the module. INA3608 User Manual...

  • Page 23: Hdd Installation And Replacement

    Once the HDD tray has been removed, unfasten the screws (as shown by the circles and arrows) to uninstall the HDD from the tray. Replace the HDD tray back to its original location after installation/replacement/removal of the HDD. INA3608 User Manual...

  • Page 24: Card Installation/Replacement

    M.2 Card Installation/Replacement Locate the M.2 slot inside the device. Align the key of the M.2 card to the interface, and insert the card slantwise. Push the M.2 card down and fix it with the an M3 screw. INA3608 User Manual...

  • Page 25: Setting The Jumpers

    A 3-pin jumper A jumper cap Refer to the illustration below to set jumpers. Pin closed Oblique view Jumper Settings Open • Closed: Jumper cap encased in pins (turned On). • Open: Jumper cap removed from pins (turned Off). INA3608 User Manual...

  • Page 26: Jumper & Connector Locations On Motherboard

    2.3 Jumper & Connector Locations on Motherboard Motherboard: FML-900G-MB-3606 INA3608 User Manual...

  • Page 27: Jumpers Quick Reference

    Function M.2 PCIE / M.2 Select Clear ME Register Flash Security Clear CMOS Content SATA DOM Power Select AT & ATX Mode PM Bus Port System Reset NMI (Non-Maskable Interrupt) 2.4.1 JP1: M.2 PCIE / M.2 Select INA3608 User Manual...

  • Page 28: Jp3: Clear Me Register

    2.4.2 JP3: Clear ME Register Function Pin closed Setting Save ME RTC REgister (default) Clear ME RTC Register INA3608 User Manual...

  • Page 29: Jp4: Flash Security

    Hardware Configuration 2.4.3 JP4: Flash Security Function Pin closed Setting Disabled (default) Enabled INA3608 User Manual...

  • Page 30: Jp5: Clear Cmos Content

    2.4.4 JP5: Clear CMOS Content Function Pin closed Setting Save CMOS (default) Clear CMOS INA3608 User Manual...

  • Page 31: Jp6: Sata Dom Power Select

    Hardware Configuration 2.4.5 JP6: SATA DOM Power Select Function Pin closed Setting (default) Ground INA3608 User Manual...

  • Page 32: Jp7: At & Atx Mode

    2.4.6 JP7: AT & ATX Mode Function Pin closed Setting (default) INA3608 User Manual...

  • Page 33: Jp9

    Hardware Configuration 2.4.7 JP9: 2.4.8 SW1: System Reset INA3608 User Manual...

  • Page 34: Sw2: Nmi (Non-Maskable Interrupt)

    2.4.9 SW2: NMI (Non-Maskable Interrupt) INA3608 User Manual...

  • Page 35: Connectors Quick Reference

    FAN1, FAN2, FAN3, FAN4 Fan Power Connector J1, J13 External Power Switch Connector Factory Use Only M.2 M2280 Slot J4, J5 DDR5 Memory Slot MINI_SAS_LED# Mini SAS Connector J14, J6 ATX Power Connector PCIE1, PCIE2 PCIE Connector CPU Slot INA3608 User Manual...

  • Page 36: Bt1: Battery (Cr2032)

    2.6.1 BT1: Battery (CR2032) 2.6.2 CN1: Display Port INA3608 User Manual...

  • Page 37: Cn2, Cn3, Cn6: Sata Power Connector

    Hardware Configuration 2.6.3 CN2, CN3, CN6: SATA Power Connector 2.6.4 CN4: SATA DOM Port INA3608 User Manual...

  • Page 38: Cn5, Cn7: Sata Iii Port

    2.6.5 CN5, CN7: SATA III Port 2.6.6 CN11: LCM Connector INA3608 User Manual...

  • Page 39: Fan1, Fan2, Fan3, Fan4: Fan Power Connector

    Hardware Configuration 2.6.7 FAN1, FAN2, FAN3, FAN4: Fan Power Connector 2.6.8 J1, J13: External Power Switch Connector INA3608 User Manual...

  • Page 40: J2: Factory Use Only

    2.6.9 J2: Factory Use Only 2.6.10 J3: .2 M2280 Slot INA3608 User Manual...

  • Page 41: J4, J5: Ddr5 Memory Slot

    Hardware Configuration 2.6.11 J4, J5: DDR5 Memory Slot 2.6.12 J11: MINI_SAS_LED# INA3608 User Manual...

  • Page 42: J12: Mini Sas Connector

    2.6.13 J12: Mini SAS Connector 2.6.14 J14, J6: ATX Power Connector INA3608 User Manual...

  • Page 43: Pcie1, Pcie2: Pcie Connector

    Hardware Configuration 2.6.15 PCIE1, PCIE2: PCIE Connector 2.6.16 U12: CPU Slot INA3608 User Manual...

  • Page 44: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Security Settings •...

  • Page 45: Introduction

    These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could make the system unstable and crash in some cases. INA3608 User Manual...

  • Page 46: Main Settings

    This section allows you to configure, improve your system and allows you to set up some system features according to your preference. Settings in this section covers: Trusted Computing ACPI Settings NCT55230 Super IO Configuration NCT78940 HW Monitor Serial Port Console Redirection PCI Subsystem Settings USB Configuration NVME Configuration INA3608 User Manual...
  • Page 47 O.S. will not show security device. TCG EFI protocol Support and INT1A interface will not be available. Schedule an operation for the security device. Pending operation Note: Your computer will reboot during restart in order to change the state of security device. INA3608 User Manual...
  • Page 48 ACPI Settings BIOS Setting Description Enable ACPI Auto Enables / Disables BIOS ACPI Auto Configuration Configuration. Enables / Disables system ability to hibernate Enable Hibernation (OS/S4 Sleep State). This option may not be effective with some operating systems. INA3608 User Manual...
  • Page 49 BIOS Setup 3.4.3 NCT552130 Settings BIOS Setting Description Sets parameters of Serial Ports. Serial Port Configuration Enables / Disables the serial port and select an optimal setting for the Super IO device. INA3608 User Manual...
  • Page 50 Smart Fan Control temperature. These fields are the parameters of the hardware monitoring function feature of the Temperatures / Voltages motherboard. The values are read-only values as monitored by the system and show the PC health status. INA3608 User Manual...
  • Page 51 Console Redirection item. The Console Redirection settings specify how the host computer and the Settings remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. INA3608 User Manual...
  • Page 52 0 if the num of 1’s in the data bits is even. Options: None, Even, Odd, Mark, Space Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). Stop Bits The standard setting is 1 stop bit. Options: 1, 2 INA3608 User Manual...
  • Page 53 Select a COM port to display redirection of Redirection COM Port Legacy OS and Legacy OPROM Messages. This setting allows you to specify if Bootloader is Redirection After POST selected than Legacy console redirection Default setting: Always Enable INA3608 User Manual...
  • Page 54 This item if system has SR-IOV capable PCIe SR-IOV Support Devices, this option enables or disables Single Root IO Virtualization Support. This item Re-enable Bus Master Attribute BME DMA Mitigation disabled during Pci enumeration for PCI Bridges after SMM Locked. INA3608 User Manual...
  • Page 55 The maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses default value for a Root port it is Device power-up delay 100ms. But for a Hub port, the delay is taken from Hub descriptor. INA3608 User Manual...
  • Page 56 3.4.8 NVMe Configuration INA3608 User Manual...

  • Page 57: Platform Configuration

    Enables / Disables integrated LAN to wake the Wake on LAN Enable system. Select AC power state when power is re- applied after a power failure. Restore AC Power Loss Options: Power Off, Power On, Last State. INA3608 User Manual...
  • Page 58 INA3608 User Manual...

  • Page 59: Socket Configuration

    BIOS Setup 3.6 Socket Configuration This section is for processor configuration. It displays and provides options to change the processor settings. INA3608 User Manual...

  • Page 60: Server Management

    Disable: keep original IRQ, IObase and active UART1 Allows you to configure the settings for system event System Event Log log. BMC self test log Allows you to configure when to erase the log. BMC Network Configures BMC network parameters. Configuration INA3608 User Manual...
  • Page 61 When SEL is Full Options: Do nothing, Erase immediately Disables the logging of EFI status codes or log only Log EFI Status error code or only progress code or both. Codes Options: Disabled, Both, Error code, Progress code INA3608 User Manual...

  • Page 62: Security Settings

    3.8 Security Settings BIOS Setting Description Sets an administrator password for the setup Administrator Password utility. User Password Sets a user password. INA3608 User Manual...

  • Page 63: Boot Settings

    Setup Prompt Timeout 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Turns on/off the keyboard NumLock state. Quiet Boot Enables / Disables Quiet Boot option. Network Enables / Disables Netowork Boot Option Priorities Sets the system boot order. INA3608 User Manual...

  • Page 64: Save & Exit Settings

    Exits system setup after saving the changes. Save Changes and Resets the system after saving the changes. Reset Discard Changes and Resets system setup without saving any changes. Reset Restores / Loads defaults values for all the setup Restore Defaults options. INA3608 User Manual...

  • Page 65: Server Management Settings

    Default setting is DynamicBmcDhcp Station IP address Displays IP Address information Displays Subnet Mask information Subnet mask Please note that the IP address must be in three digitals for example 192.168.000.001. Router IP address Displays the Router IP Address information INA3608 User Manual...
  • Page 66 This page is intentionally left blank. INA3608 User Manual...
