QUICK REFERENCE GUIDE
8008 CTS, 8010 CTS, Micro 8008
EN - 9828/GAN00 - ISSUE 1 - 01/2025
The information shown in this Quick Reference Guide
is taken from the Operator's Manual (9811/9800).
This Quick Reference Guide DOES NOT replace
the Operator's Manual. You MUST read ALL the
disclaimers and safety and other instructions in
the Operator's Manual before initially operating
this product. Accordingly, no legal claims can be
entertained based on the data, illustrations or
descriptions in this Quick Reference Guide.

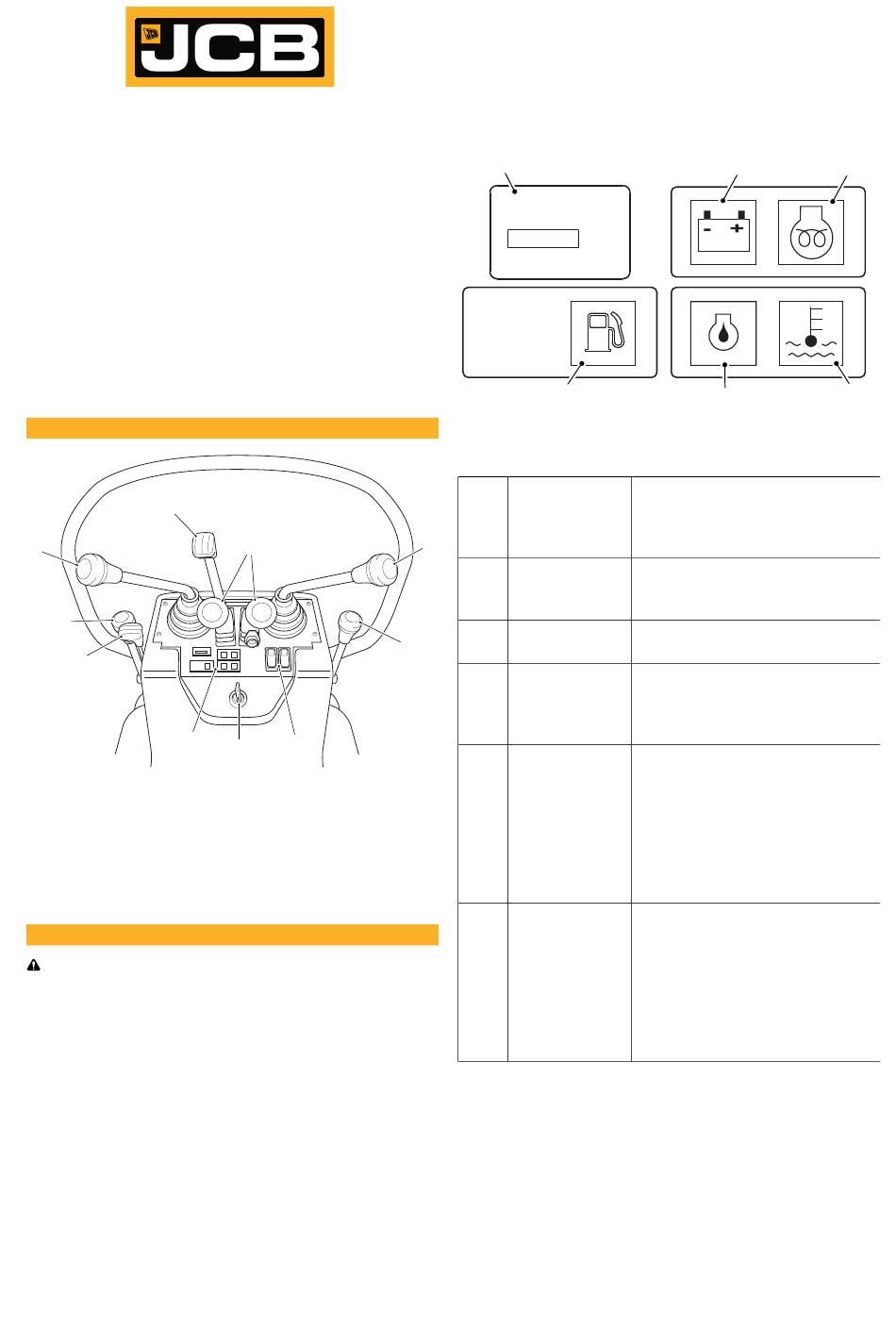

Component Locations
A
C
J
H
G
A Excavator lever lock
C Excavator controls
E Console switches
G Instrument panel
J Extending
undercarriage
control
Instrument Panel
CAUTION If any of the audible/visual warnings
operate while the engine is running, stop the
engine as soon as it is safe to do so and rectify the
fault.
Indicators for the engine and related systems are
mounted in the instrument panel.
Do not use the machine if it has a fault condition, or
you may damage the engine and/or related systems.
All instruments and indicators will be turned off when
the ignition key is turned off.
A buzzer will sound if any warning Indicators display
a machine fault.
B
D
E
F
B Track controls
D Dozer control
F Ignition switch
H Hand throttle lever
If the fault is ignored the buzzer will sound
continuously for 180s, after which it will sound
intermittently, 1s on, 2s off.
Set the ignition key to off position to reset all
operations.
A
F
Warning Indicators
A
Hourmeter
C
B
Charge (Fault)
Indicator
C
Glow Plugs
(on) Indicator
D
Coolant Tem-
perature
(High) Indica-
tor
E
Engine Oil
Pressure
(Low) Indicator
F
Low Fuel Indi-
cator
B
E
Records the total running
time of the engine. The total
running time of the engine is
shown in hours.
Audible/Visual. Illuminates red
when a fault occurs. (Alterna-
tor operation).
Visual. Illuminates green when
the glow plugs are energised.
Audible/Visual. Illuminates red
when the coolant temperature
is too high.
Audible/Visual. Illuminates
RED when the engine oil pres-
sure is too low. If this light re-
mains on after the engine is
started stop the engine imme-
diately. Serious engine dam-
age could occur if this warning
is ignored.
Visual. When the low fuel
warning light illuminates, there
is enough fuel for a further 30 -
45 minutes of operating time. It
is not recommended to contin-
ue operating the machine un-
til the fuel tank is completely
empty.
C
D
Advertisement
Related Manuals for jcb 8008 CTS
Summary of Contents for jcb 8008 CTS
