Introduction
JCB introduces an upgraded version of Backhoe
loader variant machines. These variants have latest
hydraulic systems, Power Management System
(3DX Xtra only), servo (on demand), air-conditioning
(on demand ) and high dump / maximum dig depth.

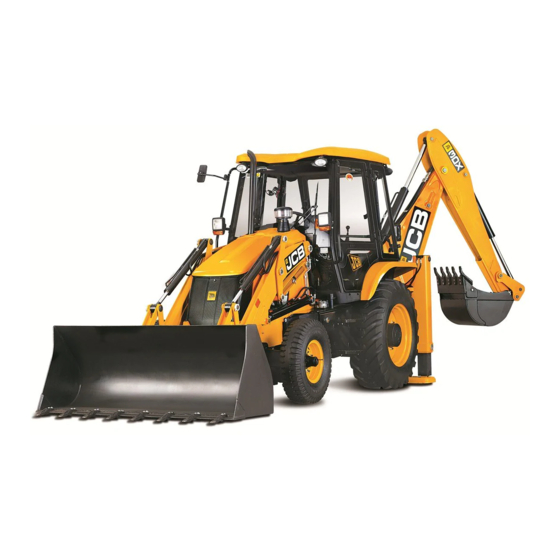

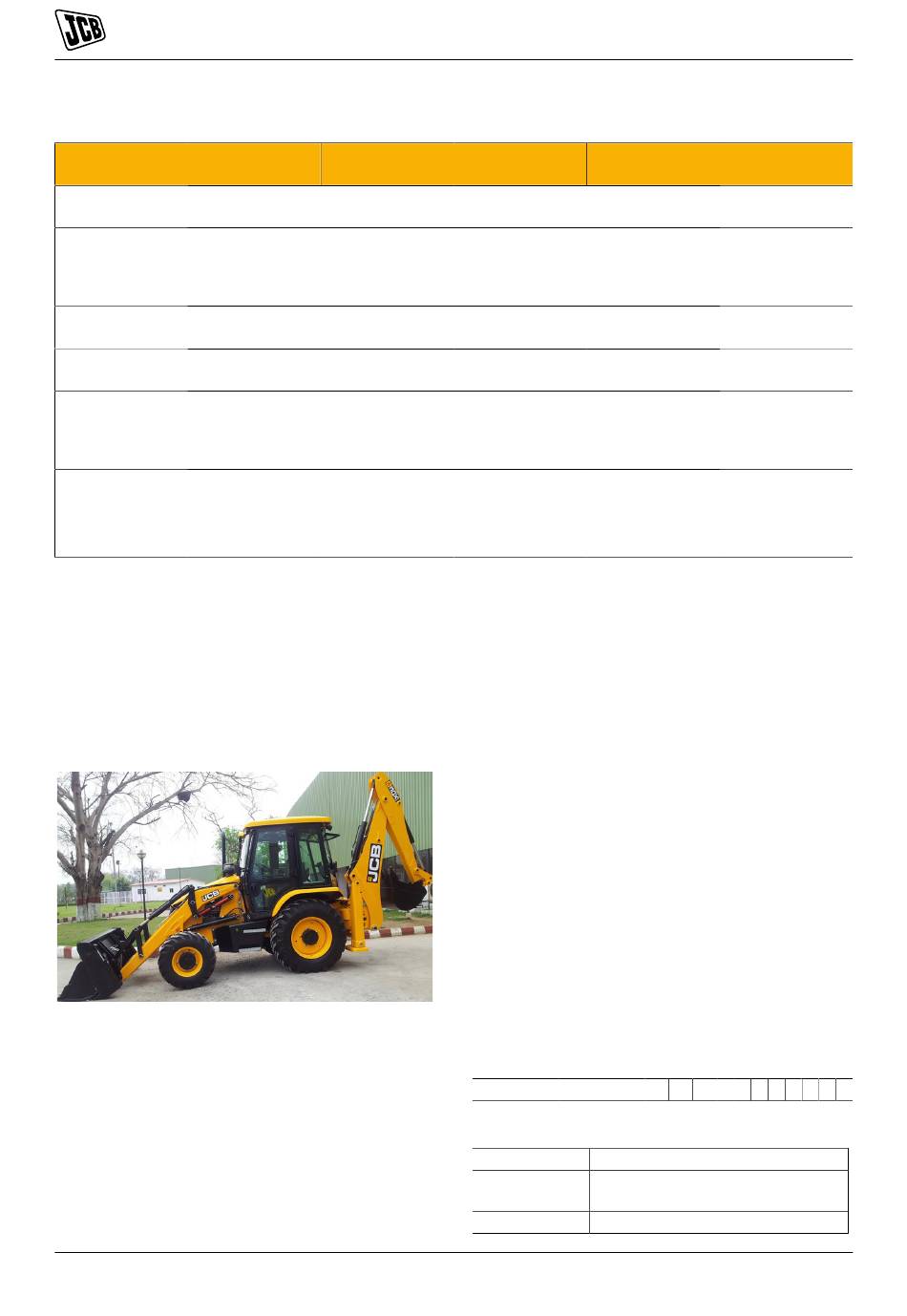

Figure 1.
The main features are listed below.
1 JCB Engines
• Aluminium radiator
2 High flow hydraulic pumps
3 PMS (Power Management System) controlled
3DX Xtra Hydraulic system
• Solenoid (Auto) dump in P2 Flow
• Pump pressure sensor- P1 Line
• Accelerator pedal position sensor
4 Hydro control valve blocks
1 / 4
ISSUE: 1
• Loader valve block
a P2 Dump valve
b P2 Pressure maintenance valve
c MRV (Main Relief Valve)
• Excavator Control
a Hydro clamp valve
b Servo
machine only)
5 In the servo machine: The excavator valve
spools (Boom, Dipper, Bucket and Slew) are
operated by the servo system. Manual control
for loader and stabilizers.
6 In standard machine: Manual operated EVB
(Excavator Valve Block) and LVB (Loader Valve
Block) like standard 3DX machine.
7 Independent steering system in all variants
8 In air conditioning machine, the air flow vents
are given in the cab roof for changing air flow
direction.
9 Auto engine OFF system
10 Servo safety system
Machine Identification
HAR 3DX
Parameter
HAR
3DXSS
MI1179-1
NUMBER: MI1179
pressure valve
Table 1.
S S L 1 2 3 4 5 6 7 8
Table 2.
Description
World manufacturer's identifica-
tion
Machine model
(Servo
1 / 4
