Changelog:
08/06/2024 Original QSM

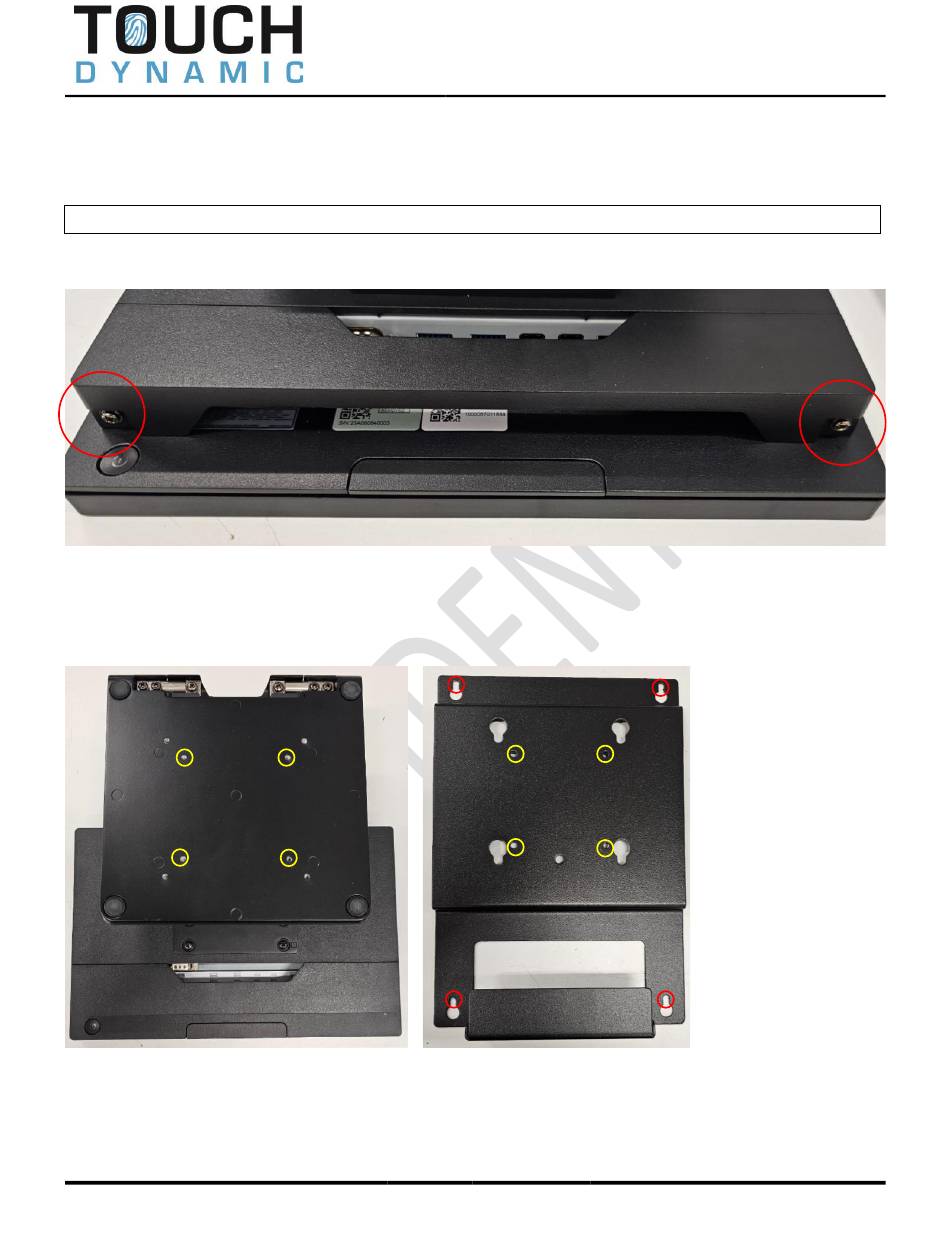

1) To access the I/O ports, please loosen the 2 screws that secure the cable manager and remove
the cable manager.
2) Below is the photo of the system with the stand and the Wallmount bracket. You can use the
wallmount bracket to mark the hole location on the wall (marked red). Please use appropriate
hardware for the wall installation (e.g. anchors for the concrete or sheetrock wall). The holes
marked in yellow (75 x 75 VESA pattern ) will be used to secure the bracket and the system
togethter.
Touch Dynamic Inc.
Template: 4/8/15
QSM-0669
Horizon TD-WALLMOUNT-01-RZ assembly with the base
Q u a l i t y
Rev Date: 8/6/2024
Q S M
S u p p o r t
M a n u a l
QSM-0669
Quality Form
Page 1 of 2
