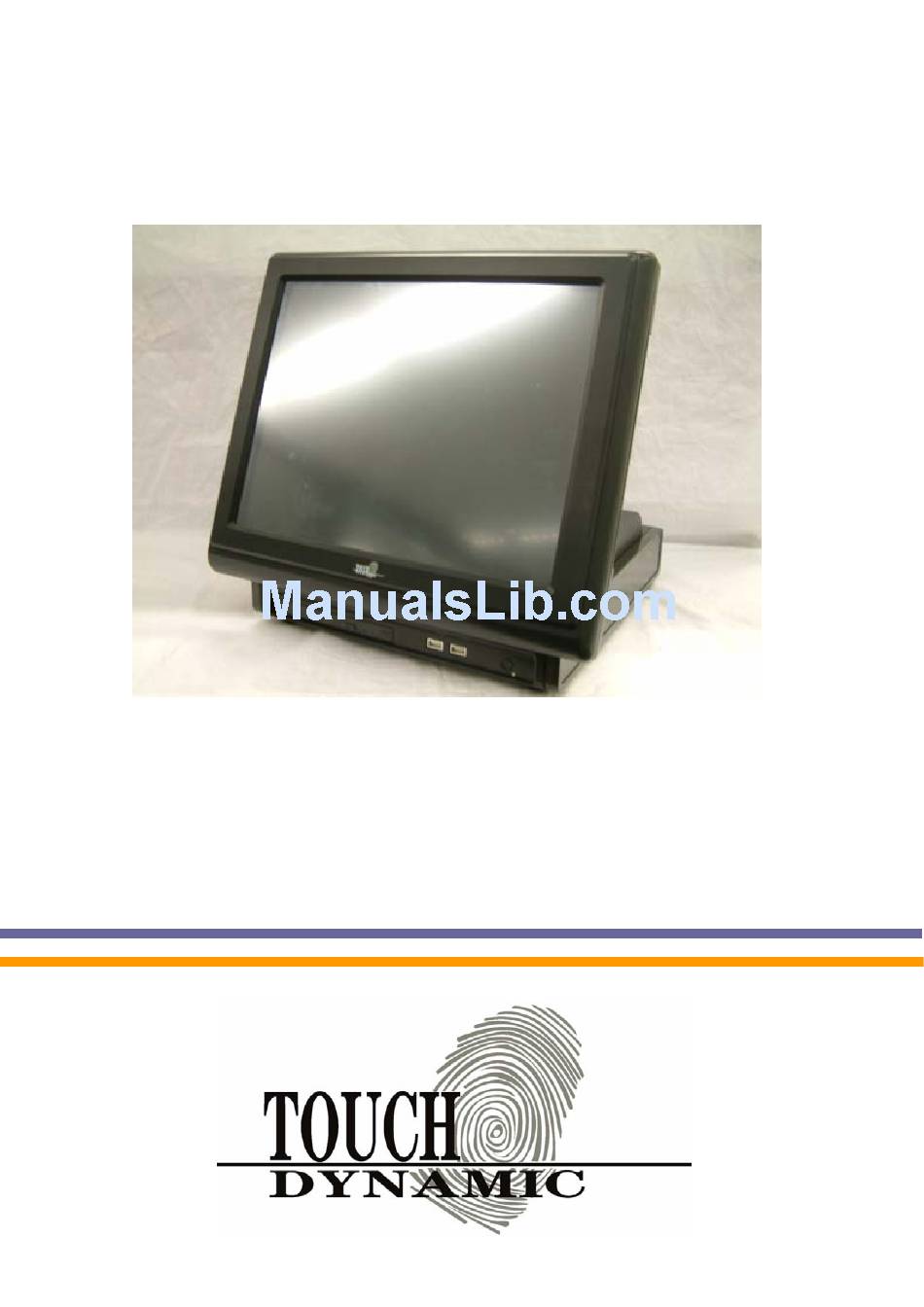

  • Page 1 CP200 User Manual Point-of-Sale Hardware System 2006 Dec V1.0...
  • Page 2 Copyright 2006 Dec All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 Safety IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions carefully. Save these instructions for future reference. 2. Follow all warnings and instructions marked on the product. 3. Do not use this product near water. 4. Do not place this product on an unstable cart,stand,or table.The product may fall, causing serious damage to the product.
  • Page 4 LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components. The crossed dustbin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life.

  • Page 5: Table Of Contents

    Table of Contents 1. Item Checklist ........................ 6 1.1 Standard Items ......................6 2. System View ........................7 2.1 Front View ........................ 7 2.2 Rear View......................... 7 2.3 System Drawing ....................... 8 3. Driver Installation ......................10 3.1 Driver List ....................... 10 3.2 Chipset Driver Installation ..................

  • Page 6: Item Checklist

    1. Item Checklist Take the system unit out of the carton. Remove the unit from the carton by holding it by the foam inserts: 1.1 Standard Items a. Driver CD for CP200 b. Power Cable...

  • Page 7: System View

    2. System View 2.1 Front View USB 1 & 2 Power Botton CD-ROM (option) 2.2 Rear View COM4 Line_In Line_Out Power USB 12V Power USB 24V COM3 COM2 Cash Drawer COM1 KB/Mouse Note: The maximum current that can be drawn from each COM port is 500 mA.

  • Page 8: System Drawing

    2.3 System Drawing Item Description Front Bezel Touch Panel LCD Panel LCD Chassis Main Board Inverter MSR Function Board Touch Bridge Board Thermal Module LCD Cover Assembly MSR Dummy Door CPU / RAM Door...
  • Page 9 Item Description CD-ROM Base Front Cover Front I/O Board CD-ROM Guide Bracket Side Cover Power Supply Rear I/O Board Base Cover Bracket Base Cover...

  • Page 10: Driver Installation

    3. Driver Installation 3.1 Driver List Folder/File File Description <CD>:\B82.htm Drivers List <CD>:\Common\Intel\Chipset Chipset Driver <CD>:\Common\Intel\VGA\i85x VGA Driver <CD>:\Common\Ac97_codec\Realtek\ALC202A Audio Driver <CD>:\Common\Lan_driver\R8139_810x 10/100Mb LAN Driver <CD>:\Common\Intel\USB20 USB 2.0 Driver <CD>:\Common\Elo_Touch ELO Touch Screen Driver The following procedures are for Windows 2000/XP, other platforms are similar. 3.2 Chipset Driver Installation a.

  • Page 11: Vga Driver Installation

    e. Click the “Finish” button and restart your system. 3.3 VGA Driver Installation a. Double click “win2k_xp147” on the My b. Click the “Next” button on the Welcome Computer window. window. c. Click the ”Next” button on the Welcome d. Click the ”Yes” button on the License window.

  • Page 12: Audio Driver Installation

    e. Click the ”Finish” button and restart your system. 3.4 Audio Driver Installation a. Double click ”wdm_93631” on the My b. Click the “Next” button on the Welcome Computer window. window. c. Click the “Continue Anyway” button on d. Click the ”Finish” button and restart your the Hardware Installation window.

  • Page 13: Lan Driver Installation

    3.5 LAN Driver Installation a. Double click ”Setup” on the “My b. Click the “Finish” button on the Computer” window. Maintenance Complete window. c. Click the ”OK” button and restart your system.

  • Page 14: Usb2.0 Driver Installation

    3.6 USB2.0 Driver Installation OS Requirements USB 2.0 requirements Windows USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows XP, which is available through Windows Update. Windows USB 2.0 drivers are available through Windows Update or Service Pack 4. 2000 Windows USB 2.0 drivers are available on the...
  • Page 15 c. Select ”Other Devices” “Universal Serial Bus (USB) Controller” ”Properties” on Device Manager. d. Select “Device” “Update Driver…”. e. Click the ”Next” button on the welcome window. Select “Search for a suitable…”and click g. Select “Specify a location” and click the the “Next”...

  • Page 16: Elo Touch Screen Driver Installation

    Click the “Finish” button to complete this k. Finished. process. 3.7 ELO Touch Screen Driver Installation a. Click ”sw500930” on the My computer b. Click the “OK” button on the Welcome window. window. c. Click the ”Unzip” button on the WinZip d.
  • Page 17 e. Click the “Yes” button on the License Click the “Next” button on the on the Agreement window. “Select the COM ports…” window. g. Select “COM5” and click the “Next” h. Click the “Next” button on the You have button on the Choose the COM ports… selected the COM ports…window.
  • Page 18 k. After the computer has restarted, click l. Follow the instructions on the screen to “Align” on the Elo Touchscreen calibrate the touch panel. Properties window.

  • Page 19: Peripherals Installation

    4. Peripherals Installation 4.1 Biometric Magnetic Stripe Reader Installation a. Plug-in the cables( 2) into the connectors on b. Secure the screws(3) to fix the module the terminal. to the terminal. 4.2 Cash Drawer Installation You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation.
  • Page 20 7 6 5 4 3 2 1 0 X X X Cash Drawer 1 “DOUT bit0” pin output control Cash Drawer 1 “DOUT bit1” pin output control Reserved Cash Drawer 1 “DIN bit0” pin input status Reserved Bit 7: Reserved. Bit 6: Reserved.

  • Page 21: Customer Display Installation

    4.3 Customer Display Installation a. Pass the cable through the hole. b. Pass the cable through the pole. Place the short or long pole into the hole. c. Tighten the screws (2) under the pole. d. Connect the cable. Please setup the COM port power.

  • Page 22: Second Display Installation

    4.4 Second Display Installation Please switch off the system power before connecting the second display. a. Connect the VGA cable (male) into the second display. b. Mount the second display on the rear of the system and tighten the screws (3) on the supporter (All these screws are behind the supporting pole).

  • Page 23: System Disassembly

    5. System Disassembly 5.1. Remove the Base Cover a. Release the thumbscrews (2). b. Slide the top cover towards the back and remove it. c. Release the thumbscrews (2). d. Pull the base cover bracket towards you by the handle, and lift it up. e.

  • Page 24: Replace The Hdd/ Fan

    5.2. Replace the HDD/ Fan To replace the HDD, please first follow the steps in chapter 5.1. a. Disconnect the IDE cable (1) and power b. Remove the screws (4) to replace the cable (1). HDD. To replace the Fan, please first follow the steps in chapter 5.1. c.

  • Page 25: Replace The Power Supply

    5.3. Replace the Power Supply a. Remove the screws (2). b. Disconnect the 20pin cable (1). c. Remove the screw (1). d. Remove the screws (2). You can now remove the power supply. 5.4. Replace the CPU and RAM a. Remove the screws (2). b.
  • Page 26 c. The memory slots are located on the d. Remove the memory module from the mainboard. To remove the memory slot. module, use your finger to push the DIMM slot ejector clips into the down position. e. Disconnect the fan cable. Remove the screws (4) to remove the heatsink and the fan.

  • Page 27: Remove The Mainboard

    5.5. Remove the Mainboard a. Remove the screws (2). b. Lift the cover up and remove it. c. Disconnect the cables (8): 2 d. Remove the screws (2). cable, 20pin cable, 100pin cable, IDE1 cable, IDE2 cable, USB3&4 cable, MIC&Line-in cable, and CPU power cable.
  • Page 28 e. Remove the screws (2). Use your hands to carefully press in the two sides to separate the LCD chassis from the base (including LCD cover). g. Disconnect the cables (2). h. Disconnect the cables (2). Disconnect the cables (3). Remove the screws (8) of the mainboard.

  • Page 29: Replace Touch Board

    5.6. Replace Touch Board a. Disconnect the cables (2). b. Remove the screws (2). 5.7. Replace Inverter Board a. Disconnect the cables (2). b. Remove the screws (2).

  • Page 30: Appendix A: Specification

    Appendix A: Specification Mainboard CPU Supports Intel SK478 CPU Up to P4 2.8G, Celeron 2.0/2.5G, Mobile Celeron 1.2G Chipset Intel 852GME&ICH4 FSB 400/ 533Mhz(selectable by jumper) System Memory 2 x DDR DIMM sockets supported with memory size up to Graphic Memory UMA Share Memory up to 64MB LCD Touch Panel LCD Size...
  • Page 31 USB interface Mini-PCI Wireless Lan IEEE802.11a/b/g card + Antenna( optional) Output Device Second Display 12.1” TFT LCD Customer Display VFD / LCD Dimension (W x D x H) CP200: 378 x 364 x 358 mm / 14.9” x 14.3” x 14.1”...

  • Page 32: Appendix B: Jumper Settings

    Appendix B: Jumper Settings B-1 M/B...
  • Page 33 1. Compact Flash Master/Slave Setting Factory Default Setting ◎ Function JP1 (SHORT) Master ◎ Slave 2. CMOS Operation Mode Setting Function JP5 (SHORT) CMOS Normal ◎ CMOS Reset 3. Power Mode Setting Function JP9 (SHORT) ◎ 4. CPU Frequency Setting Function JP10 (SHORT) FSB 400...
  • Page 34 B-2 I/O Board Tilt the terminal and remove the Jumper Cover Plate (1 screw) on the bottom of the terminal to gain access to the jumpers. COM1/COM2/Cash Drawer DC Power Jumper Setting: JP1 (SHORT) Cash Drawer COM2 COM1 9-10 11-12 13-14 15-16 17-18 19-20 21-22 23-24 25-26 27-28 29-30 31-32 33-34 NC +24V +24V +12V +12V +12V +5V...

  • Page 35: Appendix C: Bios Setting

    Appendix C: BIOS Setting 1. BIOS Setup Utility The BIOS setup defines how the system is configured. You need to run this program the first time you configure this product. You may need to run it again if you change the configuration.
  • Page 36 Standard CMOS Features This setup page includes the standard CMOS features. Advanced BIOS Features This setup page includes the enhanced AWARD BIOS features. Advanced Chipset Features This setup page includes the Chipset features Integrated Peripherals Change, set, or disable on board super I/O functions. Power Management Setup This category determines the system power consumption of the system.
  • Page 37 Set Password Change, set, or disable the password. It allows you to limit access to the system and to the setup, or just to the setup. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Saving Discard all CMOS value changes and exit setup.
