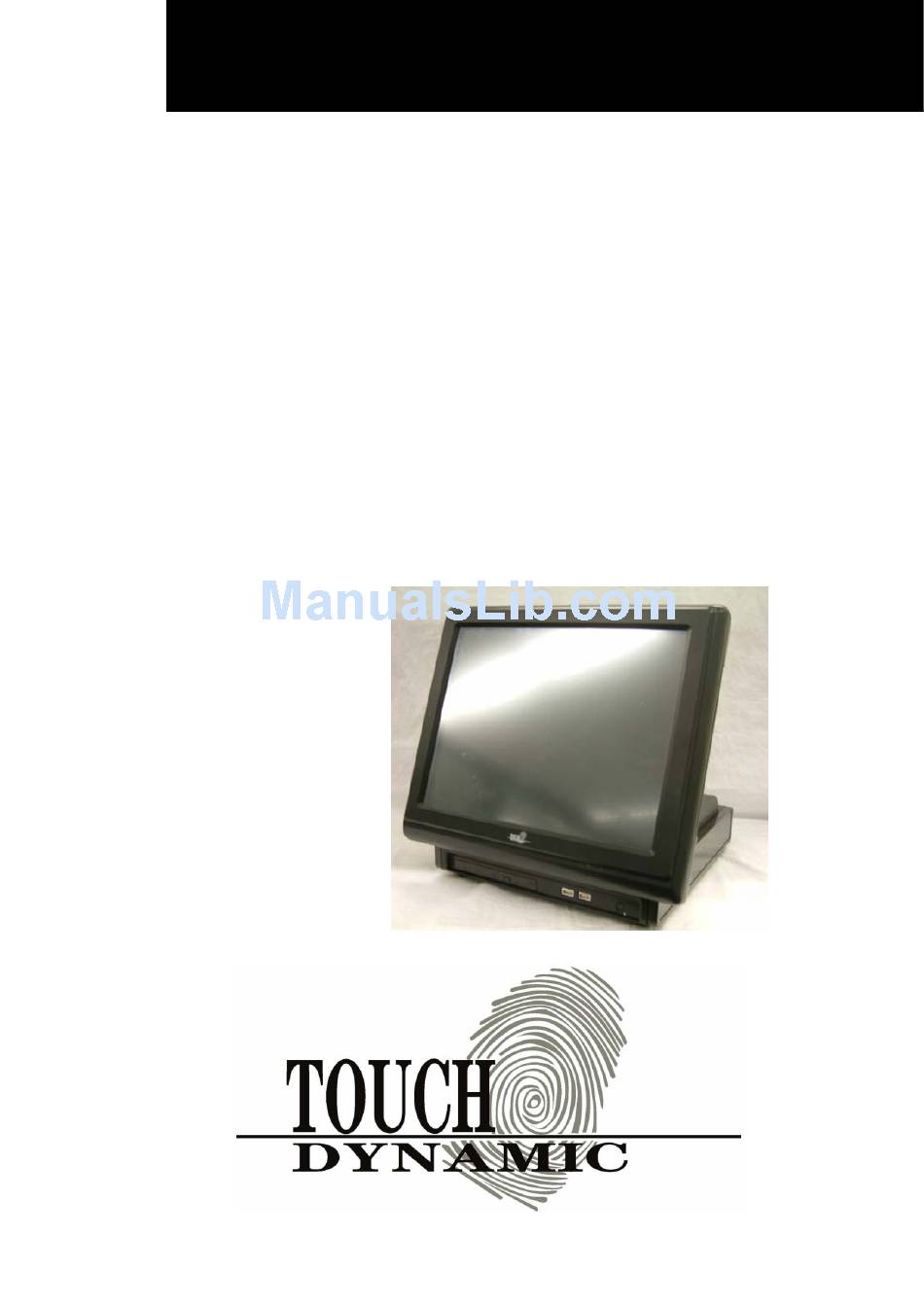

  • Page 1 User Manual Revision v1.3 December 2009 CS-200 Point-of-Sale Hardware System...
  • Page 2 Copyright 2007 Oct. ~ All Rights Reserved Manual Version 1.3 Part Number: The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Important Safety Instructions

    Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.

  • Page 4: Caution On Lithium Batteries

    CAUTION ON LITHIUM BATTERIES There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.

  • Page 5: Revision History

    Revision History Changes to the original user manual are listed below: Version Date Description  2007 December Initial release  2007 March System disassembly updated  Cover page update  2007 October Wall mount bracket installation  Connector Pin Definition update ...

  • Page 6: Table Of Contents

    Table of Contents 1. Item Checklist ................................7 1.1 Standard Items ......................7 2. System View................................. 8 2.1 Front View ........................ 8 2.2 Rear View......................... 8 2.3 System Drawing ....................... 9 4. Peripherals Installation ............................11 4.1 Biometric Magnetic Stripe Reader Installation............11 4.2 Cash Drawer Installation ..................11 4.3 Customer Display Installation.................

  • Page 7: Item Checklist

    1. Item Checklist Take the system unit out of the carton. Remove the unit from the carton by holding it by the foam inserts. The following contents should be found in the carton: 1.1 Standard Items a. Driver CD b. Power Cable Note: The power cord type various according to different country and region.

  • Page 8: System View

    2. System View 2.1 Front View USB 1 & 2 CD-ROM Power Button (option) 2.2 Rear View COM4 Line-In Line-Out Power USB 12V Power USB 24V COM3 COM2 Cash Drawer COM1 KB/Mouse Note: The maximum current that can be drawn from each COM port is 500 mA.

  • Page 9: System Drawing

    2.3 System Drawing Item Description Front Bezel Touch Panel LCD Panel LCD Chassis Main Board Inverter MSR Function Board Touch Bridge Board Thermal Module LCD Cover Assembly MSR Dummy Door CPU / RAM Door...
  • Page 10 Item Description CD-ROM Base Front Cover Front I/O Board CD-ROM Guide Bracket Side Cover Power Supply Rear I/O Board Base Cover Bracket Base Cover...

  • Page 11: Peripherals Installation

    4. Peripherals Installation 4.1 Biometric Magnetic Stripe Reader Installation a. Plug-in the cables (2) into the connectors on b. Secure the screws (3) to stabilize the the terminal. module to the terminal. 4.2 Cash Drawer Installation You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation.
  • Page 12 BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 Attribute Reserved Reserved Reserved Read Reserved Reserved Write Write 7 6 5 4 3 2 1 0 X X X Cash Drawer “DOUT bit0” pin output control Cash Drawer “DOUT bit1” pin output control Reserved Cash Drawer “DIN bit0”...

  • Page 13: Customer Display Installation

    4.3 Customer Display Installation a. Pass the cable through the hole. b. Pass the cable through the pole. Place the short or long pole into the hole. c. Tighten the screws (2) under the pole. d. Connect the cable. Please setup the COM port power.

  • Page 14: Second Display Installation

    4.4 Second Display Installation Please switch off the system power before connecting the second display. a. Connect the VGA cable (male) into the second display. b. Mount the second display on the rear of the system and tighten the screws (3) on the supporter (All these screws are behind the supporting pole).

  • Page 15: Wall Mount Bracket Installation

    4.5 Wall Mount Bracket Installation a. Place the wall mount bracket into the hooks and slide the bracket to the direction as shown by the arrows b. The bracket should be located properly as shown by the photo. c. Tighten the screws (2) (one on each side) to finish the installation.

  • Page 16: System Disassembly

    5. System Disassembly 5.1. Removing the Base Cover a. Release the thumbscrews (2). b. Slide the top cover towards the back and remove it. c. Release the thumbscrews (2). d. Pull the base cover bracket towards you by the handle, and lift it up. e.

  • Page 17: Replacing The Hdd

    5.2. Replacing the HDD To replace the HDD, please first follow the steps in chapter 5.1. a. Disconnect the IDE cable (1) and power b. Remove the screws (4) to replace the cable (1). HDD. 5.4. Replacing the Power Supply a.

  • Page 18: Replacing The Ram

    5.5. Replacing the RAM a. Remove the screws (2). b. Lift the cover up and remove it. c. The memory slots are located on the d. Remove the memory module from the mainboard. To remove the memory slot. module, use your finger to push the DIMM slot ejector clips into the down position.

  • Page 19: Appendix A: Specification

    Appendix A: Specification Main board CPU Support Intel SK478 CPU Up to P4 2.8G, Celeron 2.0/2.5G, Mobile Celeron 1.2G Chipset Intel 852GME&ICH4 FSB 400/ 533Mhz(selectable by jumper) System Memory 2 x DDR DIMM sockets supported with memory size up to Graphic Memory UMA Share Memory up to 64MB LCD Touch Panel...
  • Page 20 Control / Indicator Power Button Indicator LED 2 (Power, HDD) Power Power Supply Internal 180W ATX switching mode power supply Environment EMC & Safety FCC Class A, CE, LVD 5℃ ~ 35℃ (41℉ ~ 95℉) Operating Temperature -20℃ ~ 60℃ (-4℉ ~ 140℉) Storage Temperature Operating Humidity 20% ~ 80% RH non condensing...

  • Page 21: Appendix B: Jumper Settings

    Appendix B: Jumper Settings B-1 M/B...
  • Page 22 1. Connector Jumper Setting Compact Flash Master/Slave Setting ◎ Factory Default Setting Function JP1 (SHORT) ◎ Master Slave CMOS Operation Mode Setting Function JP5 (SHORT) ◎ CMOS Normal CMOS Reset Power Mode Setting Function JP9 (SHORT) ◎ CPU Frequency Setting Function JP10 (SHORT) ◎...
  • Page 23 2. Connector Pin Definition CN1: Touch Pin 1 Pin 2 RS232_TX# Pin 3 RS232_RX# Pin 4 RS232_CTS# Pin 5 RS232_RTS# Pin 6 RS232_DSR# Pin 7 RS232_DTR# Pin 8 CN3: LCD Interface Pin 1 Pin 2 LVDS_A3+ Pin 3 BKLEN Pin 4 LVDS_A3- Pin 5 Pin 6...
  • Page 24 CN12: 15”POS Card Reader Pin 1 Pin 2 Pin 3 KDATA_SIO_TO_MSR Pin 4 KDATA_SIO_TO_MSR Pin 5 KDATA_MSR_TO_IBT Pin 6 KDATA_MSR_TO_IBT Pin 7 RS232_CR_RX# Pin 8 RS232_CR_TX# Pin 9 RS232_CR_CTS# Pin 10 RS232_CR_RTS# Pin 11 KB_EN Pin 12 Pin 13 USB20_MSR_P4+ Pin 14 USB20_MSR_P4- Pin 15...
  • Page 25 B-2 I/O Board Tilt the terminal and remove the Jumper Cover Plate (1 screw) on the bottom of the terminal to gain access to the jumpers. 1. Connector Jumper Setting COM1/COM2/Cash Drawer DC Power Jumper Setting: JP1 (SHORT) Cash Drawer COM2 COM1 9-10 11-12 13-14 15-16 17-18 19-20 21-22 23-24 25-26 27-28 29-30 31-32 33-34...
  • Page 26 2. Connecctor Pin Definition CN9: COM6 Pin 1 COM6_DCCD6 Pin 2 COM6_RXD2 Pin 3 COM6_TXD2 Pin 4 COM6_DTR2 Pin 5 Pin 6 COM6_DSR2 Pin 7 COM6_RTS2 Pin 8 COM6_CTS2 Pin 9 COM6_RI2 Pin 10 COM6_POWER CN12: CDIN Pin 1 CDIN_L Pin 2 CDIN_REF Pin 3...

  • Page 27: Bios Setup Utility

    Appendix C: BIOS Setting 1. BIOS Setup Utility The BIOS setup defines how the system is configured. You need to run this program the first time you configure this product. You may need to run it again if you change the configuration.
  • Page 28 Standard CMOS Features This setup page includes the standard CMOS features. Advanced BIOS Features This setup page includes the enhanced AWARD BIOS features. Advanced Chipset Features This setup page includes the Chipset features Integrated Peripherals Change, set, or disable on board super I/O functions. Power Management Setup This category determines the system power consumption of the system.
  • Page 29 Set Password Change, set, or disable the password. It allows you to limit access to the system and to the setup, or just to the setup. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Saving Discard all CMOS value changes and exit setup.

  • Page 30: Appendix D: Drivers Installation

    Appendix D: Drivers Installation The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system. Please insert the Driver CD into the drive and double click on the “index.htm” to select the models.
