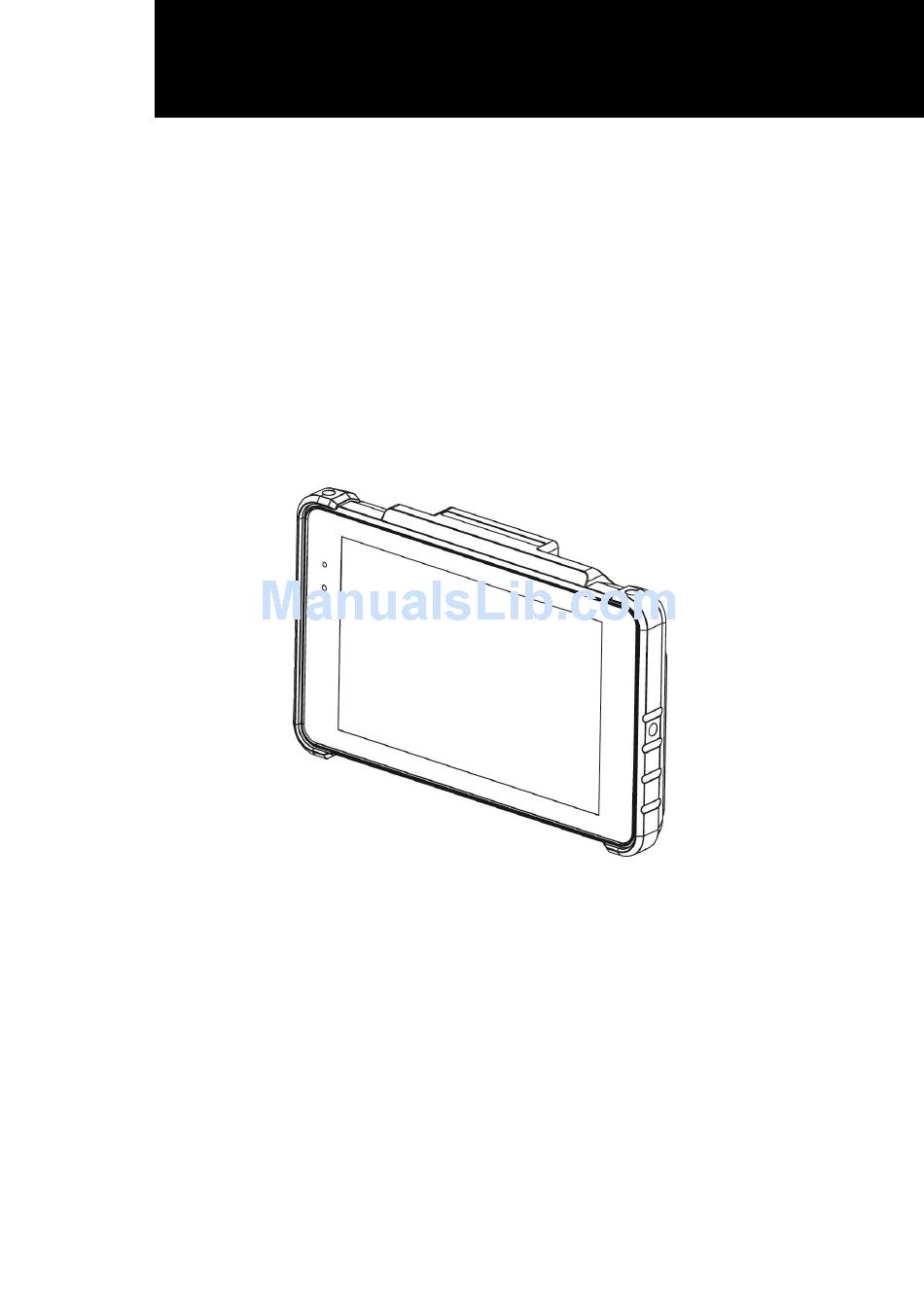

- Page 1 User Manual Version 1.1 July 2015 Quest Tablet...
- Page 2 Copyright Copyright 2011 All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 Safety Regulatory Information Caution: Only use approved and UL Listed accessories, battery packs and battery chargers. Do NOT attempt to charge damp/wet mobile computers or batteries. All components must be dry before connecting to an external power source. Power Supply Use only the approved power supply 50-14000-148 output rated 5 Vdc and minimum 2 A.
- Page 4 Hearing Aids The wireless device may interfere with some hearing aids. In the event of interference you may want to consult your hearing aid supplier to discuss solutions. Other Medical Devices Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere with the medical device.
- Page 5 CE Marking and European Economic Area The use of 2.4GHz RLAN's, for use through the EEA, have the following restrictions: Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 -2.4835 GHz France, outside usage is restricted to 2.4 - 2.454 GHz. ...
- Page 6 Battery Caution Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Waste Electrical and Electronic Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to the reseller for recycling.
-
Page 7: Revision History
Revision History Version Date Description November 2014 Initial release... -
Page 8: Table Of Contents
Table of Contents 1 Introduction ..........9 System Overview ................9 1-1-1 Front View ..................9 1-1-2 Rear View ................... 10 Specification ..................11 2 Getting Started ......... 13 Power On/Off the System ..............13 Replacing the Battery............... 14 Using the Charging Cradle ............... 15 Replacing a Micro SD Card .............. -
Page 9: Introduction
Introduction System Overview 1-1-1 Front View Description Power button Power LED light indicator Ambient light sensor... -
Page 10: Rear View
1-1-2 Rear View Description EMV Smart card reader (optional) Scanner (optional) Programmable button(default scan button) Protection bumper Hand strap Speaker Power charging connector Battery cover Camera NFC logo Pen screw... -
Page 11: Specification
Specification System Quest Motherboard BayTrail-T Z3745 (up to 1.86Ghz) System Memory 2GB LPDDR3 / 4GB LPDDR3 (special order) Flash Memory 32G eMMC LCD Touch Panel LCD Size 7" 10” 1280 x 800 (can be scaled down 1920 x 1200 (can be scaled Resolution up to 800x600) down up to 800x600) - Page 12 System Quest Motherboard Prohibit Data Access via ActiveSync Peripheral Camera 5MP ( Rear) 3-Track USB MSR with Encrypted options available Hand strap EMV card reader Optional Scanner 1D/2D Barcode Scanner (Optional) Cradle USB Port micro-USB 2.0 x 1 Power Adapter 10W / 5V Battery &...
-
Page 13: Getting Started
Getting Started Power On/Off the System Push the power button to turn on the system and hold 4~5 seconds to turn off the system. Note: For best touch performance, remove the protective plastic overlay from the LCD screen by peeling it away from one of the corners. Be sure to use a soft pointing device or finger tip to avoid scratching the screen during normal use. -
Page 14: Replacing The Battery
Replacing the Battery Loosen the pen screw counter-clockwise on the battery cover. Remove the battery cover Pull the plastic tab and gently remove the battery out of the tablet. To install the battery put the battery into the battery slot and push until the battery clicks into the place. -
Page 15: Using The Charging Cradle
Using the Charging Cradle Connect the power adapter supplied with the cradle to the connector on the bottom of the cradle charger. Put the tablet on the charging cradle. -
Page 16: Replacing A Micro Sd Card
Replacing a Micro SD Card Loosen the pen screw counter-clockwise on the battery cover and remove the battery cover. Remove the battery To install a Micro SD card insert the Micro SD card into the SD card slot until it snaps in place. -
Page 17: Mass Storage Device Connection
Mass storage device connection To transfer the files to the tablet from the mass storage devices (USB HDD, USB thumb drive) you can use cradle and the micro USB to USB-A female cable. Simply plug the cable into the charging dock and connect the mass storage device to the USB-A connector.
