ELEGANT F20A-1000 Manual

F20A-1000 RGB STAIRCASE LIGHTS
The F20A staircase lights controller enables an animated (rolling) lighting effect for a hallway or staircase steps. The controller supports 1000 RGB LED
pixels (100 meters of WS2811 12V digital strip or 33 meters of WS2812 strip). The specified lengths refer to strip with 30 LEDs per meter. The controller
works with reflective motion sensors (e.g., FS1 type) that detect a person entering the stairs or walking through the hallway. The presence of a person
triggers the animation, which unfolds in the direction of their movement. The animation "collapses" after a set time. In staircase mode, the controller allows
for 64 effects, while in hallway mode, it supports 28 effects. There are videos demonstrating the configuration, operation, and handling of the controller. To
watch them, scan the QR code below with your phone.
Pairing the Remote with the Controller (must be performed)
-Connect the digital LED strips to the controller.
Turn on the controller's power and within 2 seconds of turning it on,
briefly press "M" and then "I" on any zone switch (5.). The LEDs should blink.
Using the remote:
Main Switch (1.):
-Touch "I" to turn the lighting on permanently.
-Touch "0" to switch to the automatic mode controlled by motion sensors.
Color Wheel (2.):
-Select the color (or set of colors) for the lighting effects. Note that some
effects (e.g., rainbow) do not respond to the color wheel.
Brightness Slider (3.):
-Adjust the brightness of the animation effect.
Program Buttons (4.):
Use "S-" and "S+" to select the desired animation effect.
"I" and "0" Buttons in the Bottom Left (5.):
-Regulate the brightness of the constant backlight (when the controller is
inactive - i.e., when motion sensors do not detect any people). The constant
backlight can be completely turned off for some available effects.
Saturation Slider (6.):
-Adjust the color saturation.
Slider (7.)
- Adjusting the White Color Temperature
Button "W" (8.)
-Turns on the white color. Subsequent presses will change the white color
temperature..
Erasing the Remote from the Controller's Memory
1. Connect the digital LED strips to the controller.
2. Turn on the controller's power and within 2 seconds of turning it on,
briefly press "M" and then "0" on any zone switch (5.). The LEDs should blink.
Erasing All Remotes from the Controller's Memory
1. Connect the digital LED strips to the controller.
2. Turn on the controller's power and within 2 seconds of turning it on,
briefly press "M" and then "0" on the main switch (1.). The LEDs should blink.
Memory Settings
The controller saves the settings 10 seconds after the last use of the remote.

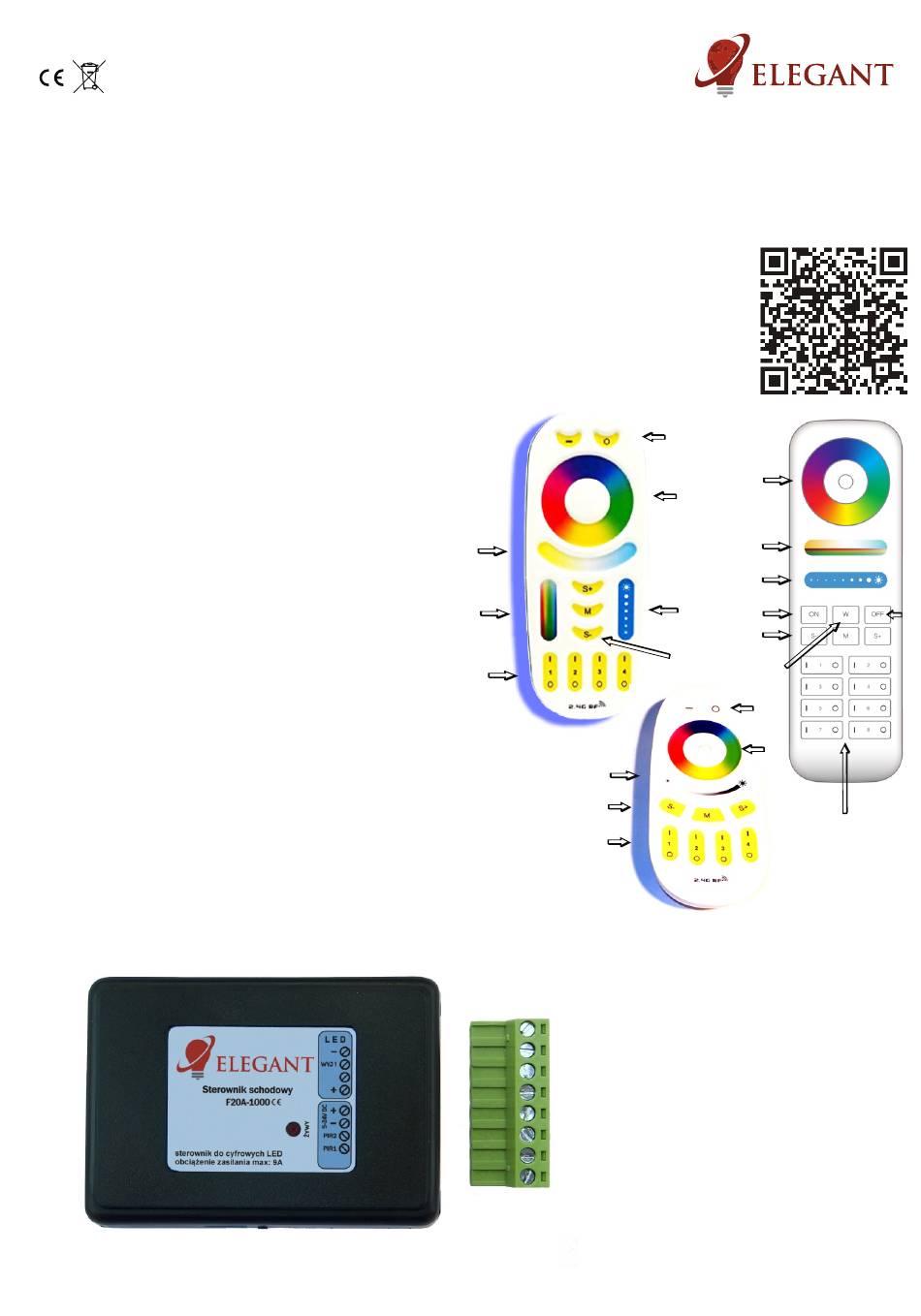

CONTROLLER
7.
6.
5.
Scan this code
with your mobile
phone to watch
YouTube videos
1.
2.
2.
6. 7.
3.
3.
1.
4.
4.
1.
3.
4.
5.
1. Turning on the lighting permanently.
2. Color wheel (color selection).
3. Brightness slider.
4. Program buttons (S+ S-).
5. Constant backlight adjustment.
6. Color saturation slider.
7. White color temperature slider.
8. White color switch.
SUPPORTED REMOTES:
Mi-Light / MIBOXER
FUT089, FUT092, FUT096
B3, T3, B4, T4
Page 1/6
1.
8.
2.
5.
