ELEGANT F25-1000 Manual

F25-1000 MONO STAIRCASE LIGHTING
The F25 staircase lighting controller enables the creation of an animated (expanding) lighting effect for corridors or stair steps. The controller supports
1000 LED MONO pixels (100 meters of WS2811 12V digital LED strip or 33 meters of WS2812 LED strip). The specified lengths refer to strips with 30
LEDs per meter. The controller works with reflective motion sensors (e.g., FS1 type), which detect a person walking up the stairs or passing through the
corridor. The presence of a person triggers the animation, which expands in the direction of their movement. The animation "collapses" after a set time. In
stair mode, the controller allows for 28 effects, and in corridor mode, 7 effects. There are videos showing the configuration, operation, and handling of the
controller. To watch them, scan the QR code below with your phone.
Pairing the Remote with the Controller (must be performed)
-Connect the digital LED strips to the controller.
Turn on the controller's power and within 2 seconds of turning it on,
briefly press "M" and then "I" on any zone switch (5.). The LEDs should blink.
Using the Remote Control
Main Switch (1.):
- Touch "I" to turn on the lighting permanently.
- Touch "0" to switch to the automatic mode controlled by motion sensors.
Color Wheel (2.):
- Not used.
Brightness Slider (3.):
- Adjusts the brightness.
Program Buttons (4.):
- "S-" and "S+" select the desired effect.
Zone Switches (5.):
- Switch to the control mode of the selected zone.
- Return from controlling the selected zone to controlling all zones by touching
the main switch (1.).
Slider (6.):
- Not used.
Slider (7.):
- Not used.
Button (8.):
- Not used.
Deleting the Remote Control from the Controller's Memory
1. Connect Digital LEDs to the Controller:
- Ensure the digital LED strips are properly connected to the controller.
2. Power On the Controller:
- Turn on the power to the controller.
3. Perform the Reset Sequence:
- Within 2 seconds of powering on, briefly press the "M" button.
- Then press the "0" button on any zone switch (5.).
- The LEDs should blink, indicating that the remote control has been removed
from the controller's memory.
Deleting All Remote Controls from the Controller's Memory
1. Connect Digital LEDs to the Controller:
- Ensure the digital LED strips are properly connected to the controller.
2. Power On the Controller:
- Turn on the power to the controller.
3. Perform the Reset Sequence:
- Within 2 seconds of powering on, briefly press the "M" button.
- Then press the "0" button on the main switch (1.).
- The LEDs should blink, indicating that all remote controls have been removed
from the controller's memory.
Memory Settings
The controller saves the settings 10 seconds after the last use of the remote
control.

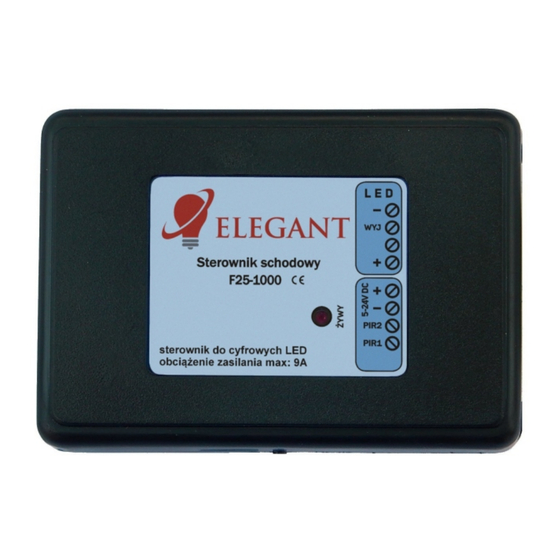

CONTROLLER
Scan this code
with your mobile
phone to watch
YouTube videos
7.
6.
5.
3.
4.
5.

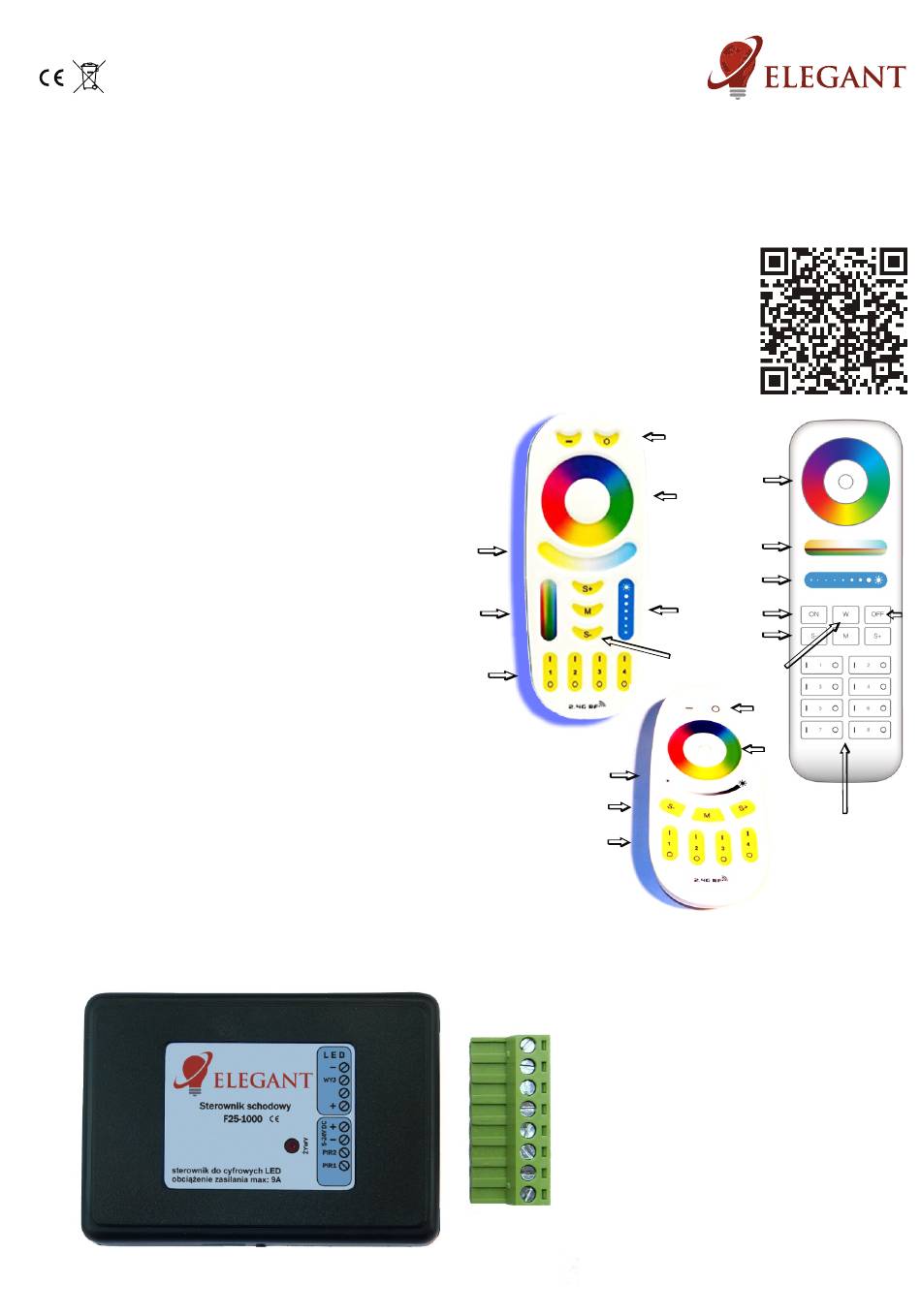

Remote Control Functions
1. Permanent Lighting Activation:
2. Color Wheel (color selection) (not used):
3. Brightness Slider:
4. Program Buttons (S+ S-):
5. Constant Lighting Adjustment:
6. Color Saturation Slider (not used):
7. White Color Temperature Slider (not used):
8. White Color Activation Switch (not used):
1.
2.
2.
6. 7.
3.
3.
1.
4.
4.
8.
1.
2.
SUPPORTED REMOTES
Mi-Light / MIBOXER
FUT089, FUT092, FUT096
B3, T3, B4, T4
Page 1/6
