ELEGANT S72TA Quick Start Manual

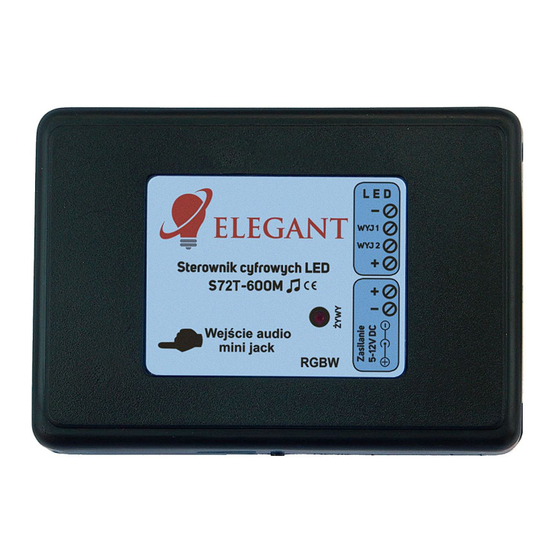

LED CONTROLLER S72TA RGBW
LED controller S72TA allows driving digital LED strips (or pixels) by using comfortable radio remote controller with
touchbuttons. The controller has a sound input (mini jack). The built-in processor separates the music into bass,
mid and treble tones (concerns some effects) . The device has over 100 built-in effects and enables
support for zones (control of many receivers independently with one remote controller)
Controller version (marked at housing):
S72TA-600M music version 600 pixels LED
NOTE: All versions of the controller have two outputs. If it is written that the driver supports for example
600 pixels means that each output has a signal for 300 pixels. .
Pairing controller with remote (should be done):
Each controller can be driven by selected remote and selected zone at remote (buttons 5.).
If we don't do this, controller will not respond to remote commands. To do this, You should:
- connect digital LED to controller
- turn the power ON and within 2 sec. after power on touch shortly "M" button then "I" button at zone buttons area (5.)
LED's should blink
Using the remote controller.
With the main power switch (1.) You can turn the lights on and off . If You
need
to have white light then You should hold the "I" button near the main power
switch or at zone buttons area (5.) for few seconds. Holding down the
button changes white color temperature.
With color wheel (2.) You can select color or set of colors for generated
effects. Some effects (rainbow for example) are not affected by color
wheel.
Brightness slider (3.) is utilized to adjust brightness of light.
Program change buttons (4.) "S-" and "S+" are utilized for selecting
desired animation. Long press of "S+" button turns on auto program
change mode (with 35sec. interval).
"M" button (4.) allows adjusting speed of effects. Long press applied to
this button turns on still color mode (without animation).
Zone power buttons (5.) is used to get in zone control mode for selected
zone. If You need to revert back into all zones control mode You should
touch main power button (1.)
Slider (6.) - affects color saturation.
Slider (7.) - affects white color temperature..
White color switch (8.) - turns white light on/off. Consecutive button
pressing changes the temperature of white color.
Deleting remote from controller memory.
- connect digital LED to controller
- turn the power on and within 2 sec. after powering up touch shortly "M"
and then "0" at any of power buttons in zone area (5.). LED's should blink.
Deleting all remotes from controller memory.
- connect digital LED to controller
- turn the power on and within 2 sec. after powering up touch shortly "M"
and then "0" at main power switch (1.). LED's should blink.
WARNING! When using remote You have touched (it can be done by accident) other zone button that
saved in controller then controller will not respond to remote. It's clear, because this is the point of zone
control mode (You can control 4 zones using one remote). Unwanted touching the other zone can be
observed as not existing malfunction.
Settings memory. Controller saves settings after 10 sec. from last remote usage.
