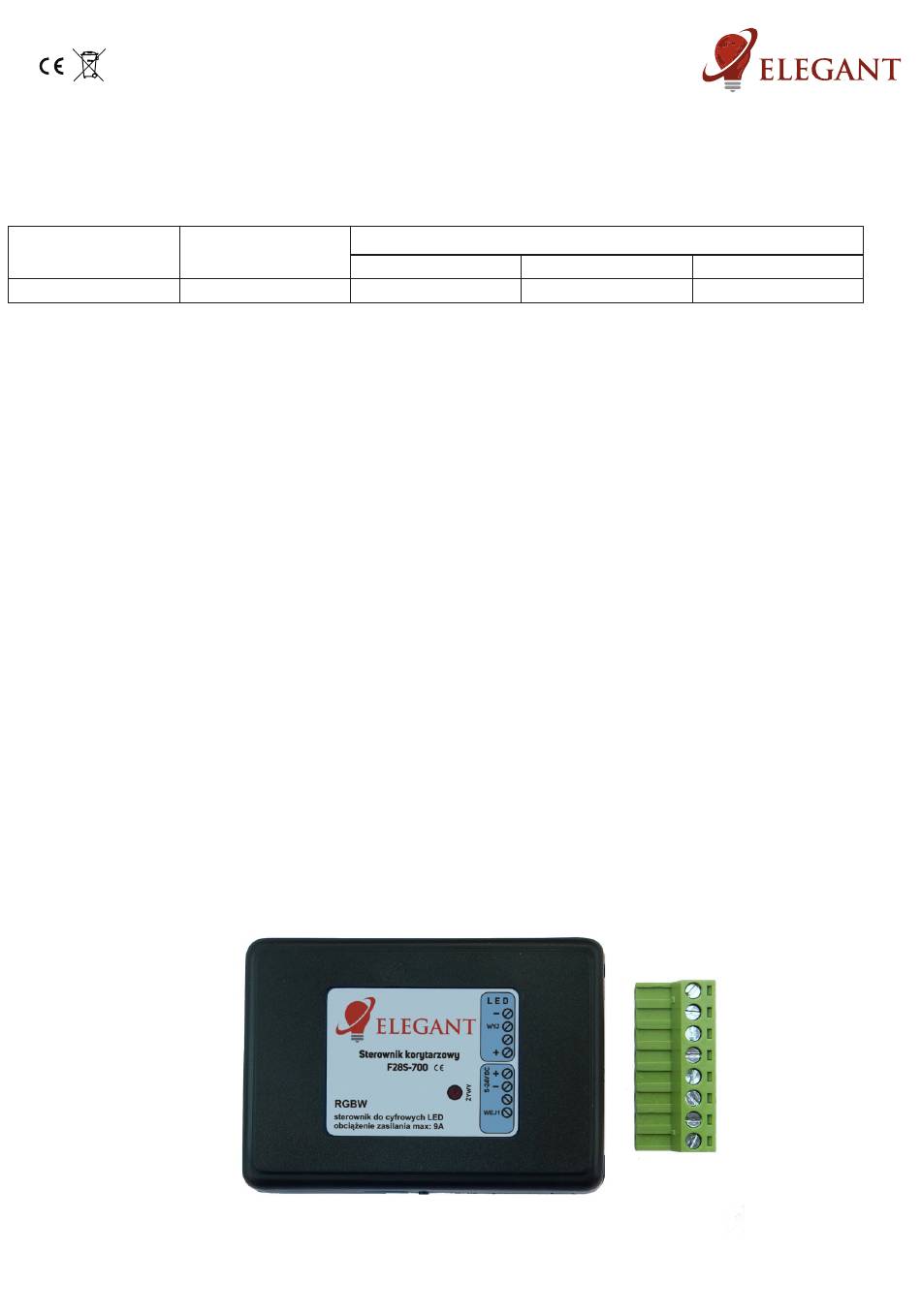

ELEGANT F28S-700 Instruction Manual

The Corridor Controller F28S allows for a light filling (unfolding) effect along the connected digital LED strip. Various animation effects can
be selected for turning the lighting on and off. The controller is compatible with both monostable buttons (doorbell buttons) and bistable
buttons (regular switches). Additionally, the device can be controlled using a remote control, a dedicated Wi-Fi bridge R240, and the B320
Firefly.
Number of Outputs
1
Controller Configuration
Step 1: Pairing the Remote with the Controller
- Connect the digital LEDs to the controller.
- Turn on the controller's power and within 2 seconds, briefly press "M" and then "I" on the first zone switch (Fig. 1). The LEDs should flash.
Step 2: Entering Configuration Mode
- On the remote, briefly touch each button twice: "S-", then "M", and finally "S+".
Step 3: Initial Configuration
- After entering configuration mode, the LEDs on the first LED strip should light up. Now, repeatedly touch "O" on the top of the remote, next to the main
switch (Fig. 1) until the first three LEDs light up sequentially in red, green, and blue. Use the "M" button to move to the next configuration step.
Step 4: Setting the LED Strip Length
- To set the appropriate length of the LED strip, use the "I" and "O" buttons on the first zone switch to fill the entire LED strip with lit sections, so that the
flashing section reaches the end of the strip.
- To speed up this process, use the "I" and "O" buttons on the SECOND zone switch. This will light up 10 sections at a time instead of one.
- Once the length of the connected strip is set, press "M" on the remote and the animation will start.
- After completing the previous steps, you can set the animation speed. Use the "I" and "O" buttons on the first zone switch to increase/decrease the speed
of the displayed animation. Use the "S+" and "S-" buttons to change animations. Animations can be changed at any time, but the animation speed can only
be changed in configuration mode. Move to the next step with the "M" button.
Step 6: Selecting the Type of Connected Button
- After completing the previous configuration steps, the first section of the LED strip will blink alternately.
- If adjacent sections blink, a monostable button (bell button) is selected. If the blinking sections are spaced apart, a bistable button (regular switch) is
selected. Change the selection with the "I" and "O" buttons on the first zone switch. This completes the configuration. If you want to change anything, move
through the steps with the "M" button, and exit the configuration menu with "I" at the top of the remote.
Step 7: Exiting the Configuration Menu
- Press "I" at the top of the remote.
When using the device with the B320 firefly or the R240 Wi-Fi bridge, you can control brightness, color, and toggle the lighting on and off (if the controller
operates in monostable switch mode). The desired animation effect can only be selected using the remote control.
NOTE: When working with a bistable switch (regular two-position switch), it is not possible to turn the lighting on and off using the remote control, R240 Wi-
Fi bridge, or B320 Firefly.

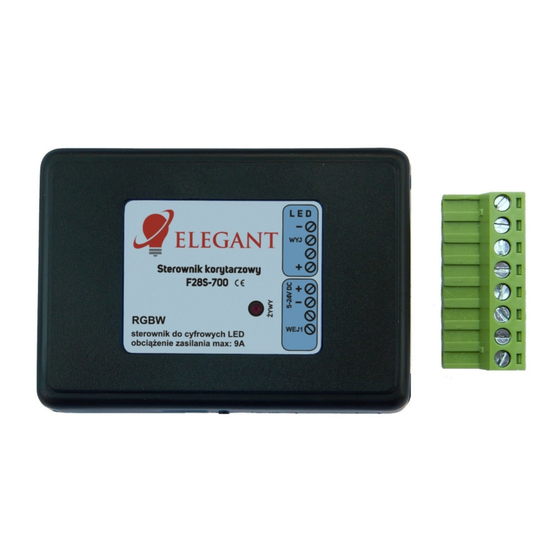

F28S-700 CORRIDOR LIGHTING
CONTROLLER
Maximum Number
of Pixels per Output
700
Maximum Length of LED Strip per Output[m]
60d/m 24v 60d/m 12V
70
30d/m 12V
35 70
Page 1/3
