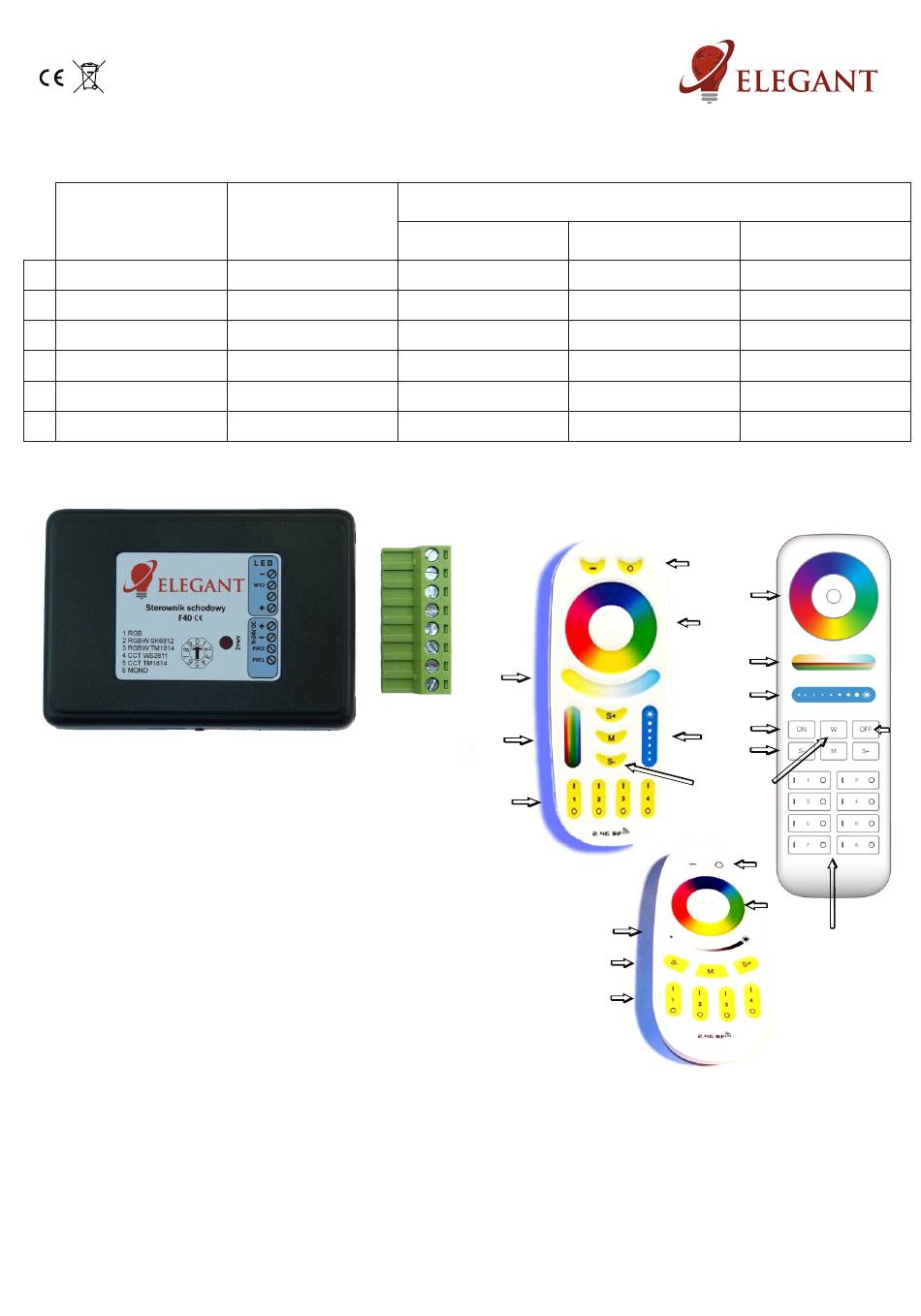

ELEGANT F40 Quick Start Manual

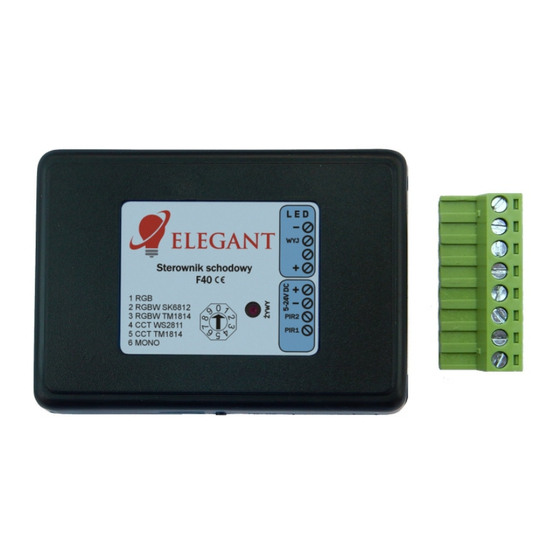

F40 STAIR AND CORRIDOR CONTROLLER
The F40 stair-corridor controller allows for an animated (progressive) lighting effect for a corridor or stair steps. The controller works with reflective
motion sensors (e.g., FS1 type), which are used to detect a person walking up the stairs or passing through the corridor. The presence of a person
triggers an animation that progresses according to the direction of movement. The animation 'retracts' after a set time. In stair mode, the controller
provides 67 effects, while in corridor mode it offers 28 effects.
Strip type
1 RGB
2 RGBW SK6812
3 RGBW TM1814
4 CCT WS2811
5 CCT TM1814
6 MONO
Selecting the strip.
Before starting the configuration, use a screwdriver to adjust the switch
located on the back of the controller to the desired type of LED strip."
Pairing the remote with the controller (required):
- Connect digital LED strips to the controller
- Turn on the controller's power, and within 2 seconds of powering it on, briefly
press "M" and then "I" on any zone switch (5.). The LEDs should blink.
Using the remote:
The main switch (1.) allows you to either turn on the lighting permanently
(by touching "-" / "ON") or switch to automatic mode controlled by motion
sensors (by touching "0").
The color wheel (2.) is used to select the color (or set of colors) for creating
light effects. Some effects (e.g., rainbow) do not respond to the color wheel.
The brightness slider (3.) adjusts the brightness of the animation effect.
Program buttons (4.), "S-" and "S+", are used to select the desired
animation effect.
The "I" and "0" buttons on zone 1 of the remote (5.) are used to adjust the
brightness of the constant backlight (when the controller is inactive, i.e.,
when the motion sensors haven't detected any people). The constant
backlight can be completely turned off for some of the available effects.
Slider (6.) - controls the color saturation.
Slider (7.) changes the color temperature of the white light..
Button (8.) – turns on white light. Subsequent presses will change the white light's color temperature.
Maximum number of
pixels
1000
700
700
1000
700
1000
Maximum tape length [m]
60d/m 24v
100
70
70
100
70
100
7.
6.
5.
3.
4.
5.
60d/m 12V 30d/m 12V
50
35
35
50
35
50
SUPPORTED REMOTE CONTROLS:
Mi-Light / MIBOXER
FUT089, FUT092, FUT096
B3, T3, B4, T4
1.
2.
2.
6. 7.
3.
1.
3.
4.
8.
4.
1.
2.
1. W³¹czanie oœwietlenia na sta³e.
2. Ko³o kolorów (wybór koloru).
3. Suwak jasnoœci.
4. Przyciski programów (S+ S-).
5. Regulacja podœwietlenia sta³ego (strefa 1).
6. Suwak nasycenia koloru.
7. Suwak temperatury barwy bia³ej.
8. W³¹cznik koloru bia³ego.
Page 1/8
100
70
70
100
70
100
1.
5.
