ELEGANT F24T Manual

F24T CCT STAIRCASE LIGHTING

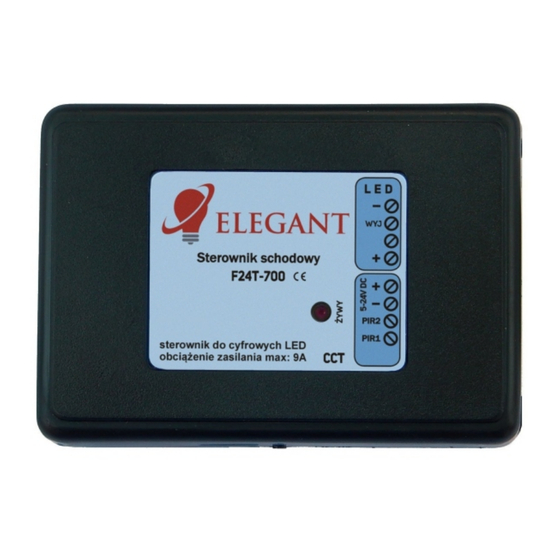

The F24T stair controller enables the creation of an animated (expanding) lighting effect for corridors or stair steps. The controller supports 700 LED CCT
pixels (70 meters of digital tape, 12V, 30 LEDs/m CCT). The specified lengths refer to the LED strip with 30 LEDs per meter. The controller works with
reflective motion sensors (e.g., FS1 type), which detect a person walking up the stairs or passing through the corridor. The presence of a person triggers
the animation, which expands in the direction of their movement. The animation "collapses" after a set time. In stair mode, the controller allows for 64
effects, and in corridor mode, 28 effects. There are videos showing the configuration, operation, and handling of the controller. To watch them, scan the
QR code below with your phone.
Pairing the Remote Control with the Controller (must be done)
1. Connect Digital LEDs to the Controller:
- Ensure the digital LED strips are properly connected to the controller.
2. Power On the Controller:
- Turn on the power to the controller.
3. Perform the Pairing Sequence:
- Within 2 seconds of powering on, briefly press the "M" button.
- Then press the "I" button on any zone switch (5.).
- The LEDs should blink, indicating that the remote control has been successfully
paired with the controller.

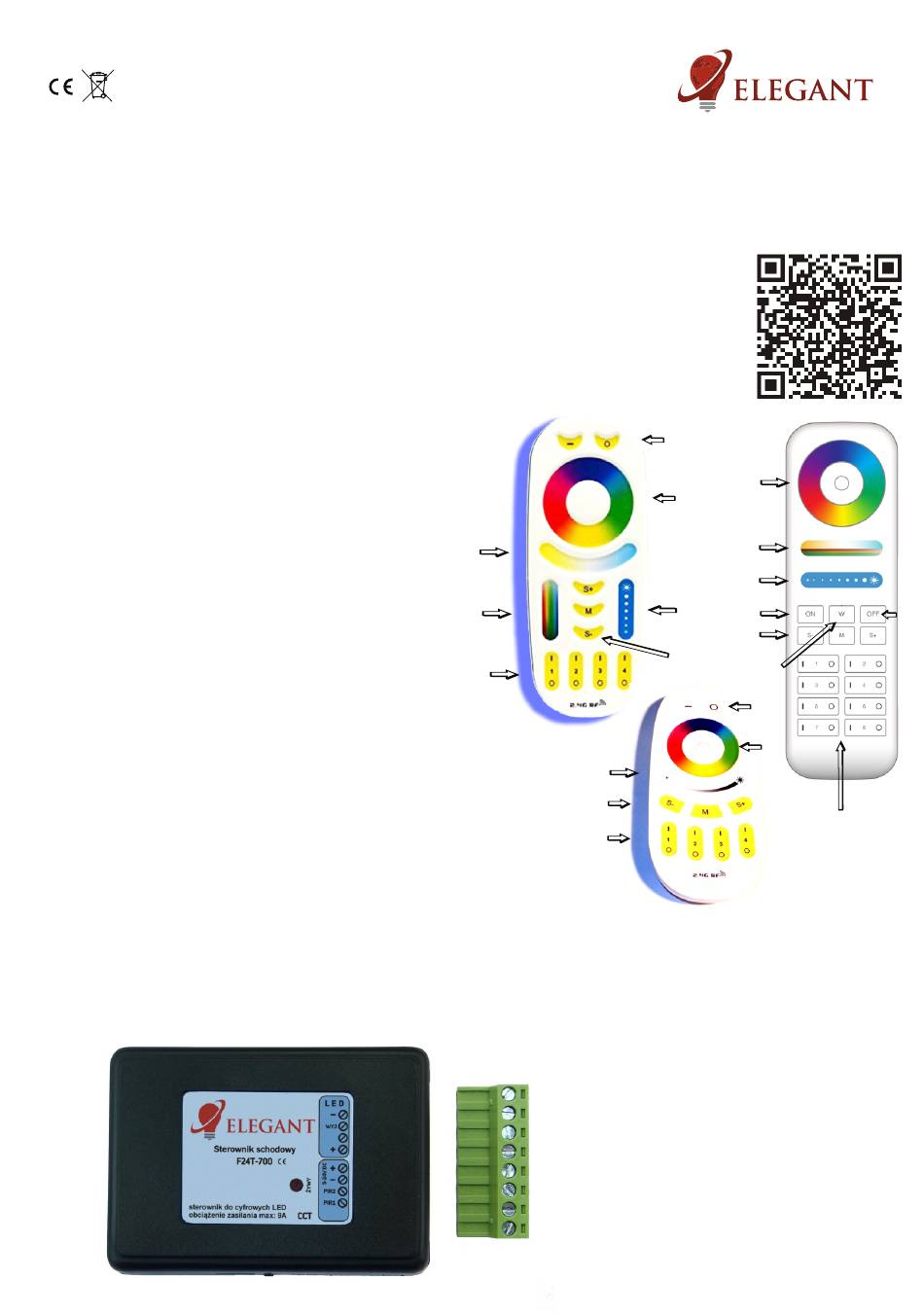

Using the Remote Control
1. **Main Switch (1.):**
- Touch "I" to turn on the lighting permanently.
- Touch "0" to switch to the automatic mode controlled by motion sensors.
- Continuously pressing the main switch (1.) or the zone switch (5.)
changes the white color temperature.
2. Color Wheel (2.):
- Not used.
3. Brightness Slider (3.):
- Adjusts the brightness of the animation effect.
4. Program Buttons (4.):
- "S-" and "S+" select the desired animation effect.
5. Buttons "I" and "0" in the lower left part of the remote control (5.):
- Adjust the brightness of the constant lighting (when the controller is
inactive, meaning the motion sensors have not detected any persons).
- Constant lighting can be completely turned off for some available effects.
6. Slider (6.):
- Not used.
7. Slider (7.):
- Changes the white color temperature.
8. Button (8.):
- Not used.
Deleting the Remote Control from the Controller's Memory
1. Connect Digital LEDs to the Controller:
- Ensure the digital LED strips are properly connected to the controller.
2. Power On the Controller:
- Turn on the power to the controller.
3. Perform the Reset Sequence:
- Within 2 seconds of powering on, briefly press the "M" button.
- Then press the "0" button on any zone switch (5.).
- The LEDs should blink, indicating the remote control has been removed
from the controller's memory.
Deleting All Remote Controls from the Controller's Memory
1. Connect Digital LEDs to the Controller:
- Ensure the digital LED strips are properly connected to the controller.
2. Power On the Controller:
- Turn on the power to the controller.
3. Perform the Reset Sequence:
- Within 2 seconds of powering on, briefly press the "M" button.
- Then press the "0" button on the main switch (1.).
- The LEDs should blink, indicating that all remote controls have been removed
from the controller's memory.
Memory Settings
The controller saves the settings 10 seconds after the last use of the remote.
CONTROLLER
7.
6.
5.
Scan this code
with your mobile
phone to watch
YouTube videos
1.
2.
2.
6. 7.
3.
3.
1.
4.
4.
8.
1.
3.
4.
5.
1. Permanent Lighting Activation:
2. Color Wheel (color selection) (not used):
3. Brightness Slider:
4. Program Buttons (S+ S-):
5. Constant Lighting Adjustment:
6. Color Saturation Slider (not used):
7. White Color Temperature Slider:
8. White Color Activation Switch (not used):
SUPPORTED REMOTES:
Mi-Light / MIBOXER
FUT089, FUT092, FUT096
B3, T3, B4, T4
Page 1/6
1.
2.
5.
