ELEGANT Corridor Controller F29 Manual

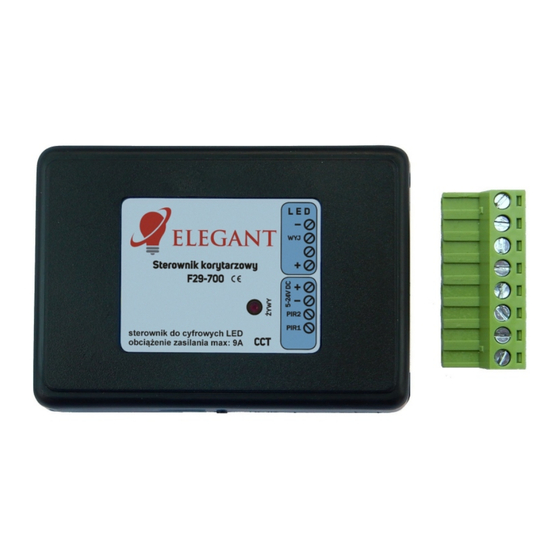

F29 CCT CORRIDOR CONTROLLER
The Corridor Controller F29 allows for a light filling (unfolding) effect along the connected digital LED strip. Various animation
effects can be selected for turning the lighting on and off. The controller is compatible with both monostable buttons (doorbell buttons) and
bistable buttons (regular switches). Additionally, the device can be controlled using a remote control, a dedicated Wi-Fi bridge R240, and
the B320 Firefly.
Number of Outputs
1
Controller Configuration
Step 1: Pairing the Remote with the Controller
- Connect the digital LEDs to the controller.
- Turn on the controller and within 2 seconds of powering on, briefly press "M", then "I" on the first zone switch (see Fig. 1). The LEDs
should blink.
Step 2
- To enter configuration mode, briefly touch each button "S-" twice, then "M", and then "S+" on the remote.
Step 3: Setting the Length of the LED Strip
- To set the appropriate length of the LED strip, use the "I" and "O" buttons on the first zone switch to fill the entire LED strip with lit
sections so that the blinking section reaches the end of the LED strip.
- To speed up this process, you can use the "I" and "O" buttons on the SECOND zone switch. In this case, you will light up 10 sections at a
time instead of one.
- Once you set the length of the connected strip, press "M" on the remote to start displaying the animation.
Step 4: Setting the Animation Speed
- After completing the previous steps, you can set the animation speed. Use the "I" and "O" buttons on the first zone switch to
increase/decrease the speed of the displayed animation. Use the "S+" and "S-" buttons to change animations. You can change them at
any time, but the animation speed can only be changed in configuration mode. Move to the next step by pressing "M".
Step 5: Selecting the Type of Connected Button
- After completing the previous configuration steps, the first section of the LED strip will blink alternately.
- If adjacent sections are blinking, a momentary (bell) switch is selected. If the blinking sections are apart, a bistable (standard switch) is
selected. Change the selection using the "I" and "O" buttons on the first zone switch. This is the end of the configuration. If you want to
change something, move through the steps using the "M" button, and exit the configuration menu by pressing "I" at the top of the remote.
Step 6: Exiting the Configuration Menu
- Press "I" at the top of the remote.
When the device is used with the B320 skylight or the R240 Wi-Fi bridge, you can control brightness, white color temperature, and turn the
lighting on and off (if the controller is operating in momentary switch mode). The desired animation effect can only be selected using the
remote.
NOTE: When using a bistable switch (standard two-position switch), it is not possible to turn the lighting on and off using the
remote, Wi-Fi bridge, or firefly.
Maximum Number
of Pixels per Output
700
Maximum Length of LED Strip per Output[m]
60d/m 24v
70
60d/m 12V
35
30d/m 12V
70
