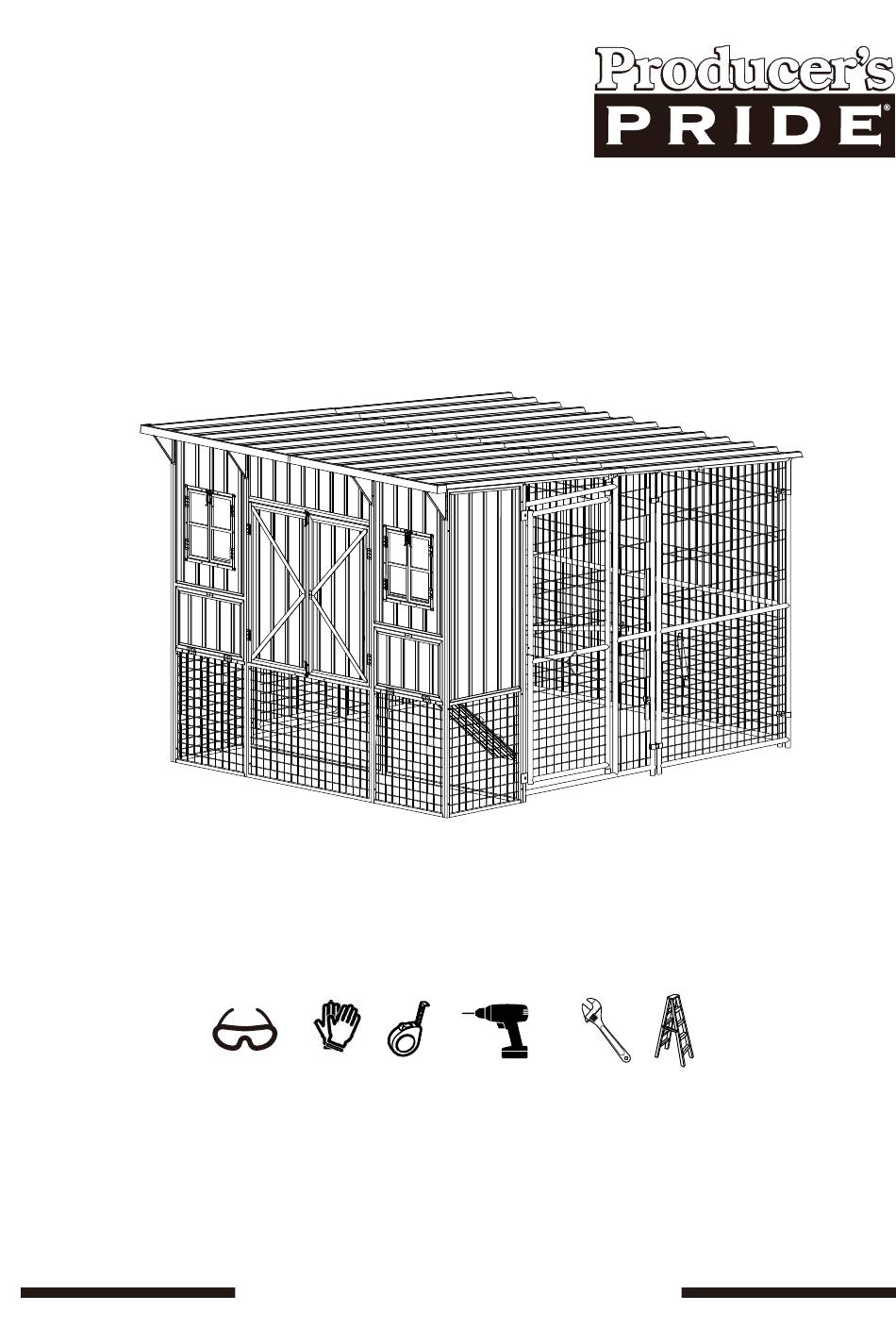

- Page 1 CABANA COOP Assembly Manual SKU#2432296 Tools required for assembly (not included) Distributed by: TRACTOR SUPPLY COMPANY 5401 VIRGINIA WAY, BRENTWOOD, TN 37027 For customer support, call: 1-888-376-9601 www.TractorSupply.com MADE IN CHINA...
-
Page 2: Parts List
PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Coop Front Panel-Left Coop Left Panel Coop Back Panel-Right Coop Front Panel-Middle Coop Front Panel-Right Coop Right Panel Coop Back Panel-Left Coop Floor Support Tube-1 Coop Floor Support Tube-2 Coop OSB Floor... - Page 3 PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Coop PVC Floor Long Roosting Bar - 1 Short Roosting Bar Long Roosting Bar - 2 Coop Roof Support Tube Coop Roof Board Run-Door Panel Run-Side Panel 1 Run-Side Panel 2 Run Roof Support Tube-1 Run Roof Support Tube-2...
- Page 4 PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Connecting Tube Connector Plate Triangle Support Nesting Box Floor Panel Nesting Box Side Panel Nesting Box Divider Nesting Box Top Board Coop Roof Panel -1 Coop Roof Panel -2 Eave-1 Eave-2 Ramp...
- Page 5 PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Roosting Bar Holder Roosting Bar Hook Access Door Sliding Handle 32-32 Clamp M10x40 Bolt M6x50 Bolt M6x35 Bolt M6x25 Bolt M6x16 Bolt 20+1 M4x20 Bolt M10 Lock Nut M6 Lock Nut 32+3 Self-tapping Screw 4x10mm...
- Page 6 ASSEMBLY Get Ready: Install one piece of part #38 (Roosting Bar Holder) at the specified locations on the ● back of panels #1, #2, #3, #5, #6, and #7 by Screws #50. 1&5 2&6 Install part #27, #28 (2pcs), #29 #30 to form a Nesting box, using Screws #52 &...
- Page 7 ASSEMBLY Suggest 2-3 persons to work together for the assembly. Step 1 Assemble panels #1, #2, and #3 by hardwares #44, #43 and #49 through the ● pre-drilled holes, then attach part #26 with 4 pieces of #46 through the pre- drilled holes.
- Page 8 ASSEMBLY Step 3 Assemble panel #7, and #25 through the pre-drilled holes. Connector Plate ● 43&49 43&49 Step 4 Install 6 units of #8 and 1 unit of #9 by s #44. Bolt ●...
- Page 9 ASSEMBLY Step 5 Insert two pieces of #12 evenly from both ends of #37, then secure with two pieces ● of #50. Place 2 pieces of #10 (Coop OSB Floor Board) in the chicken coop, and put 2 pieces ● of #11 (Coop PVC Floor Board) on top of #10.
- Page 10 ASSEMBLY Step 7 Assemble 2 pieces of part #16 by #51 through the pre-drilled holes. Connect #16 ● and #26 by #50 through the pre-drilled holes. Step 8 Assemble 2 pieces of # 17 and 2 pieces of # 18. Adjacent mesh panels are ●...
- Page 11 ASSEMBLY Step 9 Assemble Ramp #35 and 2 hooks #36 by #45 and #49, then place them in the ● indicated positions as shown in the diagram. Insert one end of #40 (Access Door Sliding Handle) through the mesh of #17, then ●...
- Page 12 ASSEMBLY Step 11 Assemble one piece each of #20, #23, and #24 together using #43 and #49. Repeat ● this to get another same group of tube. Place tubes #21 and #22 as shown and assemble the whole structure by #43 and #49. ●...
- Page 13 ASSEMBLY Step 13 Assemble 3 pieces of Roof Panel #31 by #53. ● 2.8" Step 14 Assemble 3 pieces of Roof Panel #32 by Screws #50 & #53. ● Place 2 pieces of #14 (Long Roosting Bar-2 ) in the appropriate positions on the ●...
- Page 14 ASSEMBLY Step 15 Install the Eaves #33, #34 by #50 through the pre-drilled holes. ● Install three #54 (T-handle Lock) at the designated door lock location of the panels#4, #1 ● and #5. T-Handle Tongue Washer M10 Locknut M10 Nut T-Handle M10 Nut Washer...
