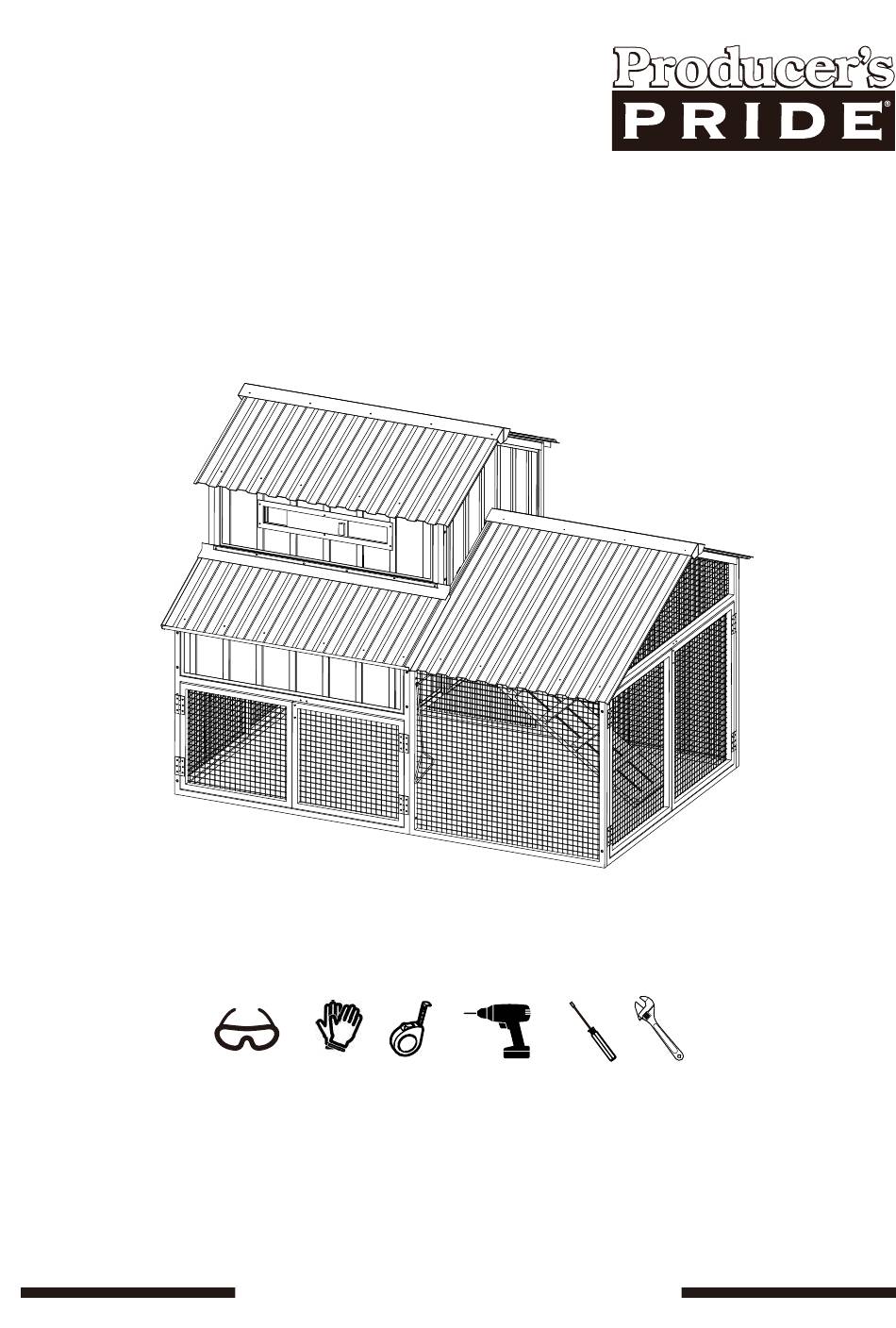

- Page 1 BUNGALOW COOP Assembly Manual SKU# 2432292/2448045/2448046 Tools required for assembly (not included) Distributed by: TRACTOR SUPPLY COMPANY 5401 VIRGINIA WAY, BRENTWOOD, TN 37027 For customer support, call: 1-888-376-9601 www.TractorSupply.com MADE IN CHINA...
-
Page 2: Parts List
PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Coop Right Panel Run Back Panel Coop Back Panel Nesting Box Front Panel Coop Front Panel Coop Left Panel Tray Support Bar Tray Nesting Box Floor... - Page 3 PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Nesting Box Divider Short Roosting Bar Long Roosting Bar Coop Roof Shoulder Support Coop Roof Peak Support Pen Right Mesh Panel Pen Left Mesh Panel Ramp Pen Front Panel Pen Roof Shoulder Support 1 Pen Roof Shoulder Support 2...
- Page 4 PARTS LIST Please check the parts and quantities before assembly Part# Drawing Qty. Description Coop PVC Roof -Bigger Side Coop PVC Roof -Smaller Side Pen PVC Roof-Bigger Side Pen PVC Roof-Smaller Side Coop Roof Top Cap Pen Roof Top Cap Nesting Box Roof Access Door Handle Roosting Bar Holder...
-
Page 5: Get Ready
ASSEMBLY Get Ready: Follow Diagram 1, attach 2pcs of #30 (Roosting Bar Holder) to the wood board side of Panel #1 ● (Coop Right Panel), using the pre-drilled holes. Repeat above step , installing one #30 at the designated positions of #3 (Coop Back Panel) ●... - Page 6 ASSEMBLY Step 1 Assemble Panels #1, #2, #3, and #4 firmly using Bolts #32. Panel #3 should be directly ● above Panel #2. Step 2 Securely install Panel #5 as below diagram using 4 pieces of Bolt #32. ●...
- Page 7 ASSEMBLY Step 3 Attach Panel #6 using 4 pieces of #32. ● Step 4 Install the 4 pieces of #7 (Tray Support Bar) to the illustrated positions using Bolts #32. ●...
- Page 8 ASSEMBLY Step 5 Open the door of Panel #3, and push #8 (Tray) from the doorway into the chicken coop. ● Place #9 (Nesting Box Floor) and #10 (Divider) in the Nesting Box as shown in the diagram. ● Place The Roosting Bars (#11 and #12) on the pre-fixed Roosting Bar Holders as below diagram. ●...
- Page 9 ASSEMBLY Step 7 Install #15 (Pen Right Panel) onto Panel #1 using 2 Pieces Bolt #32, and same way, install #16 ● (Pen Left Panel) onto Panel #4 using Bolt #32. Step 8 First, install 2pcs of #31 (Ramp Hook) onto #17 (The Ramp) using Bolts #33 and Nuts #37, ●...
- Page 10 ASSEMBLY Step 9 Securely install #18 (Pen Front Panel) using 4 pieces of Bolts #32. ● Step 10 Install 2 pieces of #19 (Pen Roof Shoulder Support 1) ,1 piece of #20 (Pen Roof Shoulder ● Support 2) and 1 piece of #21 (Pen Roof Peak Support) using Screws #35$. 2 10...
- Page 11 ASSEMBLY Step 11 Arrange the four roof panels #22, #23 ,#24, #25 as shown in the diagram, and securely ● install them, one by one, using Screws #35 through the pre-drilled holes. Note: #22 and #23 should be placed centered. Step 12 Install Roof Caps #26 and #27 onto the top of the roof using #36 through the pre-drilled...
- Page 12 ASSEMBLY Step 13 Lift the Rain Guard of Panel #6, then place #28 (Nesting Box Roof Panel) centered from left ● to right, and secure it firmly with #35 as shown in the diagram. Lift the Rain Guard Rain Guard The entire assembly is now completed 2 12...
