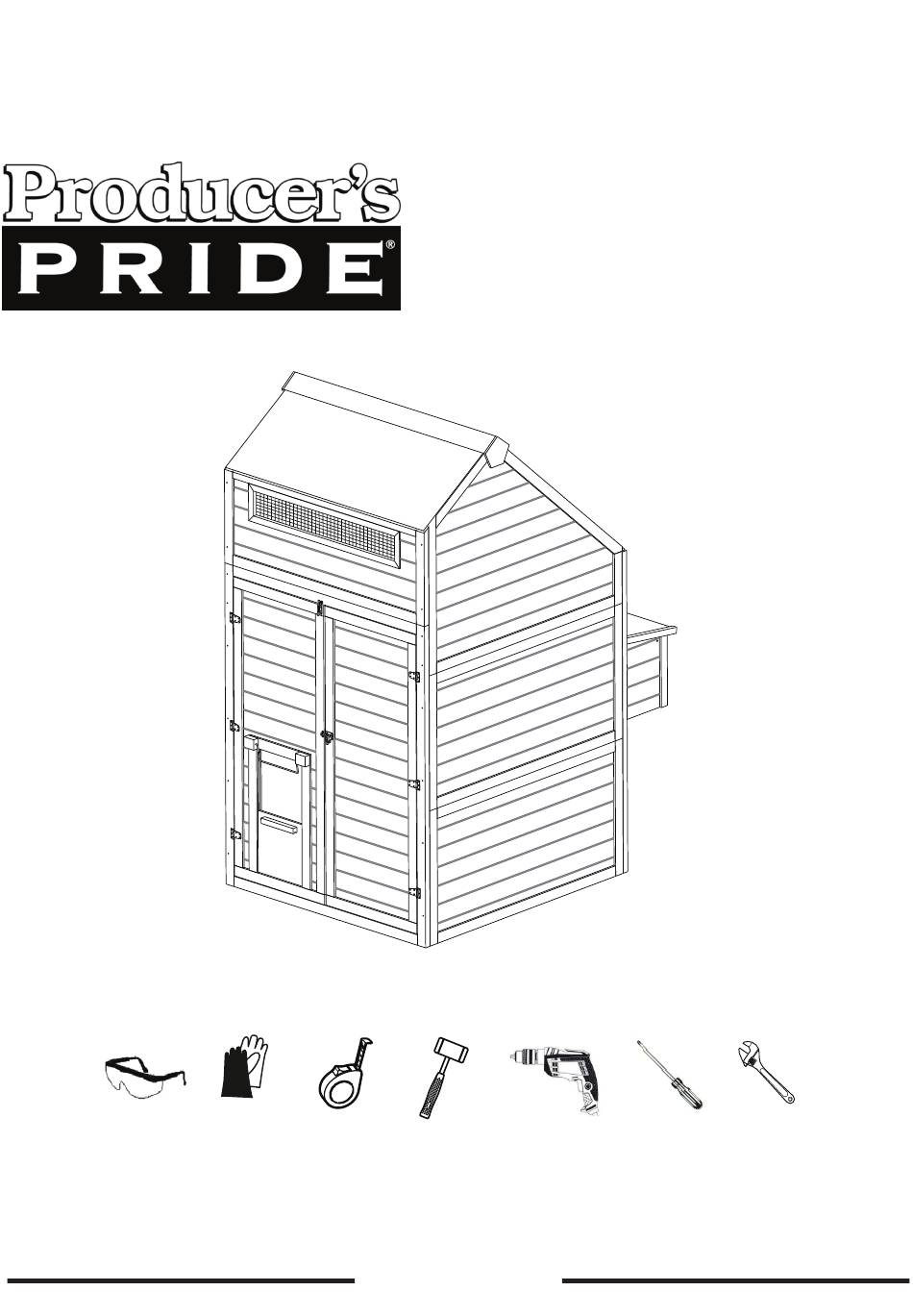

- Page 1 ASSEMBLY INSTRUCTION - COOP CANOPY COOP SKU# 1339494 Tools required for assembly (not included) Distributed by: TRACTOR SUPPLY COMPANY 5401 VIRGINIA WAY BRENTWOOD, TN 37027 For customer support, call: 1-888-376-9601 www.TractorSupply.com MADE IN CHINA...
- Page 2 Drawing PART# Description Qty. Front door panel Lower side panel Nesting box panel Middle side panel Back Upper left side panel Upper right side panel Upper front panel Roof support rod...
- Page 3 Drawing PART# Description Qty. Back roof panel Front roof panel Roof cover ridge 1 1 1 Support rod for nesting box Support frame for tray Steel tray Roosting bar Back board for nesting box Left side board for nesting box Right side board for nesting box L-corner Bottom board for nesting box...
- Page 4 ASSEMBLY Notes: 1. Place all parts in a clear area and arrange them on the ground in front of you. 2. Remove all packaging materials and place them back in the box. Do not dispose of the packaging materials until assembly is complete. 3.
- Page 5 ASSEMBLY STEP 3: Slide the Middle side panel(4)as shown below and secure with tapping screw(23). Note: Please make sure the Middle side panel(4) is in the right direction. STEP 4: Slide the Upper left side panel(5) and Upper right side panel(6) as shown below and secure with tapping screw(23).
- Page 6 ASSEMBLY STEP 5: Assemble the Upper front panel(7) to the Upper left side panel(5) &Upper right side panel(6) with tapping screw(23). STEP 6: Fix Roof support rod(8) to the Upper left side panel(5) &Upper right side panel(6) and secure with tapping screw(23).
- Page 7 ASSEMBLY STEP 7: Put Back roof panel(9) onto the Upper left side panel(5) &Upper right side panel(6) and secure with tapping screw(24). Fix Front roof panel(10) same way as above. STEP 8: Assemble the Roof cover ridge(11) to the Front roof panel & Back roof panel with tapping screw(26).
- Page 8 ASSEMBLY STEP 9: Put Support rod for nesting box(12) onto the Nesting box panel(3) and secure with tapping screw (24). Note: The support bar is placed in the direction as shown in below diagram. Please keep the same distance between the two ends of the support bar.
- Page 9 ASSEMBLY STEP 11: Fix Bottom board for nesting box(20) into position as shown below. STEP 12: Insert 3 Dividers(21) into the grooves as shown below, then the nesting box is finished.
- Page 10 ASSEMBLY STEP 13: Secure the assembled nesting box to the Nesting box panel(3) with tapping screw(24). STEP 14: Place the Roof panel for nesting box(22) onto the Nesting box panel(3) and secure with tapping screw (27). NOTE: Make sure all panels are locked into position.
- Page 11 ASSEMBLY STEP 15: Connect the assembled chicken coop with the shelter run and secure the panel of the shelter run with Nesting box panel(3) using tapping screw(25). STEP 16: Insert the Roosting bar(15) between Middle side panel(4). Place 2 Support frames for tray(13) into the assembled chicken coop. Place 2 Steel trays(14) on the Support frames for tray(13) as shown in below.
