I N S T R U C T I O N
CHICKEN COOP
HEATER & BROODER
Model No.1299682
CAUTION: Read all instructions and warnings before Operating!
SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS!
HEATER CONFIGURATION
The Producers Pride Chicken Coop Heater and Brooder has
been designed to stand in a vertical and horizontal position.
Simply insert the provided legs as seen below into the
bottom or end of the heater panel to best fit your coop needs.
NOTE: To avoid damage to the legs, do not use exces-
sive pressure to push legs into panel.
The Producers Pride coop heater / brooder has been
designed for an optional wall mount configuration. To install
using this method, locate the mounting screw holes on the
back of the heater (see illustration below for reference.).
Measure the distance from the center of each hole. Next,
locate a solid mounting surface on the wall and mark
location using the measurements taken from the mounting
screw holes on the back of the panel. Install two screws or
nails and then hang panel on screws or nails.
E333126
two Legs for Heater
BROODER CONFIGURATION
When using as a brooder, four separate legs have been
provided in kit.
NOTE: Each leg for the brooder configuration has three
levels providing a height adjustment to meet your
different needs. Select the height that best suits the size
of your baby chicks and your coop or containment
requirements. The height for baby chicks should allow
them to walk under the brooder heater without touching
the heater panel.
As shown below, determine the best height for your baby
chicks and coop or containment requirements and then
insert one leg into each corner of the panel. Make sure all
four legs are inserted at the same height level so that panel
sets flat and level.
Four Legs for Brooder
As an optional brooder configuration, the Producers Pride
coop heater / brooder has been designed to hang as shown
in the illustration below.
NOTE: Chains are not included with this kit.
To use in this configuration, purchase a small chain and
connect one end to all four corners of the panel as shown in
the illustration below. Connect the other ends of all four
chains to a single connector. Then connect to a secure
location above the area where you want to use the brooder
heater.
NOTE: Height adjustment will need to be made by
adjusting the length of the chain.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Producer's PRIDE 1299682
Summary of Contents for Producer's PRIDE 1299682
- Page 1 As shown below, determine the best height for your baby chicks and coop or containment requirements and then Model No.1299682 insert one leg into each corner of the panel. Make sure all four legs are inserted at the same height level so that panel CAUTION: Read all instructions and warnings before Operating! sets flat and level.
- Page 2 Call 1-888-376-9601 Protect from puncture.Turn off when not in use.Use caution MADE IN CHINA 1299682 as you would with any hot product,especially if you have any issues with loss of feeling in the areas affected by the heat. WWW.TractorSupply.com...
Need help?
Do you have a question about the 1299682 and is the answer not in the manual?
Questions and answers
I recently received a producer's pride table top heater / brooder second hand. I want to use it as an incubator, but I have no manual for it. I have researched on the internet and YouTube and this website and I cannot find the operating manual. Can you please tell me where I can find the operating manual for the incubator portion of this item #1299682.
The operating manual for the Producer's PRIDE table top heater/brooder part number 1299682 is included with the product and distributed by Tractor Supply Company.
This answer is automatically generated
Trying to put together as a brooder - does the unit balance on the legs / gravity - not attachments
Yes, the Producer's PRIDE brooder model 1299682 can balance on its legs without attachments, as it is designed to stand with four adjustable legs inserted into each corner of the panel.
This answer is automatically generated

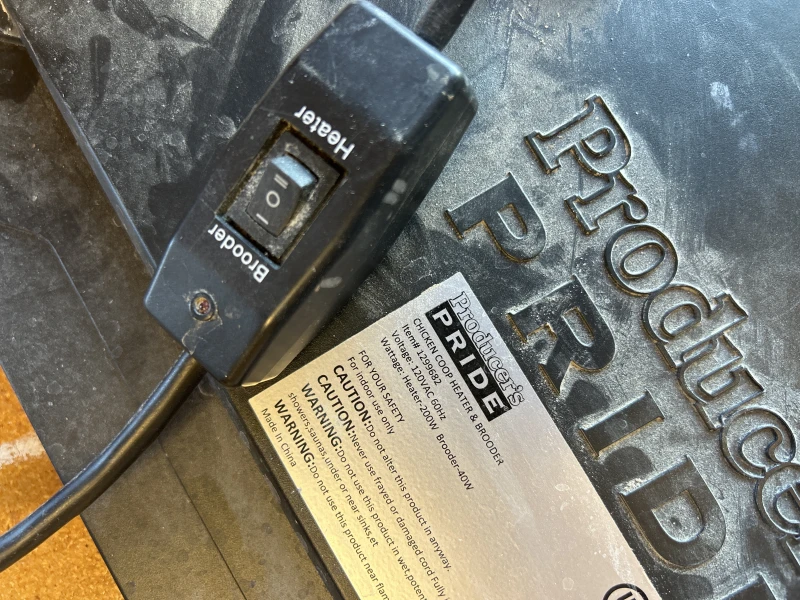

My #1299682 coop heater does not work when set to heater, only when in brooder mode. How to fix?
