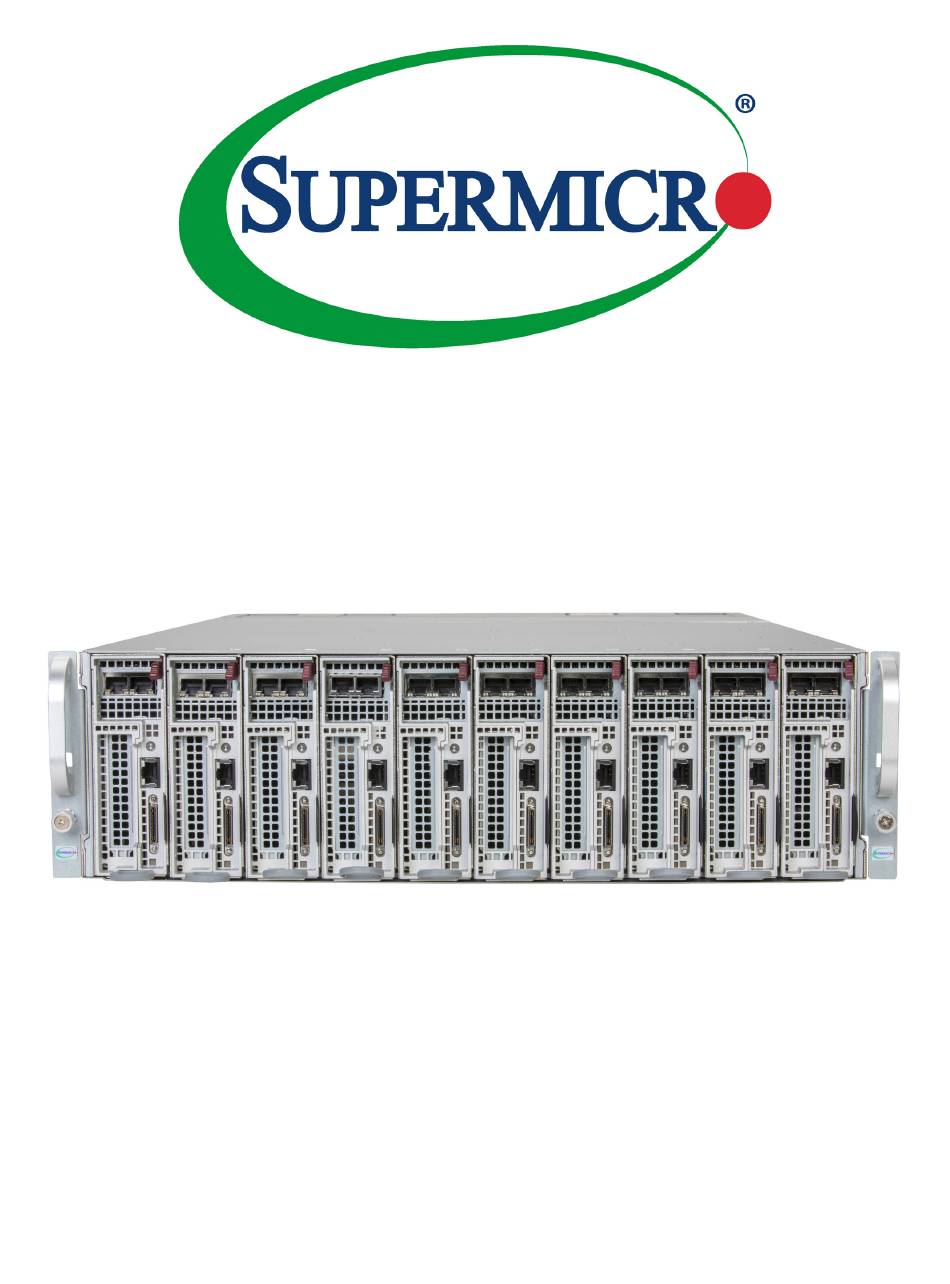

A+ Server
AS -3015MR-H10TNR
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-3015MR-H10TNR and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro AS-3015MR-H10TNR

Summary of Contents for Supermicro AS-3015MR-H10TNR

  • Page 1 A+ Server AS -3015MR-H10TNR USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

  • Page 3: About This Manual

    If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...

  • Page 4: Table Of Contents

    Preface Contents Contacting Supermicro ......................7 Chapter 1 Introduction 1.1 Overview ..........................8 1.2 System Features ........................9 Rear View ..........................10 1.3 System Architecture ......................11 System Block Diagram ......................12 1.4 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................15 2.2 Unpacking the System .......................15...
  • Page 5 Preface Overview of the Heatsink ....................26 Installing the Processor .....................27 Installing the Heatsink .......................30 3.5 Memory Support and Installation ..................32 Memory Support ........................32 General Guidelines for Optimizing Memory Performance ..........33 DIMM Installation ......................34 DIMM Removal .........................34 3.6 Motherboard Battery ......................35 3.7 Chassis Components ......................36 Nodes ..........................36 Storage Drives ........................38...
  • Page 6 7.8 Where to Get Replacement Components ................70 7.9 Reporting an Issue ......................70 Technical Support Procedures ..................70 Returning Merchandise for Service ...................70 Vendor Support Filing System ..................71 7.10 Feedback ...........................71 7.11 Contacting Supermicro .......................72 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...

  • Page 7: Contacting Supermicro

    San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Chapter 1 Introduction

    3U rackmount: 5.16 x 17.68 x 30.51 in. / 131 x 449 x 775 mm (HxWxD) *per node Notes: A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with the AS -3015MR-H10TNR have been certified...

  • Page 9: System Features

    Chapter 1: Introduction 1.2 System Features The CSE-MC301-000NFP is a 3U chassis that supports 10 hot-plug nodes. Front View Figure 1-1. System: Front View System Node Features: Front Feature Description Logical node numbers Dual 1 GbE/10 GbE/25 GbE LAN port card (in PCIe 5.0 x4 Micro LP slot) PCIe 5.0 x16 LP slot Power Button/Status LED IPMI port...

  • Page 10: Rear View

    Chapter 1: Introduction Rear View Figure 1-2. System: Rear View System Features: Rear Feature Description Power supplies (left to right: PWS1, PWS2, PWS3, PWS4) 1+1 dedicated, centralized IPMI management ports (ascade or redundancy modes) Cascade Mode: connect the first port to a management device and the second port to another server Redundancy Mode: connect each port to a different subnetwork switch Note: Do not connect both dedicated IPMI ports to the same network.

  • Page 11: System Architecture

    Chapter 1: Introduction 1.3 System Architecture The chassis contains 10 separate computing node drawers, each with its own motherboard. This section highlights the features on each node. DIMM Slots M.2 Slot Internal Drive Bays Processor Figure 1-3. Node Features Node Components Feature Description Internal Drive Bays...

  • Page 12: System Block Diagram

    Chapter 1: Introduction System Block Diagram The block diagram below shows the connections and relationships between the subsystems and major components of the overall system. SVI3 DDR5 (CHA) UDIMM-A1 UDIMM-A2 up to 5200MHz PCIe5.0 x16 (L0 - L15) PCIe x16 SLOT DDR5 (CHB) UDIMM-B1 UDIMM-B2...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.4 Motherboard Layout JUIDB1 LED1 JKVM1 LED2 JTPM1 JPO1 JWD1 LEDM1 JBM1 JPT1 JMD1 Fan1_Test JBT1 DIMMA1 DIMMA2 DIMMB1 DIMMB2 Processor JPH1 JGWR1 JSATA1 JPWR1 Figure 1-5. Motherboard Layout...

  • Page 14: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBM1 Disable IPMI Share LAN Pins 1-2 Open: Enabled JBT1 CMOS Clear Open JPO1 CPU Throttle when PWR_FAIL Pins 2-3: Disabled JPT1 Onboard Trusted Platform Module (TPM) 2.0 Pins 1-2: Enabled JSATA1 SATA Select Pins 1-2: Auto...

  • Page 15: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 3 for details on installing those specific components.

  • Page 16: Rack Precautions

    Chapter 2: Server Installation • This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units. Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

  • Page 17: Airflow

    Chapter 2: Server Installation Airflow Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised. Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

  • Page 18: Installing The Rails

    Chapter 2: Server Installation 2.4 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. This rail set fits a rack between 28" and 33.5" deep. Do not use a two post "telco" type rack.
  • Page 19 Chapter 2: Server Installation 3. In each rail set, the two sections are screwed together to keep them immobile during shipping. Release these screws just enough to allow the rail sections to slide apart. Note the arrow on the rail, which indicates the end that attaches to the front of the rack. 4.

  • Page 20: Installing The Server

    Chapter 2: Server Installation 2.5 Installing the Server Once rails are attached to the chassis and the rack, you can install the server. Installing the Chassis into a Rack Caution: The assembled system may weigh over 200 lbs. Use a lift and multiple people to move it.

  • Page 21: Removing The Chassis From The Rack

    Chapter 2: Server Installation 3. After pushing the enclosure all the way into the rack, use the thumbscrew on each side of the server to lock it into place. Thumbscrew Figure 2-5. Locking the Server to the Rack Important: Do not pick up the server with the front handles. They are designed to pull the system from a rack only.

  • Page 22: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 23: Static-Sensitive Devices

    Chapter 3: Maintenance and Component Installation 3.3 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect the system PCBs from ESD. Precautions •...

  • Page 24: Processor And Heatsink Installation

    Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustrative purposes only. Your components may look different.

  • Page 25: Overview Of The Processor Socket

    Chapter 3: Maintenance and Component Installation Overview of the Processor Socket The processor socket is protected by an outer plastic protective cover. 1. Outer Plastic Cover 2. Socket AM5...

  • Page 26: Overview Of The Heatsink

    Chapter 3: Maintenance and Component Installation Overview of the Heatsink The heatsink is attached to the socket with Phillips #1 screws after the processor is secured. If this is a new heatsink, thermal grease is pre-applied.

  • Page 27: Installing The Processor

    Chapter 3: Maintenance and Component Installation Installing the Processor Note: Do not remove the plastic cover covering the outside of the socket. This cover will pop out during installation of the processor. 1. Use a finger to push down the lever, then move the lever rightward. Pull the lever until it passes over the processor socket.
  • Page 28 Chapter 3: Maintenance and Component Installation 3. With the processor in the socket, lower the socket force frame. 4. Reattach the lever arm onto the right side of the socket. The outer plastic cover will pop out when the lever arm is reattached. Note: Store the outer plastic cover.
  • Page 29 Chapter 3: Maintenance and Component Installation 5. When finished, the socket force frame will secure the processor.

  • Page 30: Installing The Heatsink

    Chapter 3: Maintenance and Component Installation Installing the Heatsink 1. After the processor is secure, you must install the heatsink to the socket frame. Ensure a proper amount of thermal grease is applied to the heatsink. Lower the heatsink down until the four screws on the heatsink align with the four screw holes on the socket frame.
  • Page 31 Chapter 3: Maintenance and Component Installation 2. Align the heatsink to the socket. With a Phillips #1 bit torque driver set to a force of 8.7 in-lbf (0.98 N-m), gradually secure the heatsink by starting with two screws on opposite corners.When finished, the heatsink will be secured over the socket and processor Important: Do not use a force greater than 8.7 in-lbf (0.98 N-m).

  • Page 32: Memory Support And Installation

    Chapter 3: Maintenance and Component Installation 3.5 Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to pre- vent any possible damage. Memory Support The H13SRE-F supports up to 192 GB of ECC and Non-ECC DDR5 UDIMM memory memory with speeds of up to up to 5200 MT/s.

  • Page 33: General Guidelines For Optimizing Memory Performance

    Chapter 3: Maintenance and Component Installation General Guidelines for Optimizing Memory Performance • The blue or black slots must be populated first. • It is recommended to use DDR5 memory of the same type, size, and speed. • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

  • Page 34: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert DIMM modules in the following order: DIMMA2, DIMMB2, then DIMMA1, DIMMB1, and insert the desired number of DIMMs into memory slots based on the memory population sequence on page 30. For the system to work properly, use memory modules of the same type and speed.

  • Page 35: Motherboard Battery

    Chapter 3: Maintenance and Component Installation 3.6 Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system.

  • Page 36: Chassis Components

    Chapter 3: Maintenance and Component Installation 3.7 Chassis Components Nodes The system includes 10 removable computing nodes, each containing an individual motherboard. Each node controls four storage drives and shares a fan with the node beside it. If a node is removed from the chassis, the storage drives associated with that node will power-down.
  • Page 37 Chapter 3: Maintenance and Component Installation Corresponding Nodes and Fans Node Node Node A Fan 1 Node F Fan 3 Node B Fan 1 Node G Fan 4 Node C Fan 2 Node H Fan 4 Node D Fan 2 Node I Fan 5 Node E...

  • Page 38: Storage Drives

    Chapter 3: Maintenance and Component Installation Storage Drives Each node can support two internal fixed 2.5" PCIe 5.0 NVMe and two internal fixed 2.5" SATA storage drives. A node must be removed from the system when installing or removing a drive it contains. To support an optional top layer of drives, a drive case (MCP-240-30104-0N) and a SATA/ power cable (CBL-SAST-1320YU2-85) are required.

  • Page 39: System Fans

    These fans are hot-swappable and designed to be easily changed, with no tools required. Each fan cools a pair of adjacent nodes (see Nodes section at the beginning of this section). Replacement fans may be ordered directly from Supermicro. Replacing a Fan 1.

  • Page 40: Expansion Cards

    Chapter 3: Maintenance and Component Installation Expansion Cards Each node in the AS -3015MR-H10TNR includes one riser card to support a PCIe x16 low- profile expansion card. Installing Expansion Cards 1. Power down and remove the node from the chassis as described in the previous section, then lay it on a flat surface.

  • Page 41: Power Supply

    The chassis features redundant power supplies. They are hot-swappable, meaning they can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors. These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120v or 180-240v.

  • Page 42: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 43: Headers And Connectors

    Micro Low-Profile PCIe Slot There is one Micro-LP PCIe 5.0 x4 slot with two USB 2.0 connections at J9. This slot is used for a Supermicro Micro-LP Network card. PCIe 5.0 x16 Slot (supports up to 75 W) There is one PCIe 5.0 x16 slot with 75 W power at J17. This slot is used for an Add-On Card (AOC).
  • Page 44 Chapter 4: Motherboard Connections NVMe/SATA Connectors Two hybrid NVMe/SATA connectors (J22: NVME0/SATA0 and J23: NVME1/SATA1) are located on the H13SRE-F for either NVMe or SATA connections. Note that there are specific SATA and NVME combinations supported when JSATA1 is set to the AUTO mode (default setting).

  • Page 45: Jumpers

    Chapter 4: Motherboard Connections 4.3 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 46 Chapter 4: Motherboard Connections Watch Dog Timer Watch Dog Timer (JWD1) is a system monitor that can reboot the system when a software application hangs. Close pins 1-2 to reset the system if an application hangs. Close pins 2-3 to generate a non-maskable interrupt (NMI) signal for the application that hangs. Refer to the table below for jumper settings.
  • Page 47 By default, the system is configured for the switch module installed at the back(Fiber).You can run these commands using IPMItool or IPMICFG. For more information on IPMICFG, please refer to the following link for the download: https://www.supermicro.com/en/support/ resources/downloadcenter/smsdownload?category=IPMI Example: smcipmitool smcipmitool (IP) (user) (password) smcipmitool 10.134.4.126 ADMIN ADMIN ipmi raw 30 70 4 0 Read status...

  • Page 48: Led Indicators

    Chapter 4: Motherboard Connections 4.4 LED Indicators UID LED LED1 is the UID LED. UID LED LED Color Definition Solid Blue Unit Identified Overheat/Power Fail/Fan Fail LED LED2 gives indication of an overheat condition, a power fail, or a fan fail. OH/Power Fail/Fan Fail LED Color/State Definition...

  • Page 49: Chapter 5 Software

    BMC KVM console. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 50 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 51: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.

  • Page 52: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 53: Bmc

    There are several BIOS settings that are related to BMC. For general documentation and information on BMC, visit our website at: www.supermicro.com/en/solutions/management-software/bmc-resources BMC ADMIN User Password For security, each system is assigned a unique default BMC password for the ADMIN user.

  • Page 54: Chapter 6 Optional Components

    Chapter 6: Optional Components Chapter 6 Optional Components This chapter describes optional system components. Important: Unverified devices that are not listed in Supermicro's QCL (Qualified Component List) may not function properly. 6.1 GPU Options GPU Options Part Number Description GPU-NVL4...

  • Page 55: Software

    Chapter 6: Optional Components 6.3 Software Software Options Part Number Description SFT-DCMS-Single DataCenter Management Package (per node license) SFT-OOB-LIC License key for enabling OOB BIOS management https://www.supermicro.com/en/solutions/management-software...

  • Page 56: Chapter 7 Troubleshooting And Support

    Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website, supermicro.com. Products Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking the menu icon, then selecting the Products option.

  • Page 57: Baseboard Management Controller Interface

    Security Center for recent security notices Supermicro Phone and Addresses 7.2 Baseboard Management Controller Interface The system supports the Baseboard Management interface. BMC is used to provide remote access, monitoring and management. There are several BIOS settings that are related to BMC.
  • Page 58 Chapter 7: Troubleshooting and Support Figure 7-3. BMC Interface: System View Figure 7-4. BMC Interface: Multi Node View...

  • Page 59: Troubleshooting Procedures

    1. As you try to power up the system, note any beep codes. The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/ manuals/ ("AMI BIOS POST Codes User's Guide"). 2. Make sure that the power connector is connected to your power supply.

  • Page 60: System Boot Failure

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all storage drives work properly. Replace any bad drives...
  • Page 61 Chapter 7: Troubleshooting and Support 4. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/ system fans, etc., work properly. Check the hardware monitoring settings in the BMC to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.

  • Page 62: Bios Error Beep (Post) Codes

    When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 63: Crash Dump Using Bmc

    Chapter 7: Troubleshooting and Support 7.5 Crash Dump Using BMC In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using BMC.

  • Page 64: Uefi Bios Recovery

    Important: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 65 USB device or a writable CD/DVD. Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 66 Chapter 7: Troubleshooting and Support Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 4. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update"...
  • Page 67 Chapter 7: Troubleshooting and Support 7. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press <F4>...
  • Page 68 Chapter 7: Troubleshooting and Support Note: Do not interrupt this process until the BIOS flashing is complete. 9. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

  • Page 69: Cmos Clear

    Chapter 7: Troubleshooting and Support 7.7 CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1.

  • Page 70: Where To Get Replacement Components

    7.8 Where to Get Replacement Components If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com.

  • Page 71: Vendor Support Filing System

    For issues related to Red Hat Enterprise Linux, since it is a subscription based OS, contact your account representative. 7.10 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. Please email us at techwriterteam@supermicro.com to provide feedback on our manuals.

  • Page 72: Contacting Supermicro

    San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
