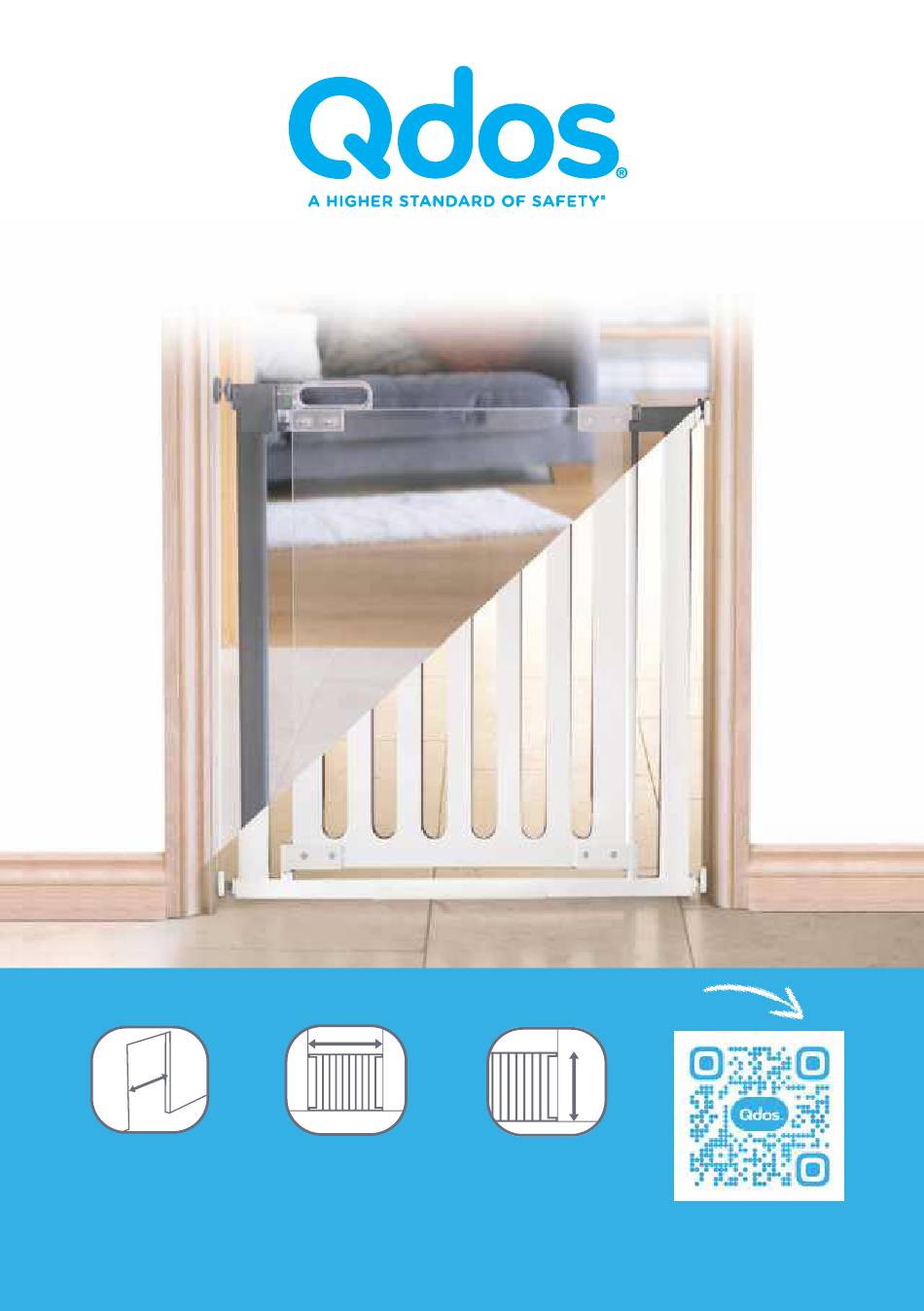

INSTALLATION GUIDE
Crystal® & Spectrum® Designer Baby Gate
Pressure Mount
Crystal
Spectrum
For more information & FAQs visit: QdosSafety.com
Scan the QR code to watch the installation video!
Min. Opening
Max Opening with
Gate Height
29.9"
2 Included Extensions
30.3"
(76 cm)
37.8" (96 cm). *48.8" (124
(77 cm)
cm) w/Additional Extensions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Crystal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qdos Crystal

Summary of Contents for Qdos Crystal

  • Page 1 INSTALLATION GUIDE Crystal® & Spectrum® Designer Baby Gate Pressure Mount Crystal Spectrum For more information & FAQs visit: QdosSafety.com Scan the QR code to watch the installation video! Min. Opening Max Opening with Gate Height 29.9” 2 Included Extensions 30.3”...

  • Page 2: Parts List

    PARTS LIST: Crystal or Spectrum Handle-Side Bottom Hinge-Side Bottom Gate, held together Spindle Housing, with Spindle Housing with zip tie-DO NOT AccuInstall Indicator REMOVE ZIP TIE UNTIL AFTER STEP 12 2 Designer Extensions Top Spindles with Bottom Spindles with (1 Short for Hinge Side,...
  • Page 3 Magnetic Installation (Only used in Optional Level with Marking Step 15) Tool At Qdos, we are committed to helping you keep your children safe from the dangers that lurk in a home. IMPORTANT: Please read and follow the instructions carefully Right Side &...
  • Page 4 IMPORTANT! PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY & KEEP FOR FUTURE REFERENCE When installed between two strong and rigid surfaces and according to these instructions, this gate has been tested to meet or exceed the following Safety Standards: US- ASTM F-1004, Canada- SOR/2016-179, and European-EN 1930. WARNING! •...
  • Page 5 USE LOCATIONS This gate is only intended to be used in openings/doorways or at the bottom of stairs and must be installed between two rigid surfaces. NEVER USE ANY PRESSURE MOUNTED GATE AT THE TOP OF STAIRS! The bottom cross bar creates a tripping hazard! Bottom of Stairs Top of Stairs Inside Opening...
  • Page 6 BEFORE YOU START: WALL CUPS Nobody wants to make holes in their walls. At Qdos we do our best to minimize the impact of installation, but our main priority, which we hope you share, is to protect your children. All baby gates will make some kind of mark after being used and anybody saying the opposite is simply not telling the truth.

  • Page 7: Installation

    INSTALLATION IMPORTANT: Keep the zip-tie holding the handle to the frame in Step 12 place until after to make installation much easier! STEP 1: Insert the Hinge-Side Bottom Spindle Housing on the bottom of the HINGE SIDE of the gate. Next, insert the Handle-Side Bottom Spindle Housing with the AccuInstall®...
  • Page 8 STEP 3: Prepare the Top Spindles by spinning the Adjustment Wheels until they rest against the head of the Spindles. Repeat with the nuts on the Bottom Spindles, or if you’re installing over Quarter Round, move the nuts from the Bottom Spindles to the Quarter Round Spindles and spin the nuts until they rest against the head of the Spindles.
  • Page 9 TIP: Its easier to complete the next steps if you have a helper, one person to hold the gate in place while the other person installs. Alternatively, if there is room to lay the gate down, position it with the Bottom Spindles in place where you want them to be installed. IMPORTANT: THE BOTTOM CROSS BAR MUST BE INSTALLED FLAT ON THE FLOOR.
  • Page 10 STEP 8: Move the gate back into installation position, making sure the spaces on both sides are even. Use a tape measure to measure the gap between the gate frame, or extension, to the installation surface. If the gap is more than 2.75” (7 cm), the gap is too wide, and another extension needs to be added.
  • Page 11 STEP 12: While alternating between sides, adjust the tension with the Adjustment Wheels until the distance between the handle and the gate is 1/8” (3mm). When looking from the top, the red line on the locking tab should not be visible. Now, remove the zip-tie holding the handle to the frame.

  • Page 12: Maintenance And Cleaning

    OPTIONAL ONE-WAY STOP OPTIONAL STEP 14: If you only want the door to open in one direction, the optional One-Way Stop can be installed. Use the Allen Wrenches to remove the socket screw and barrel nut closest to the At-A-Glance Indicator on the handle. There is a One-Way Stop for each side depending on which way you want to restrict the gate from opening.

  • Page 13: Warranty

    1 year from date of purchase, when used under normal conditions and in compliance with these instructions. Qdos will either repair, or at its option, replace free of charge, any parts necessary to correct any defect in material or workmanship during the warranty period.
  • Page 14 Clean design that blends with the outlet cover and goes unnoticed by children. Secure StayPut Fit – Unlike other outlet plugs on the market, Qdos Outlet Plugs have an extra tight fit and beveled edges that prevent small fingers from grasping and removing them.
  • Page 15 Zero-Screw Furniture Anti-Tip Kit According to CPSC, tipped furniture or a falling TV sends an injured child to the ER about every 30 minutes. Qdos developed the first of its kind patent pending Furniture Anti-Tip Kit that can be installed completely without screws, yet it still holds up to 200 lbs.
  • Page 16 1100 Cobb Place Blvd. Suite 100 Kennesaw, GA 30144 USA 1-800-593-5522 • www.QdosSafety.com support@qdos.zendesk.com Can-Am Baby, 1525 Cornwall Rd. #4 Oakville, ON L6J OB2 Canada 905-847-6276 © 2024 Qdos All rights reserved. Qdos is a trademark of Regal Lager, Inc. Made in China 09/2024...
