USER GUIDE

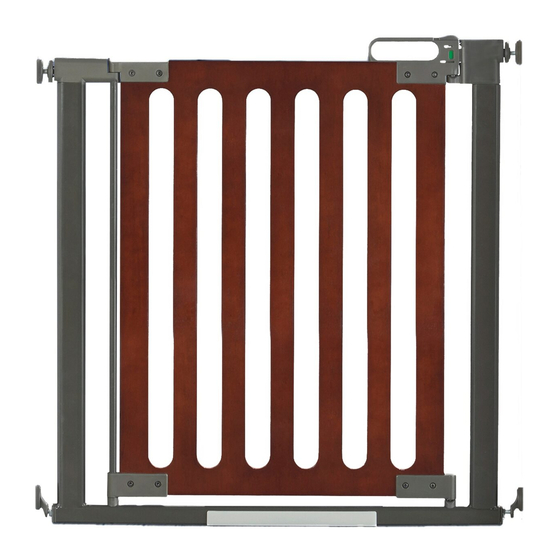

Spectrum Designer Baby Gate - Hardware Mount
Inside Opening
Outside Opening
Height
Min 29.9" (76 cm)
Min 26.8" (68 cm)
30.7" (78 cm)
Max 41.3" (105 cm)
Max 38.2"(97 cm)
IMPORTANT:
Qdos wants to keep your children safe
and for that we need you to do your part by carefully
reading and following the instructions below. Please read
through the instructions before starting the installation.
For installation videos and FAQ go to: QdosSafety.com
Advertisement
Table of Contents
Related Manuals for Qdos Spectrum
Summary of Contents for Qdos Spectrum
- Page 1 USER GUIDE Spectrum Designer Baby Gate - Hardware Mount Inside Opening Outside Opening Height Min 29.9" (76 cm) Min 26.8" (68 cm) 30.7" (78 cm) Max 41.3" (105 cm) Max 38.2"(97 cm) IMPORTANT: Qdos wants to keep your children safe and for that we need you to do your part by carefully reading and following the instructions below.
-
Page 2: Maintenance And Cleaning
• Intended for use with children from 6 months up instructions. Qdos will either repair, or at its own option to 24 months of age. replace, free of charge, any parts necessary to correct •... - Page 3 OPENING SIZE AND ANGLE MOUNTING BASEBOARD AND QUARTER ROUND The Spectrum will fit inside openings from 29.9-41.3" (76- INSTALLATION 105 cm) and in front of openings 26.8-38.2" (68-97 cm). General - This gate may be installed at the top and...
-
Page 4: Parts List
PARTS LIST: Top Lock Bottom Lock A/B FastMount® 3x Short 2" 3x Medium 2.75" 3x Long 3.25" (50 mm) Screw (70 mm) Screw (85 mm) Screw LOCKING Rail 1x Shorter screw 1x Shorter screw 1x Shorter screw (One screw hole) Top Hinge Bottom Hinge C/D FastMount®... - Page 5 IMPORTANT: Step 1 Identify the rail with only REGARDING THE INCLUDED MOUNTING SCREWS! one hole in it. With the hole Before marking where to attach the gate, make sure towards the bottom, push the you have a solid surface for mounting the gate to. The Top Lock into the top of the included screws are intended for the following locations: FastMount®...
- Page 6 Step 3 Step 6 If the gate is mounted at any angle within 180 degrees, make sure to reinstall the Main Lock, so it points directly toward the Hinge rail. Install the Top Cover and insert the screws to hold it in place. With the C/D FastMount®...
-
Page 7: Gate Operation
Step 8 GATE OPERATION Slide lock and lift to open Closed and Locked and unlock Using the Allen Wrenches, loosen up the screws holding the two hinges and the two locks so they can be adjusted To open the gate slide back the locking latch, while at sideways. - Page 8 • If the height is more than 4.25" (10.8 cm) tall, you direction. will need the Qdos Baseboard Kit in order to create a vertical mounting surface. The kit can accommodate The One-Way Stop is attached by aligning the lip with baseboards up to 7"...
- Page 9 Keep the Removal Tool in a secure place for when needed. Distributed by Regal Lager, Inc. Kennesaw, GA 30144 USA 1-800-593-5522 • www.QdosSafety.com support@qdos.zendesk.com ©2020 Qdos All rights reserved. Qdos is a trademark of Regal Lager, Inc. Made in China 05/2020...
