Qdos Crystal User Manual

Height 30 inch (76 cm) minimum opening 29.2 inch (74 cm) maximum opening 39.4 inch (100 cm)
Hide thumbs Also See for Crystal:

Advertisement

Quick Links

Download this manual

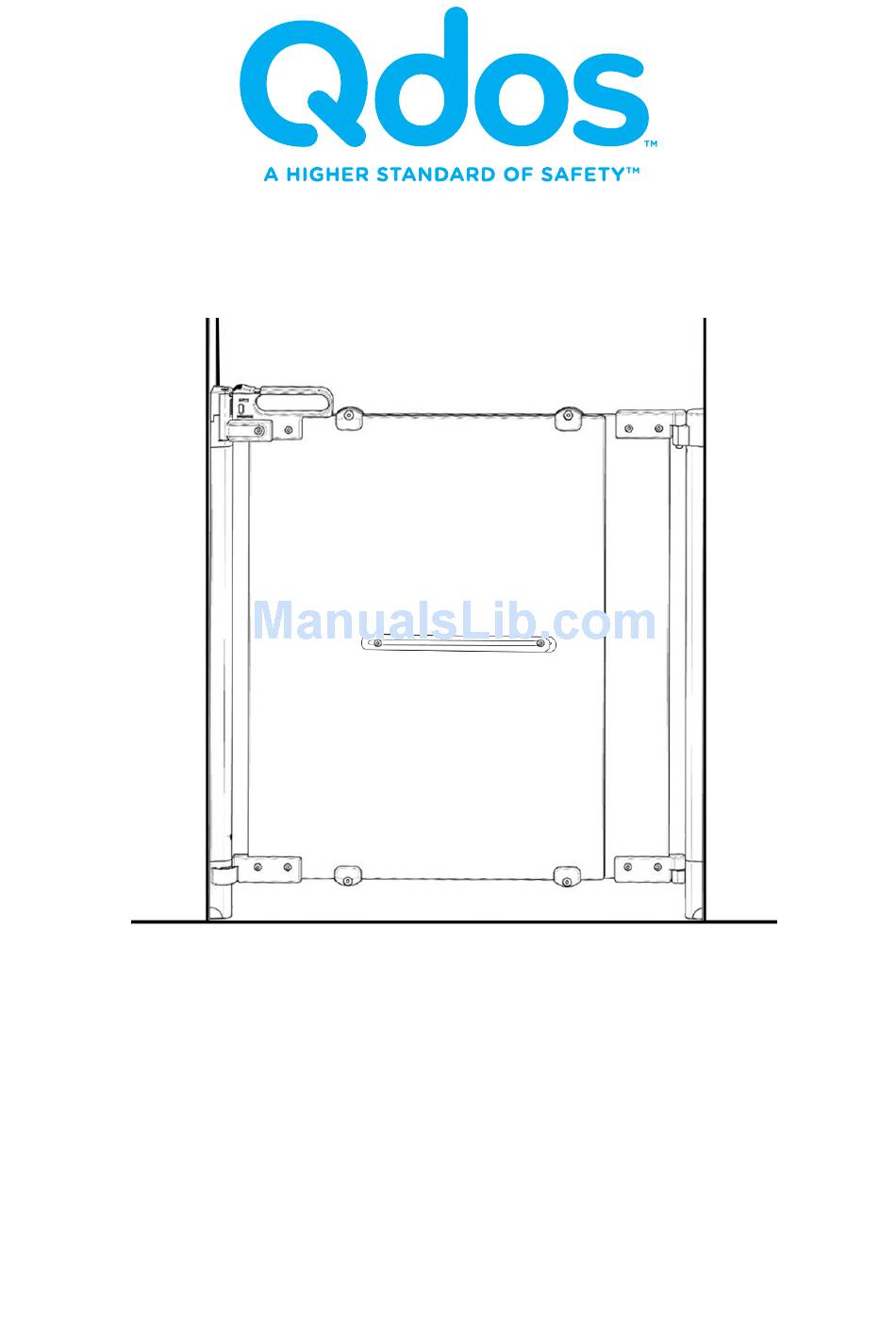

USER GUIDE
Crystal - Hardware Mount
Height 30" (76 cm)
Minimum Opening 29.2" (74 cm)
Maximum Opening 39.4" (100 cm)
IMPORTANT:
Qdos wants to keep your children safe
and for that we need you to do your part by carefully
reading and following the instructions below. Please read
through the instructions before starting the installation.
For installation videos and FAQ go to: QdosSafety.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Crystal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qdos Crystal

Summary of Contents for Qdos Crystal

  • Page 1 Minimum Opening 29.2” (74 cm) Maximum Opening 39.4” (100 cm) IMPORTANT: Qdos wants to keep your children safe and for that we need you to do your part by carefully reading and following the instructions below. Please read through the instructions before starting the installation.
  • Page 2 IMPORTANT! PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE When installed between two strong and rigid surfaces and according to these instructions, this gate has been tested to meet or exceed the following Safety Standards, US- ASTM F-1004, Canada- SOR/90-39, and European- EN 1930.

  • Page 3: Maintenance And Cleaning

    1 year from date of purchase, when used under normal conditions and in compliance with these instructions. Qdos will either repair, or at its own option replace, free of charge, any parts necessary to correct any defect in material or workmanship during the warranty period.
  • Page 4 OPENING SIZE AND ANGLE MOUNTING The Crystal will fit in openings from 29-41” (73-104 cm). The size of the gate is adjustable by sliding the two gate panels. Besides the normal perpendicular mounting, the Crystal gate can be mounted at any angle within 180 degrees.
  • Page 5 Step 1 before installation. Qdos Universal Baseboard Kit - If the baseboard is more than 4.25” tall you will need the use the Qdos Baseboard Kit in order to create a vertical mounting surface. Works for baseboards 7/8” (22 mm) thick and 7”...

  • Page 6: Part List

    PART LIST: Top Lock Bottom Lock FastMount™ LOCKING Rail (One screw hole) Top Hinge Bottom Hinge FastMount™ HINGE Rail (Two screw holes) 2x One-Way Stop...
  • Page 7 3x Short 2” 3x Medium 2.75” 3x Long 3.25” (50 mm) Screws (70 mm) Screws (85 mm) Screws 1x Shorter screw 1x Shorter screw 1x Shorter screw SecureTrack™ Top Baseboard 2x Bottom Gate Panels, pre-assembled Spacers Baseboard Spacers 2 Allen Wrenches Installation Level Removal Tool with Marking Tool...
  • Page 8 Step 1 Identify the rail with only one hole in it. With the hole towards the bottom, push the Top Lock into the top of the FastMount™ Locking Rail until the plastic tab snaps into place on the back of the rail (Picture A).
  • Page 9 IMPORTANT: REGARDING THE INCLUDED MOUNTING SCREWS! Before marking where to attach the gate, make sure you have a solid surface for mounting the gate to. The included screws are intended for the following locations. Directly into wood The Short 2” (50 mm) Screws are used when mounting directly onto wood, for example in a door frame or other framed opening.
  • Page 10 Remove the protective liner from the adhesive tape on the level so that the level can be attached to the rail. Step 4 Remove the screws that hold the top cover on the Top Lock and remove the top cover, as well as the Main Lock for access to the upper screw hole.
  • Page 11 Step 8 Using both Allen Wrenches slightly loosen the four clamps that hold the two gate panels together. Spread the gate panels apart until the handle side reaches the lock on the Locking Rail. Lift gate up and guide it into the locked position by pushing down on the handle when correctly lined up.

  • Page 12: Gate Operation

    Hinge and Locking FastMount™ Rails. • If the height is more than 4.25” (10.8 cm) tall, you will need the Qdos Baseboard Kit in order to create a vertical mounting surface. The kit can accommodate baseboards up to 7” (18 cm) tall.
  • Page 13 Line up the Lower Baseboard Spacer with the lower hole and using one of the Long 3.25” (85 mm) Screws and attach it loosely. Attach the peg in spacer L to the back of the Top Hinge. Using one of the Long 3.25” (85 mm) Screws attach it loosely to the wall.
  • Page 14 ONE WAY STOP The One-Way Stop must always be used when the gate is used at the top of stairs to prevent the gate from swinging out over the stairs. It can also be used in any other location where you want to restrict the opening direction.
  • Page 15 Removal Tool will compress the locking tabs and be held in place. The gate can now be lifted off the hinges. Keep the Removal Tool in a secure place for when needed.
  • Page 16 3350 Town Point Drive, Suite 100 Kennesaw, GA 30144 USA 1-800-593-5522• www.QdosSafety.com ©2017 Regal Lager, Inc. All rights reserved. Made to Qdos Standards in China. 04/2017...
