Rain Bird IC System Design Manual page 4

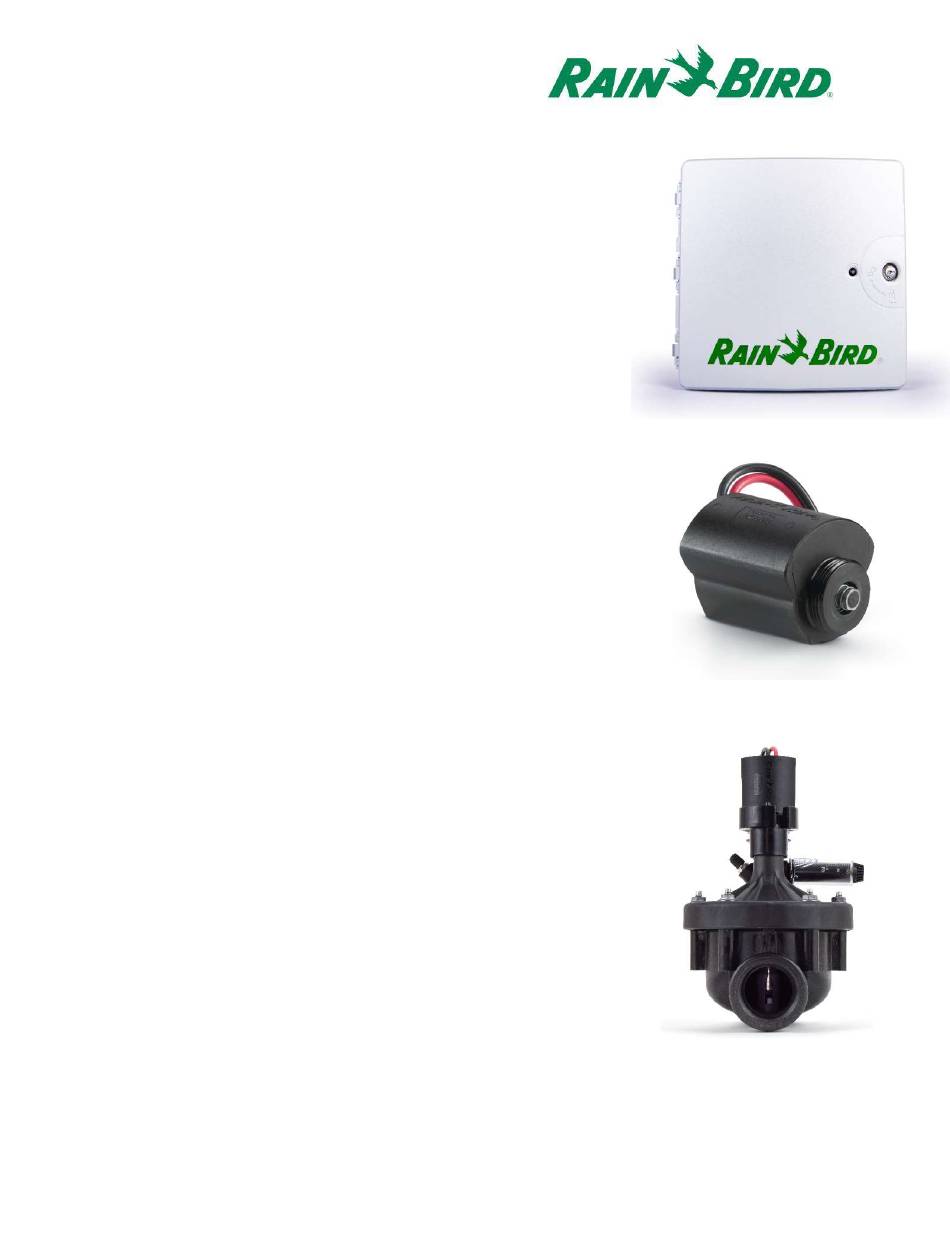

Integrated Control Interface Plus (ICI+)
The Integrated Control Interface Plus (ICI+) is the electronic hardware
and firmware that accepts commands from the Central Control Software
and directs them to the field. The ICI+ also communicates with the field
to update the status back to the Central Control Software. This interface
is compatible with both IC Systems and IFX Connected satellites
including PAR+, MSC+ and PAR+ES Satellites.
Integrated Control Module (ICM)
The Integrated Control Module (ICM) is mounted on Rain Bird manufactured
valve-in-head golf rotors or in-line valves. The ICM communicates directly to
the Rain Bird central control software via Rain Bird MAXI TM cable two-wire
path and the IC interface (ICI+). The central control software automatically
operates the rotors and valves throughout the golf course by activating each
individual ICM as needed. If the ICM is to be installed on an existing Rain Bird
electric (non-IC) in-line valve, an ICM valve kit (ICMVLVKIT) is required.
Golf Solenoid Valve for Integrated Control (GSVIC)
The Golf Solenoid Valve for Integrated Control allows control of stations for
a variety of uses including but not limited to block rotor areas such as Tee
complexes or pop-up zones. This valve comes pre-configured with a
Pressure Regulations System-Dial (PRS-D) which maintains a constant outlet
pressure from 15 to 100 psi (1.04 to 6.90 bar) within ± 3 psi (± 0.21 bar). The
GSVIC is engineered for reclaimed water with a chlorine-resistant
diaphragm, with an optional purple flow control handle.
4 IC System Design Guide, v2.4
