Rain Bird 32SA Quick Start Manual

Rain Bird 32SA Quick Start Manual

Op-up gear driven rotor

Advertisement

Quick Links

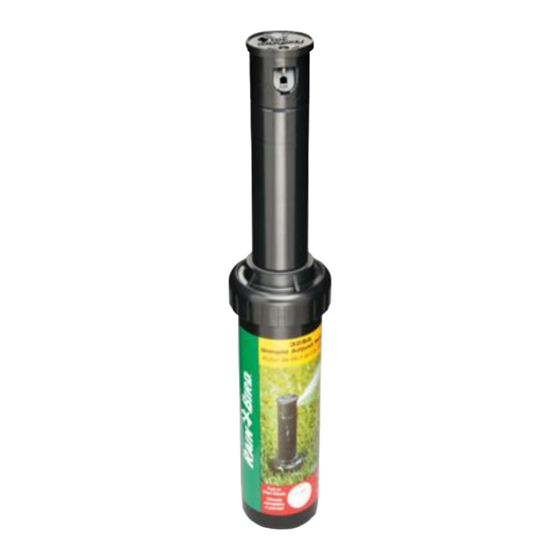

32SA POP-UP
GEAR DRIVEN ROTOR
"SA" for Simple Adjust
"SA" for Simple Adjust
SPRAYS 19 TO 32 FEET
SPRAYS 19 TO 32 FEET
ADJUST FROM 40-360º
ADJUST FROM 40-360º
READY FOR INSTALLATION
READY FOR INSTALLATION
Replaces
competive
product such as
Orbit
©
Saturn III
1/2" INLET
1/2" INLET
Simple to use:
Find your fixed LEFT edge.
Using the palm of your hand, turn
the center cap to the right until it
stops. Then turn it to the left until it
stops. This is your fixed left edge.
Arc is preset to rotate 180º.
Adjusting the Pattern.
Using a screwdriver, adjust the
arc dial clockwise (+) to increase
the arc or counterclockwise (-)
to decrease the arc. Pattern is
adjustable from 40º to 360º.
Do not turn past right or left
stop. Adjust wet or dry.
Adjusting the Radius.
Using a screwdriver, turn radius-
reduction screw to reduce radius
up to 35%. Adjust wet or dry.
3.0 Pre-Installed Nozzle* Performance Chart
Pressure PSI
25
35
45
Radius ft.
29
31
31
Flow GPM
2.17
2.60
3.00
*Rain Curtain
Nozzle Technology
for even water distribution
55
32
3.25

Advertisement

loading
Need help?

Need help?

Do you have a question about the 32SA and is the answer not in the manual?

Questions and answers

Summary of Contents for Rain Bird 32SA

  • Page 1 Simple to use: Find your fixed LEFT edge. Using the palm of your hand, turn 32SA POP-UP the center cap to the right until it stops. Then turn it to the left until it GEAR DRIVEN ROTOR stops. This is your fixed left edge.
  • Page 2 Reconnect the radius reduction screw and use screwdriver to tighten it back to the original position. Looking for dependable watering & irrigation products? Rely on Rain Bird for quality and long-lasting products.
