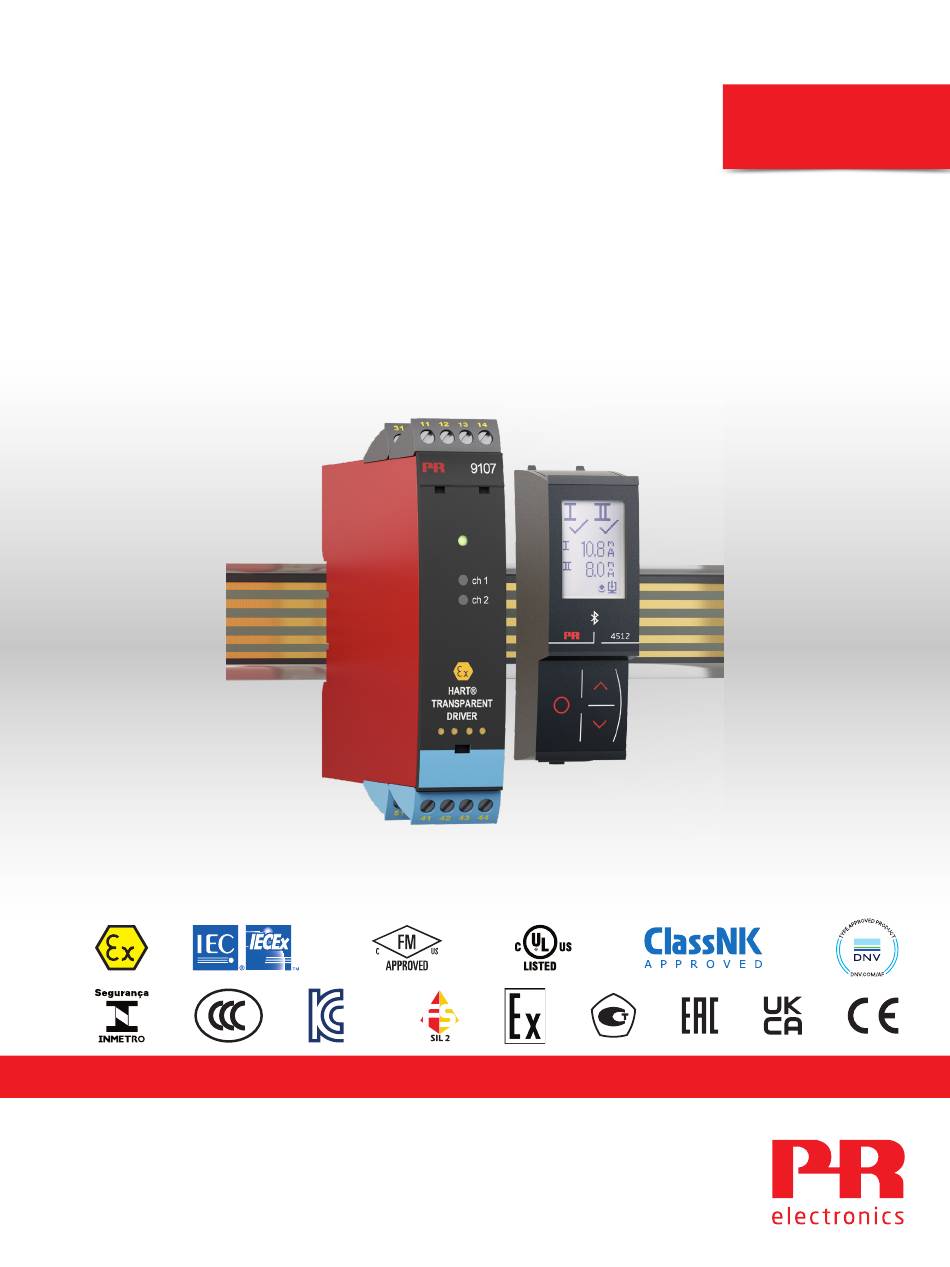

  • Page 1 PERFORMANCE MADE SMARTER Product manual 9107 HART transparent driver T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    HART transparent driver 9107 Table of contents Warning ....................Symbol identification .

  • Page 4: Warning

    General mounting, wire connection and disconnection. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning Do not open the front plate of the device as this will cause damage to the connector for the display / programming front PR 4500.

  • Page 5: Marking

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable ends.

  • Page 6: How To Demount System 9000

    How to demount system 9000 Picture 1: By lifting the bottom lock, the device is detached from the DIN rail. Mounting the PR 4500 communication interfaces 1: Insert the tabs of the PR 4500 into the slots at the top of the device. 2: Hinge the PR 4500 down until it snaps into place.

  • Page 7: Application

    HART transparent driver 9107 • 24 VDC supply via power rail or connectors • Fast response time <5 ms • High active output load 725 Ohm / 20 mA • Output line fault detection via status relay • SIL2 certified via Full Assessment according to IEC 61508 Application •...

  • Page 8: Applications - 9107Axx

    Applications - 9107Axx Output signals: Input signals: Analog, 4...20 mA Channel 1 Channel 1 Channel 2 Power rail Status relay signal Rail, supply + Rail, supply - No connection No connection Power connection: Channel 2 Supply - Supply +19.2...31.2 VDC Device status N.C.

  • Page 9: Applications - 9107Bxx

    Applications - 9107Bxx Output signals: Input signals: Analog, 4...20 mA Channel 1 Channel 1 Channel 2 Power rail Status relay signal Rail, supply + Rail, supply - No connection No connection Power connection: Channel 2 Supply - Supply +19.2...31.2 VDC Device status N.C.

  • Page 10: Order

    Order Associated Type Unit channels I.S. / Ex approvals apparatus 9107 Single ATEX, IECEx, FM, INMETRO, CCC, EAC-Ex, UKEX Double UL 913, ATEX, IECEx, FM, : -U9 INMETRO, CCC, EAC-Ex, UKEX KCs, ATEX, IECEx, FM, : -KCs INMETRO, CCC, EAC-Ex, UKEX Example : 9107BB Accessories 4510...
  • Page 11 Isolation - test / working: Input to any........2.6 kVAC / 300 VAC reinforced isolation Analog output to supply .
  • Page 12 Status relay output terminal 33-34 Relay function ........N.C. Programmable low setpoint .

  • Page 13: Visualisation In The Pr 4500 Of Hardware / Software Error

    Visualisation in the PR 4500 of hardware / software error Readout at hardware error Error search Readout Cause Communications test PR 4500 and 9107 NO.CO Connection error Configuration error or CRC mismatch, recovery EEprom error - check configuration FL.ER configuration is loaded User error II ! / II ! Loop limit exceeded...

  • Page 14: Connections

    Connections Power rail Supply and connections status relay 91 92 93 94 95 31 32 NC = no connection Outputs: Current Current Inputs: Current Current HART communication is possible directly on the input and output terminals if the output load impedance is >...

  • Page 15: Block Diagram

    Block diagram Power rail connections  * NC = No connection  TAG- 1 C PU  TAG-2 Supply - Device status, Green Supply +24 VDC Ch. 1 status, Red Ch. 2 status, Red FLASH Status relay N.C. Status relay N.C. Current, 4...20 mA Output, Gnd.

  • Page 16: Signal Error Indications Without Display Front

    Signal error indications without display front List of LED and error signal indications Ch. 1: Ch. 2: Power rail Condition Green LED Status relay, N.C. signal status Device OK Blinking Energized No supply De-energized Device defective Blinking De-energized Ch. 1 defective (ch. 2 OK) Blinking De-energized Ch.

  • Page 17: Configuration / Operating The Function Keys

    Password protection: Programming access can be blocked by assigning a password. The password is saved in the device in order to ensure a high degree of protection against unauthorized modifications to the configuration. If the configured password is not known, please contact PR electronics support - www.prelectronics.com/contact. Loop limits In the menus LO.LIM and HI.LIM you can choose the current values which will trigger a loop error alarm from the status relay.

  • Page 18: Routing Diagram

    Routing diagram If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving.

  • Page 19: Routing Diagram, Advanced Settings (Adv.set)

    Routing diagram, advanced settings (ADV.SET) DISP, PASS, LANG, RAIL LOOP DISP LOOP TAG1 TAG2 SETUP CONTRA DISP LIGHT TAGNO TAGNO Txt 6 Txt 9 Txt 12 Txt 10 Txt 11 Txt 11 9999 0000 PASS 0000 SETUP EN.PASS NEW.PAS Txt 6 Txt 15 Txt 16 To default...

  • Page 20: Help Text Overview

    Help text overview [01] Set correct password [PASS] [02] Enter advanced setup [ADV.SET] [03] Set low limit for loop error detection [LO.LIM1] [LO.LIM2] [04] Set high limit for loop error detection [HI.LIM1] [HI.LIM2] [05] Enable rail status signal output? [RAIL.ER] Enter display setup [SETUP] [06] Enter password setup [SETUP]...

  • Page 21: Iecex Installation Drawing

    9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK IECEx Installation drawing For safe installation of 9107 the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. Year of manufacture can be taken from the first two digits in the serial number.
  • Page 22 9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) Um: 253 V, max 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Power Rail CH1 (terminal 41,42) CH2 (terminal 51,52)
  • Page 23 9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK 9107Ax, 9107Bx Installation: Hazardous area Zone 2 -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Supply: 19.2 – 31.2 VDC Power Rail (terminal 31,32) (terminal 91,92,93,94,95) Input: Output (terminal 11,12,13,14) CH1 (terminal 41,42) CH2 (terminal 51,52) Status Relay.

  • Page 24: Atex/Ukex Installation Drawing

    For Installation in Zone 2 the following must be observed. The 4501 programming module is to be used solely with PR electronics modules. It is important that the module is undamaged and has not been altered or modified in any way.
  • Page 25 9107QA01 LERBAKKEN 10, 8410 RØNDE DENMARK For installation on Power Rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 (Type Examination Certificate KEMA 07ATEX0152 X, DEKRA 21UKEX0169 X) is allowed. Max. screw terminal torque 0.5 Nm. Stranded wire should be installed with an insulation stripping length of 5 mm or via a suitable insulated terminal such as a bootlace ferrule.
  • Page 26 9107QA01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminal 11,12,13,14) Hazardous area Non Hazardous area (terminal 31,32,33,34) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 91,92,93,94,95) Um: 253 V, max 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Power Rail CH1 (terminal 41,42) CH2 (terminal 51,52)
  • Page 27 For Installation in Zone 2 the following must be observed. The 4501 programming module is to be used solely with PR electronics modules. It is important that the module is undamaged and has not been altered or modified in any way. Only 4501 modules free of dust and moisture shall be installed.

  • Page 28: Fm Installation Drawing

    9107QF01 LERBAKKEN 10, 8410 RØNDE DENMARK FM Installation drawing For safe installation of 9107B the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. Year of manufacture can be taken from the first two digits in the serial number.
  • Page 29 9107QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Warning: To prevent ignition of the explosive atmospheres, disconnect power before servicing and do not separate connectors when energized and an explosive gas mixture is present. Warning: Do not install or remove modules from the Power Rail when an explosive gas mixture is present. Hazardous Classified Location Unclassified Location or Hazardous Classified Location...

  • Page 30: Ul Installation Drawing

    The 4501 programming module is to be used solely with PRelectronics modules. It is important that the module is undamaged and has not been altered or modified in any way. Only 4501 modules free of dust and moisture shall be installed. 9107AA-U9: 1 channel HART ...
  • Page 31 9107QU01 LERBAKKEN 10, 8410 RØNDE DENMARK Installation notes 9107Ax and 9107Bx: The module must be installed in a tool-secured enclosure suitable for the application in accordance with the National Electrical Code (ANSI/NFPA 70) for installation in the United States, the Canadian Electrical Code for installations in Canada, or other local codes, as applicable.
  • Page 32 9107QU01 LERBAKKEN 10, 8410 RØNDE DENMARK capacitance, Ca (or Co), shown on any associated apparatus used. The same applies for inductance (Lcable, Li and La or Lo, respectively). Where the cable capacitance and inductance per foot are not known, the following values shall be used: Ccable = 60 pF/ft., Lcable = 0.2 μH/ft. Where multiple circuits extend from the same piece of associated apparatus, they must be installed in separate cables or in one cable having suitable insulation.
  • Page 33 9107QU01 LERBAKKEN 10, 8410 RØNDE DENMARK 9107Bx Installation: Hazardous Classified Location Unclassified Location or Hazardous Classified Location Class I / II / III, Division 1, Group A,B,C,D,E,F,G Class I, Division 2 Group A,B,C,D T4 Class I Zone 0 / 1 / 2 Group IIC, IIB, IIA or Class I, Zone 2, Group IIC, IIB, IIA T4 Zone 20 / 21 (terminal 11,12,13,14)
  • Page 34 9107QU01 LERBAKKEN 10, 8410 RØNDE DENMARK 9107Ax and 9107Bx Installation: Unclassified Location or Supply terminal (31,32) Hazardous Classified Location Voltage: 19.2 – 31.2 VDC Class I, Division 2 Group A,B,C,D T4 Class I, Zone 2, Group IIC, IIB, IIA T4 Status relay, terminal (33,34) Class I Division 2 or Zone 2 installation:...

  • Page 35: Desenho De Instalaçao Inmetro

    9107QB01 LERBAKKEN 10, 8410 RØNDE DENMARK INMETRO - Desenhos para Instalação Para instalação segura do 9107B o manual seguinte deve ser observado. O módulo deve ser instalado somente por profissionais qualificados que estão familiarizados com as leis nacionais e internacionais, diretrizes e normas que se aplicam a esta área. Ano de fabricação pode ser obtido a partir dos dois primeiros dígitos do número de série.
  • Page 36 9107QB01 LERBAKKEN 10, 8410 RØNDE DENMARK Área de classificada Área de não classificada (terminais: 11,12,13,14) (terminais: 31,32,33,34) Zona 0,1,2, 20, 21, 22 ou Zona 2 (terminais: 91,92,93,94,95) Um: 253 V, máx. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 TRILHO DE ENERGIA CN1 (terminais 41,42) CN2 (terminais51,52)

  • Page 37: Kcs Iecex Installation Drawing

    제조연도는 일련번호의 처음 두 자리입니다. 구역 2에 설치하려면 다음 사항을 준수해야 합니다. 4501 프로그래밍 모듈은 PR electronics 모듈과 함께만 사용해야 합니다. 모듈이 손상되지 않았고, 어떤 식으로든 변경 또는 수정되지 않는 것이 중요합니다. 먼지와 습기가 없는 상태에서 4501 모듈을 설치해야 합니다.
  • Page 38 9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK 위험 지역 비위험 지역 (단자 11,12,13,14) 구역 0,1,2, 20, 21, 22 또는 구역 2 (단자 31,32,33,34) (단자 91,92,93,94,95) Um: 253 V, 최대 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Power Rail CH1(단자...
  • Page 39 9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK 9107Ax, 9107Bx 설치: 위험 지역 구역 2 -20 ≤Ta ≤ +60ºC 4501 9107 공급: 19.2 – 31.2 VDC 91 92 93 94 95 Power Rail (단자 31,32) 출력 CH1(단자 41,42) (단자 91,92,93,94,95) CH2(단자 51,52) 입력: (단자...

  • Page 40: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1901 Specifications for max. required power added. FM and INMETRO certificate numbers updated. Installation drawings updated. 1945 9107A-version included in manual. Variant with UL 913 approval added. CCOE approval discontinued.
