PR electronics 9107 Product Manual

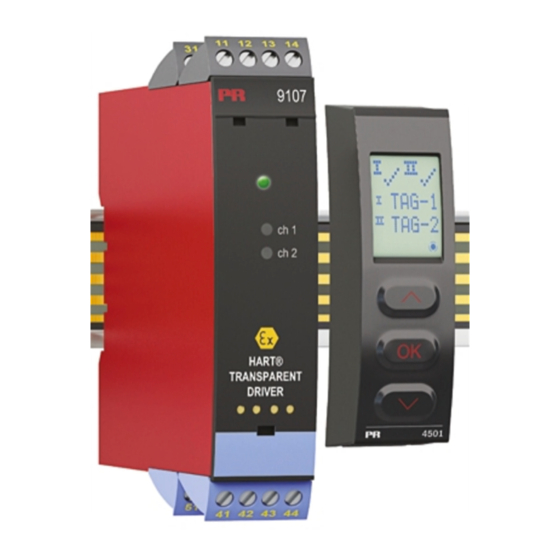

Hart transparent driver
Hide thumbs Also See for 9107:
Table of Contents

Advertisement

Quick Links

Download this manual

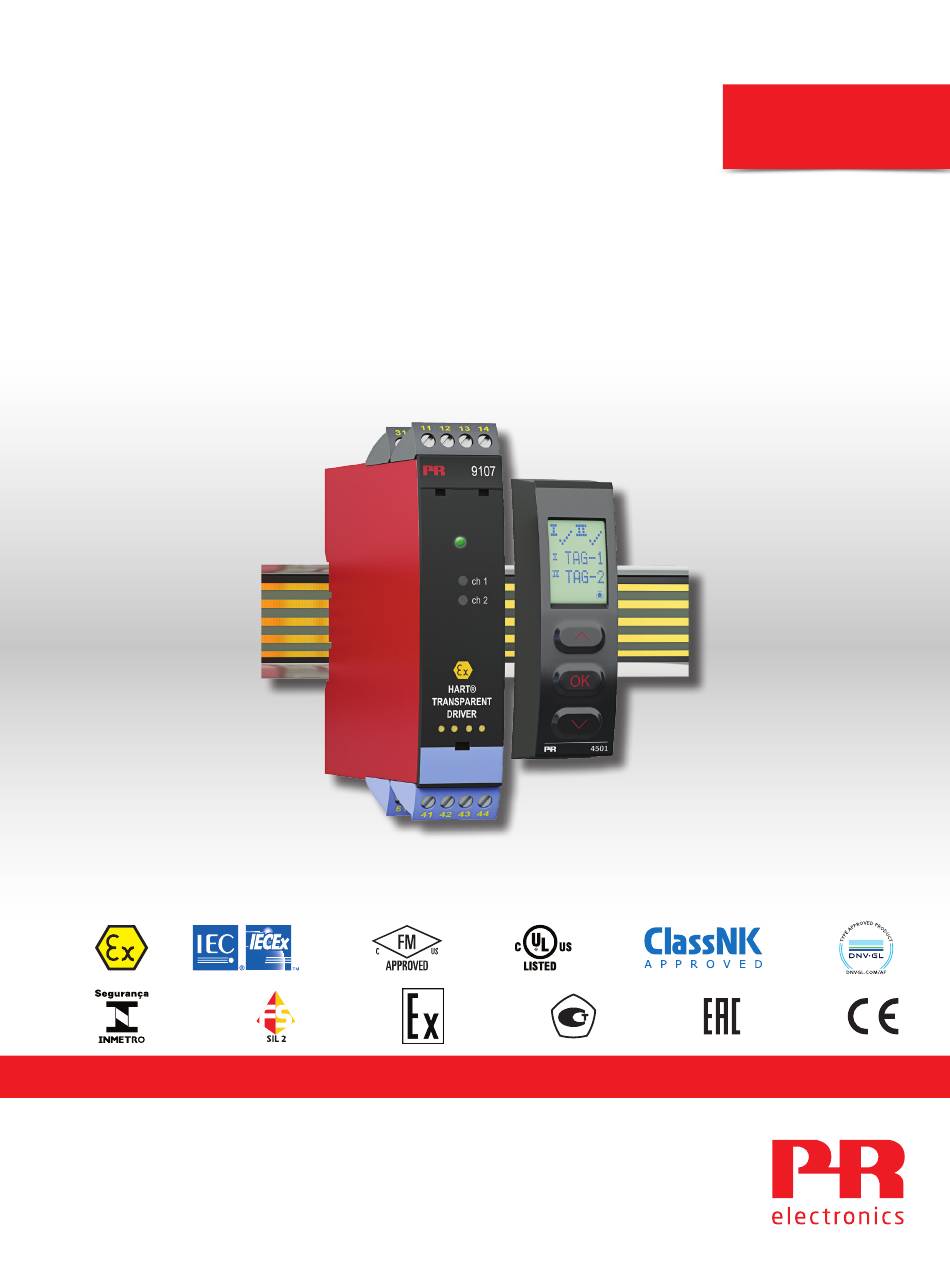

Product manual
9107
HART transparent driver
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 9107 V105- UK
Produc t ver sion: 9107- 0 02
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9107 and is the answer not in the manual?

Questions and answers

Related Manuals for PR electronics 9107

Summary of Contents for PR electronics 9107

  • Page 1 CO M M U N I C AT I O N I N T E R FA C E S M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY No. 9107 V105- UK Produc t ver sion: 9107- 0 02...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    Document history ..................9107 - Product version 9107-002...

  • Page 4: Warning

    General mounting, wire connection and disconnection. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning Do not open the front plate of the device as this will cause damage to the connector for the display / programming front PR 45xx.

  • Page 5: How To Demount System 9000

    To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement. How to demount system 9000 Picture 1: By lifting the bottom lock, the device is detached from the DIN rail. 9107 - Product version 9107-002...

  • Page 6: Application

    • SIL2 certified via Full Assessment according to IEC 61508 Application • 9107 is a 1- or 2-channel isolated 1:1 driver barrier for intrinsic safety applications. • Operation and drive control of I/P converters, valves and indicators mounted in the hazardous area.

  • Page 7: Applications - 9107Axx

    No connection No connection Power connection: Channel 2 Supply - Supply +19.2...31.2 VDC Device status N.C. Device status Same power rail as above Zone 2 & Cl. 1, Div. 2, gr. A-D or Safe Area 9107 - Product version 9107-002...

  • Page 8: Applications - 9107Bxx

    N.C. Device status Zone 0, 1, 2, Same power rail as above 20, 21, 22, M1 & Cl. I/II/III, Div. 1 Zone 2 & Cl. 1, Div. 2, gr. A-D gr. A-G or Safe Area 9107 - Product version 9107-002...

  • Page 9: Pr 45Xx Display / Programming Front

    Functions and configuration options are described in the section ”Configuration / operating the function keys”. Application • Communications interface for modification of operational parameters in 9107. • When mounted in the process, the display shows process values and device status. Technical characteristics •...

  • Page 10: Order

    Max. power dissipation is the maximum power dissipated by the device. If the 9107 is used with the 45xx, then add 40 mW to the max. power dissipation and 70 mW to the max. required power for each device with the 45xx.
  • Page 11 Current limit........≤ 28 mA Output Compliance 725 Ω 630 Ω 0 Ω 0 mA 20 mA 23 mA Output Current of span = normal measurement range 4...20 mA 9107 - Product version 9107-002...
  • Page 12 EAC Ex ......... . RU C-DK.HA65.B.00355/19 Functional Safety SIL2 Certified & Fully Assessed acc. to IEC 61508 SFF> 60% - type A component 9107 - Product version 9107-002...

  • Page 13: Visualisation In The 45Xx Of Hardware / Software Error

    Visualisation in the 45xx of hardware / software error Readout at hardware error Error search Readout Cause Communications test 45xx and 9107 NO.CO Connection error Configuration error or CRC mismatch, recovery EEprom error - check configuration FL.ER configuration is loaded...

  • Page 14: Connections

    HART communication is possible directly on the input and output terminals if the output load impedance is > 250 Ohm & < 725 Ohm or if the input loop resistance is higher than 250 Ohm. 9107 - Product version 9107-002...

  • Page 15: Block Diagram

    Ch. 2 status, Red FLASH Status relay N.C. Status relay N.C. Current, 4...20 mA Output, Gnd. Input, Gnd. Channel 1 Channel 2 is identical to channel 1 Current, 4...20 mA Input, Gnd. 9107 Output, Gnd. Channel 2 9107 - Product version 9107-002...

  • Page 16: Signal Error Indications Without Display Front

    Ch. 2, signal limit exceeded Blinking Blinking De-energized ON (if activated) Ch. 2, fixed loop break limit Blinking Flashing De-energized exceeded (if activated) Blinking : 50% ON and 50% OFF Flashing : 8% ON and 92% OFF 9107 - Product version 9107-002...

  • Page 17: Configuration / Operating The Function Keys

    In general When configuring the 9107, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display.

  • Page 18: Routing Diagram

    In case of loop break, 0.0 is shown for 5 s. followed by txt Line 1 symbols: Line 3 shows the same as line 2, only for channel 2.  = OK. Flashing œ = error. Line 4 shows status for communication. 9107 - Product version 9107-002...

  • Page 19: Routing Diagram, Advanced Settings (Adv.set)

    Txt 11 Txt 11 9999 0000 PASS 0000 SETUP EN.PASS NEW.PAS Txt 6 Txt 15 Txt 16 To default state 1.0 LANG SETUP LANGUA Txt 6 Txt 17 RAIL SETUP RAIL.EN Txt 6 Txt 5 9107 - Product version 9107-002...

  • Page 20: Help Text Overview

    Enable password protection [EN.PASS] [16] Set new password [NEW.PAS] [17] Select language [LANGUA] [18] Loop signal limit exceeded [19] Loop wire breakage [20] No communication - check connections Eeprom error - check configuration [21] [22] Hardware error 9107 - Product version 9107-002...

  • Page 21: Iecex Installation Drawing

    For installation on Power Rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 (Type Examination Certificate KEMA 07ATEX0152) is allowed. Revision date: Version Revision Prepared by: Page: 2013-09-11 V3 R0 9107 - Product version 9107-002...
  • Page 22 CH1 (terminal 41,42) CH2 (terminal 51,52) 28 V 93 mA 0.65 W 3.76 µF 0.080F 0.650F 2.15 F 4 mH 16 mH 32 mH 35 mH Revision date: Version Revision Prepared by: Page: 2013-09-11 V3 R0 9107 - Product version 9107-002...

  • Page 23: Atex Installation Drawing

    For installation on Power Rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 (Type Examination Certificate KEMA 07ATEX0152 X) is allowed. Revision date: Version Revision Prepared by: Page: 2013-09-11 V3 R0 9107 - Product version 9107-002...
  • Page 24 CH1 (terminal 41,42) CH2 (terminal 51,52) 28 V 93 mA 0.65 W 3.76 µF 0.080F 0.650F 2.15 F 4 mH 16 mH 32 mH 35 mH Revision date: Version Revision Prepared by: Page: 2013-09-11 V3 R0 9107 - Product version 9107-002...

  • Page 25: Fm Installation Drawing

    The module is galvanically isolated and does not require grounding. Use 60 / 75 ºC copper conductors with wire size AWG: (26-14) Warning: Substitution of components may impair intrinsic safety. Revision date: Version Revision Prepared by: Page: 2019-04-04 V3 R0 9107 - Product version 9107-002...
  • Page 26 IIC or A,B IIB or C,E,F IIA or D,G Um: 253 V, max 400 Hz 0.08F 0.650F 2.15 F 4 mH 16 mH 32 mH Revision date: Version Revision Prepared by: Page: 2019-04-04 V3 R0 9107 - Product version 9107-002...

  • Page 27: Ul Installation Drawing

    For Installation in Div2 / Zone2 the following must be observed. The 4501 programming module is to be used solely with PR electronics modules. It is important that the module is undamaged and has not been altered or modified in any way. Only 4501 modules free of dust and moisture shall be installed.
  • Page 28 Table 1. Cable capacitance, Ccable, plus intrinsically safe equipment capacitance, Ci must be less than the marked Revision date: Version Revision Prepared by: Page: 2019-11-26 V1 R0 9107 - Product version 9107-002...
  • Page 29 La (or Lo) determined by this method shall not be exceeded by the sum of all of Ci plus cable capacitances and the sum of all of the Li plus cable inductances in the circuit respectively. Revision date: Version Revision Prepared by: Page: 2019-11-26 V1 R0 9107 - Product version 9107-002...
  • Page 30 Ca or C 0.08F 0.650F 2.15 F Voltage max: 32Vac / 32Vdc La or L 4 mH 16 mH 32 mH Current max: 0.5Aac / 0.3Adc Revision date: Version Revision Prepared by: Page: 2019-11-26 V1 R0 9107 - Product version 9107-002...
  • Page 31 32 Vac/ 32 Vdc Current max: 0.5 Aac / 0.3 Adc -20 ≤ Ta ≤ 60ºC 4501 9107 91 92 93 94 95 Power Rail Revision date: Version Revision Prepared by: Page: 2019-11-26 V1 R0 9107 - Product version 9107-002...

  • Page 32: Desenho De Instalaçao Inmetro

    Para a instalação de trilho de energia na Zona 2, apenas o trilho de alimentação Rail 9400 fornecido pela Unidade de Controle de Potência 9410 é permitido. Revision date: Version Revision Prepared by: Page: 2016-02-10 V3 R0 9107 - Product version 9107-002...
  • Page 33 CN1 (terminais 41,42) CN2 (terminais51,52) 28 V 93 mA 0,65 W 3,76 µF 0,080F 0,650F 2,15 F 4 mH 16 mH 32 mH 35 mH Revision date: Version Revision Prepared by: Page: 2016-02-10 V3 R0 9107 - Product version 9107-002...

  • Page 34: Document History

    Specifications for max. required power added. FM and INMETRO certificate numbers updated. Installation drawings updated. 1945 9107A-version included in manual. Variant with UL 913 approval added. CCOE approval discontinued. New FM certificate and installation drawing. 9107 - Product version 9107-002...
  • Page 35 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
  • Page 36 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
